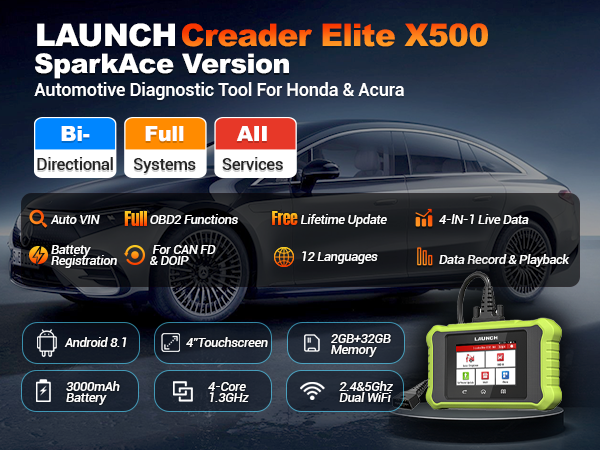

LAUNCH Creader Elite X500S HA — Professional OE-Level Diagnostic Scanner
Designed for Honda · Acura — Full System Diagnostics, ECU Coding, Bi-Directional Control & 100+ Service Resets
The Creader Elite X500S HA is a professional-grade diagnostic tool purpose-built for Honda and Acura vehicles. Powered by Android 8.1 with a 4-inch touchscreen, it delivers dealer-level functionality including OE-level full system scanning, ECU coding, active bi-directional tests, and comprehensive service reset capabilities — all at a fraction of dealership cost.
Why Choose LAUNCH Creader Elite X500S HA?
LAUNCH — Professional Team
- OE-Level Full System Diagnostics: Scan all electronic control units including ECM, ABS, SRS, TCM, BMS, and more — not just engine codes. True dealer-level coverage for Honda and Acura vehicles
- ECU Coding & Hidden Feature Activation: Unlock hidden vehicle functions, enable/disable features, and perform module coding that basic code readers cannot touch
- Bi-Directional Active Control: Command components directly — test windows, sunroofs, fuel injectors, headlights, wipers, parking brakes, cooling fans, and more. Verify repairs in real-time
- 100+ Service Reset Functions: Oil reset, EPB (electronic parking brake), BMS (battery management), ABS bleed, TPMS, throttle adaptation, SAS (steering angle sensor), transmission learning, DPF regeneration, sunroof initialization, AC adaptation, and many more
- Complete OBDII 10-Mode Support: Read/Erase Codes, Live Data, Freeze Frame, I/M Readiness, O2 Sensor Test, On-Board Monitor, EVAP Test, Vehicle Information, Performance Test, and DTC Lookup
- CAN FD & DOIP Protocols: Full support for Honda's latest communication protocols — compatible with both new and classic Honda/Acura vehicles
- Lifetime Free Updates: Stay current with the latest vehicle coverage and software enhancements at no additional cost
- 12-Language Support: English, French, German, Spanish, Italian, Portuguese, Russian, Japanese, Korean, Traditional Chinese, Polish, Turkish
- 2-Year Manufacturer Warranty: Full coverage against defects in materials and workmanship for peace of mind
Product Highlights
OE-Level Full System Diagnostics
Unlike entry-level code readers that only scan the engine, the X500S HA performs comprehensive diagnostics across all vehicle control modules. Whether you're dealing with a check engine light, ABS warning, airbag fault, or transmission issue, the X500S HA pinpoints the root cause instantly.
- Engine (ECM): Read/erase codes, live data, active tests for engine management systems
- ABS & Stability (ABS/VSA): Diagnose anti-lock braking, traction control, and stability system faults
- Airbag (SRS): Read and clear supplemental restraint system fault codes
- Transmission (TCM): Diagnose automatic and manual transmission control modules
- Battery Management (BMS): Monitor battery health, register new batteries, and manage charging systems
- Climate Control (HVAC): Diagnose HVAC system faults and perform AC adaptation
- And many more: Instrument cluster, steering angle sensor, parking brake, lighting, door modules, and more
ECU Coding & Hidden Feature Activation
Go beyond diagnostics with module coding capabilities. The X500S HA allows you to customize your vehicle by enabling or disabling factory-set features:
- Feature Coding: Enable welcome lights, folding mirrors on lock, auto-lock, video-in-motion, and other hidden factory features
- Module Replacement Coding: Code replacement ECUs to match your vehicle's configuration
- Retrofit Support: Code newly installed modules for aftermarket upgrades and retrofits
- VIN Coding: Write and verify vehicle identification number in compatible modules
Bi-Directional Active Control
Command vehicle components directly from the scanner to verify functionality and pinpoint mechanical or electrical faults:
- Window & Sunroof Test: Open/close windows and sunroofs to verify regulator and motor operation
- Fuel Injector Test: Activate individual injectors for cylinder contribution testing
- Cooling Fan Test: Command fans at various speeds to verify cooling system operation
- Headlight & Wiper Test: Test lighting circuits and wiper motor functionality
- Parking Brake Service: Retract and reapply electronic parking brake for pad replacement
- Actuator Tests: Command solenoids, valves, relays, and motors across multiple systems
100+ Service Reset Functions
Perform routine maintenance resets and adaptations that normally require a dealer visit:
| Oil Reset | Reset service interval after oil change — supports Honda Maintenance Minder system |
| EPB Service | Retract and reset electronic parking brake for brake pad replacement |

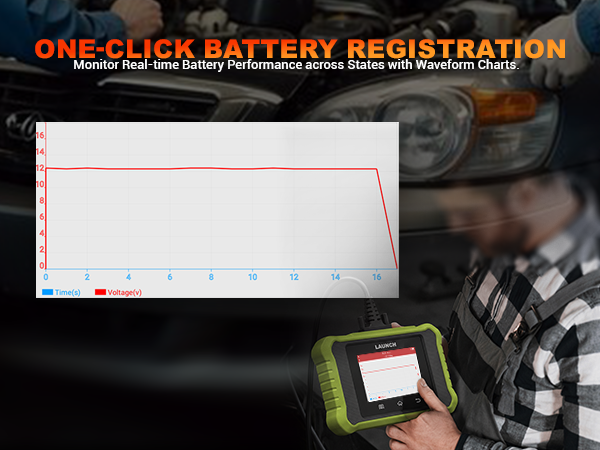

| BMS Reset | Register new battery and reset battery management system after replacement |
| ABS Bleed | Activate ABS pump and solenoids for brake fluid bleeding procedure |
| TPMS Reset | Reset tire pressure monitoring system after sensor replacement or tire rotation |
| Throttle Adaptation | Relearn throttle position sensor after cleaning or replacement |
| SAS Calibration | Calibrate steering angle sensor after alignment or component replacement |
| Transmission Adaptation | Reset transmission shift adaptations after fluid change or repair |
| DPF Regeneration | Initiate diesel particulate filter regeneration cycle |
| Sunroof Initialization | Relearn sunroof travel limits after motor or track replacement |
Complete OBDII 10-Mode Support
Full compliance with all 10 OBDII diagnostic modes for comprehensive emissions and system analysis:
| Mode 1 — Live Data | View real-time sensor readings: RPM, coolant temp, fuel trim, O2 voltage, load, timing, and more |
| Mode 2 — Freeze Frame | Capture vehicle data snapshot at the moment a fault was detected |
| Mode 3 — Read Codes | Retrieve stored and pending diagnostic trouble codes |
| Mode 4 — Erase Codes | Clear fault codes and reset monitors after repairs |
| Mode 5 — O2 Sensor Test | Monitor oxygen sensor performance and response times |
| Mode 6 — On-Board Monitor | Access non-continuous monitor test results for advanced diagnostics |
| Mode 7 — Pending Codes | Read pending (not yet confirmed) trouble codes |
| Mode 8 — EVAP Test | Test evaporative emission control system integrity |
| Mode 9 — Vehicle Info | Read VIN, calibration IDs, CVN, and ECU information |
| Mode 10 — Permanent Codes | Read permanent diagnostic trouble codes (cannot be erased by scan tool) |
VEHICLE COMPATIBILITY LIST (HONDA / ACURA)
This LAUNCH X500S-HA diagnostic tool is specially designed for Honda Group vehicles. It offers full-system diagnosis, ECU coding, active tests, throttle relearn, and special service resets for the following brands and models:
1. Honda (Passenger Cars, SUVs & Minivans)
| Vehicle Line | Compatible Top-Selling Models & Trims | Vehicle Type |
|---|---|---|
| Honda Cars | Civic (Si / Type R), Accord, Fit, Insight, Prelude | Sedans & Hatchbacks |
| Honda SUVs | CR-V, Pilot, HR-V, Passport, Element, Ridgeline (Pickup) | Crossovers & Trucks |
| Minivans & Hybrid | Odyssey, Prologue EV, Clarity Plug-In, Hybrid Series | Family Vans & Electrics |
2. Acura Series (Premium Luxury & Performance Vehicles)
| Model Line | Compatible Luxury Trims & Type S Sport Series | Platform Classification |
|---|---|---|
| Acura SUVs | MDX, RDX, ZDX EV, ADX (SH-AWD Models / Type S) | Luxury Crossovers |
| Acura Cars | TLX, Integra, ILX, RLX, TSX, TL, RSX, NSX Supercar | Sport & Luxury Sedans |
IMPORTANT NOTE FOR HONDA/ACURA BUYERS:
• Full System Diagnostic Matrix: Supports deep electronic module scans on Honda and Acura vehicles from 1996 to PRESENT, including VTEC gasoline, i-MMD Hybrid, and newer all-electric platforms.
• Advanced HA Special Functions: Fully supports Throttle Body Relearn (Idle Speed Reset), ABS Brake Bleeding, Steering Angle Sensor (SAS) Calibration, and EPB Electronic Parking Brake pad replacement reset.
• Intelligent Auto-VIN Scan: Features automatic chassis identifier matching. Plugs into the under-dash OBD2 gateway to immediately pull vehicle parameters without manual menu scrolling.
Vehicle Compatibility
Purpose-built for Honda & Acura Vehicles:
- Honda: Civic, Accord, CR-V, HR-V, Pilot, Passport, Ridgeline, Odyssey, Fit, Insight, Clarity, Prelude, Element, S2000, NSX, and all current/classic models
- Acura: Integra, TLX, RDX, MDX, ILX, RLX, NSX, RSX, TSX, TL, RL, ZDX, and all legacy models
Supported Protocols: CAN FD, DOIP, ISO 15765, ISO 9141, ISO 14230, SAE J1850 PWM
Compatible with both new and classic models. CAN FD & DOIP support ensures full compatibility with the latest Honda/Acura vehicle architecture.
Technical Specifications
| Display | 4-inch TFT Color Touchscreen |
| Operating System | Android 8.1 |
| Processor & Memory | Quad-Core 1.3GHz + 2GB RAM + 32GB ROM |
| Battery | 3000mAh Rechargeable Li-Polymer |
| Connectivity | Dual-band WiFi 2.4GHz / 5GHz |
| Diagnostic Protocols | CAN FD, DOIP, CAN, KWP2000, ISO 9141, J1850 VPW/PWM |
| Vehicle Coverage | Honda · Acura (all models, all years) |
| Update Policy | Lifetime Free Updates |
| Languages | 12 Languages: English, French, German, Spanish, Italian, Portuguese, Russian, Japanese, Korean, Traditional Chinese, Polish, Turkish |
| Certifications | CE, FCC, RoHS |
| Warranty | 2 Years |
Who Is X500S HA For?
LAUNCH Professional Diagnostic Service
Ideal Users:
- Honda and Acura owners who want dealer-level diagnostics at home
- Independent workshops and garages specializing in Asian vehicles
- Performance tuners and enthusiasts performing ECU coding and feature activation
- Used car dealers conducting pre-purchase inspections on Honda/Acura vehicles
- Fleet managers maintaining Honda/Acura vehicle fleets
Not Recommended For:
- Non-Honda/Acura vehicles — this model is specifically optimized for Honda & Acura
- Users who only need basic engine code reading (consider the Creader G700 for entry-level needs)
LAUNCH Global Warehouse & Logistics Center

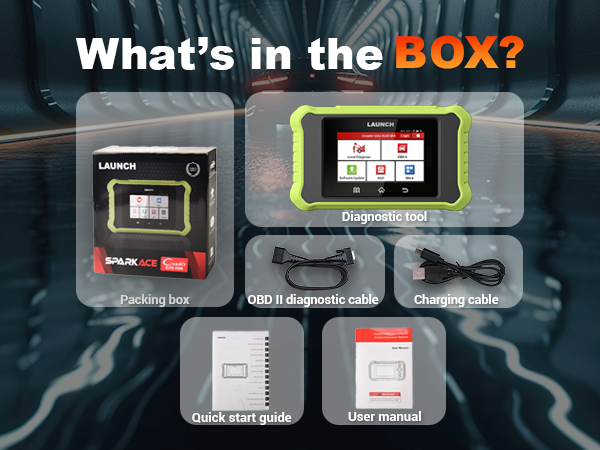

Package Contents
- 1 × LAUNCH Creader Elite X500S HA Main Unit
- 1 × OBDII 16-Pin Diagnostic Cable
- 1 × USB Charging Cable
- 1 × User Manual
- 1 × Quick Start Guide
How to Use
- Connect: Plug the OBDII cable into your vehicle's 16-pin diagnostic port (located under the dashboard)
- Power On: Turn the ignition to ON position. The X500S HA powers on automatically via the OBDII port or its internal battery
- Select Vehicle: Choose Honda or Acura from the vehicle selection menu
- Choose Function: Select from Full System Scan, ECU Coding, Bi-Directional Control, Service Reset, or OBDII Diagnosis
- Diagnose: Follow on-screen prompts to read codes, view live data, perform active tests, or execute service functions
- Review & Save: View diagnostic results, generate reports, and save data for future reference
Key Advantages
- Dealer-Level Functionality: Perform diagnostics and coding that typically require expensive dealer-level scan tools — at a fraction of the cost
- Honda-Specific Optimization: Purpose-built for Honda & Acura vehicles, not a generic tool with limited coverage
- CAN FD & DOIP Ready: Full support for the latest Honda communication protocols — works with both new and classic models
- Touchscreen Convenience: 4-inch color touchscreen with intuitive Android-based interface for easy navigation
- No Subscription Fees: Lifetime free updates with no annual subscription or per-vehicle licensing costs
- Portable & Self-Powered: Built-in 3000mAh battery allows wireless operation away from the vehicle
- Trusted Brand: LAUNCH is a global leader in automotive diagnostics with decades of industry experience and a professional European support team
LAUNCH R&D & Product Strategy Team
LAUNCH Corporate Headquarters
Frequently Asked Questions (FAQ)
Q1: Does the X500S HA support my Honda/Acura?
The Creader Elite X500S HA is purpose-built for all Honda and Acura vehicles including Honda (Civic, Accord, CR-V, HR-V, Pilot, Passport, Ridgeline, Odyssey, Fit, Insight, Clarity, Prelude, Element, S2000, NSX) and Acura (Integra, TLX, RDX, MDX, ILX, RLX, NSX, RSX, TSX, TL, RL, ZDX). It supports both new models with CAN FD & DOIP protocols and classic models. If you're unsure about your specific year/model, please contact us via eBay Messages before purchasing.
Q2: Can this tool diagnose non-Honda/Acura vehicles?
The X500S HA is specifically optimized for Honda and Acura vehicles. While it may read basic OBDII codes from other brands, advanced functions like ECU coding, bi-directional control, and service resets are designed exclusively for Honda/Acura vehicles. For multi-brand diagnostics, consider the standard Creader Elite X500 (non-HA version).
Q3: Does it support ECU coding for feature activation?
Yes. The X500S HA can perform module coding to enable/disable factory-set features such as welcome lights, folding mirrors on lock, auto-lock, video-in-motion, and other hidden functions. This is one of the key advantages over basic code readers and even some mid-range scanners.
Q4: What's the difference between X500S HA and G700?
The G700 is an entry-level code reader that only scans the engine system (OBDII 10 modes). The X500S HA is a professional-grade scanner with OE-level full system diagnostics (ECM, ABS, SRS, TCM, BMS, etc.), ECU coding, bi-directional active control, 100+ service resets, Android touchscreen interface, and Honda-specific optimizations. Think of G700 as a basic thermometer — the X500S HA is a full medical diagnostic suite.
Q5: Is there any subscription fee or annual charge?
No. The X500S HA comes with lifetime free software updates. There are no hidden subscription fees, no annual charges, and no per-vehicle licensing costs. You pay once and receive continuous updates indefinitely.
Q6: What does the warranty cover exactly?
The 2-year manufacturer warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, drops, water exposure, unauthorized modifications, or use on incompatible vehicles. If you experience a hardware issue within the warranty period, contact us via eBay Messages and we will arrange repair or replacement. The warranty is provided by LAUNCH and honored globally.
Q7: Do I need to connect a phone or computer?
No. The X500S HA is a standalone device with its own Android 8.1 operating system, 4-inch touchscreen, Quad-Core 1.3GHz processor, 2GB RAM, and 32GB storage. No smartphone, tablet, or PC required. Simply plug into the vehicle's OBDII port and start diagnosing.
Q8: Does it support diesel and electric Honda/Acura vehicles?
Yes. The X500S HA supports both diesel and electric Honda/Acura vehicles. For diesel models, it can perform DPF regeneration, injector coding, and glow plug diagnostics. For electric/hybrid models (Honda Insight, Clarity, Accord Hybrid, CR-V Hybrid, Acura NSX hybrid, and upcoming Honda Prologue EV), it can scan high-voltage battery management, electric drive motor, and charging system modules. CAN FD & DOIP protocol support ensures full compatibility with the latest Honda/Acura electrified architecture.
Q9: How do I update the software?
Connect the X500S HA to WiFi (dual-band 2.4GHz/5GHz supported), navigate to the "Update" section in the main menu, and follow on-screen prompts. Updates typically take 5-15 minutes depending on file size and connection speed. We recommend updating monthly or whenever a new version is released.
Q10: How long does it take to perform a full system scan?
A complete full system scan on a modern Honda/Acura typically takes 2-5 minutes, depending on the number of control modules installed in your vehicle (ranging from 15 to 40+ modules on fully-equipped models). Individual module scans take 10-30 seconds each. The X500S HA's Android 8.1 platform and Quad-Core processor ensure smooth, responsive scanning without lag.
Q11: How long does the battery last?
The built-in 3000mAh battery provides approximately 4-6 hours of continuous use. For extended sessions, you can operate the device while connected to the vehicle's OBDII port (which supplies power), so battery life is rarely a concern during normal diagnostic work.
Q12: Can I switch the interface language? Is Chinese supported?
Yes. The X500S HA supports 12 languages: English, French, German, Spanish, Italian, Portuguese, Russian, Japanese, Korean, Traditional Chinese, Polish, and Turkish. You can switch languages at any time from the Settings menu without re-downloading software. Note: Simplified Chinese is not currently supported — the Chinese option is Traditional Chinese.
Q13: Does it display live data as graphs or just numbers?

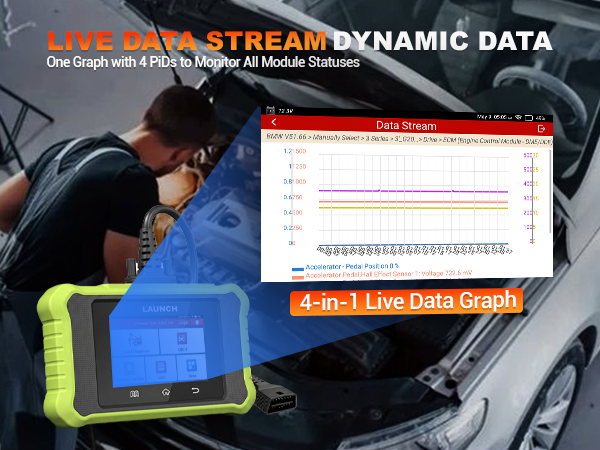

Both. The X500S HA displays live data in multiple formats: numeric values, analog-style gauges, and real-time line graphs. You can plot up to 4 parameters simultaneously on the graph view, making it easy to spot correlations and trends.
Q14: Can I record and replay live data sessions?
Yes. The X500S HA can record live data streams during a diagnostic session and save them for later review. You can replay recorded data, zoom into specific time ranges, and compare multiple parameters. This is particularly useful for intermittent faults that don't appear during a single test session.
Q15: Is the screen readable in direct sunlight?
The 4-inch TFT color touchscreen offers good visibility in most lighting conditions. In very bright direct sunlight, you may need to shade the screen slightly for optimal readability — this is common to all LCD-based diagnostic tools. For workshop and garage use, the screen performs excellently.
Q16: Can I print diagnostic reports?
Yes. The X500S HA can generate diagnostic reports and share them via QR code to mobile devices or laptops for printing. Reports include device information, diagnostic time, fault codes, and live data snapshots.
Q17: What if the device won't connect to my vehicle?
First, verify your vehicle is OBDII compliant (1996+ for most Honda/Acura models). Ensure the ignition is in the ON position. Check that the OBDII connector is firmly seated. If the indicator light illuminates but no data appears, the vehicle may use a non-standard protocol — contact us via eBay Messages for assistance.
Q18: Does it support Honda's SAE J1850 PWM protocol?
Yes. The X500S HA fully supports SAE J1850 PWM (Pulse Width Modulation) protocol, which is used on some older Honda vehicles. This ensures compatibility with classic Honda and Acura models that use this protocol.
Q19: What if I have technical questions after purchase?
We provide comprehensive support through eBay Messages. Our team responds within 24 hours on business days. Additionally, LAUNCH has a global network of authorized service centers and an online knowledge base with tutorials, FAQs, and troubleshooting guides.
Quality Assurance & Support
- 2-Year Manufacturer Warranty: Full coverage against defects in materials and workmanship
- Lifetime Free Updates: Continuous software updates with new vehicle coverage and enhanced functionality
- 12-Language Interface: Professional multilingual support for global users
- Professional Certifications: CE, FCC, RoHS certified for safety and quality
- LAUNCH Europe Support: Backed by LAUNCH's European technical support team
AutoVIN — Automatic Vehicle Identification & Module Detection

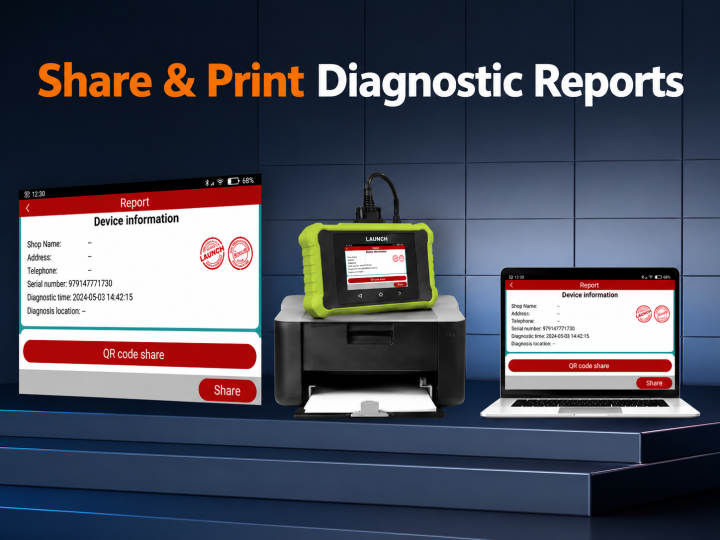

Cloud Print — Scan QR Code to Sync Diagnostic Report
Lifetime Free Updates — No Subscription Fees Ever
CAN FD & DOIP — Latest Honda Communication Protocols
24/7 Online Service — Professional Technical Assistance

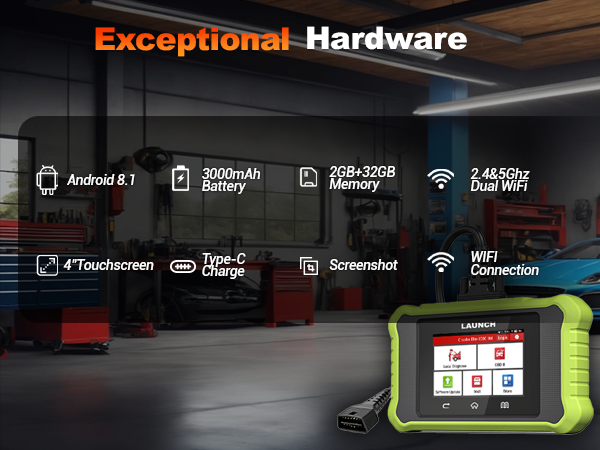

Exceptional Hardware — Android 8.1, 4" Touchscreen, 2GB+32GB
DTC Library — Smart Diagnose, Accurate Solutions
User-Friendly Scanner for Car Owners, Technicians, DIY Enthusiasts
Detect the Fault Code — Save Time and Money
What's in the Box — Complete Package for Immediate Use
LAUNCH Professional Customer Support
Ready to Unlock Your Honda/Acura's Full Potential?
Order the LAUNCH Creader Elite X500S HA today and get dealer-level diagnostic power — without the dealer price tag.
OE-Level Diagnostics · ECU Coding · Bi-Directional Control · 100+ Service Resets · Lifetime Free Updates · 2-Year Warranty
