Product Feature:
100% high quality and brand new
Product Parameter:
1.Brush: copper
2.Rotating torque: 60~150g. cm
3.Resistor: Electric board
4.Stop strength:>500g. cm
5.Middle leg: iron material, surface polished with tin
6.Resistance range: 100~2m
7.Corns: iron, surface polished with tin
8.Resistance deviation: ± 20%
9.Curved foot: iron material, surface polished with tin
10.Resistance change: B
11.Rubber cover: plastic POM, color: white, voltage: 50V
12.Rubber frame: plastic PBT, color: blue, rated: 0.1W
13.Rotation angle: 200 ° ± 20 °
14.Mechanical strength: The resistance piece can withstand a pressure of 1kg without cracking
15.Residual resistance value: no more than 5% of the nominal resistance value, with a limit of no more than 30 Ω
16.Rotation life: After 100 cycles of no-load rotation, the resistance change limit is ± 15%
17.Load life: Load rated power for 3 hours, with a resistance variation limit of ± 5%"
Product Application:
Widely used in electrical appliances, audio equipment, communications, medical facilities, security products, UPS power supplies, video recorders, MP3 players, VCDs, telephones, and other equipment
Package List:

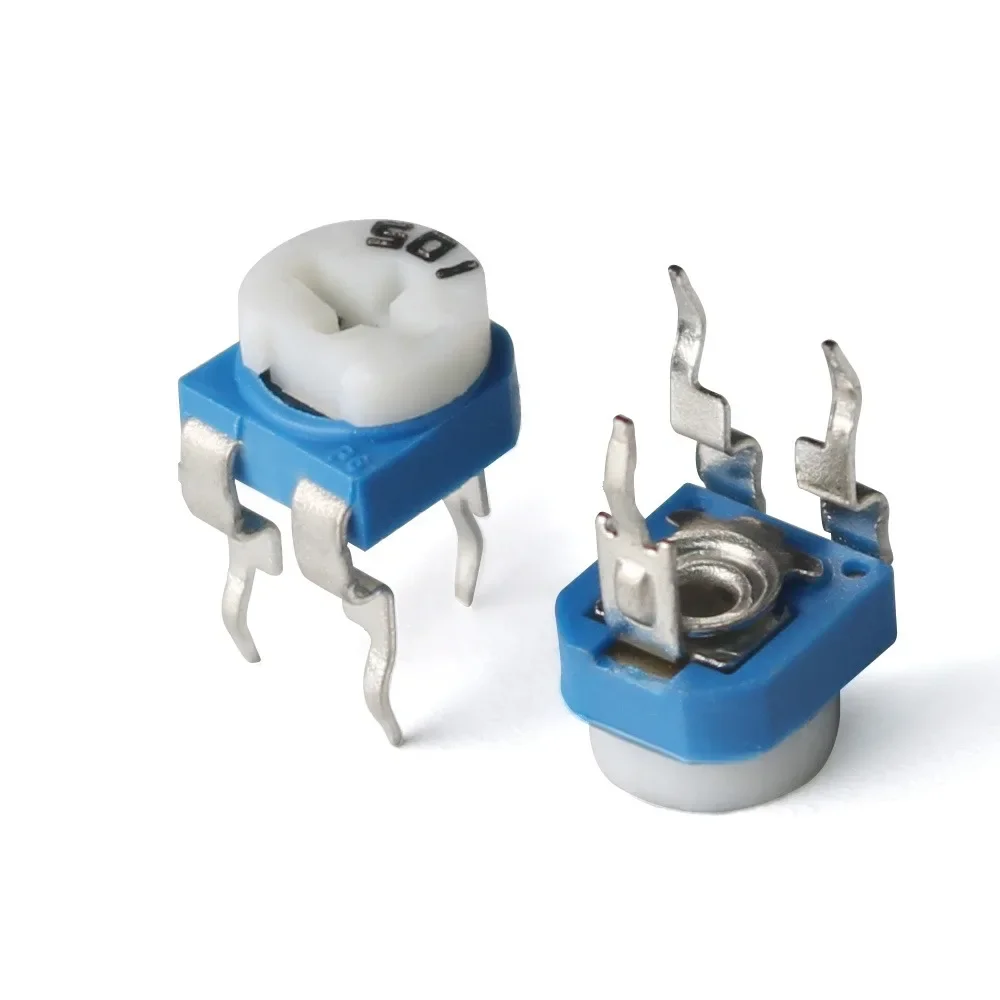

20PCS RM065 potentiometer
