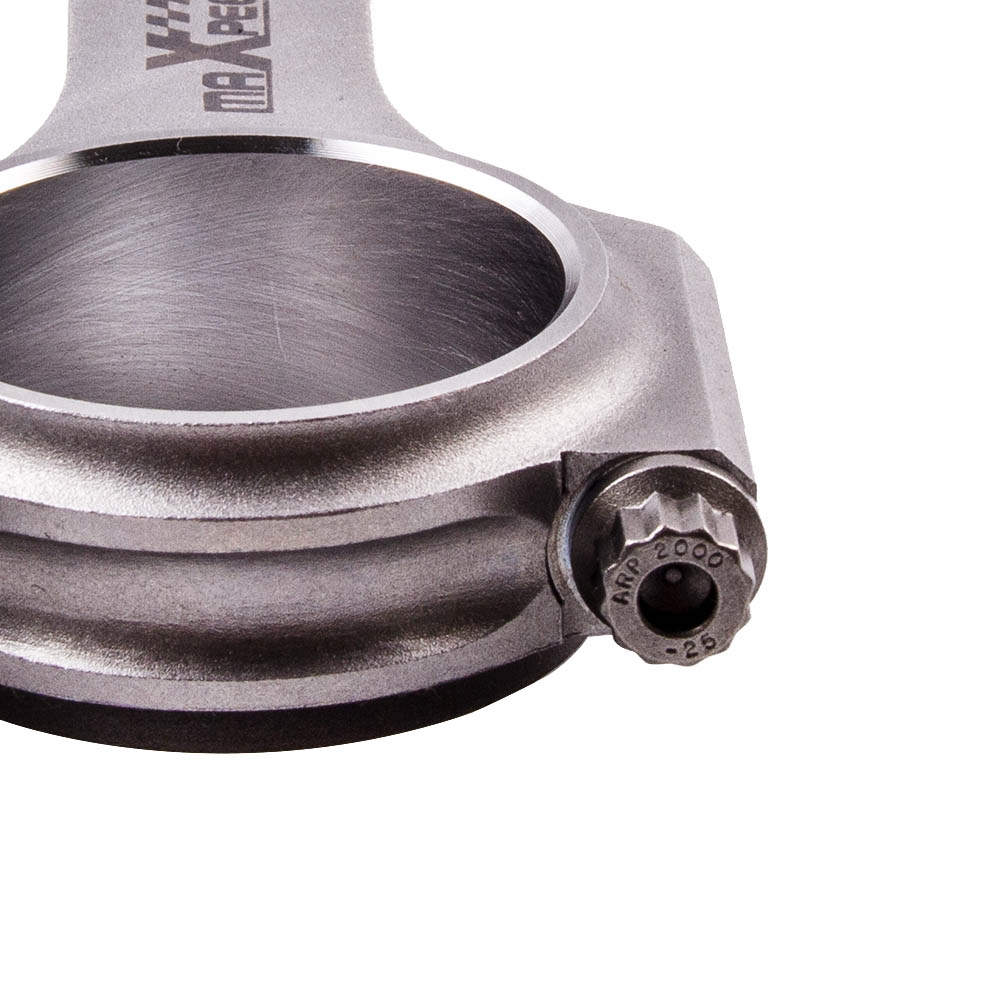

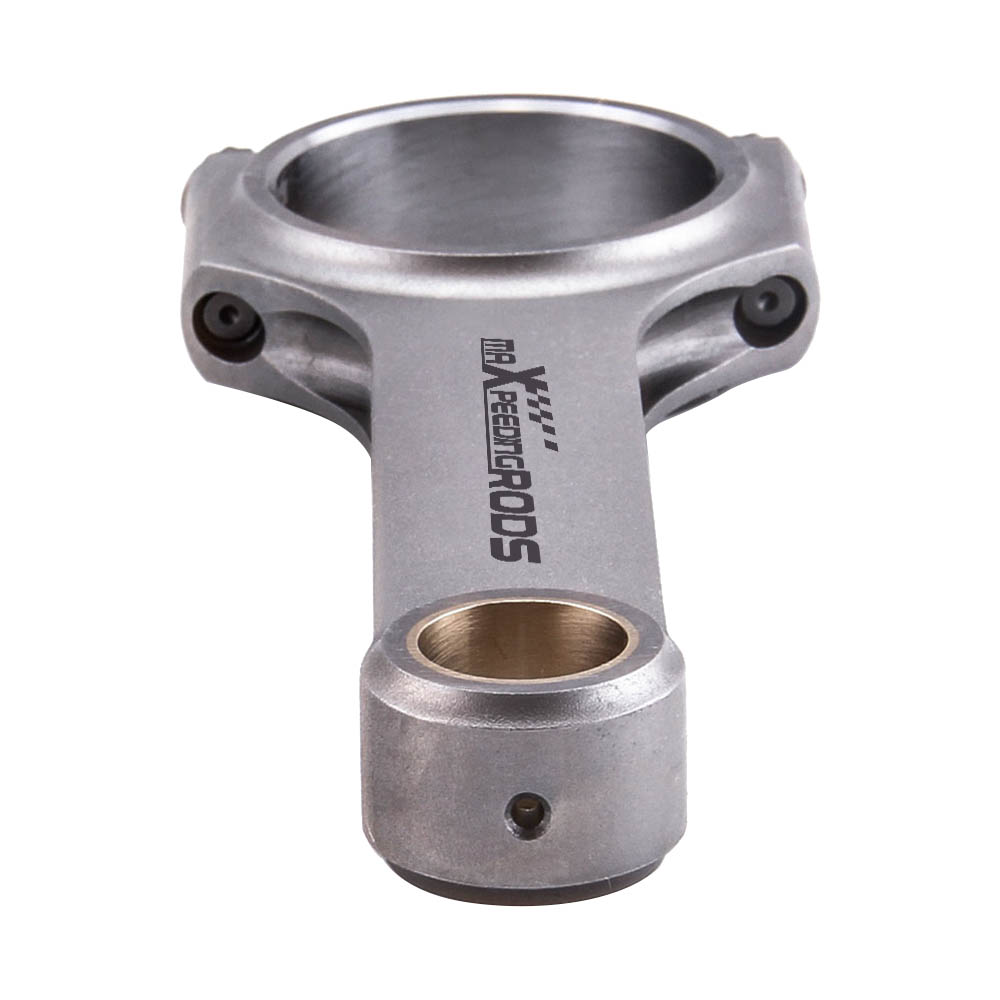

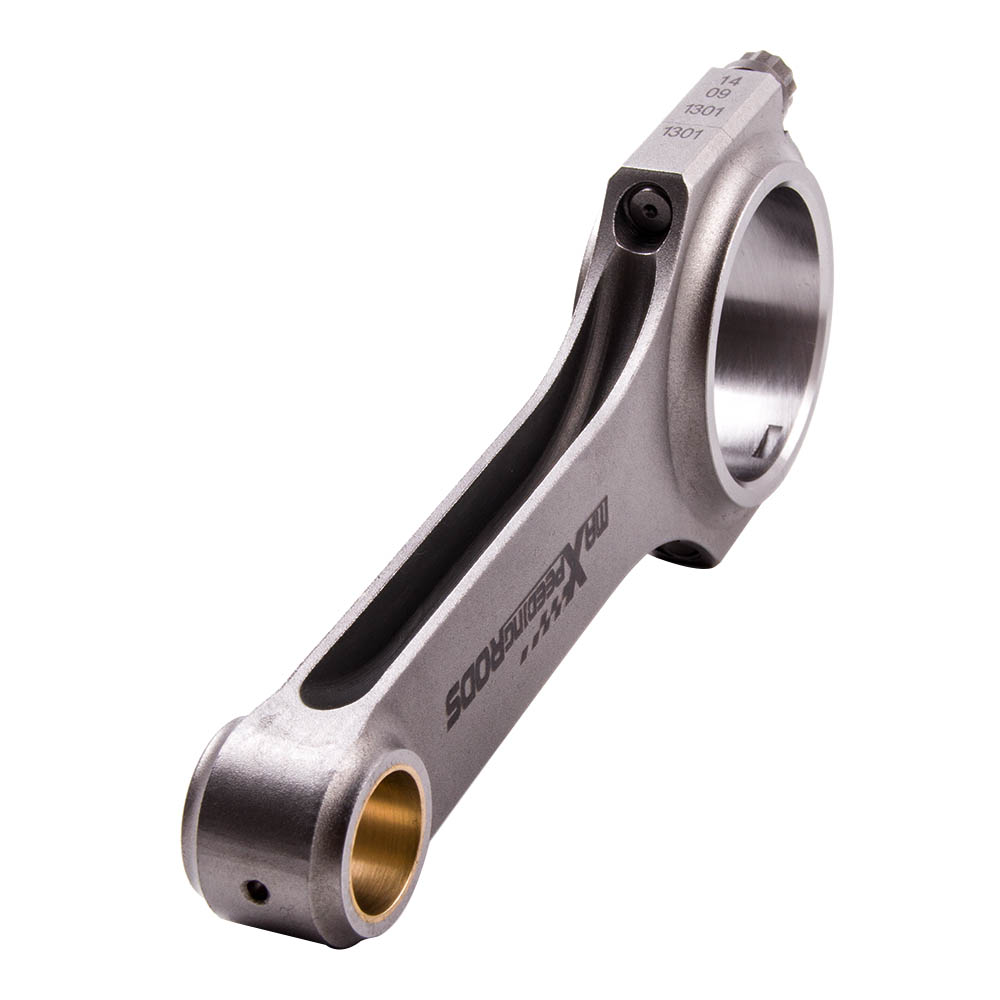

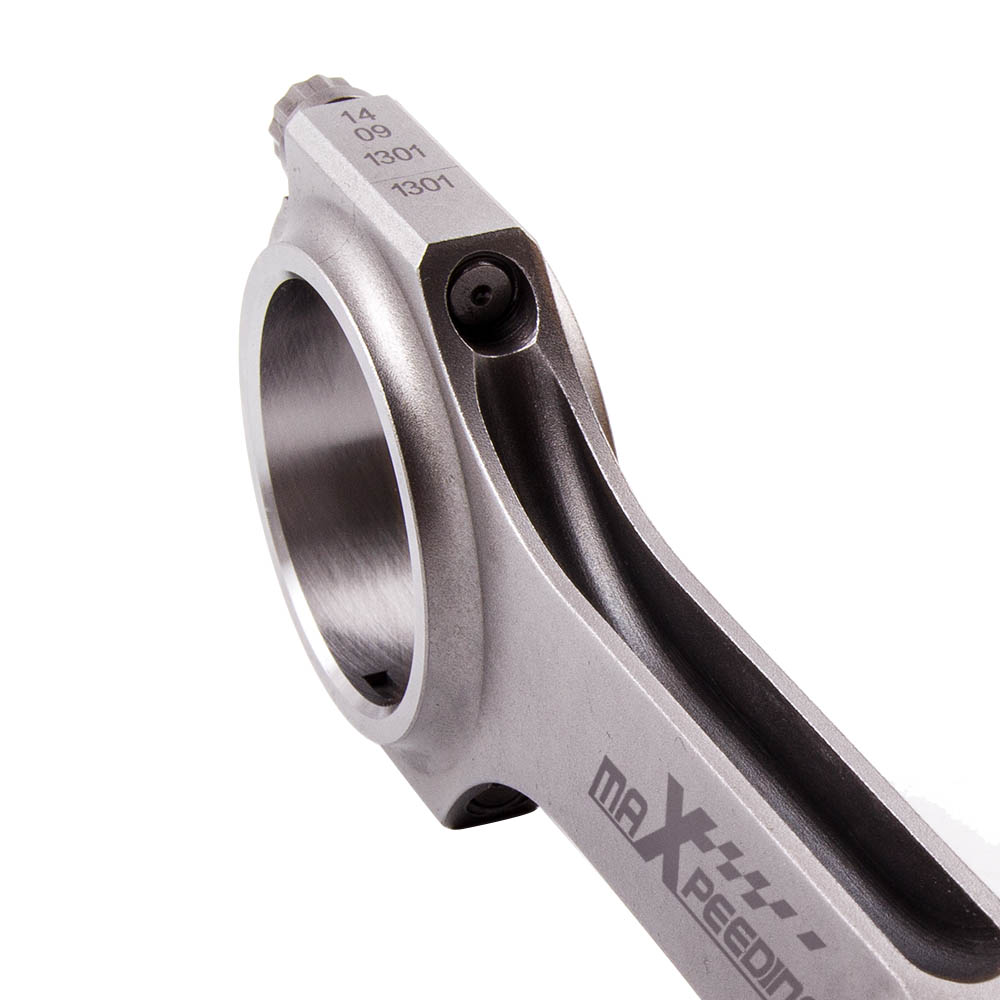

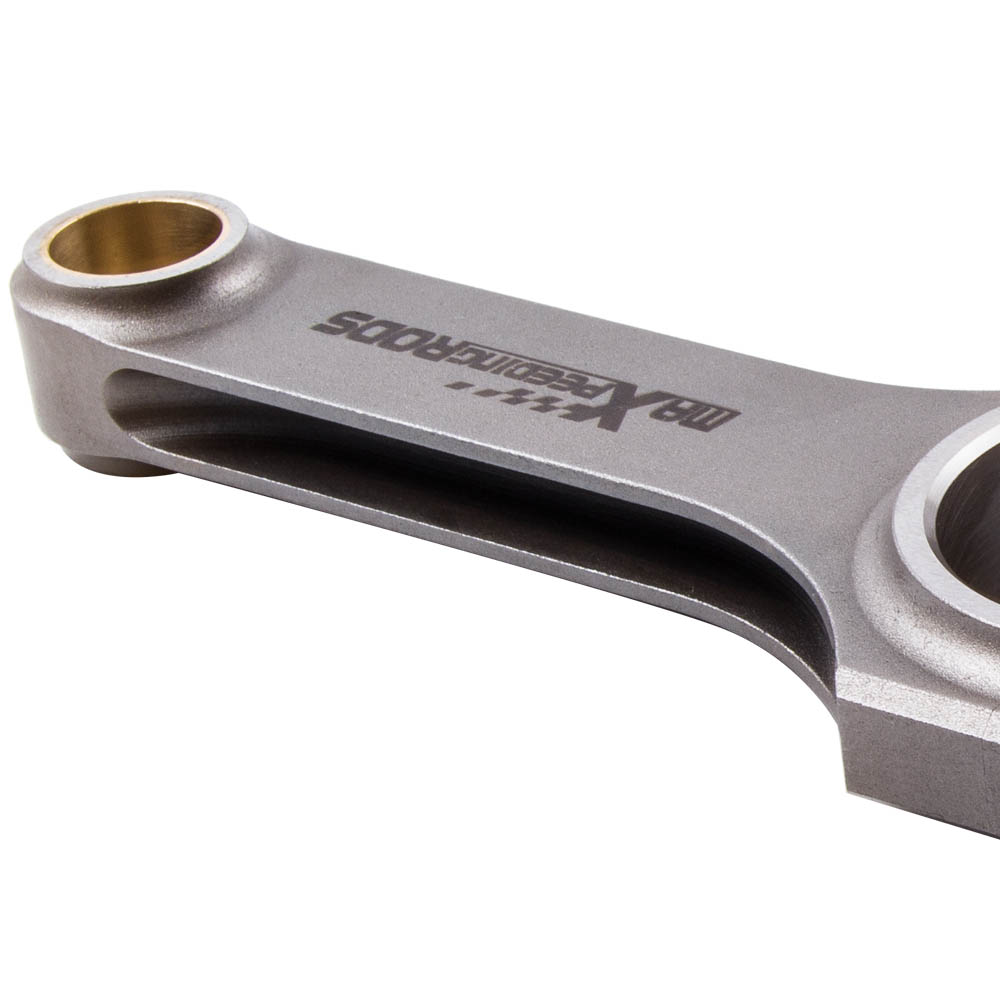

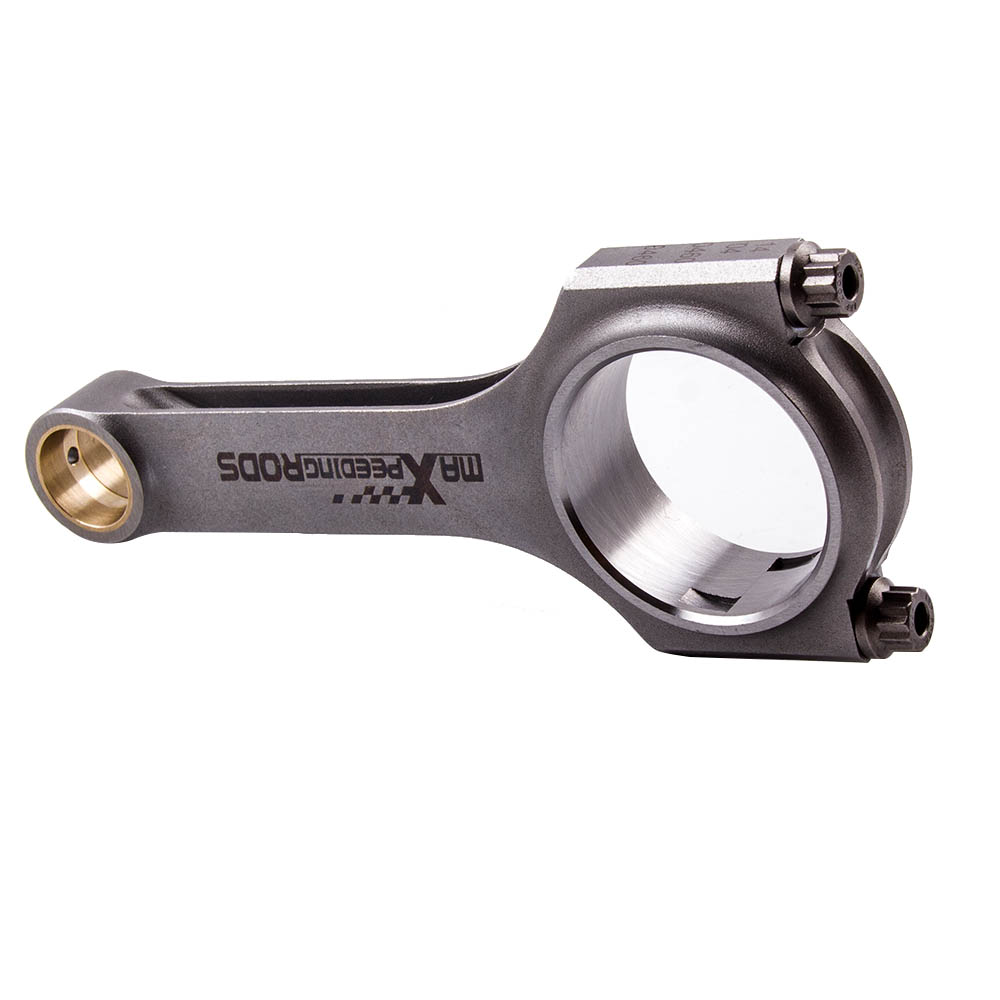

Con Rods Connecting Rod for Toyota 5EFE Paseo 130.5mm +ARP Bolts 800BHP Bielle

Images

Features

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

Application

For Toyota Paseo / Cynos 1.5L (1991–1999) – Fits 5E-FE 1.5L engine

Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Dimensions

Connecting Rod Length Center to Center: 130.50mm/5.138in
Approximate Connecting Rod Weight:471g
Big End Bore Diameter: 46.00mm/1.811in
Pin End Bore Diameter: 18.00mm/0.709in
Big End Width：20.80mm/0.819in
Small End Width: 20.80mm/0.819in

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm

Packaging

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
