Application

For BMW 5 (E39) (1995-2003)RWD notchback
Model:525i, 530i, 540i, 520d, 520i, 523i, 525td, 525tds, 528i, 525d, 530d, 535i

Note: Not for Wagon or M5 Models
         Will not fit Self Leveling/Air suspension model

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specifrication

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping : Not adjustable
Front top mount: Pillow ball with camber  plate
Rear top mount: Standard rubber
Camber adjustable: Available
Spring rate Front: 12 kg/mm(672 lbs/in)
Spring rate Rear: 9 kg/mm (504 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 190 mm
Spring length Rear: 190 mm
Spring Preload advised: 7-10 mm
Shock Type: Twin tube

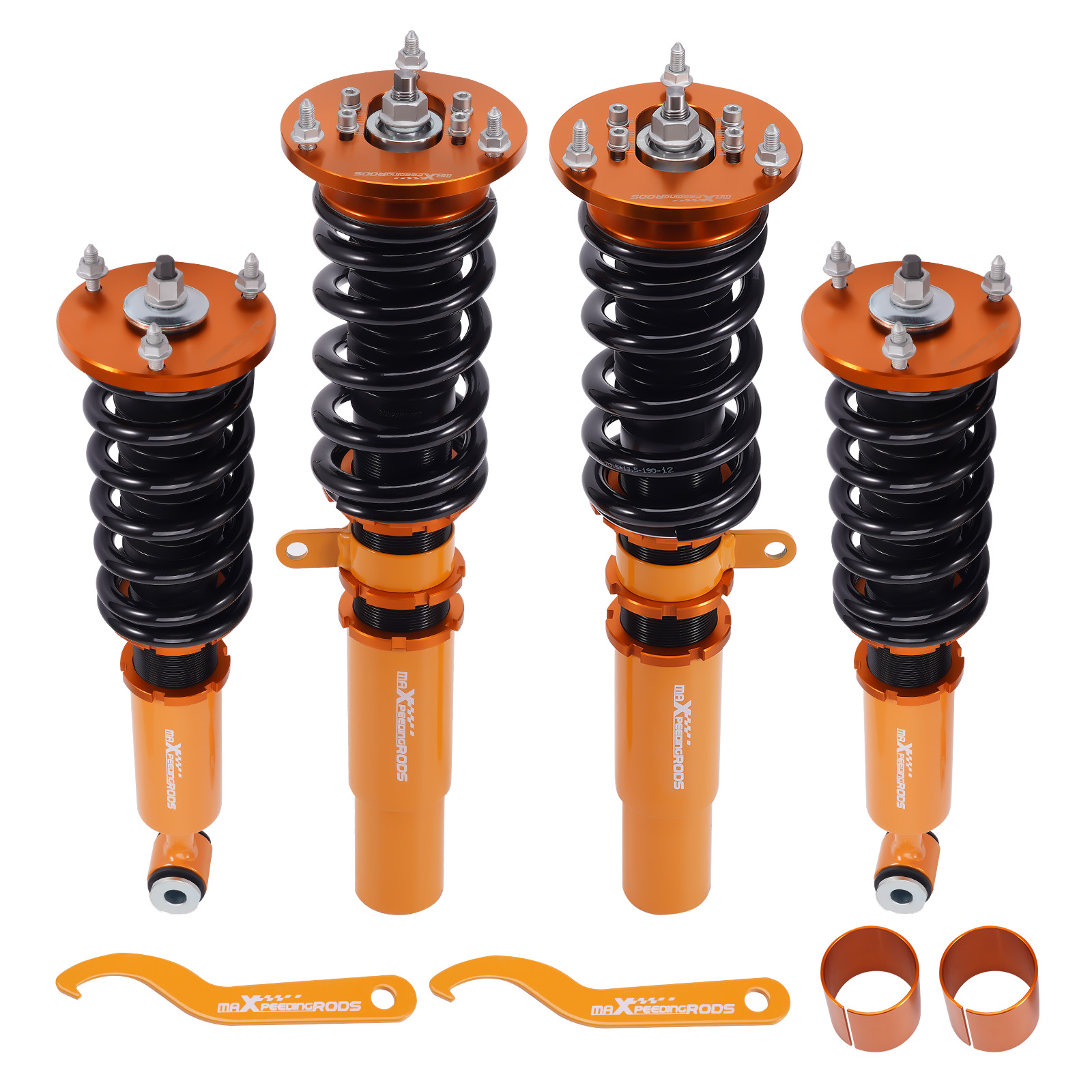

Package included
2x Front coil-overs
2x Rear coil-overs
2x Lower mount washers
2x C spanners

Dimension
Package dimension : 70*51*21 cm
Weight: 26450 g

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

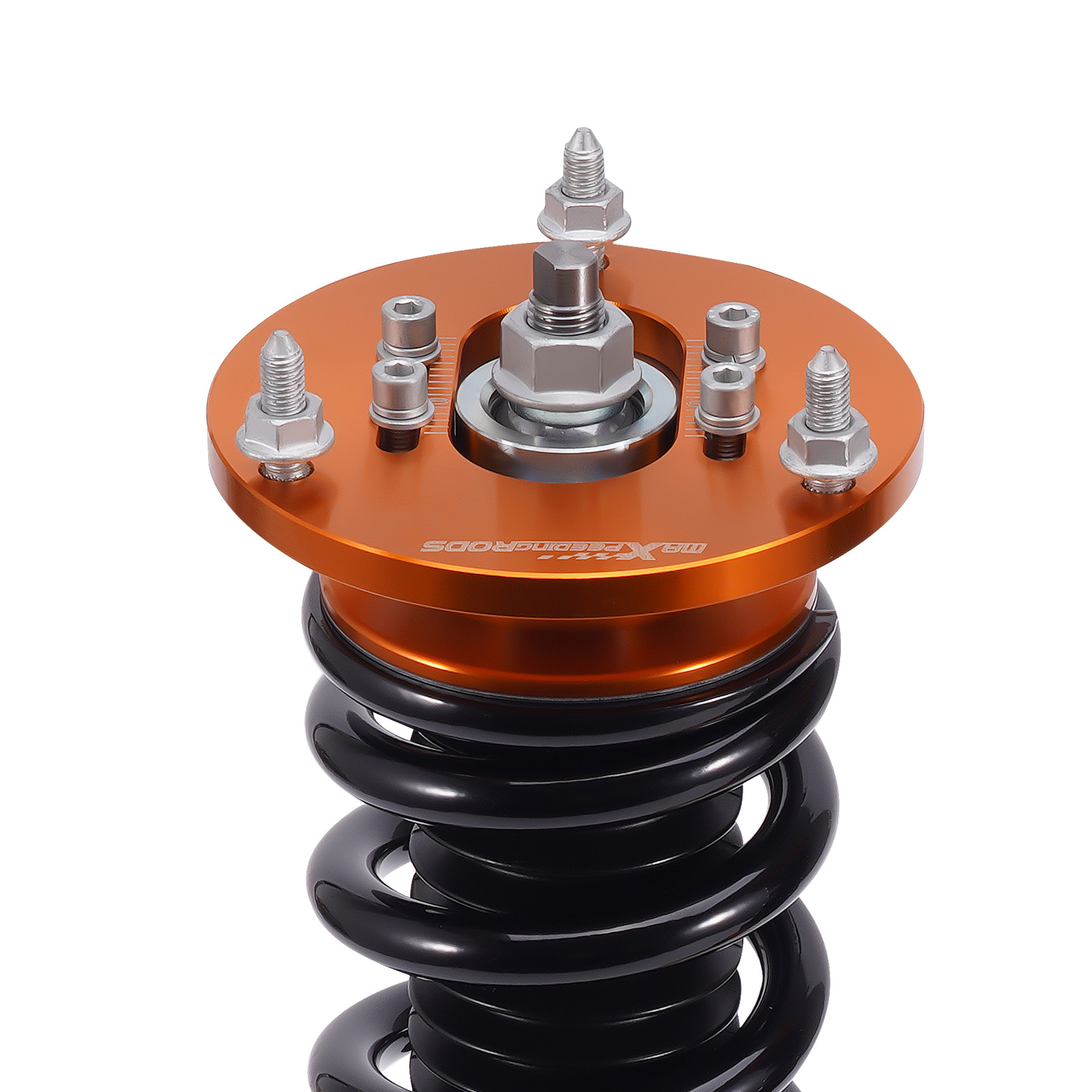

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
