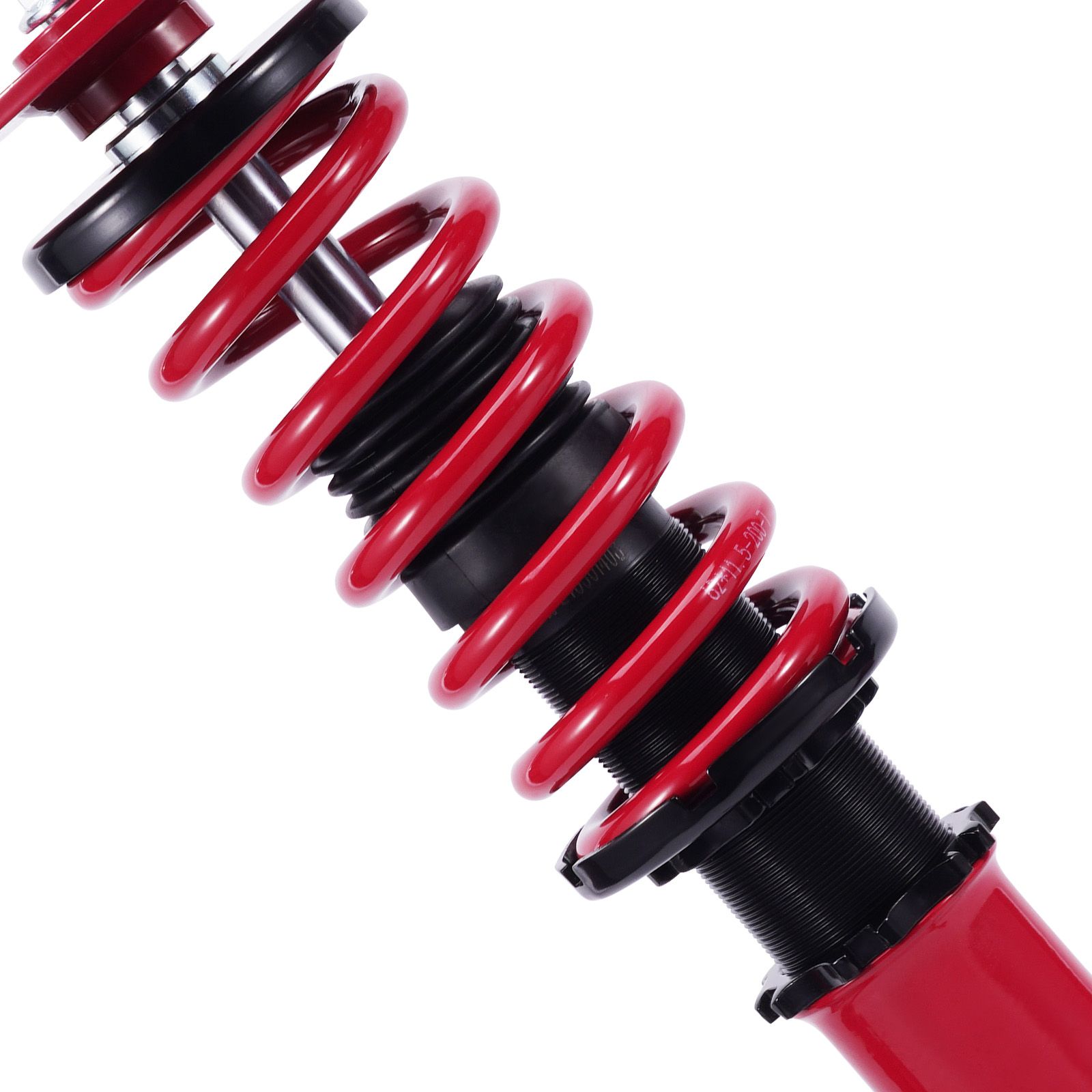

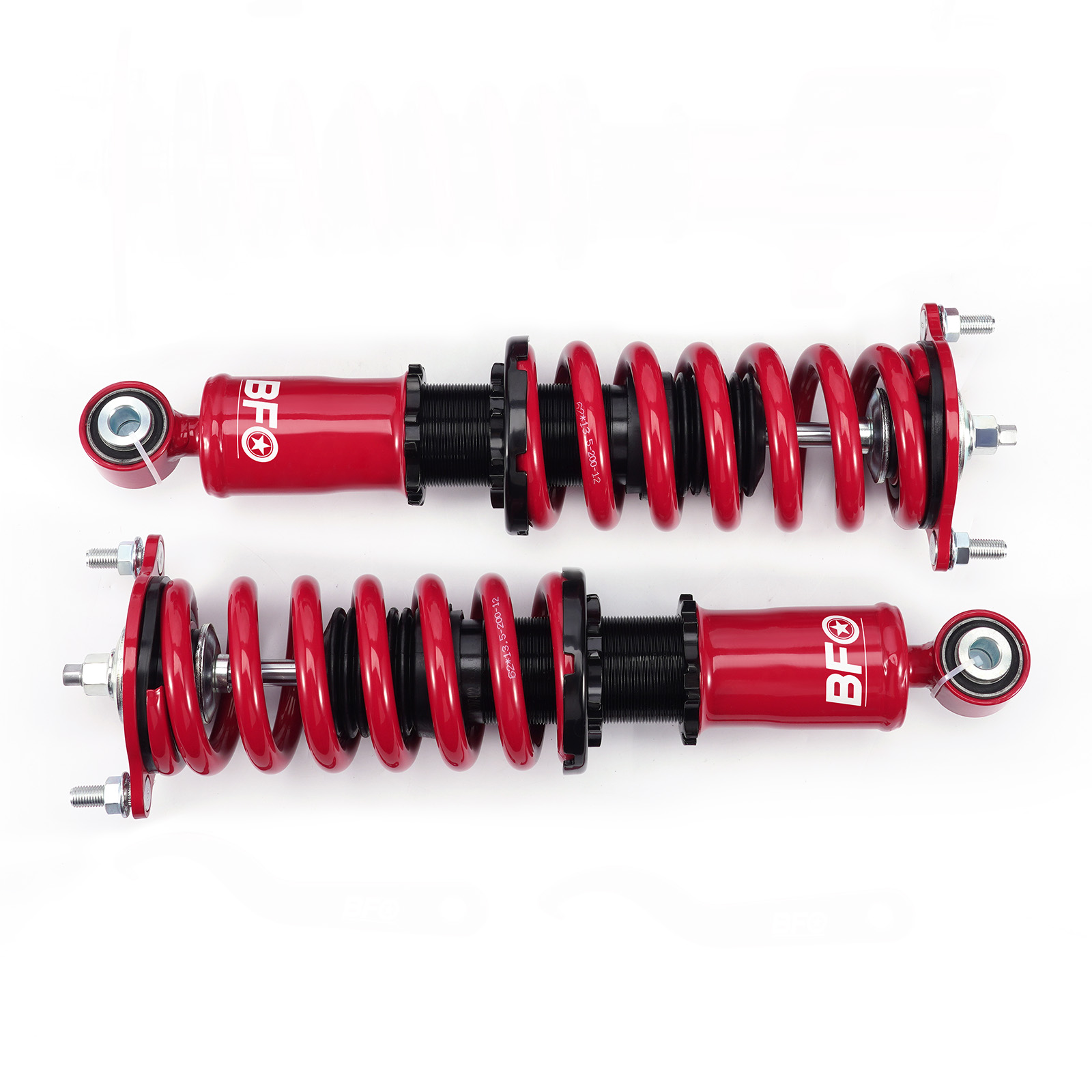

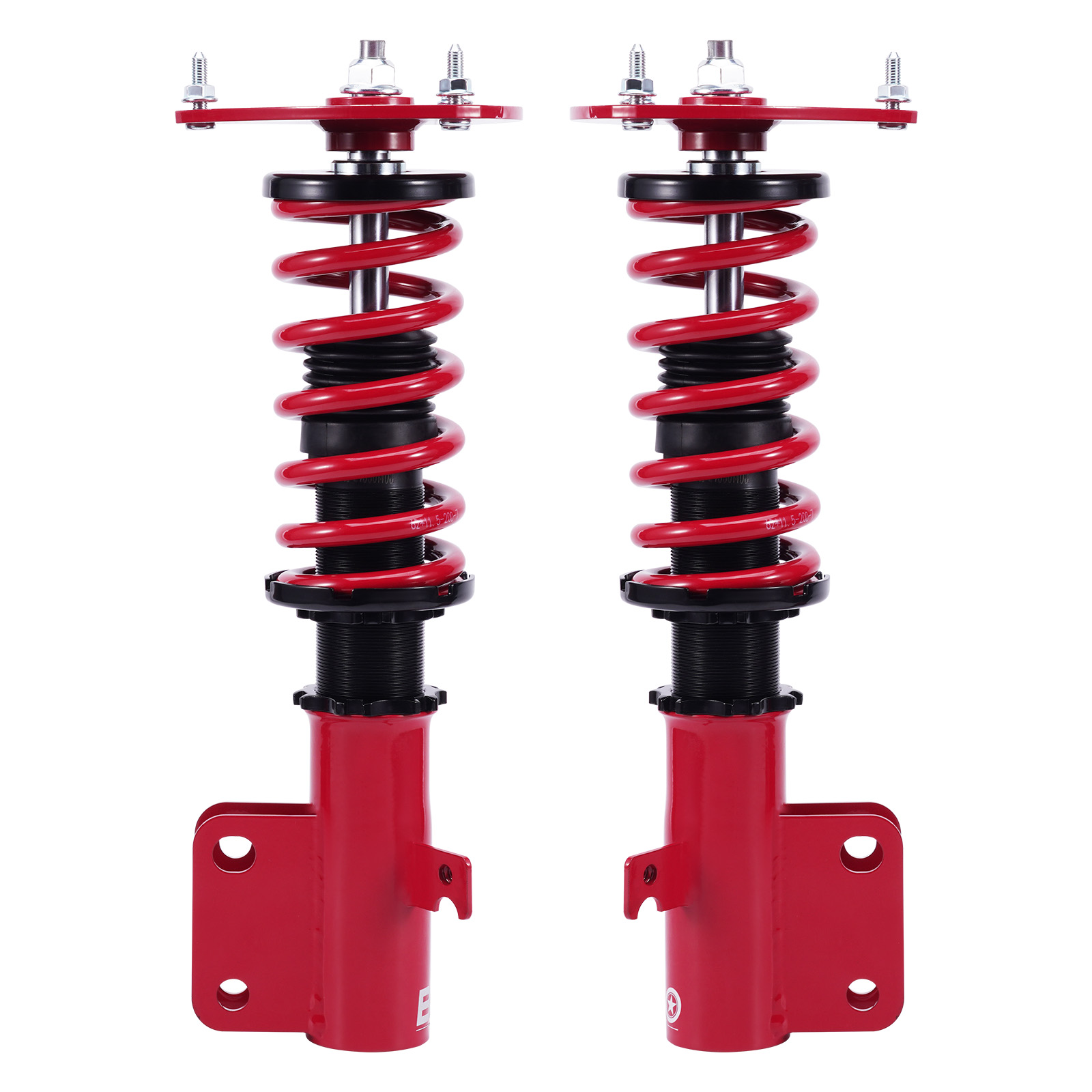

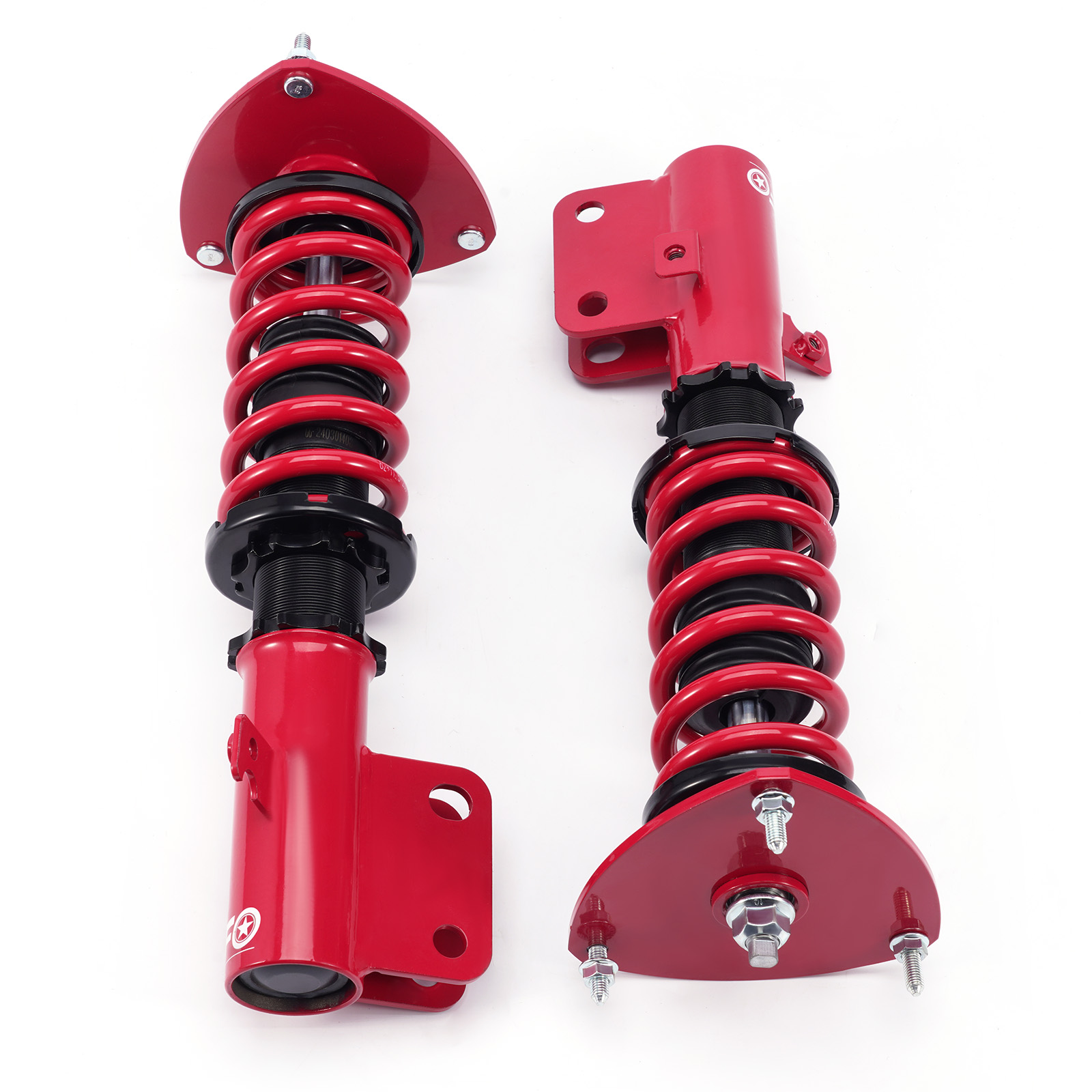

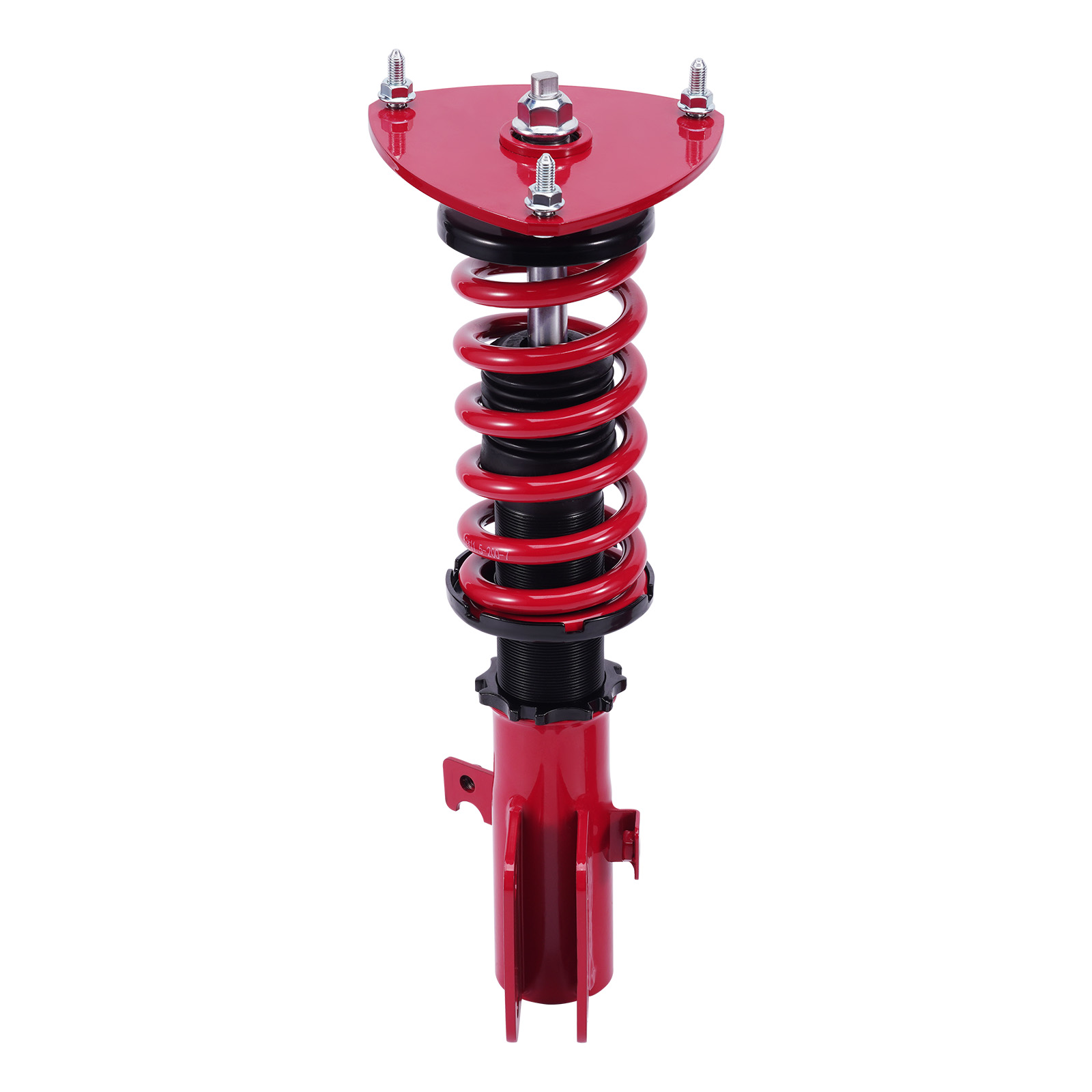

Coilovers Suspension Kit For Subaru Liberty BL BP BL9 BP9 BP5 BPE

Images

Coilovers Suspension Kit For Subaru Liberty BL BP BL9 BP9 BP5 BPE Coilovers Suspension Kit For Subaru Liberty BL BP BL9 BP9 BP5 BPE Coilovers Suspension Kit For Subaru Liberty BL BP BL9 BP9 BP5 BPE Coilovers Suspension Kit For Subaru Liberty BL BP BL9 BP9 BP5 BPE Coilovers Suspension Kit For Subaru Liberty BL BP BL9 BP9 BP5 BPE Coilovers Suspension Kit For Subaru Liberty BL BP BL9 BP9 BP5 BPE



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Toll IPEC Mine Zone Black List (The Parcel Cannot Reach)
6443 6215 6427 6230 6440 6225 6436 6646 6646
6233 6640 6612 6507 6642 6390 6435 6621 6415
6431 6438 6718 6999 6437 6426 6753 6639 6346
6537 6722 6754 6638 6714 6430 6751 6762 6555
6705 6330 6721

Introduction
BFCO coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),  which offer you a lowered stance, and improved performance for your daily use vehicle.





Applications

For Subaru Legacy 2005-2009 (USA) BL9 BP9
For Subaru Legacy B4 2003.05-2009.04 (Japan) BLE BL5
For Subaru Legacy Touring Wagon 2003.05-2009.04 (Japan) BP5 BPE

Pls note Legacy is also known as Liberty in Australia




Specifications
Top mounts: Front pillow ball top mount
Damping: Not available
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Spring length Front: 200mm
Spring length Rear: 190mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 460mm-550mm
Coilover overall length Rear: 400mm-450mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Red

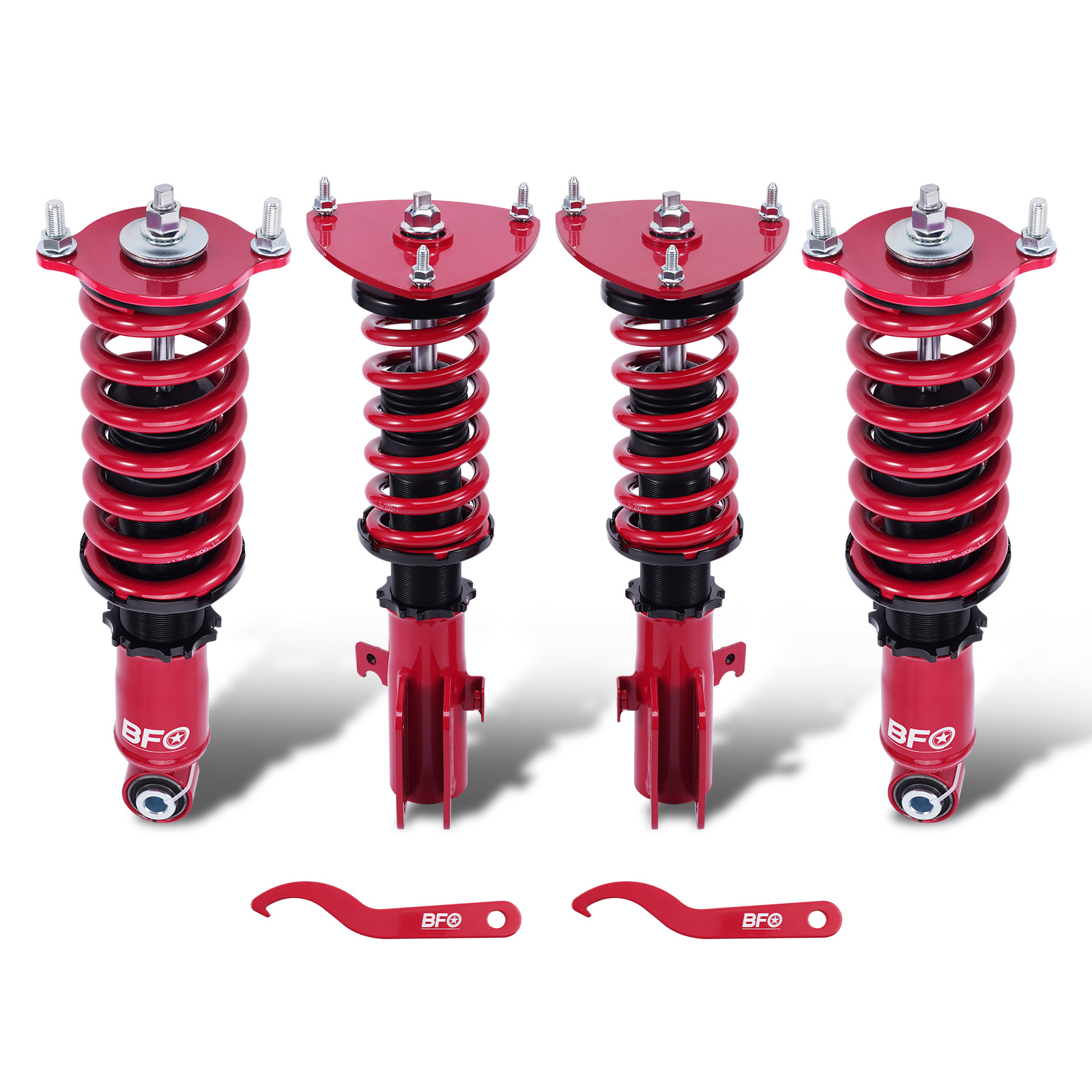

Package included

2x front coil-overs
2x rear  coil-overs
1x Allen wrench
2x C spanners





Dimension

Size: 63*51*21 cm
Weight: 24.92 kg





Features

1. Self-design structure and new manufacturing system to give more customers good coil-overs without breaking the bank.
2. Full-length height adjustable---lower your car 1-3 inches (depending on vehicle models) to get a performance ride
3. Independent Ride Height and Spring Pre-load Adjustments
4. Twin-Tube System for Comfortable Ride on Streets
5. Coated finish to avoid rust
6. Heavy Duty Steel Lower Mounts
7. Simple install,  easy to adjust.





Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.





Notice

* Professional installation & alignment suggested.

* Please check our store for other auto parts you may be interested in.
