Water Level Float Switch Sensor Float Switch Post Sensor Vertical
DESCRIPTION

feature:


Used to sense the liquid level in the tank.

Light weight, simple working principle and high reliability.

The switch can activate pumps, indicators, alarms or other devices.

This float switch is a liquid level controller with simple structure and easy installation.

It is widely used in electronics, electrical, , water treatment, drainage and other fields.

The versatility of this vertically mounted sensor means that it can be mounted on the top or bottom of the tank, depending on whether you want to detect the rise or of water.



feature:


Color: silver

Material: Stainless steel

for Maximum. rating: 10W / 50W

for Maximum. Switching voltage: 240V AC

for Maximum. Breakdown voltage: 220V DC

for Maximum. Switching current: 0.5A

for Maximum. Carrying current: 1A

for Maximum. resistance: 100mΩ

Working pressure: 10kg/cm

for Maximum. Pressure: 0.2Mpa

Applicable ratio: 0.75

Working temperature: -10 ~ +120℃

Switch : reversible

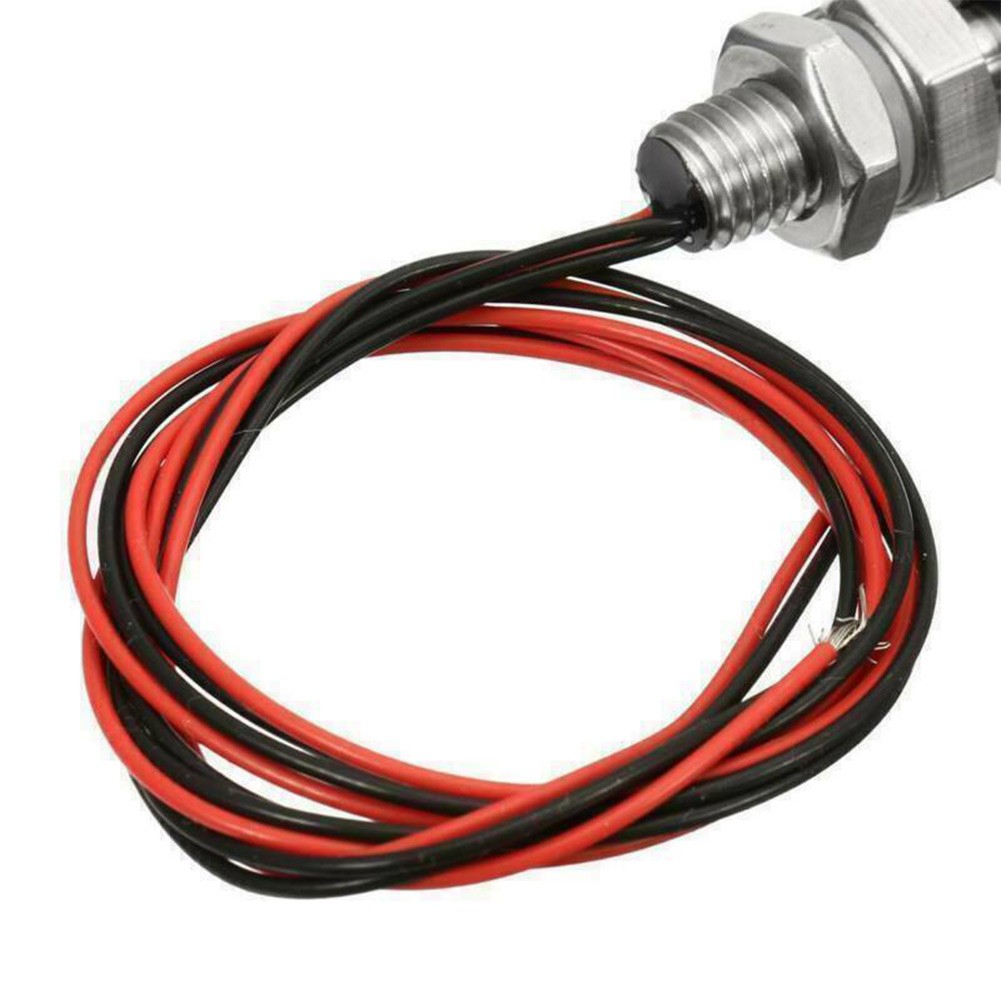

Wire: PTFE high temperature wire

Installation : vertical installation

Thread diameter: 10 mm/0.39 inch

Size: 250mm, 300mm, 400mm, 500mm



Package Included:


1 for x float switch



notes:


1. Due to manual measurement, please allow an error of 1-3mm.

2. Due to the difference of different monitors, the picture may not reflect the actual color of the item. Thanks!
