Features:
Use 0.02% professional table comparison calibration. To for ensure the accuracy and consistency of each unit.
Test standard 1 milliohm: will display 0.9mR1.0mR1.1mR three situations. Most likely it will display 1.0mR
Test standard 10 milliohm: will display 9.9mR 10.0mR10.1mR three situations. Most likely it will display 10.0mR
Test standard 1 ohm: will display for 999.9mR1000.0mR 1000.1mR three situations. Most likely to display 1000.0mR
Specifications:
Part name: YHXY-002R resistance tester
Model: YHXY-002R
Size: 62.8*39*13.8MM
Color: black
Material: abs
Range: 0.1 milliohms-20 ohms (automatic range)
Display mode: LCD display
Operation way: Press the power button for 1S to turn on and off. When powered on: Automatically shut down after 160 seconds without operation, press once within for 1S to switch the display font.
Press twice within for 1S to switch the background display style, press 3 times within for 1S to display the temperature,
press 4 times within for 1S to enter the normal power-on mode, until
The is lower than 10% and the power turns off automatically
Charging indication: Automatically turn on when charging (turn off when fully charged)
Accuracy: +-(0.03% reading + 1 word)
Open circuit output voltage: <3. for 3v DC
Resolution: 0.1 milliohms
Test current: 25.3mA
Display unit: for mr (milliohms)
Charging for port input voltage: for TYPE-C 5V 1A
Charging current: 0.2A
Power supply: 3.7V 230mAH

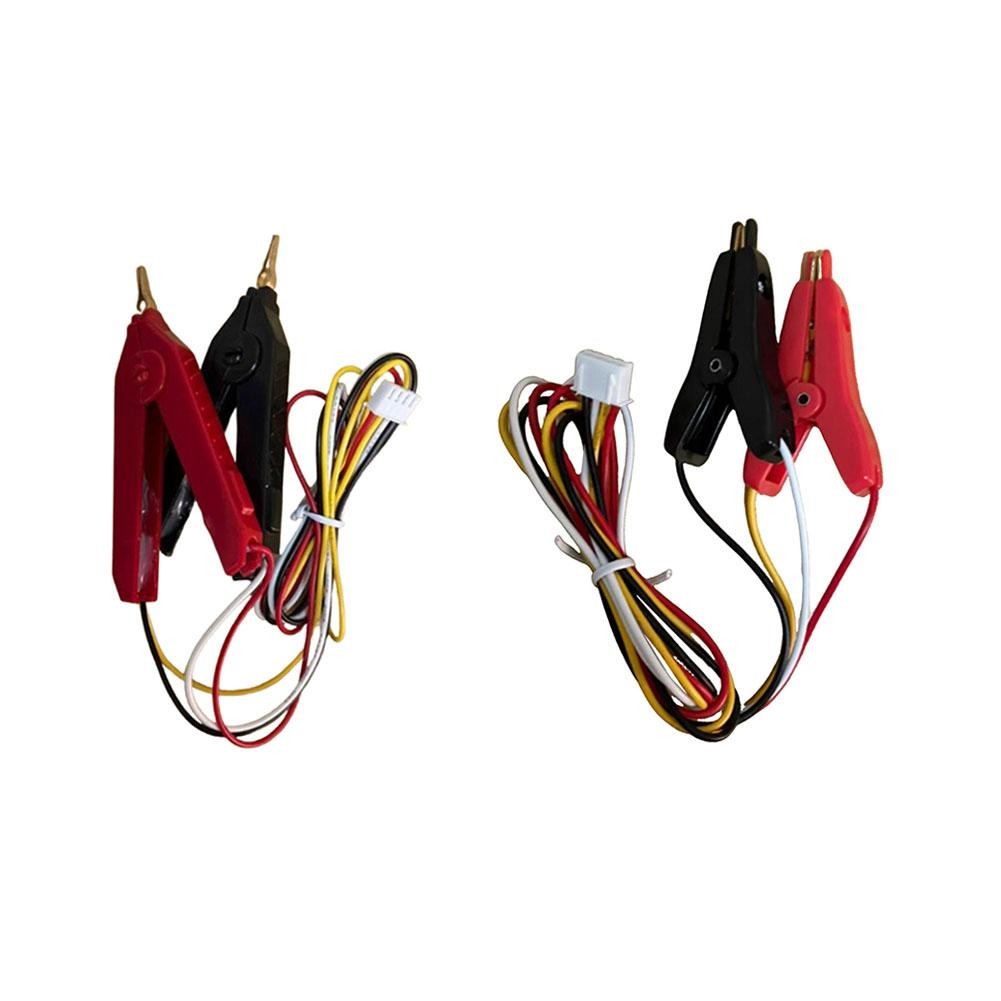

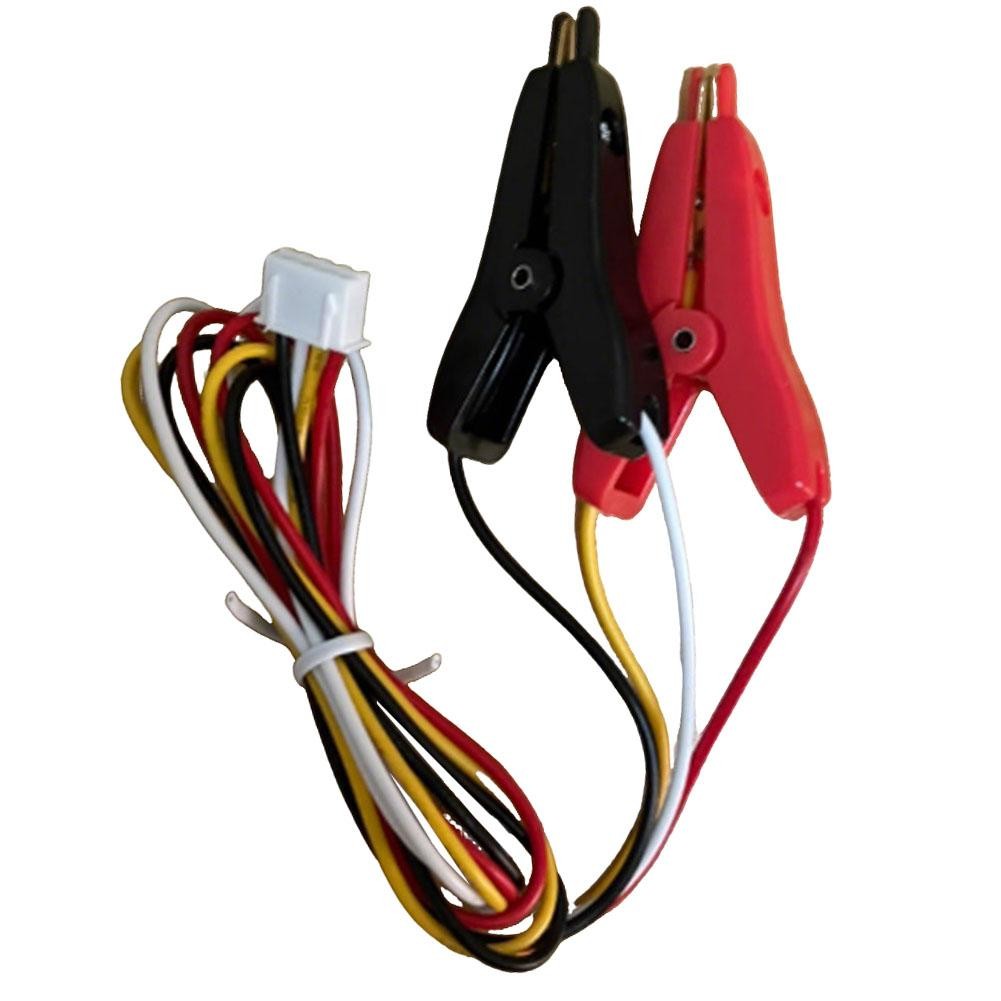

Test line length: 50CM four-wire test clip
Product accessories: four-wire Kelvin test
Wide range and high accuracy: 0.1 for mr-20R
Resolution: 0.1 mR4-wire Kelvin test
Ultra-small size, easy to carry, LCD screen display is clearer and more intuitive
Uses 24- for ADC chip
Built-in / with long standby time (continuous use >3.5 hours)
Package contents:

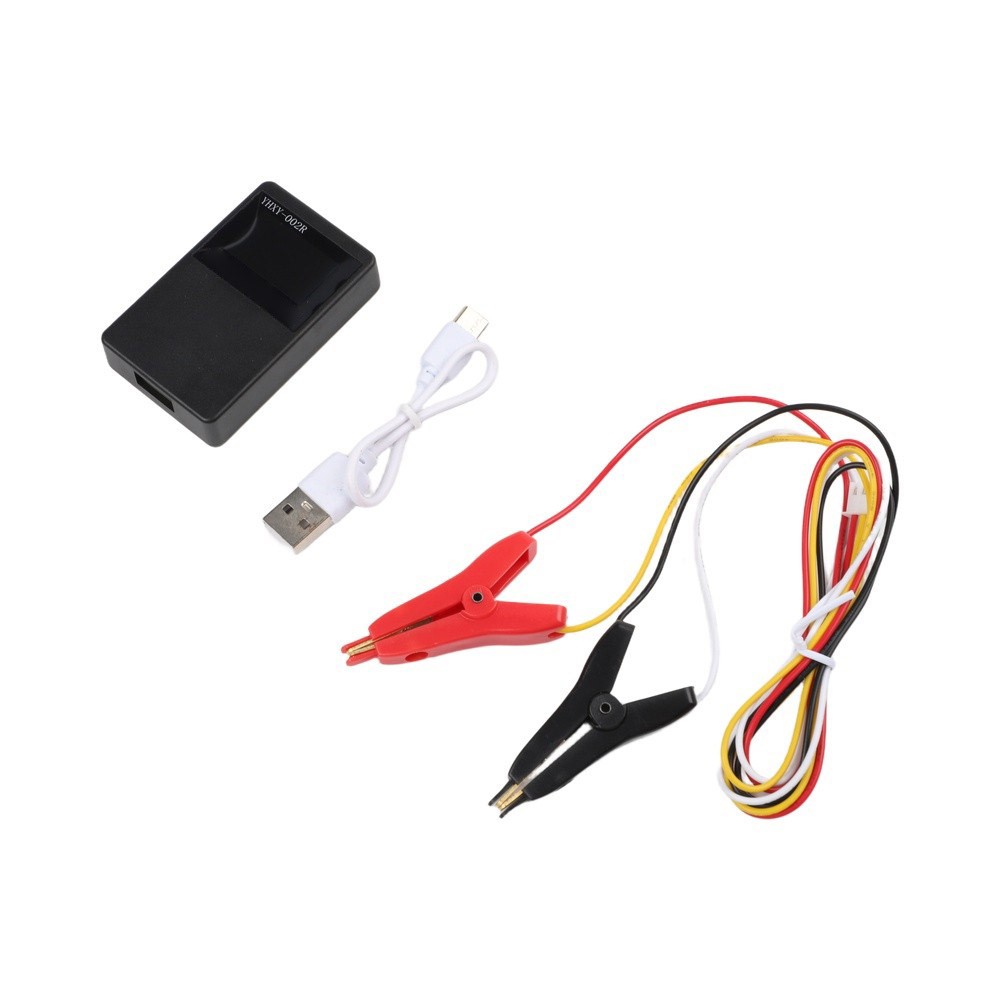

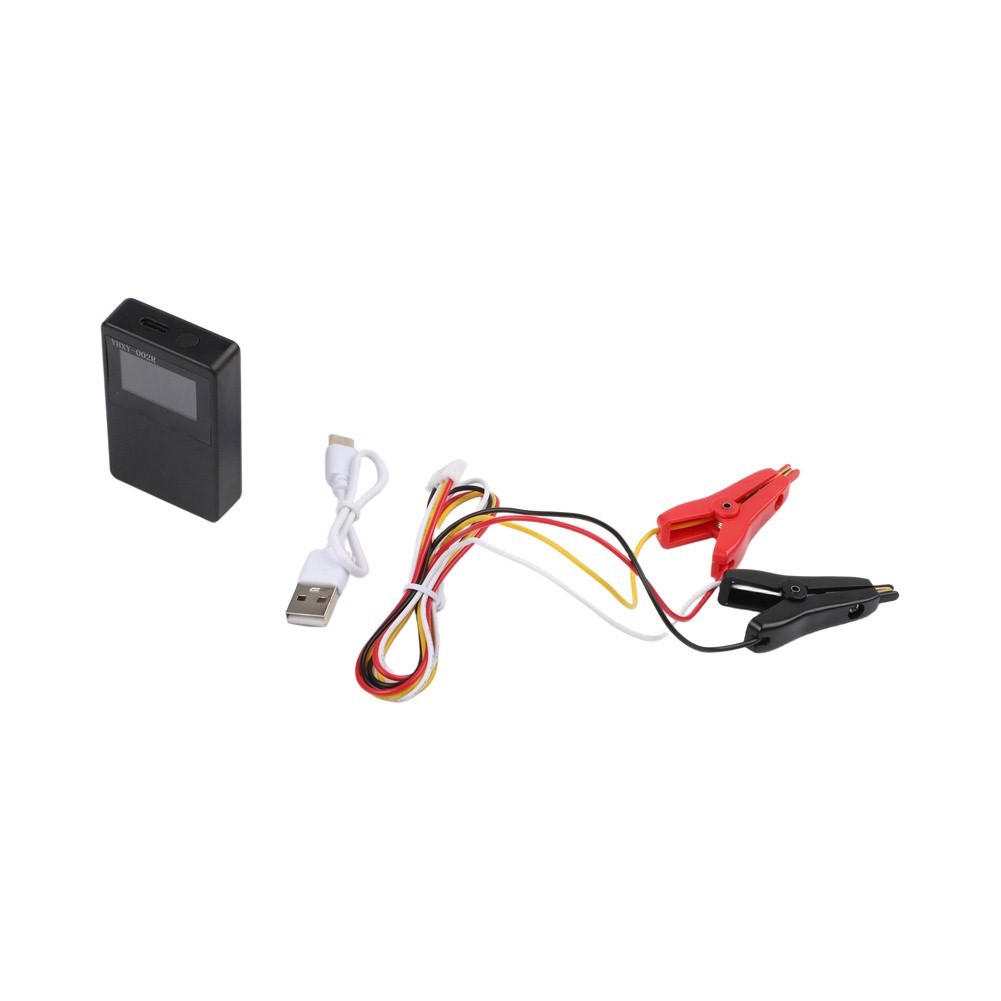

A: 1*002RA host + small test clip
B: 1*002RB host + large test clip
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2. Please allow slight manual measurement deviation for the data.
