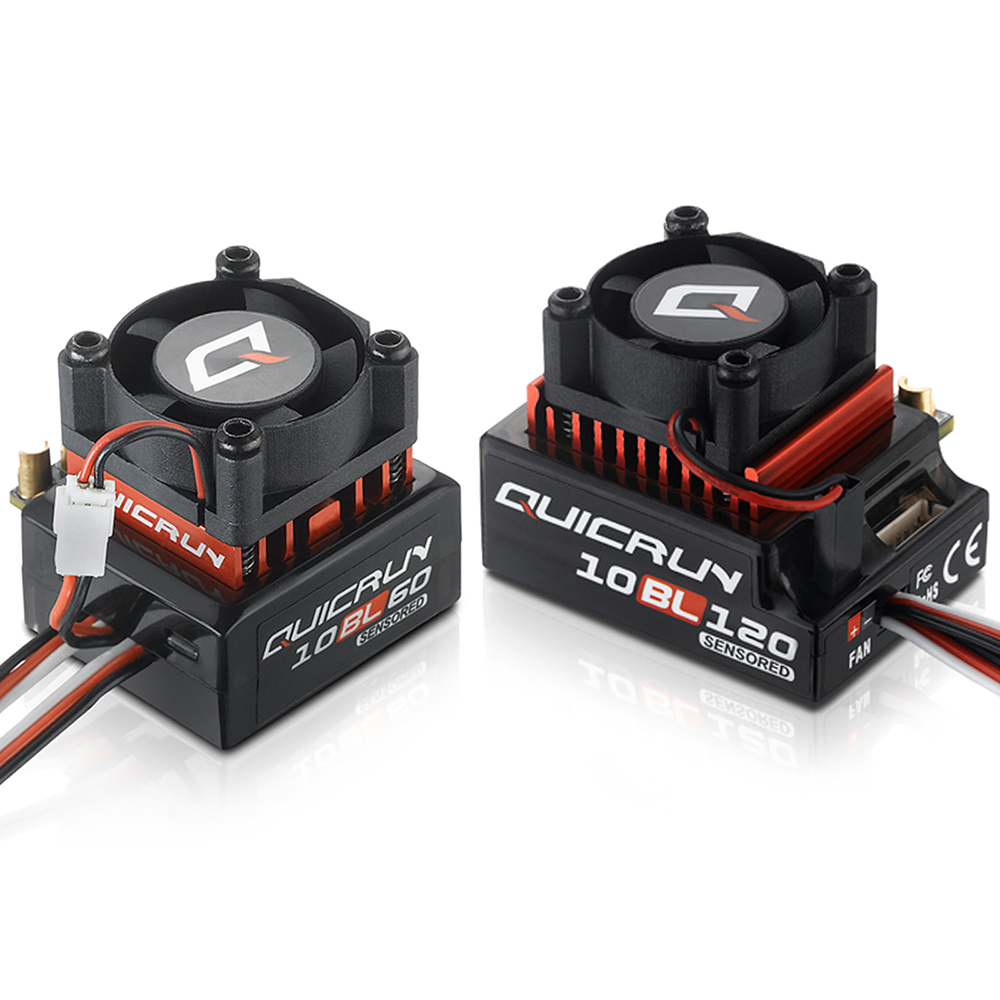

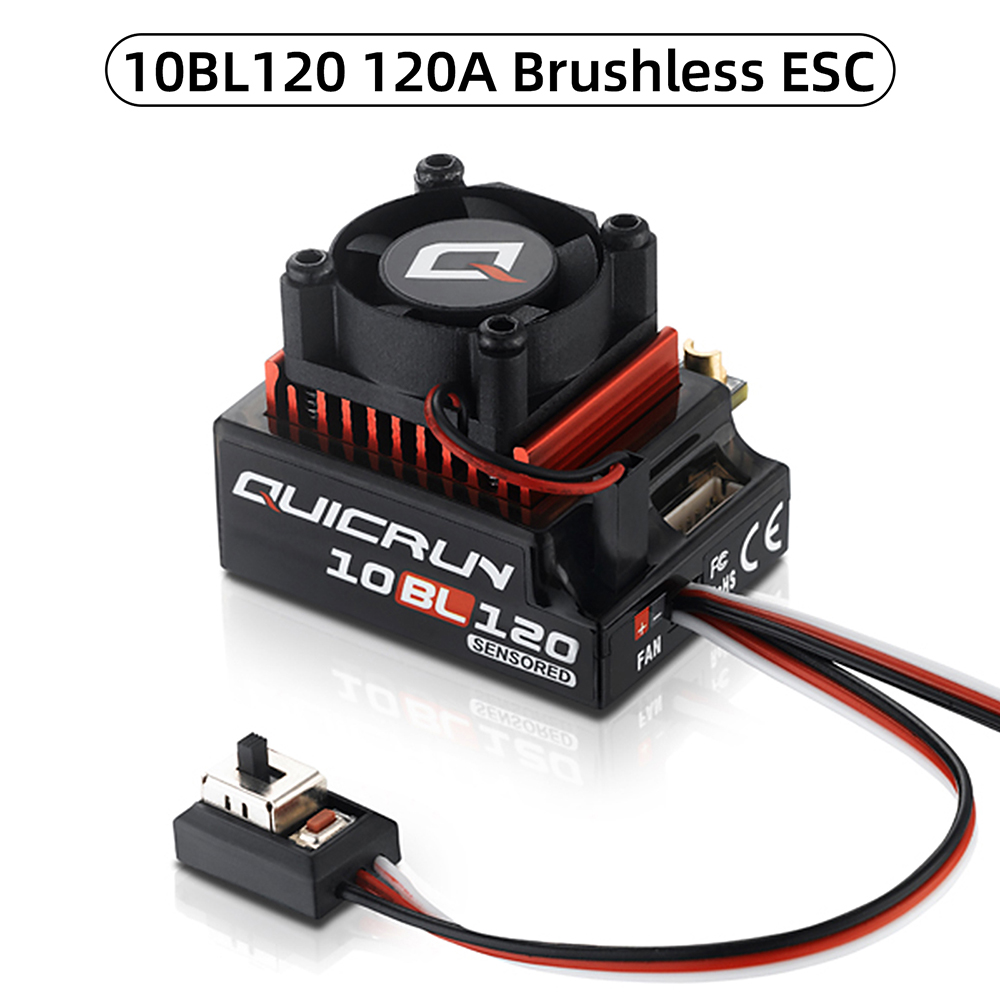

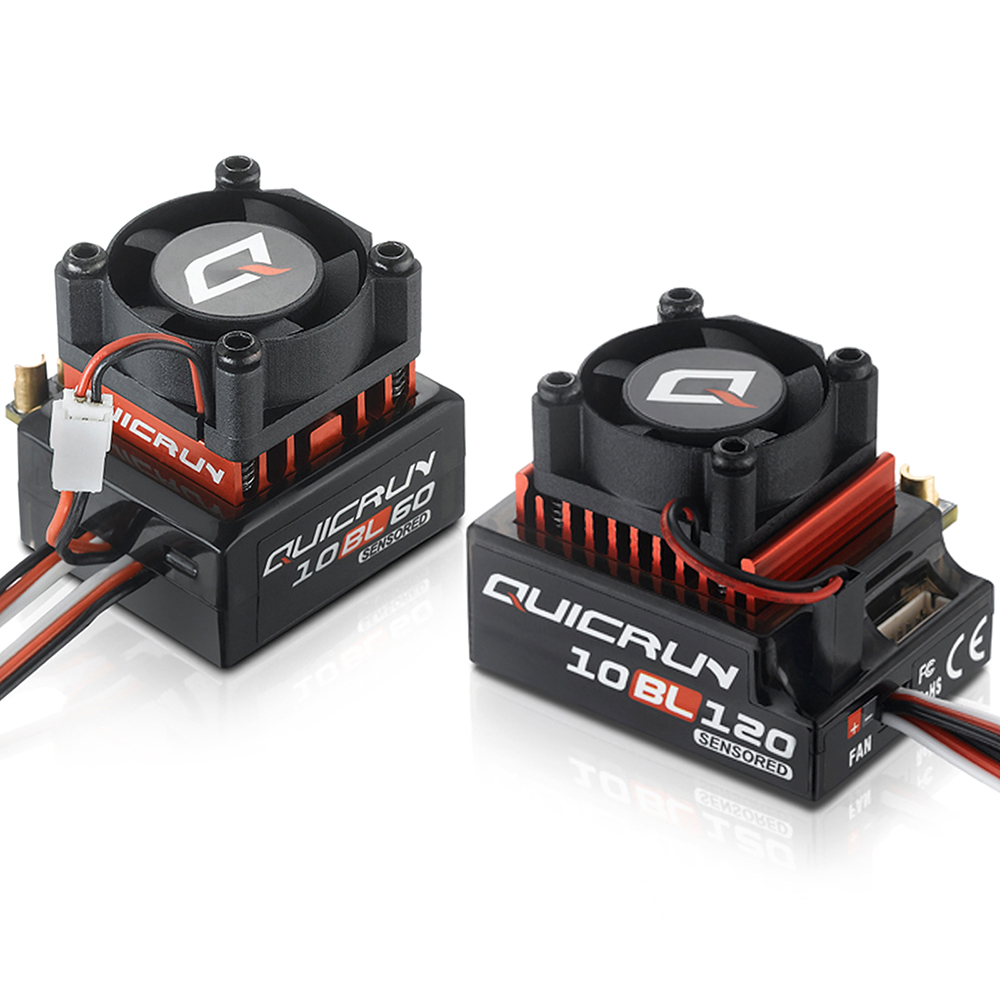

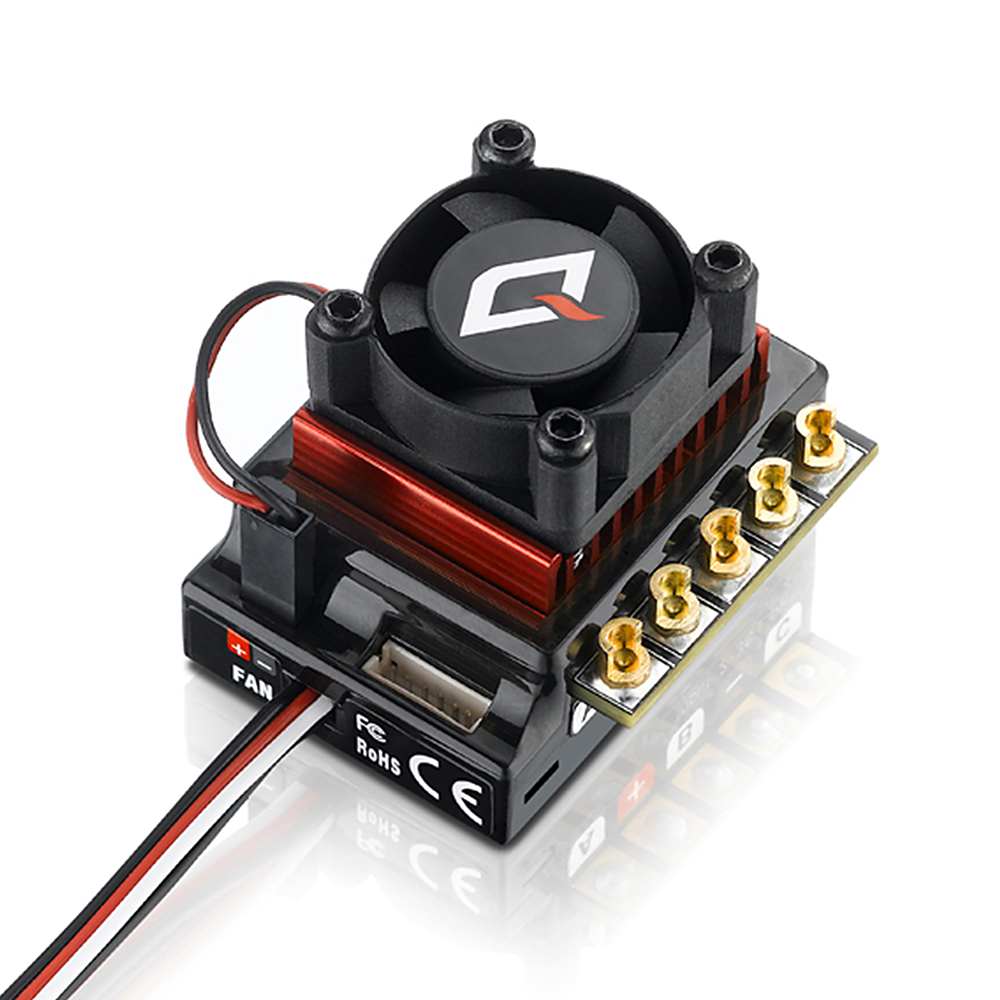

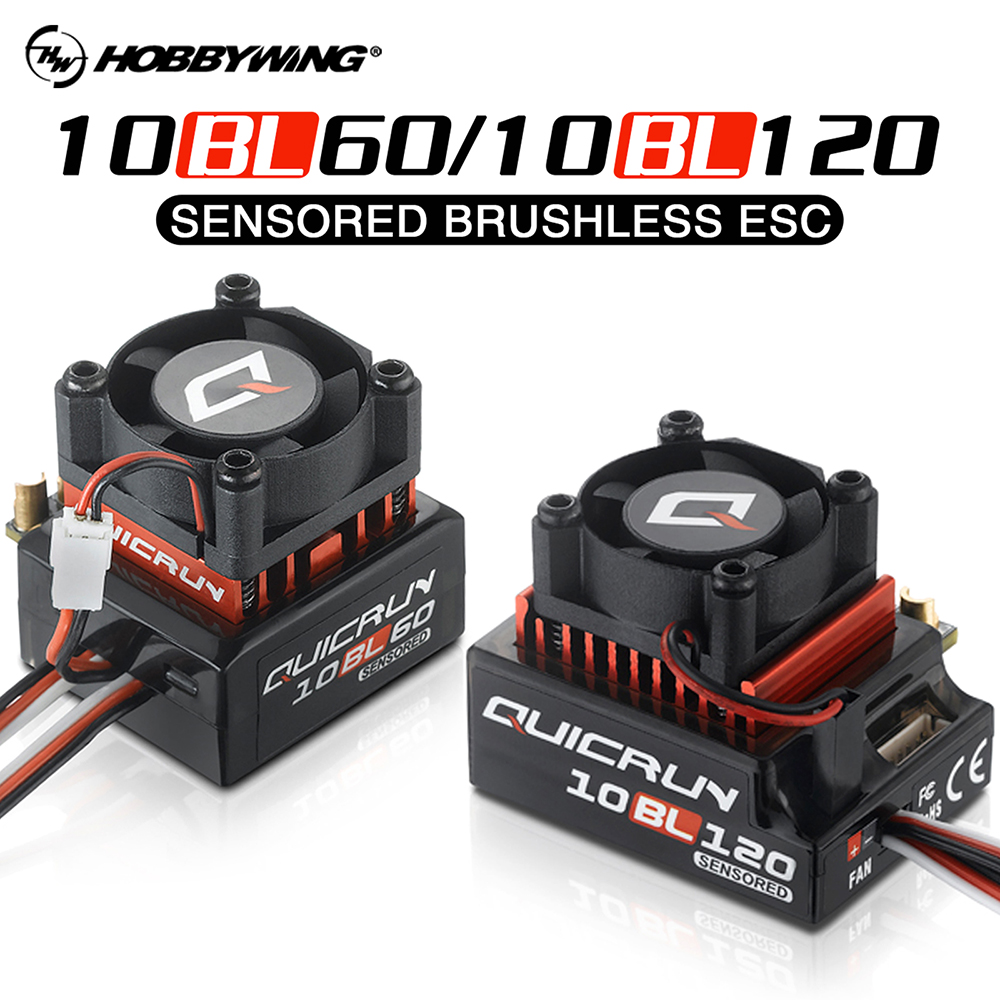

Hobbywing QUICRUN Sensored 10BL120 120A /10BL60 60A 2-3S Lipo Brushless ESC for 1/10 Touring Car/Buggy / F1 / Drift Car 3650 Rocket 540 Motor
Features:

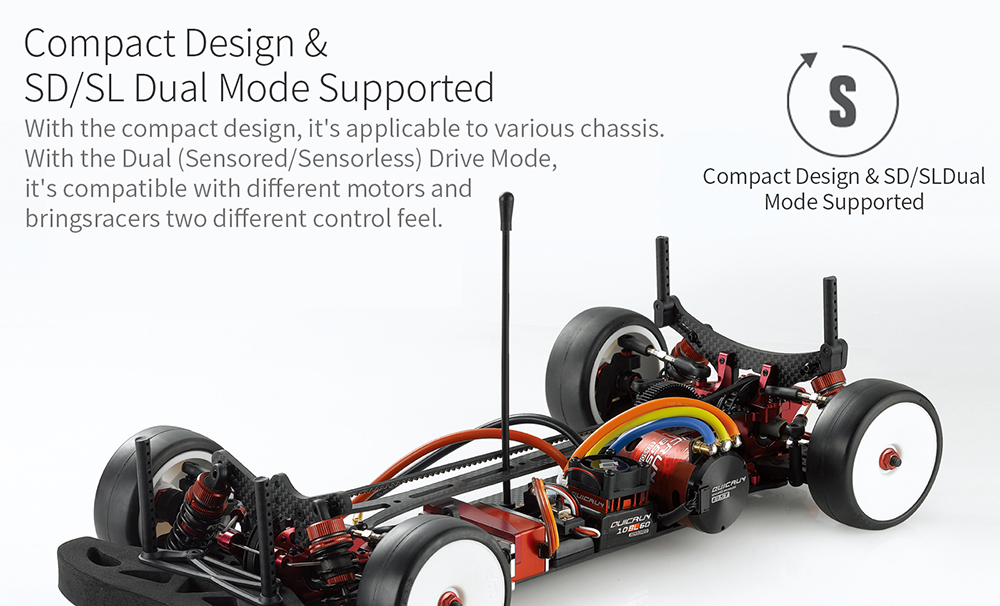

High performance, reliable,race-ready ESC.The compact size is suitable forvarious car chassis'.The built-in auto identification system recognizes sensored or sensorless brushless motors.
Core competition program forexcellent control feel & multiple programmable items.

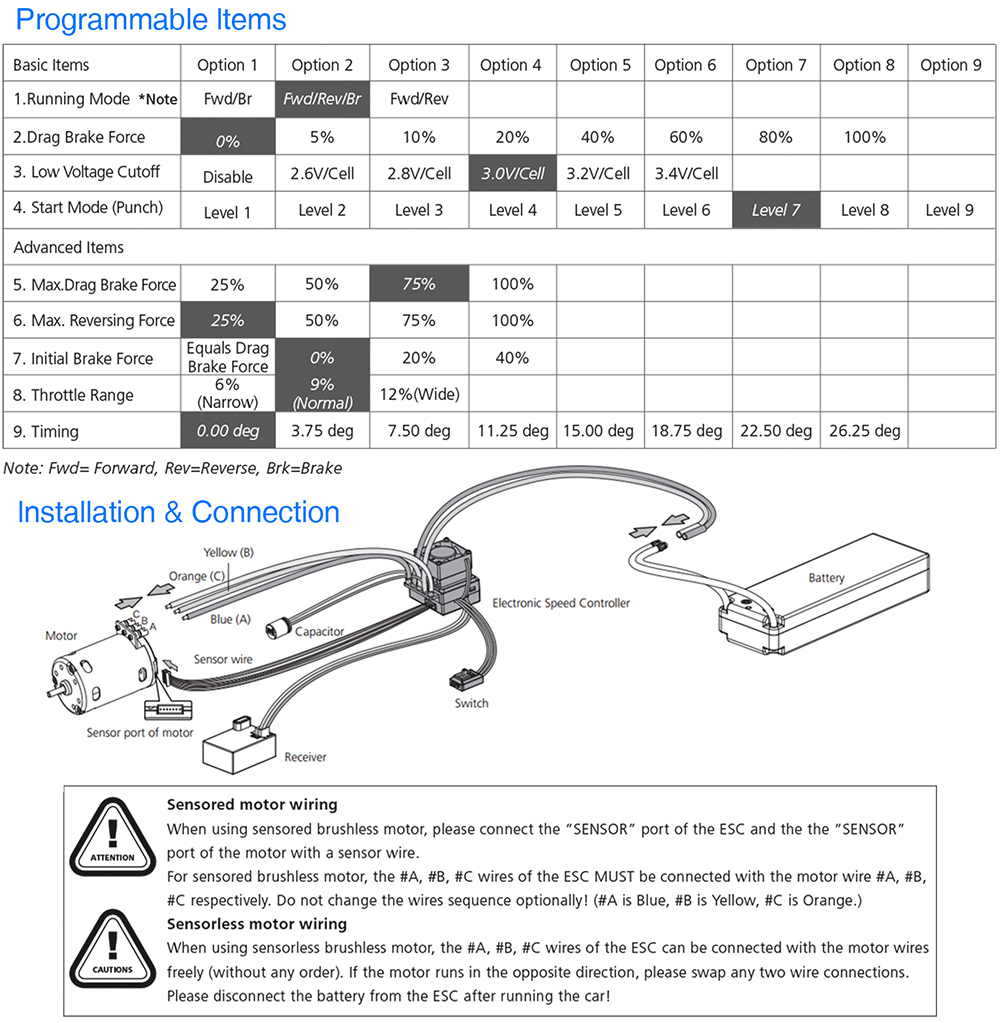

8 steps of timingadjustments 4 steps of maximum brake force adjustments 8 steps of dragbrake force adjustments 4 steps of initial brake force adjustments 9 steps ofacceleration (punch) adjustment, from "soft" to "very aggressive" to fit fordifferent kinds of cars, tires and tracks.
Multiple protections include: Lowvoltage cut-off protection for Lipo or NiMH battery Over-heat protection Throttlesignal loss protection Motor Lock-up protection. Throttle out of control protection, overload protection for escort escort, reliability and durability have been greatly improved.

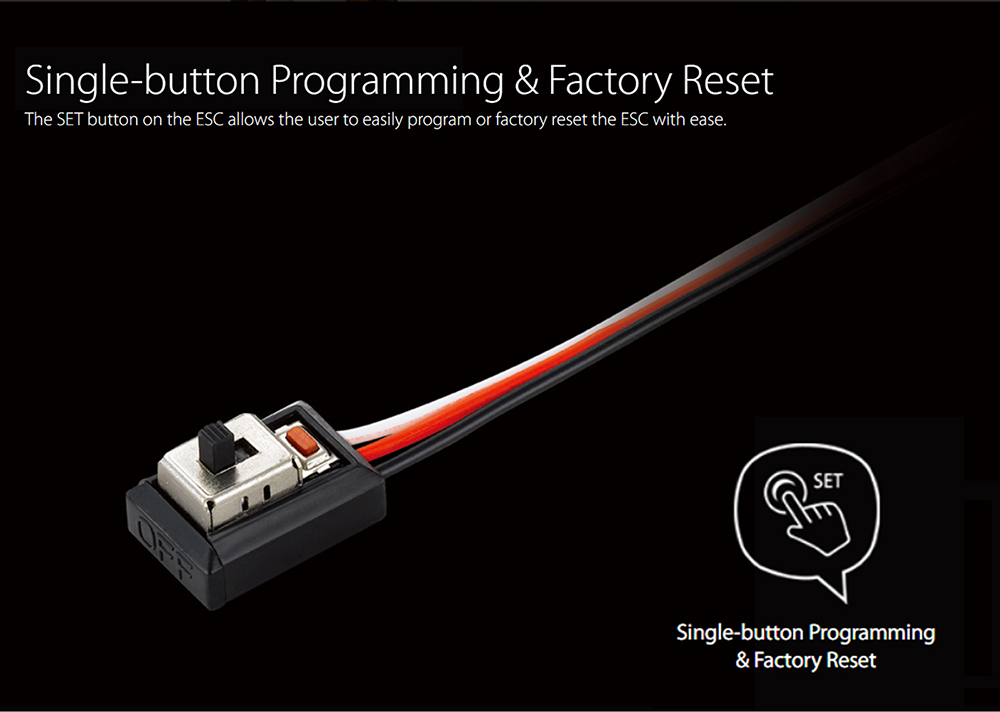

One-button to set the ESC,and easy to reset all parameters to the factory default settings.

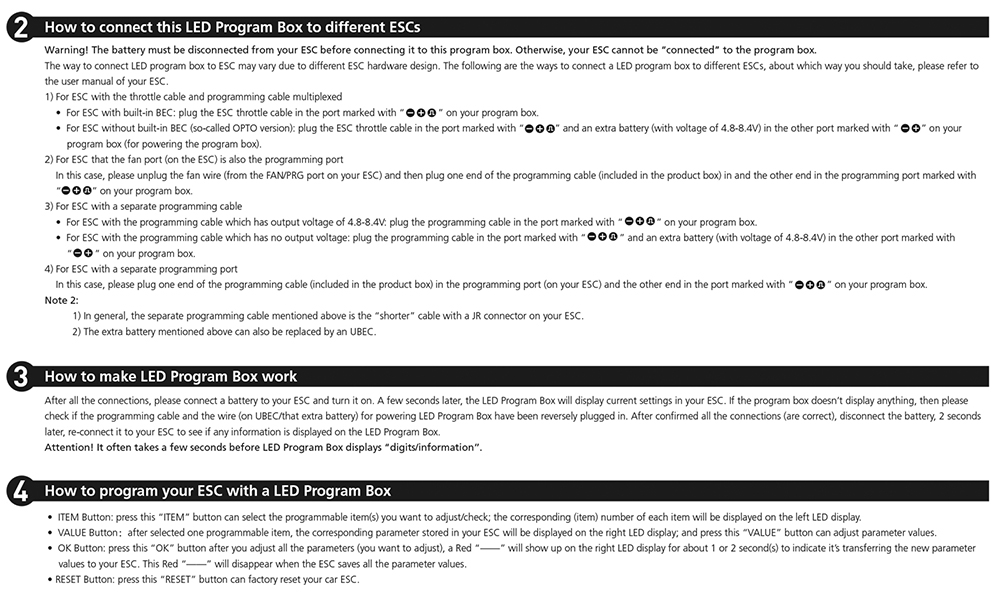

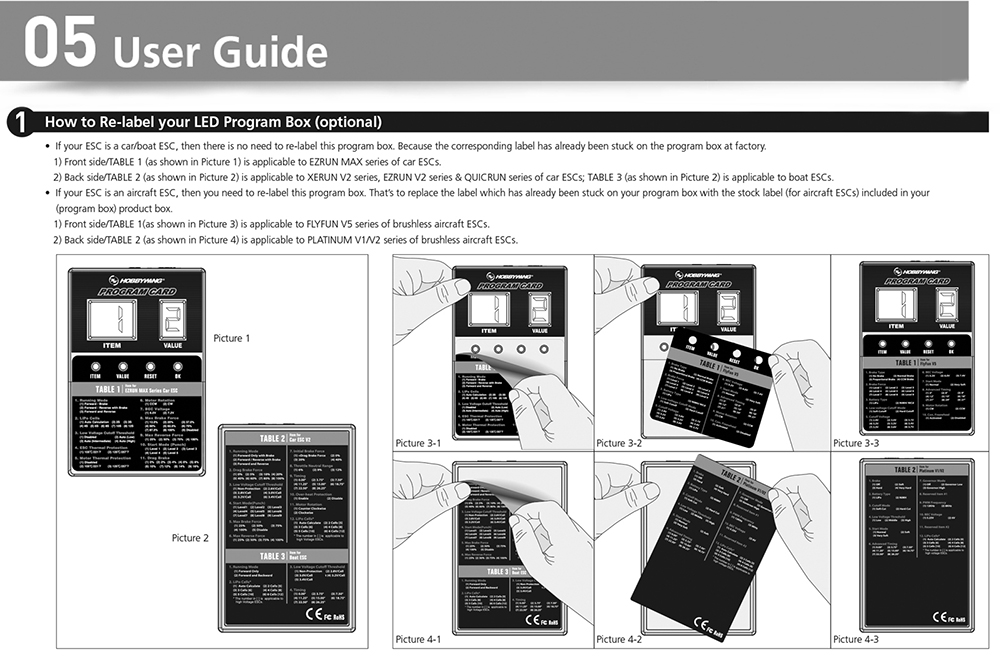

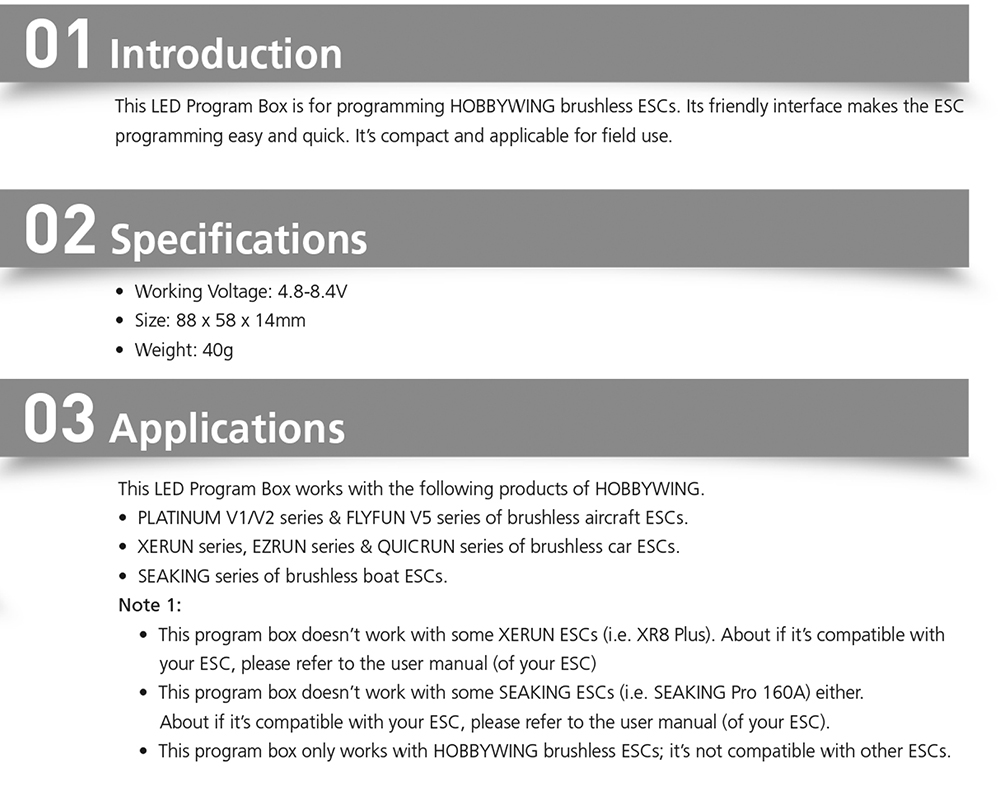

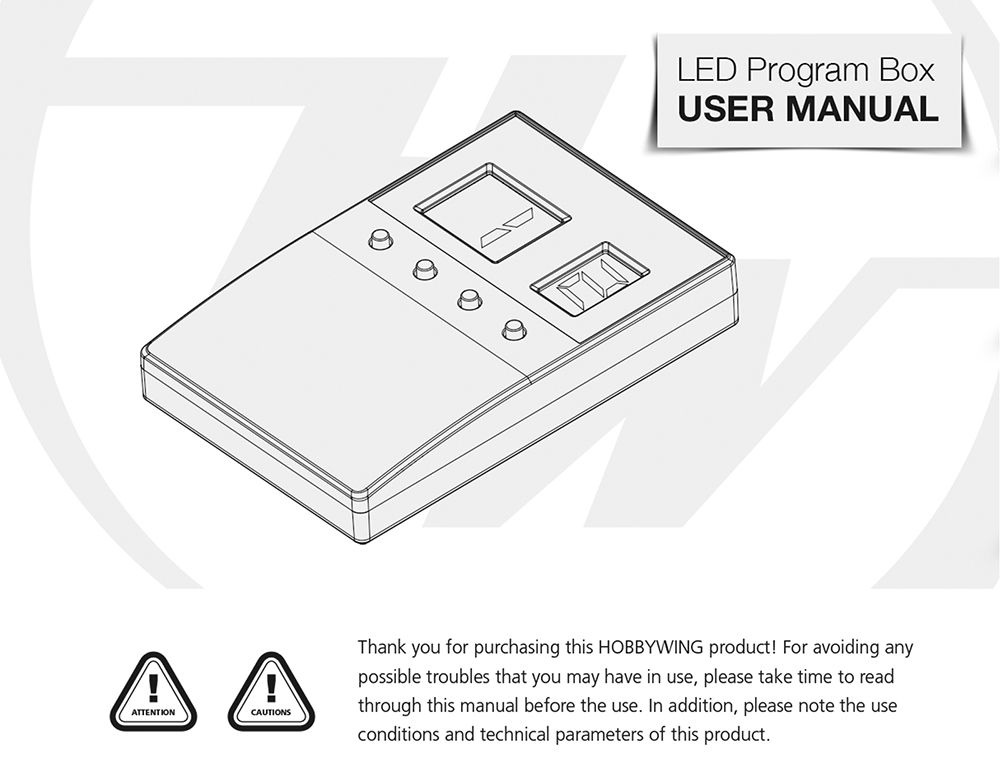

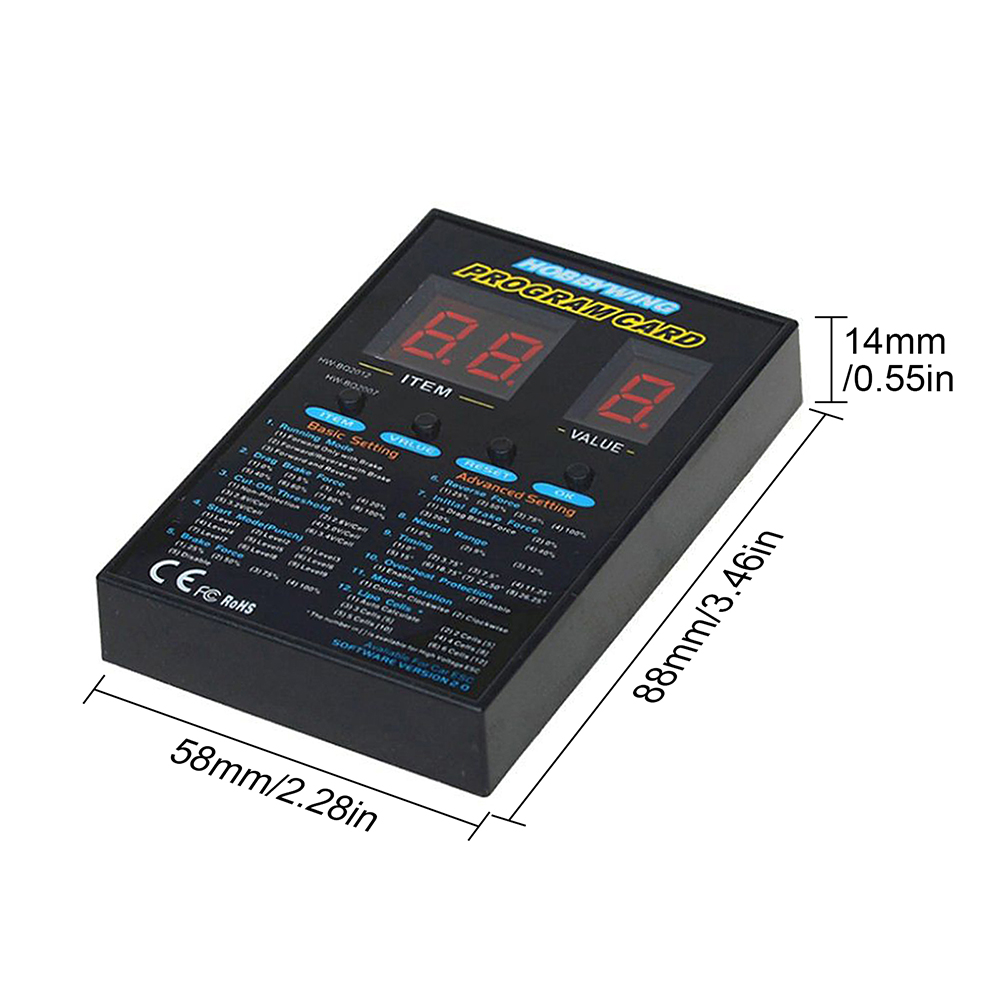

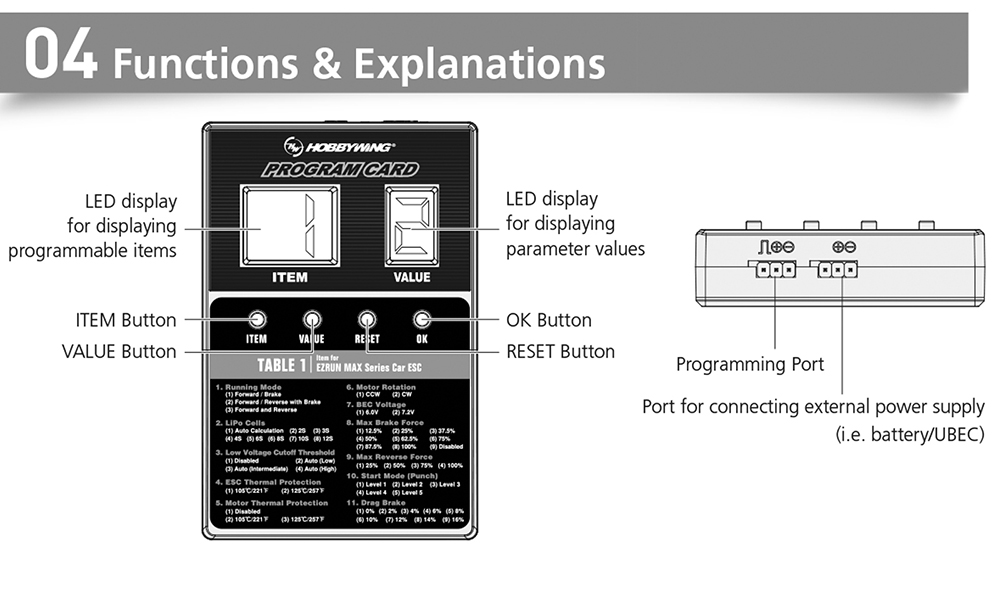

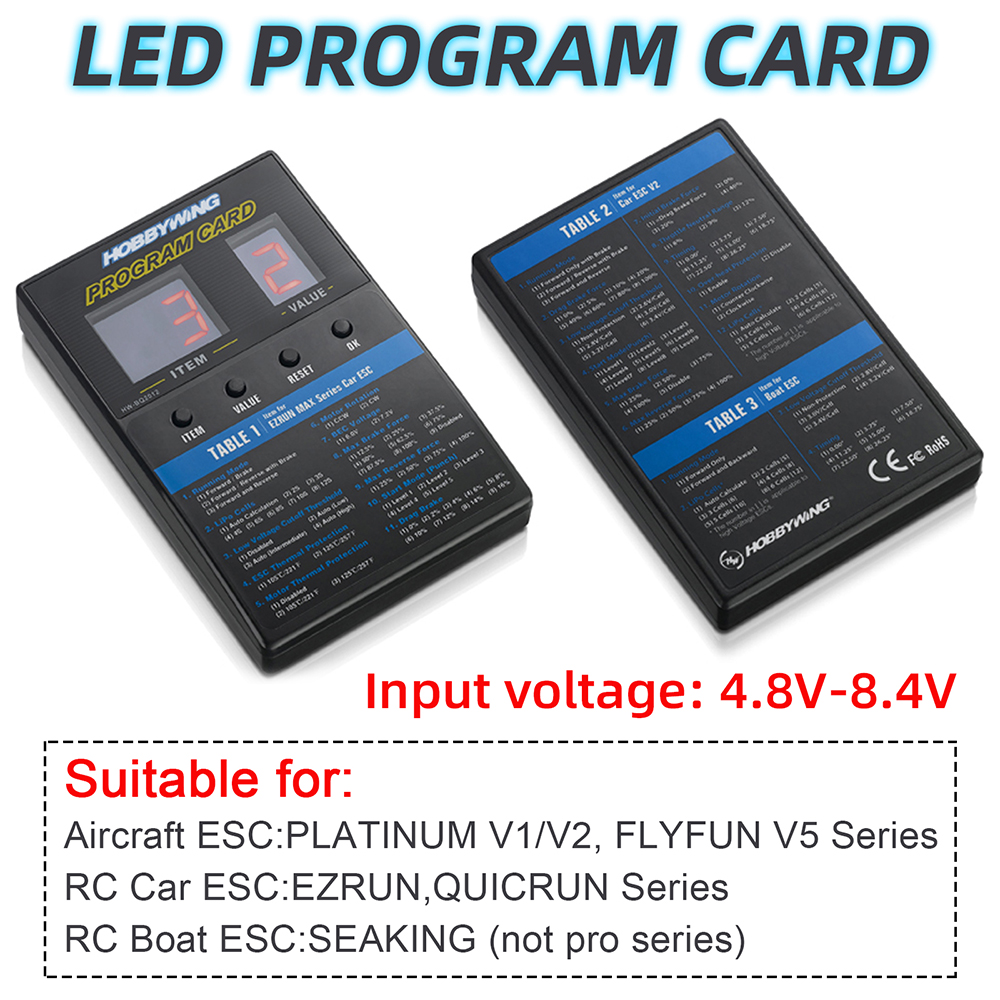

Compatiblewith optional device - the portable Digital LED Program Card which is especially convenient for outdoor use.
Motor Limits: 4-6 cells NiMH / 2S LiPo:3.5T(1/10 On-road),4.5T (1/10 Off-road) 8-9 cells NiMH / 3S LiPo:8.5T (1/10On-road),10.5T (1/10 Off-road)
Descriptions:

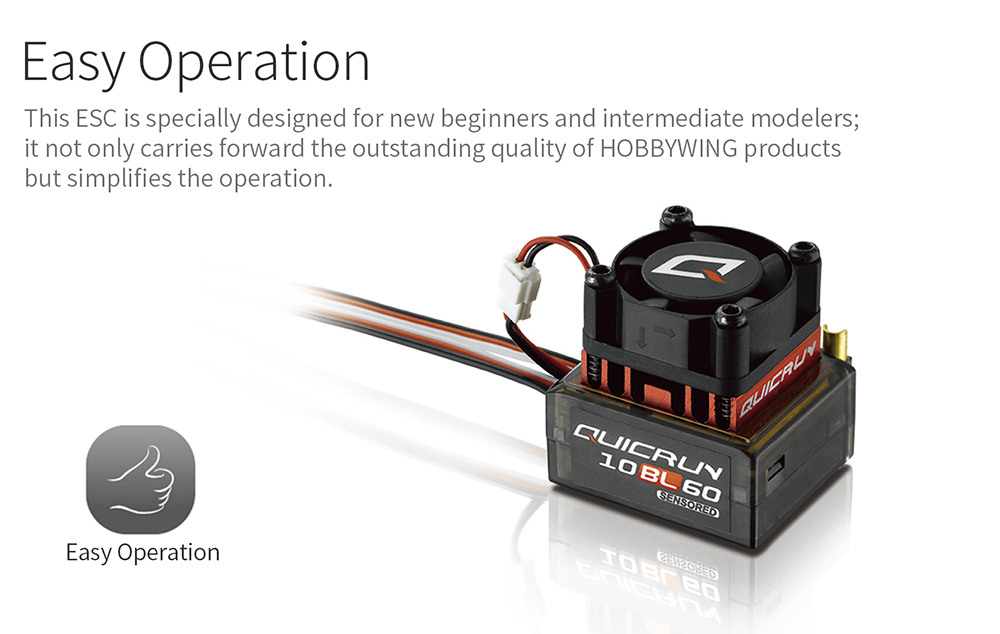

Designed for entry-level and intermediate players to create, inherited the hobbywing products outstandin quality,
And simplify the operation of the difficulty, without any complicated debugging to get started.
Products for 1/10 & 1/12 car, SUV, F1, drift car for running and daily practice.

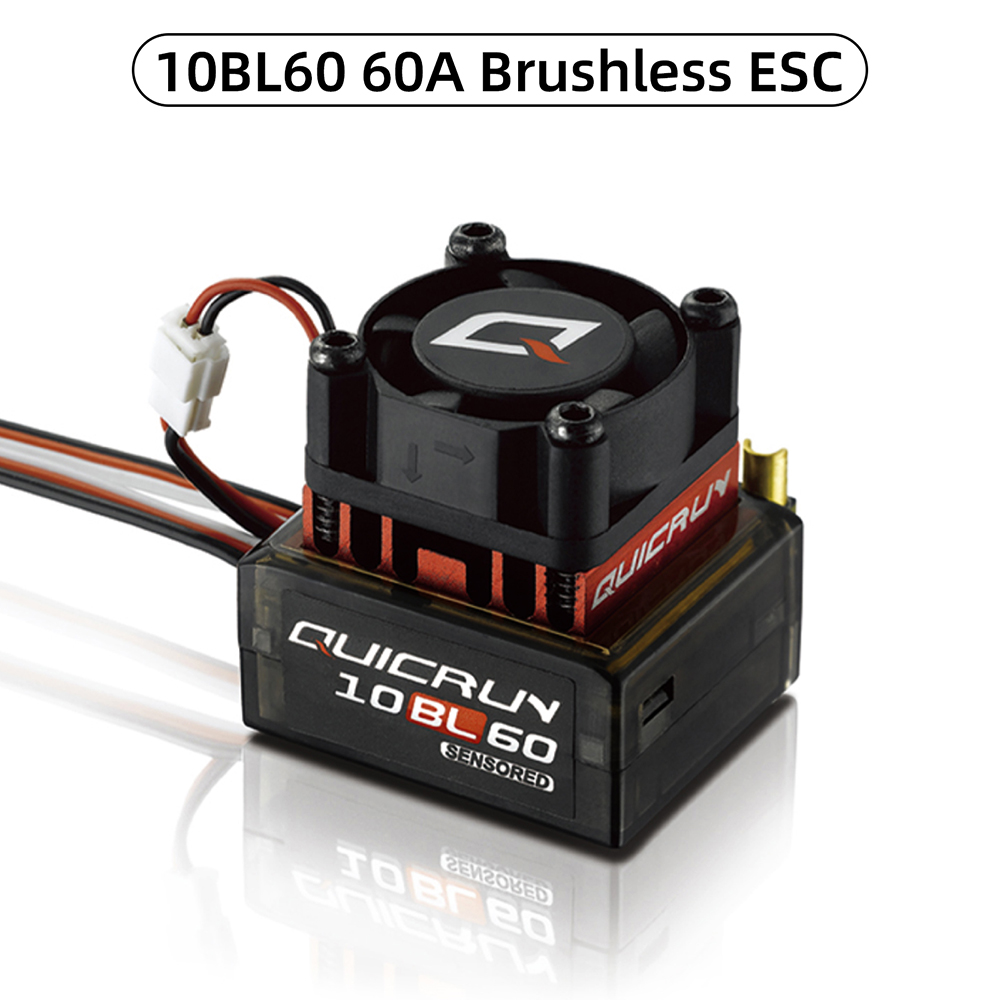

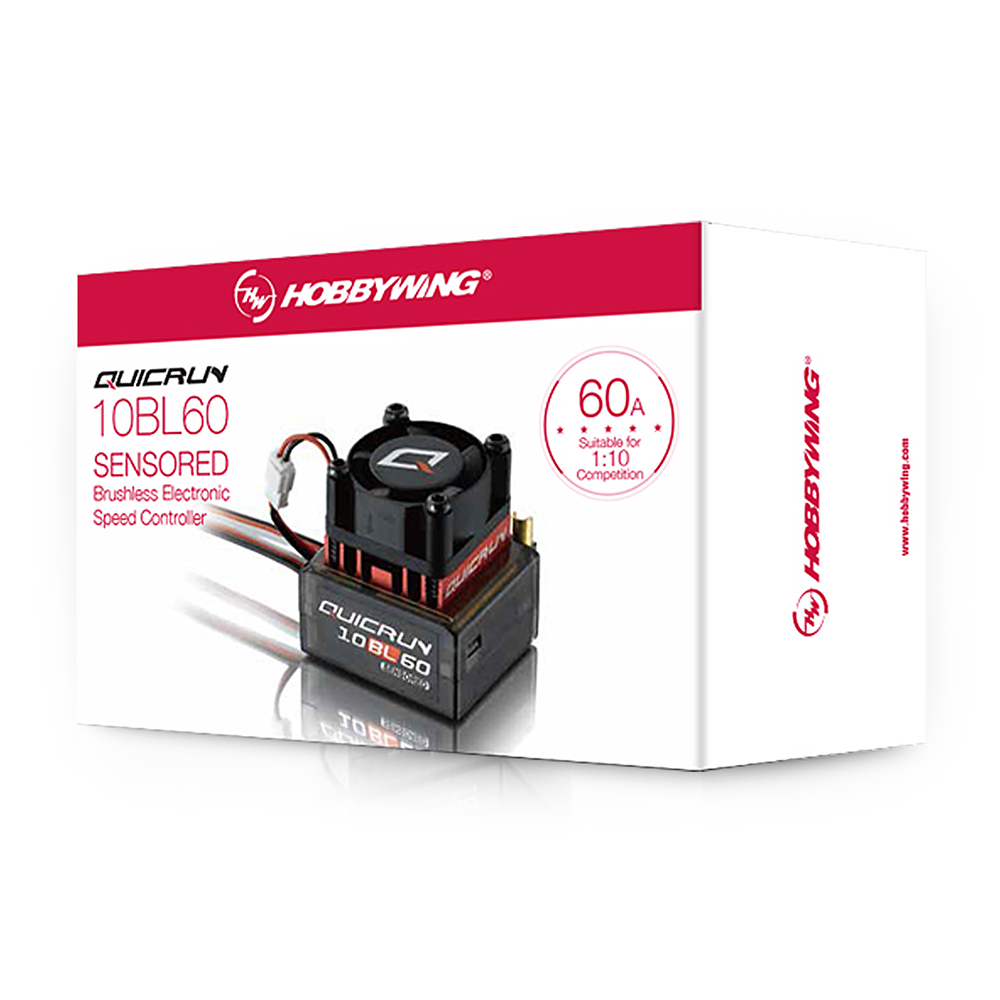

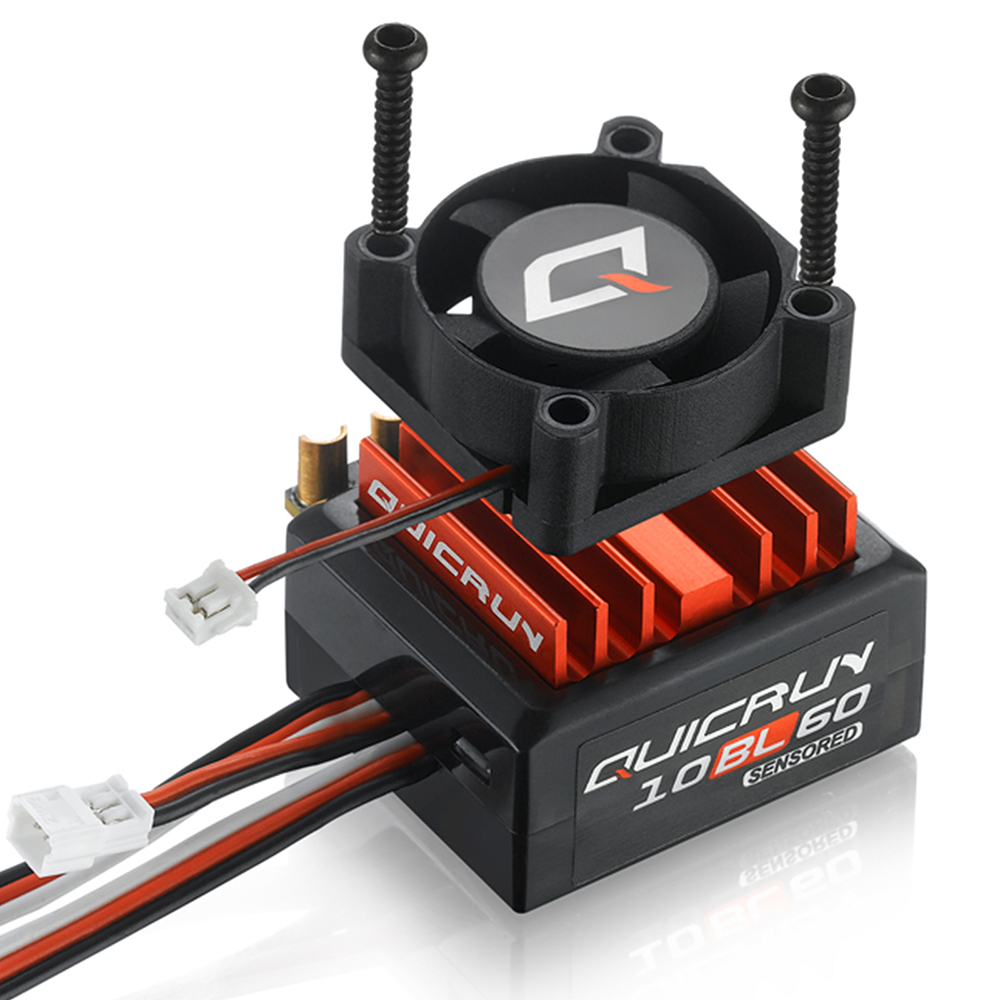

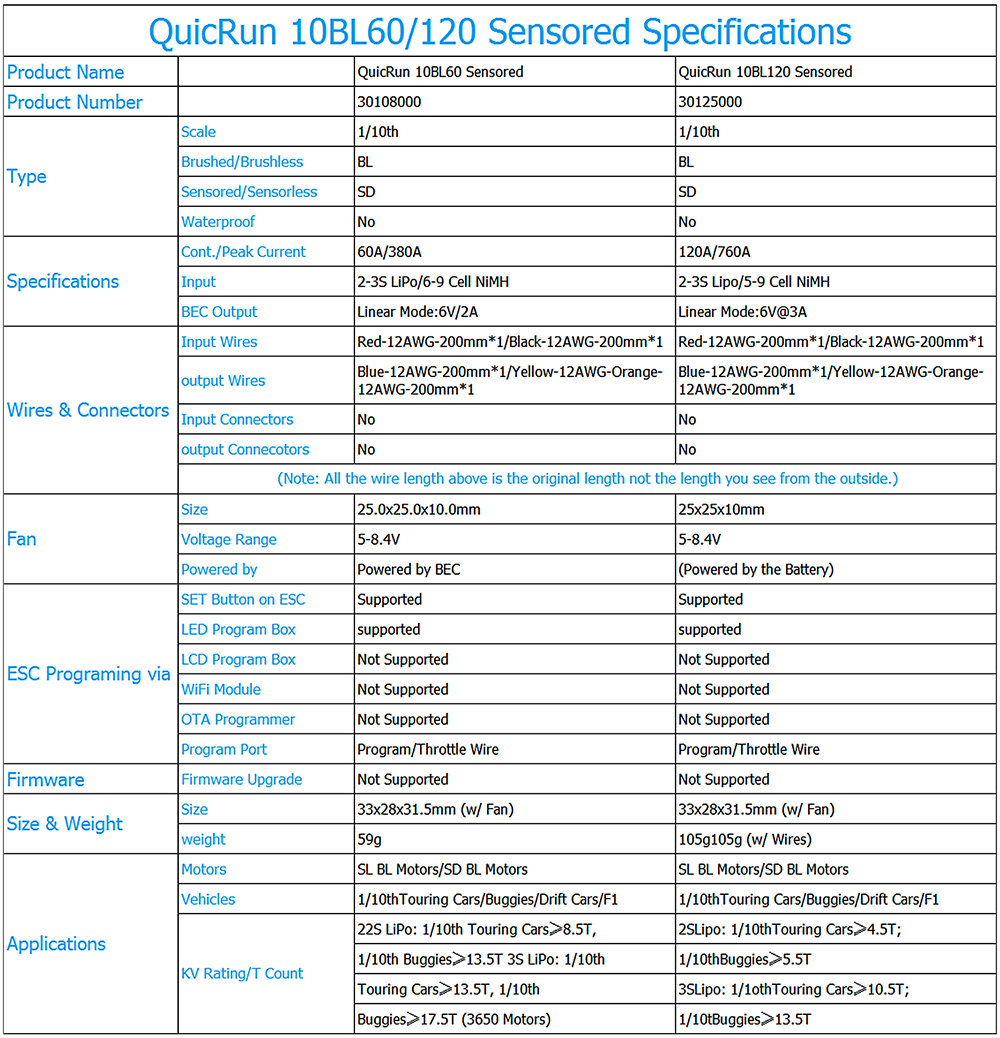

10BL60 Specifications:
Brand:Hobbywing
Product name:QincRun 1060BL Sensored,QincRun 10120BL Sensored optional
Model:30108000,30125000 optional
Battery: 2-3s lipo battery

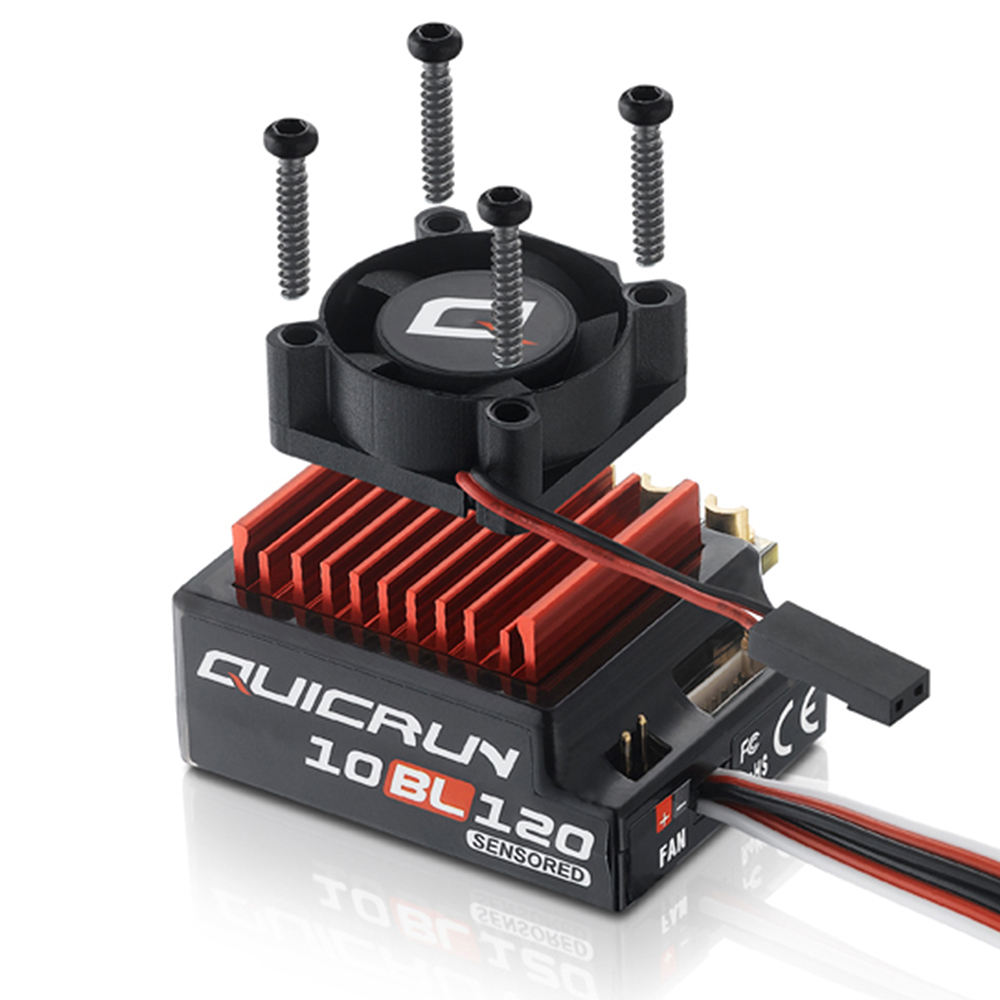

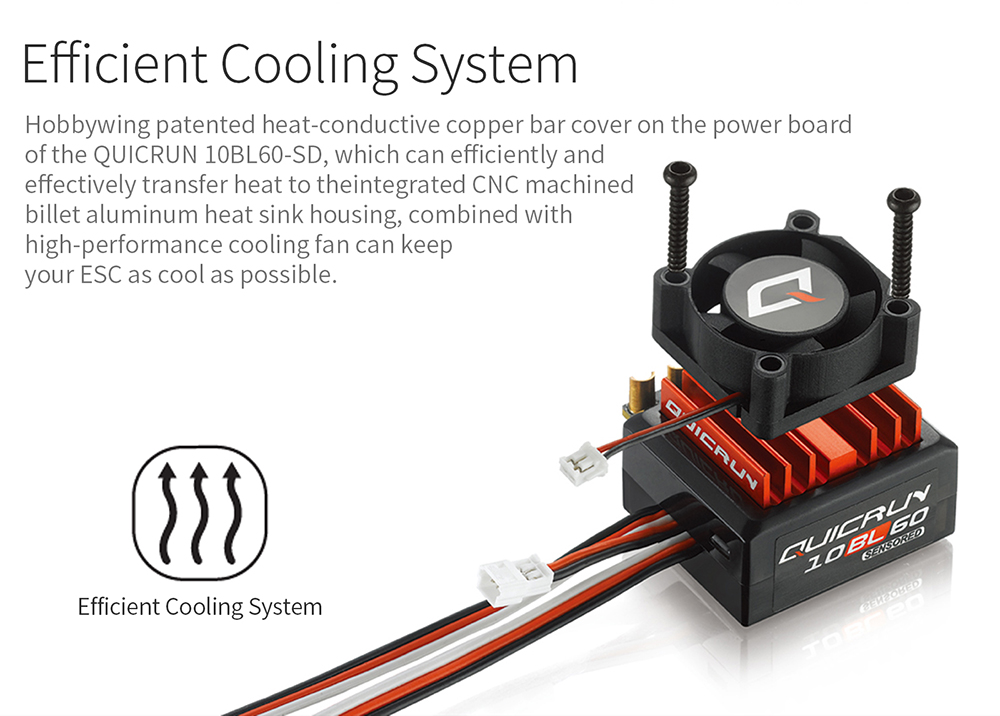

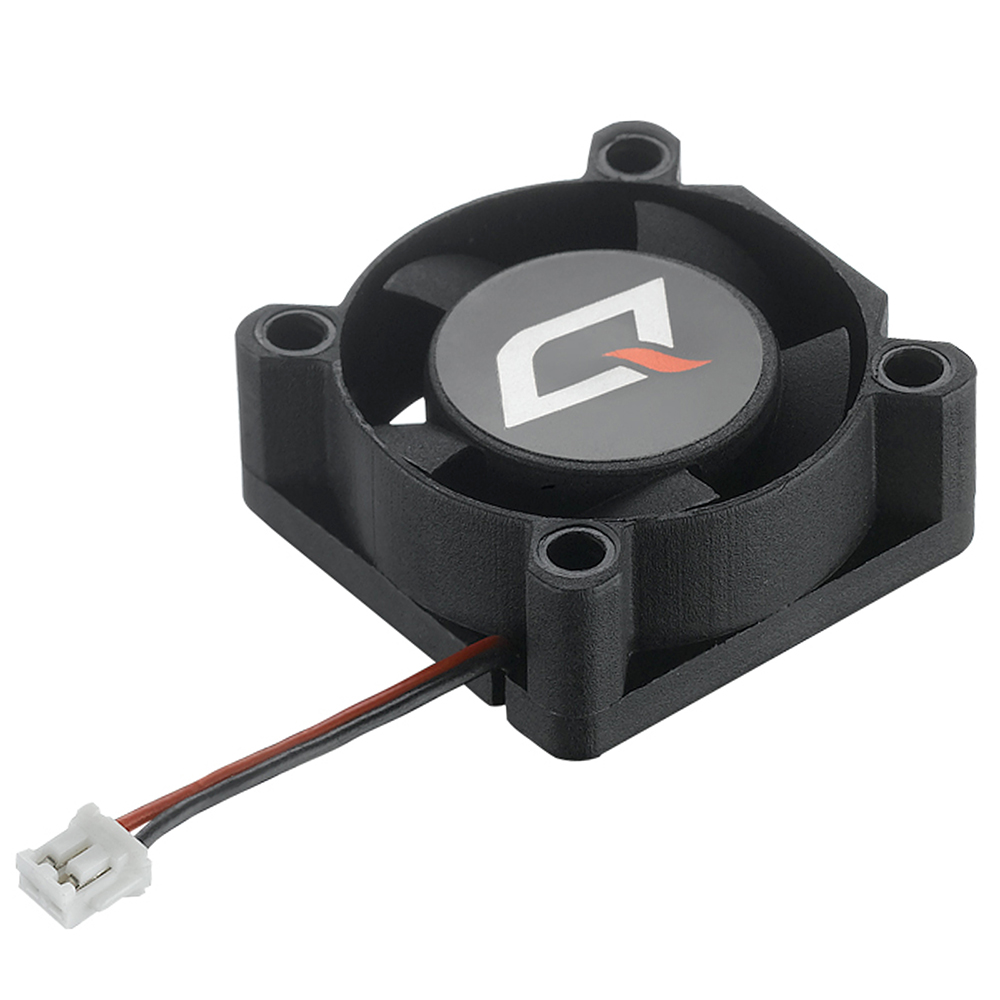

Fan size:25*25*10mm
Fan Voltage range:5-8.4V
Specifications: 33x28x33mm (with fan height)
Weight: 105g (including line weight)
10BL60 G2 Specifications:
Model: QUICRUN 10BL60 SENSORED G2
Ratio:1/10th
Continuous / Peak Current: 60A/200A
Battery Cells: 2S Lipo
BEC Output: Switch Mode 6V/7.4V @4A
Type: Brushless/ Sensored/Non-waterproof
LCD PRO: Supported (Bluetooth parameterization is not supported)
Programming interface: shared with fan interface
Supported motor types: sensored brushless motor and senseless brushless motor
Applicable Models: 1/10th electric room/off-road/drift, 1/12th,1/14th Models
Applicable Motor: ≥8.5T QUICRUN 3650 SD G2
8BL150 G2 Specifications:
Item name: Quicrun WP 8BL150 G2 ESC
Scale: 1/8th;
Type: Brushless/ Sensorless/ Waterproof;
Cont./Peak Current: 150A/ 960A;
Input Voltage: 3-6S Lipo;
BEC Output: Switch mode 6V/7.4V @ 6A;
Output connectors: 6.5mm Gold (Female);
Programming Interface: Shared with the fan interface
Application Vehicles: 1/8 Truck, Monster Truck;
Application Motor: 4274SL 2000KV 3-6S/ 4268SL 2600KV 3-4S motors

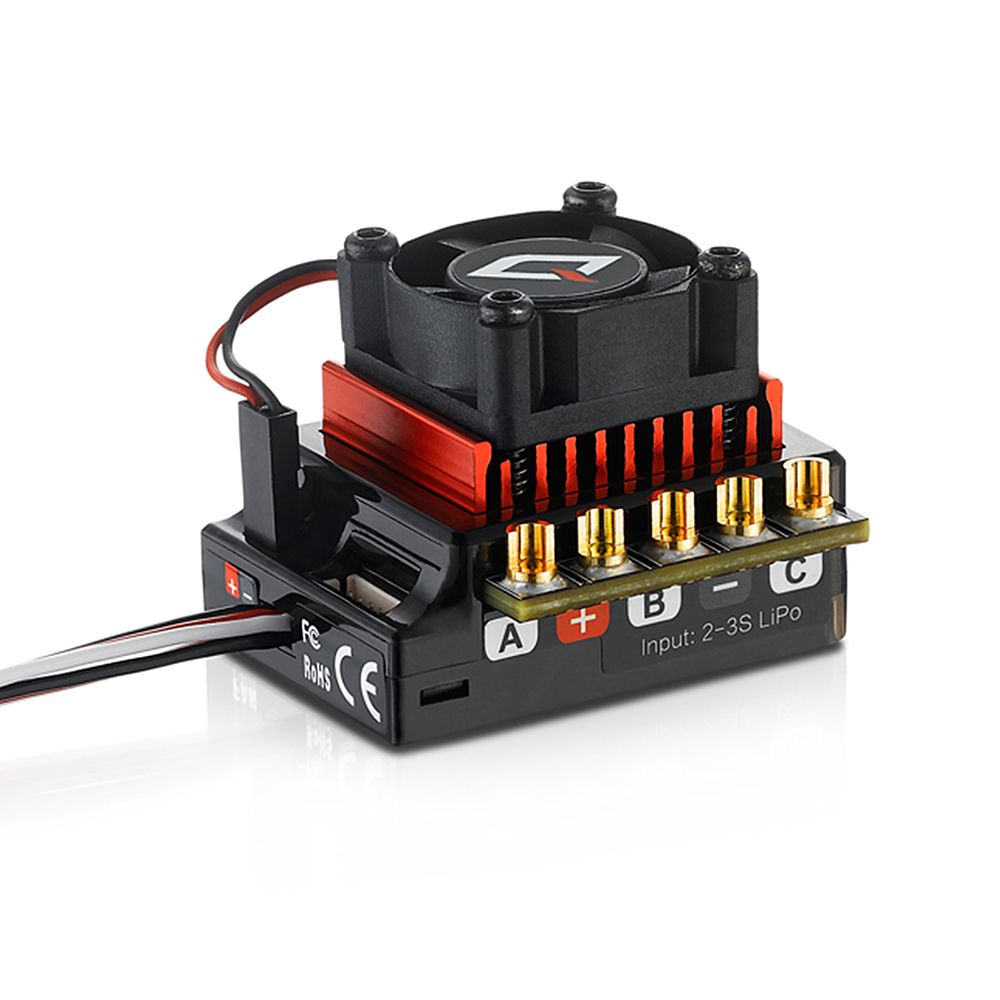

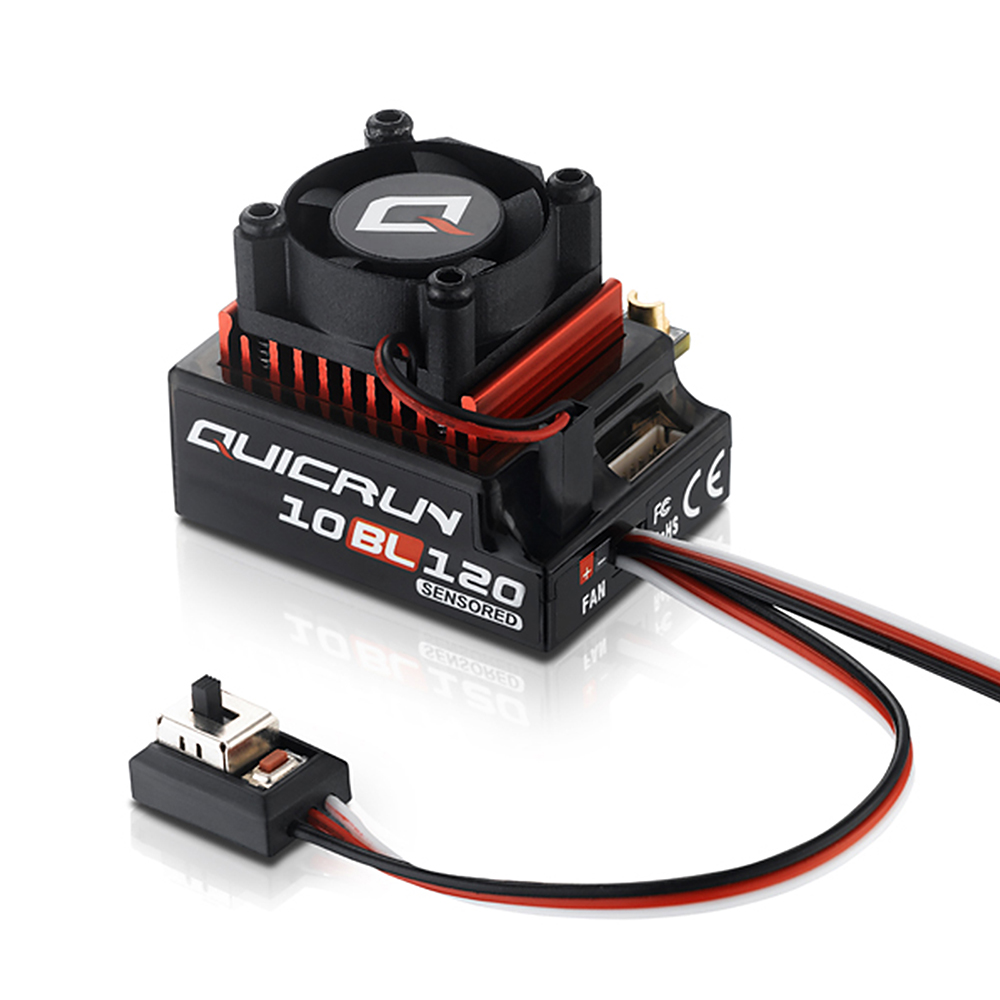

10BL120 G2 Specifications:
Product name: QUICRUN WP 10BL120 G2
Type:Brushless/Sensorless/waterproof
Scale: 1/10th
Continuous/peak current: 120A/760A
Number of batteries: 2S-4S Lipo
BEC output: Switching mode 6V/ 7.4V@5A
Support motor type: Sensorless brushless motor/ Sensored brushless motor (only works in sensorless mode)
Applicable model: 1/10th short truck/monster truck
Applicable motor: 3652, 3660 size motor
Package included:
1 x Hobbywing Brushless ESC
Only the above package content, other products are not included.
