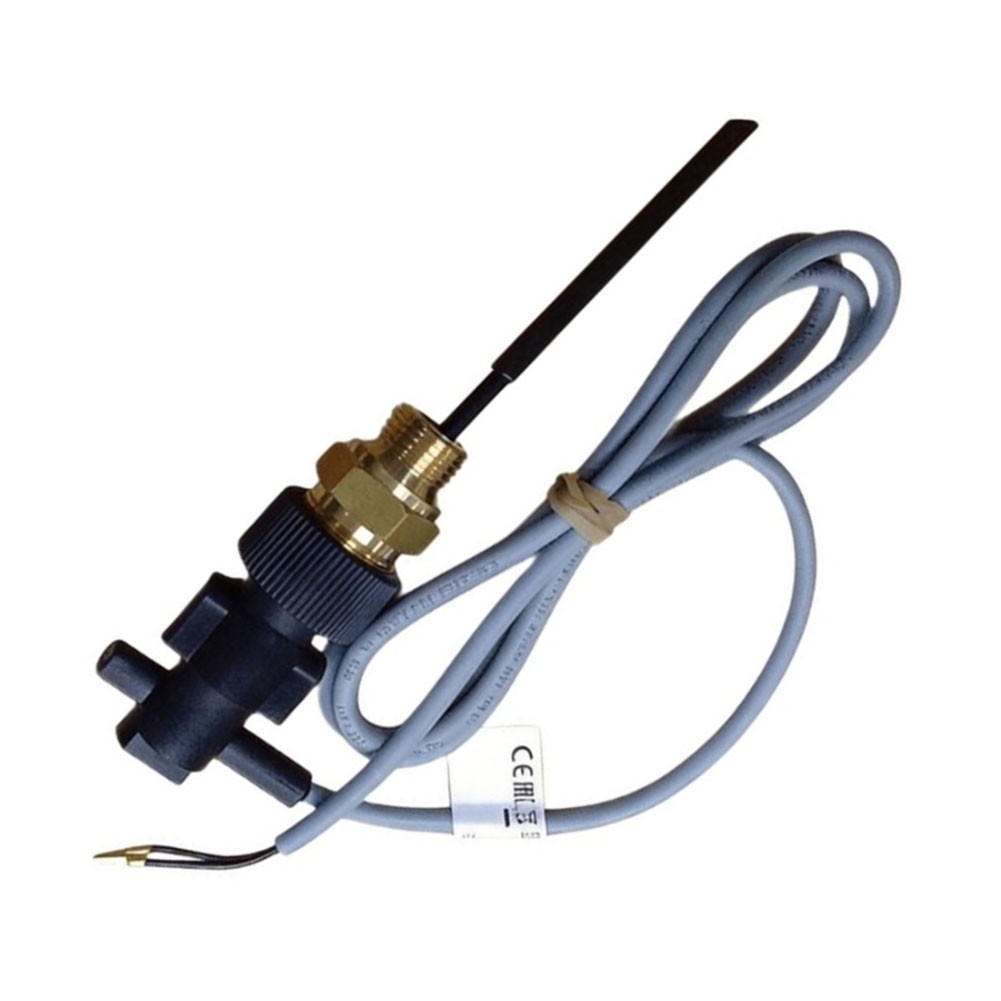

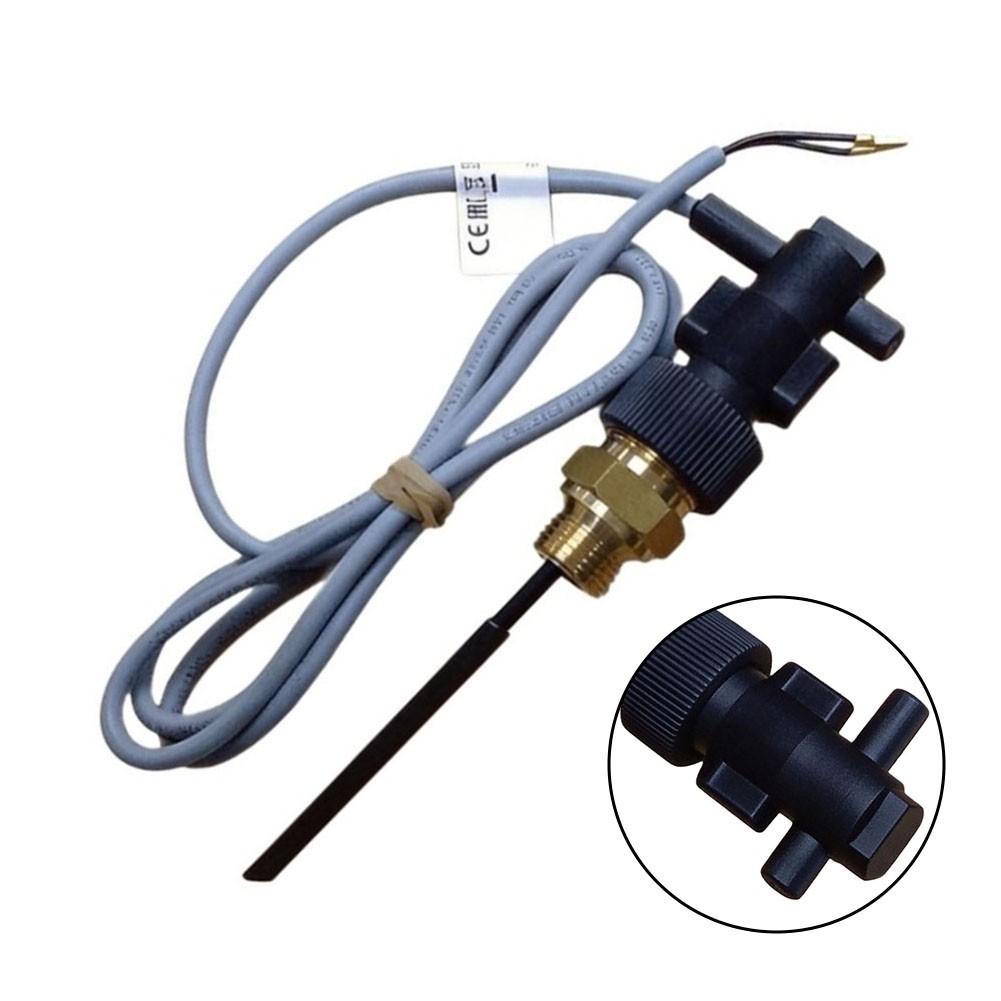

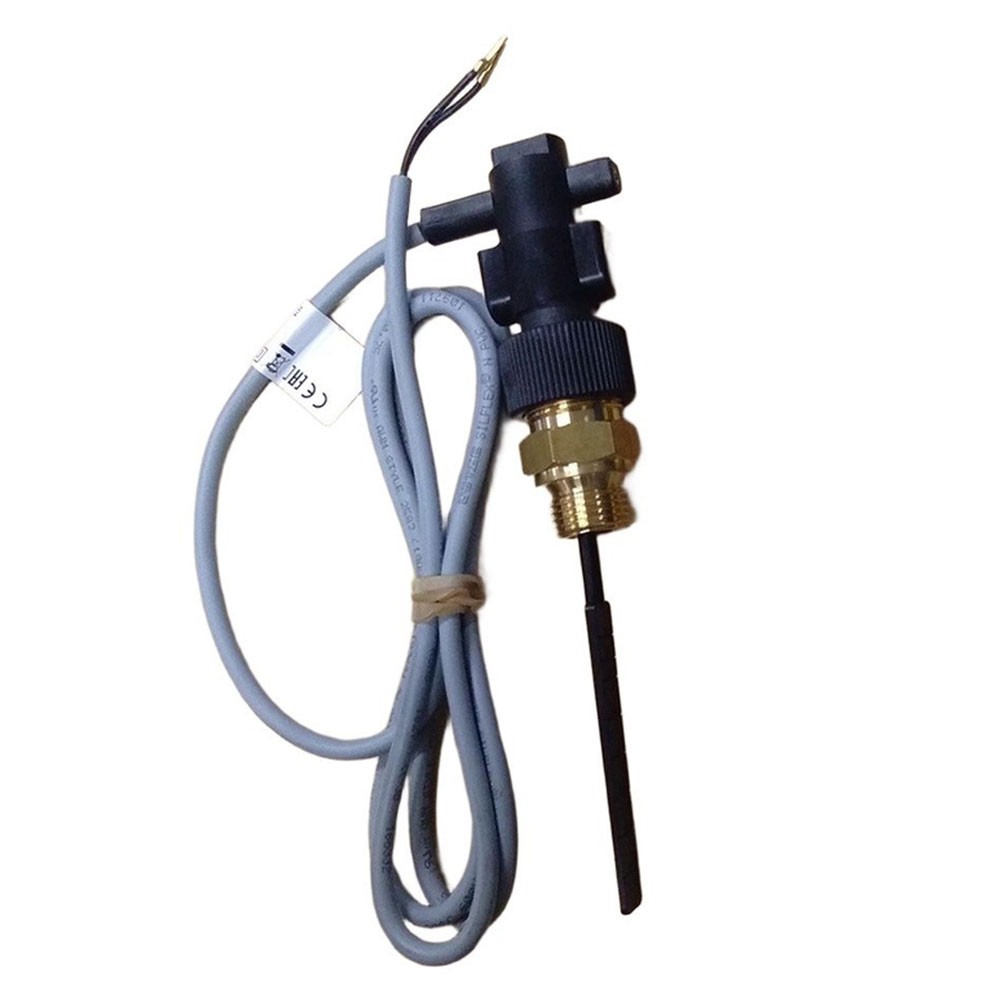

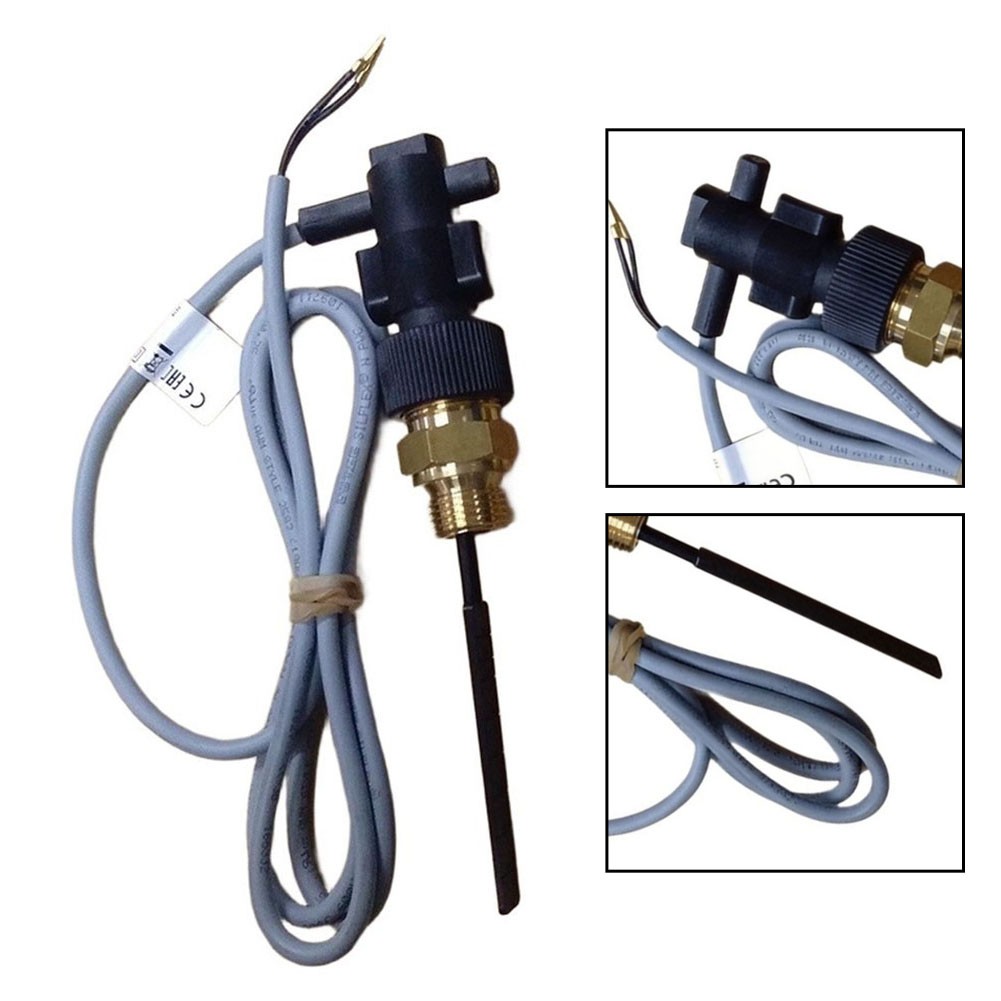

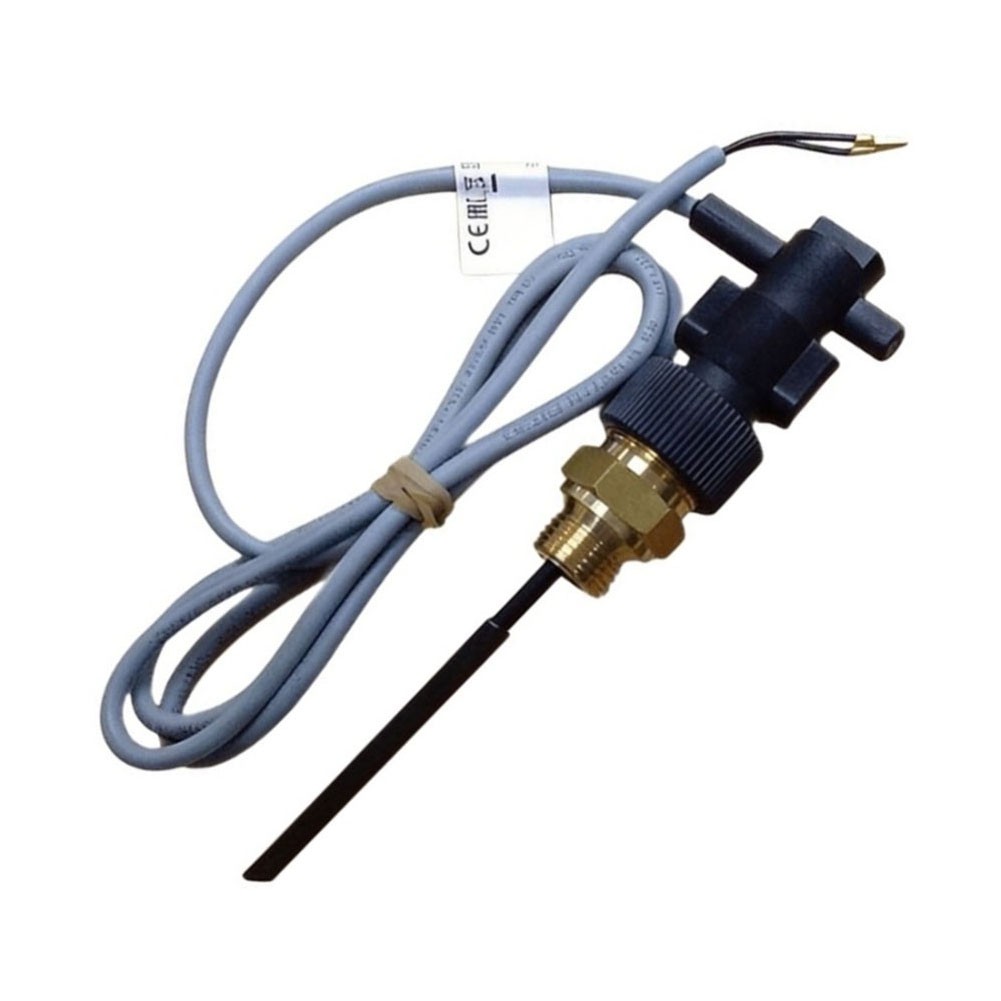

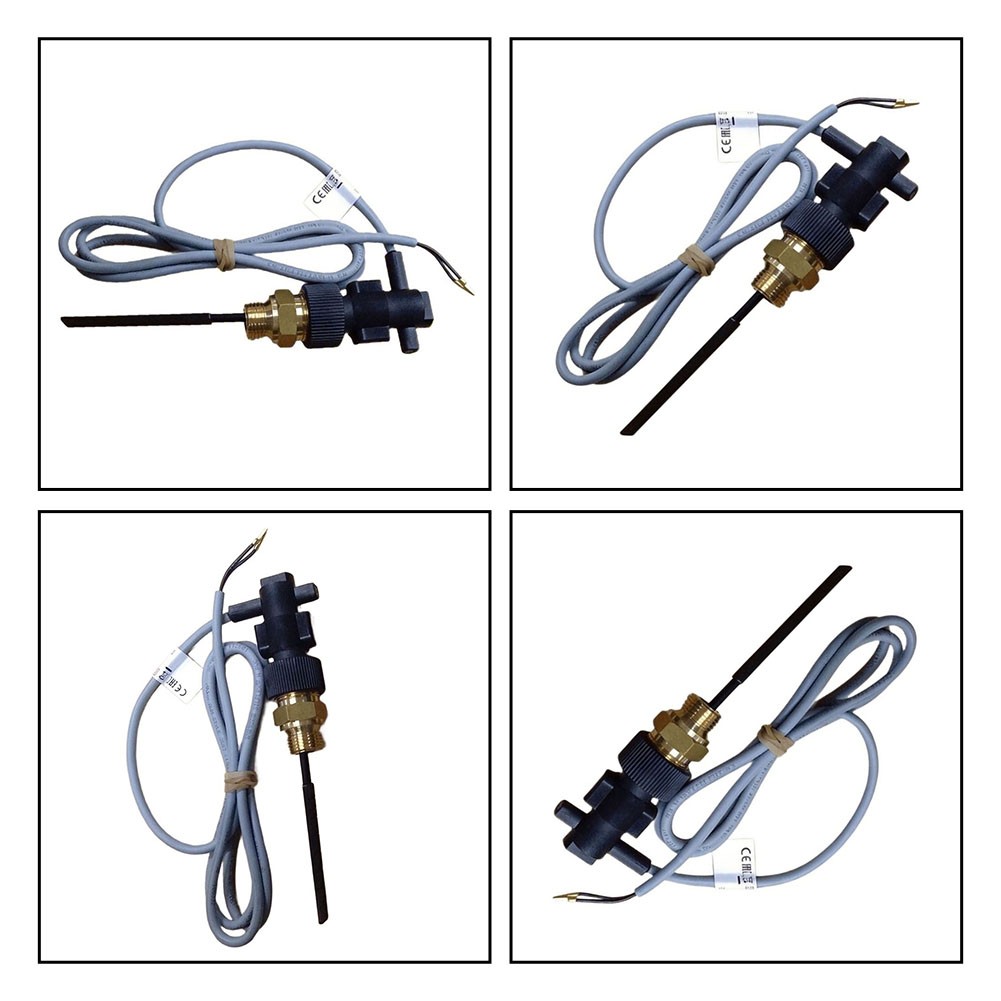

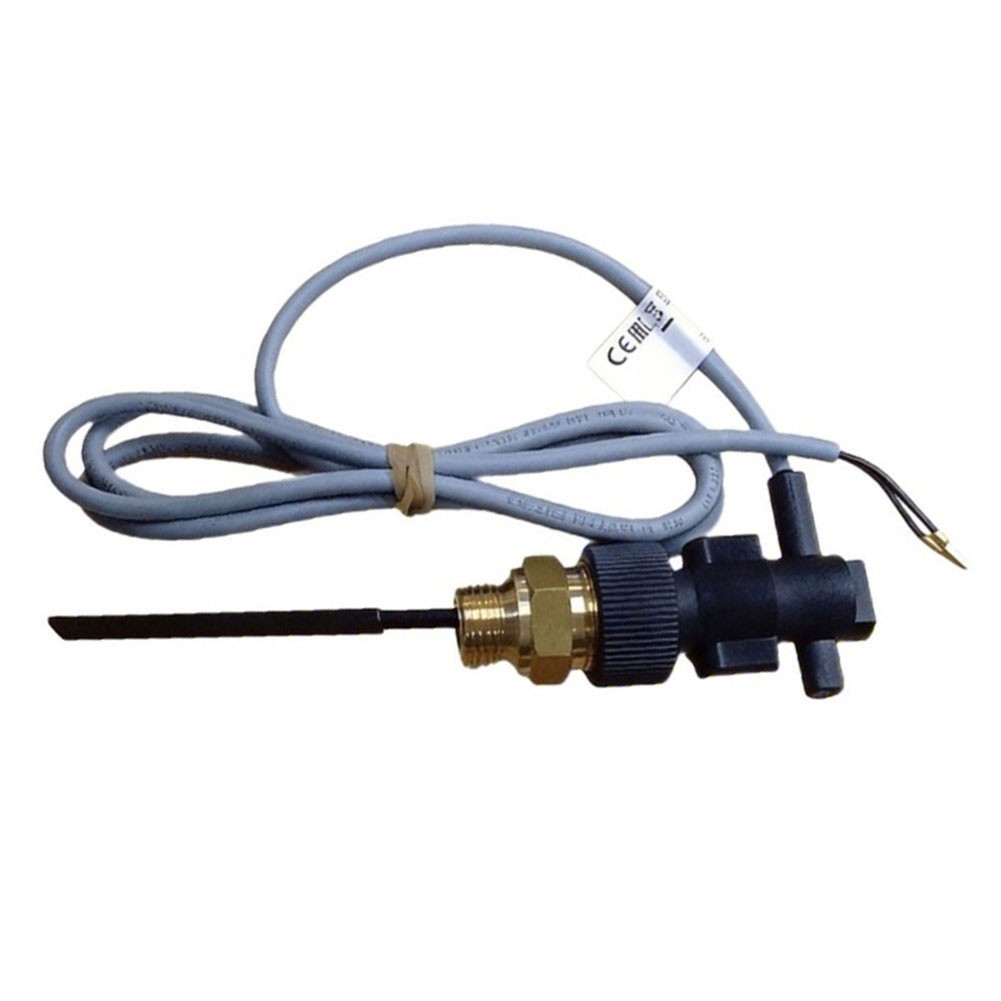

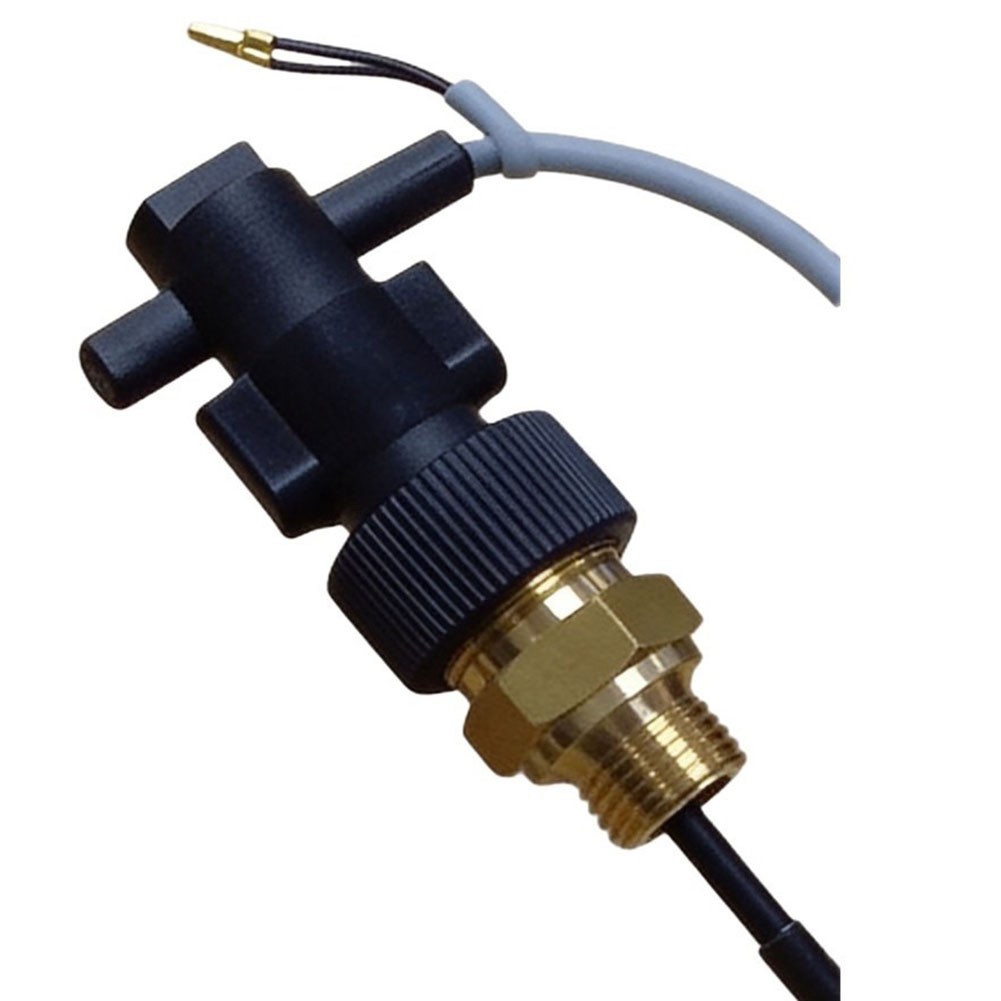

Paddle Flow Switch G1/2 Inch Brass Thread for HVAC System Flow Assurance
DESCRIPTION

Features:

*Accurate Performance: This flow switch for toggle switch provides precise monitoring with an accuracy of ±5%, reliable operation in HVAC heating system systems.

*Robust Construction: Made from brass with a G1/2 inch external thread, it is designed to withstand high pressures, capable of withstanding up to 1.6MPa for added safety and longevity.

*Wide Temperature Range: Functioning effectively in a temperature range of -20 to 85℃, this switch is for versatile enough for various conditions.

*Quick-acting Rate: With a maximum temperature change rate of 300Kmin, it ensures quick and efficient response to changing system demands, enhancing overall system performance.

*Compact Design: Measuring 118*72mm with mounting dimensions of 50*90mm, this flow switch is designed for easy installation and integration into existing systems without compromising space.


Specifications:

Part Name:Flow switch

Material:brass

Size:118*72mm,G1/2 inch

Color:Black

Switch accuracy: ±5%

Temperature: -20~85℃
Rated voltage: 5V
Sensor length: 15mm
Withstand voltage: 1.6MPa
Current consumption: ≤60mA
Dimensions: 118*72mm
Mounting dimensions: 50*90mm
Load current: 250mA (switching component)
Temperature gradient: 4℃/s
Ambient temperature: -20~120℃


Package Content:

1*paddle flow switch


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
