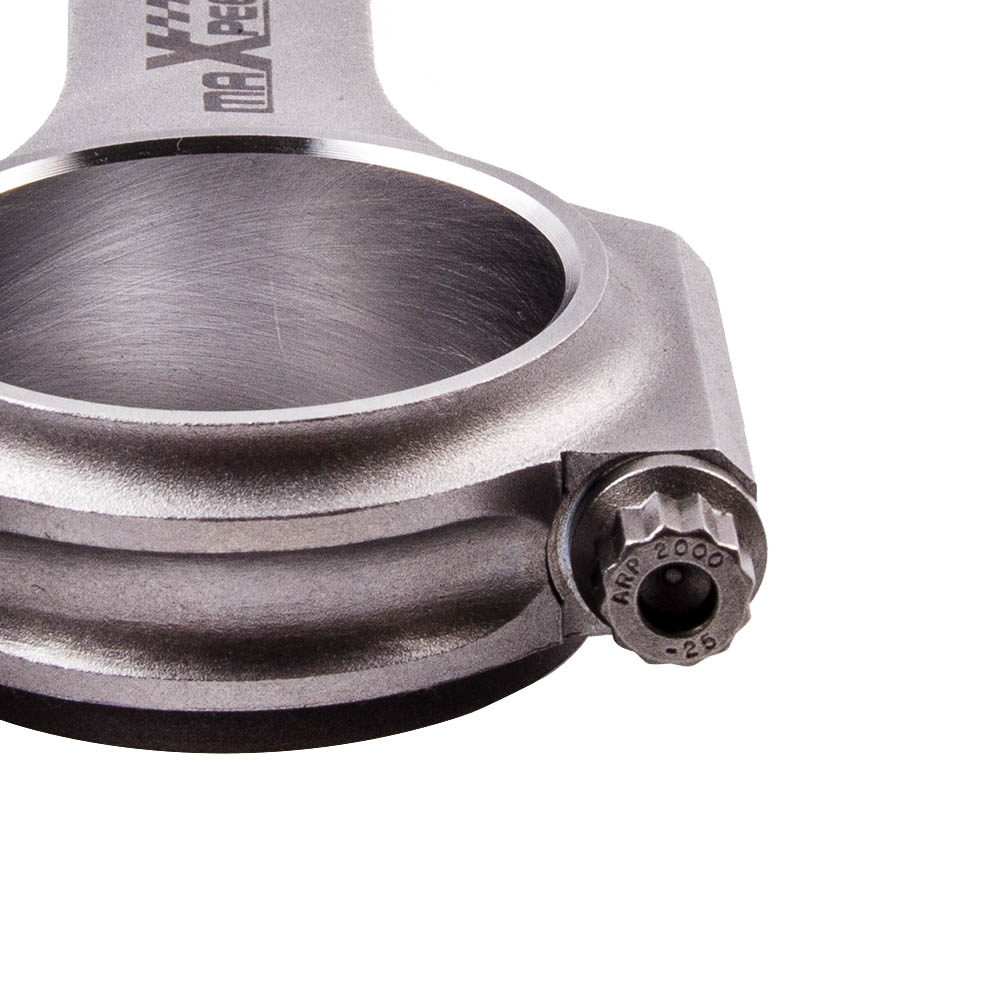

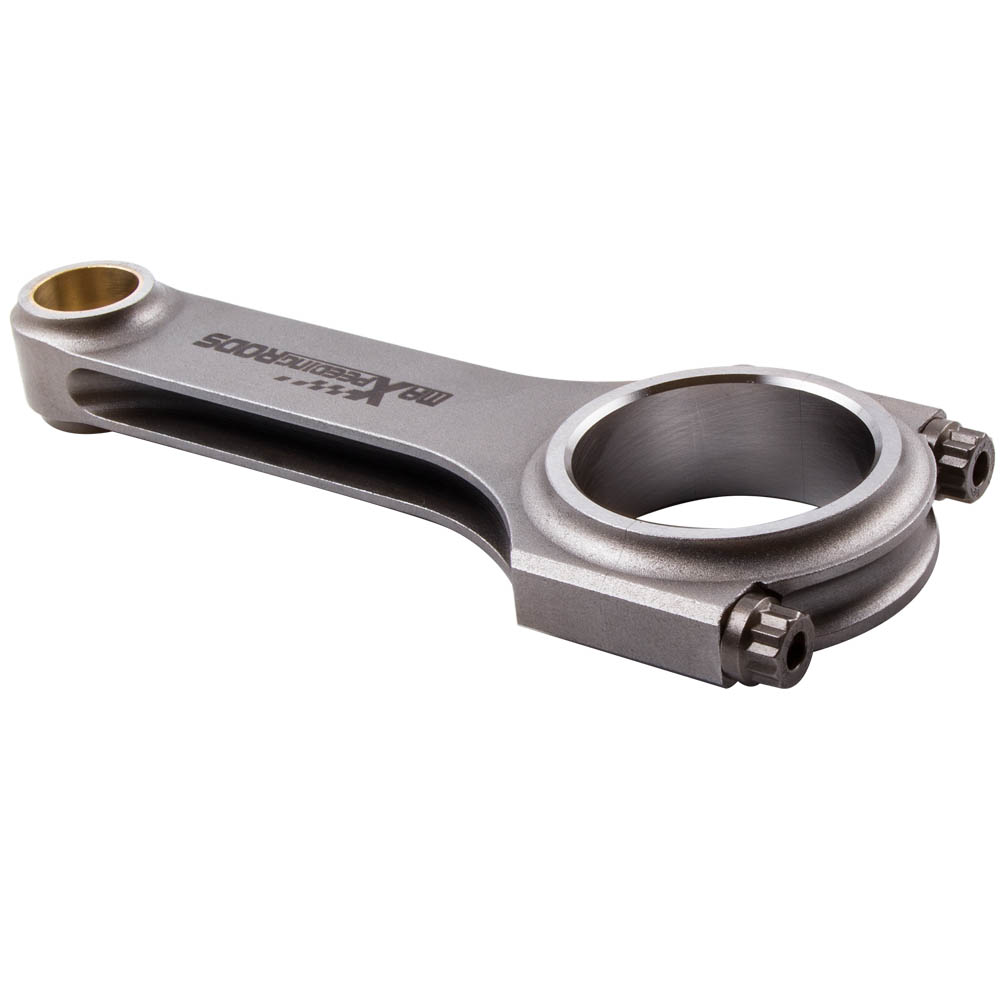

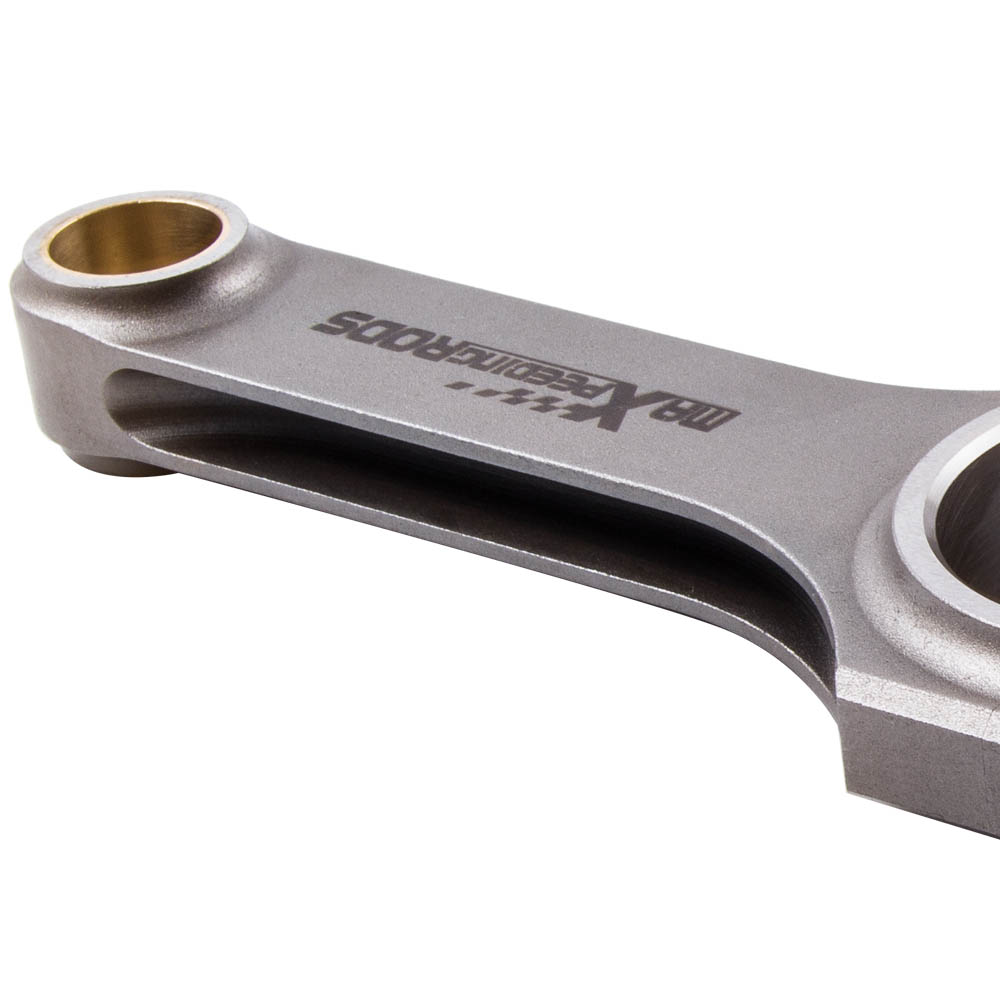

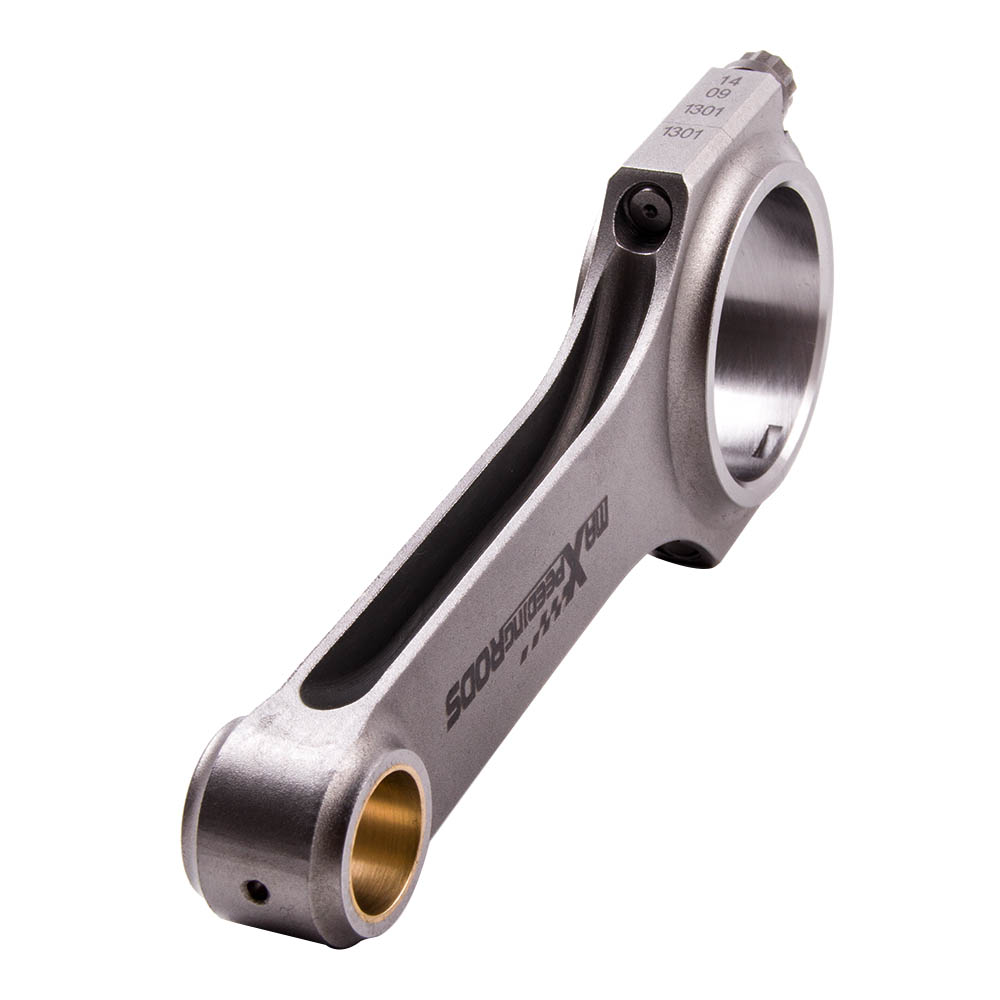

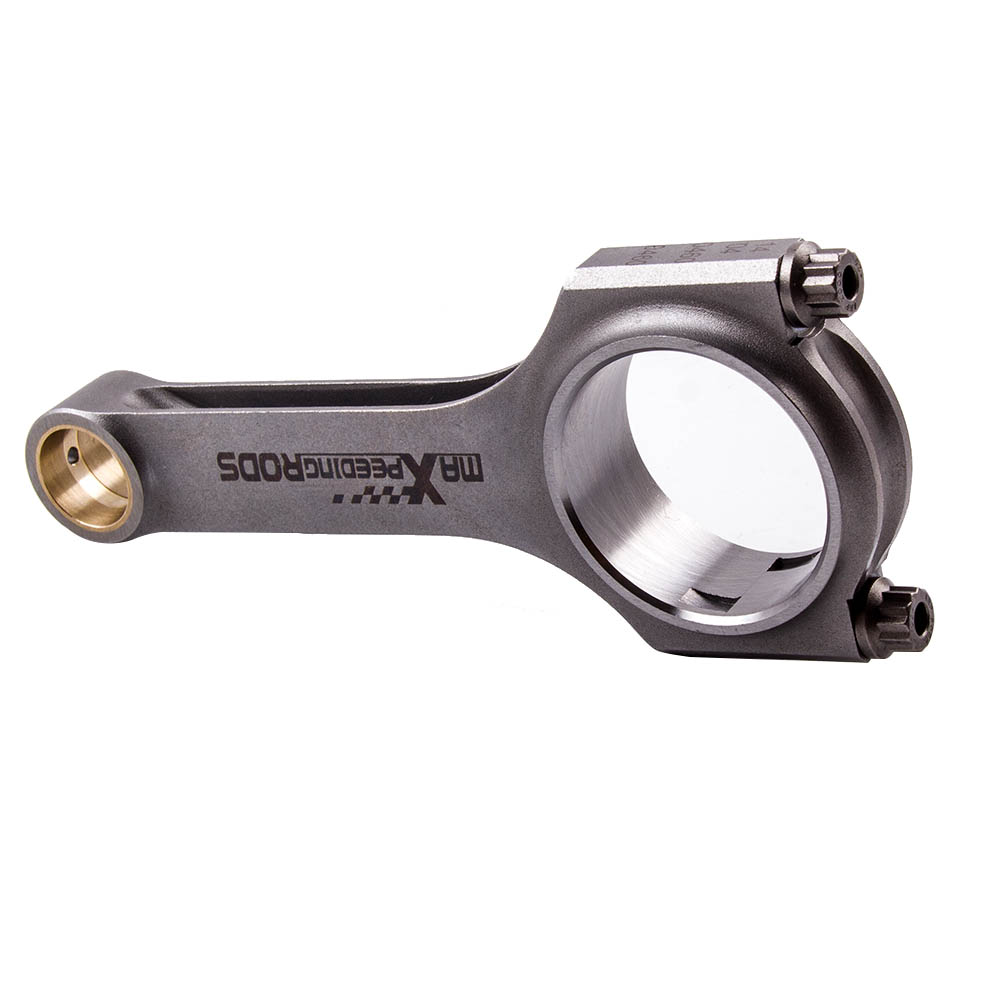

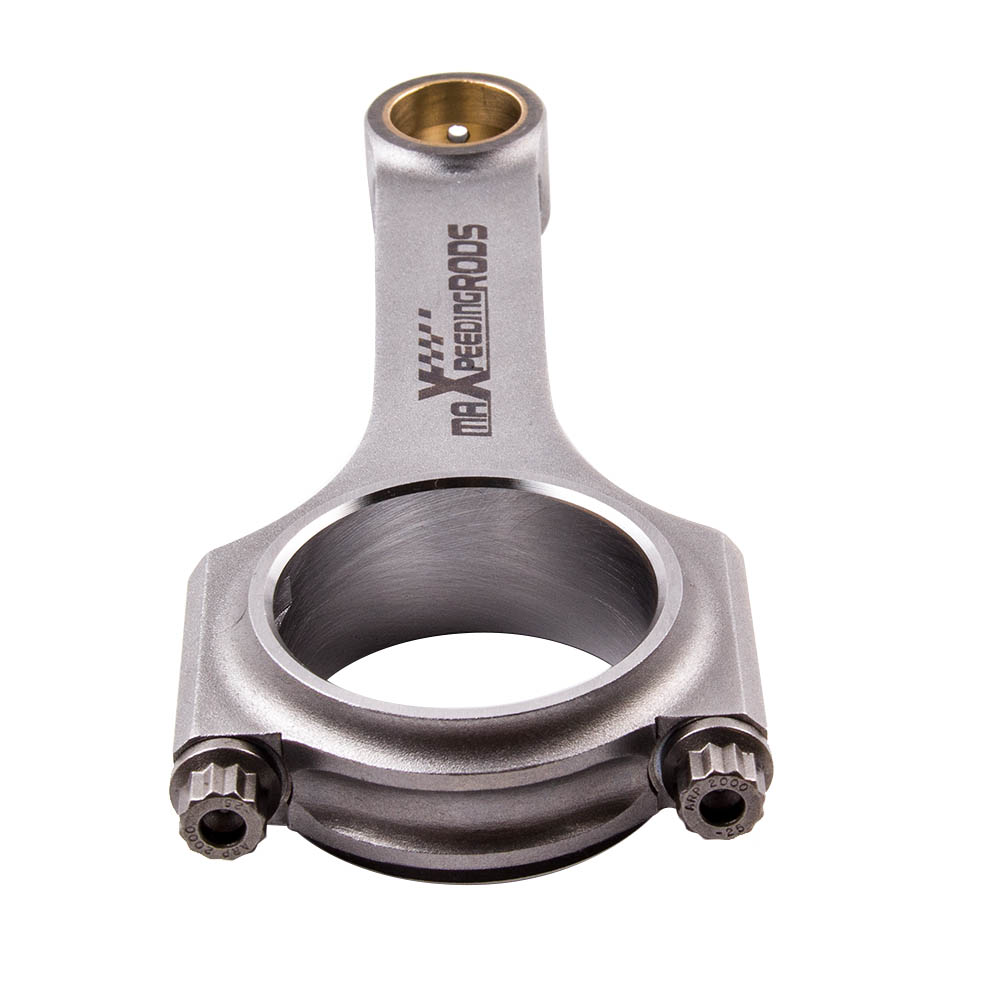

4x Forged 4340 EN24 Connecting Rods for Acura/Honda B18A B18B B20B B20Z Engine

Images


Features


Application
Suits Engine Models
For B18A1, B18B1, B18B2, B20B4, B20Z2
For Acura Integra 1.8L L4 B18A1 – 1990–1993
For Acura Integra 1.8L L4 B18B1 – 1994–2001
For Honda CR-V 2.0L L4 B20B4 – 1997–1998
For Honda CR-V 2.0L L4 B20Z2 – 1999–2001




Specifications
Beam Style: H-beam – Street & Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Stroker Clearanced: Yes
Cap Retention: Through-bolt design
Connecting Rod Bolt Brand: ARP
Rod Bolt Diameter: 3/8"
Rod Bolt Material: Alloy Steel
Fastener Yield Strength: 220,000 psi (ARP 2000)
Optional Upgrade Fasteners: ARP L19 (260,000 psi)
Bolt Head Style: 12-point
CNC Machined: High precision engineered
Rod Cap Alignment: Fitted with precision dowels
Bore Tolerance: ±0.005 mm
Balancing Tolerance: ±1 gram per rod
Weight Matched Set: Supplied as a fully matched set
Remanufactured: Brand new – not remanufactured
Quality Testing: Magnafluxed, X-ray inspected & ultrasonically tested
Heat Treated: Fully heat treated for strength and durability




Dimensions
Connecting Rod Centre to Centre Length: 137.00mm / 5.394in
Approximate Individual Rod Weight: 556g
Big End Bore Diameter: 48.00mm / 1.890in
Small End Bore Diameter: 21.00mm / 0.827in
Big End Width: 23.75mm / 0.935in
Small End Width: 21.00mm / 0.827in




Performance Ratings
Power Rating: 200HP per connecting rod
Max Rated RPM: 9,000rpm




Packaging
Quantity: Sold as a complete set of 4
Package Dimensions: 28CM × 20CM × 10CM





GGT1544V-Z2
GGT1544V-Z2
