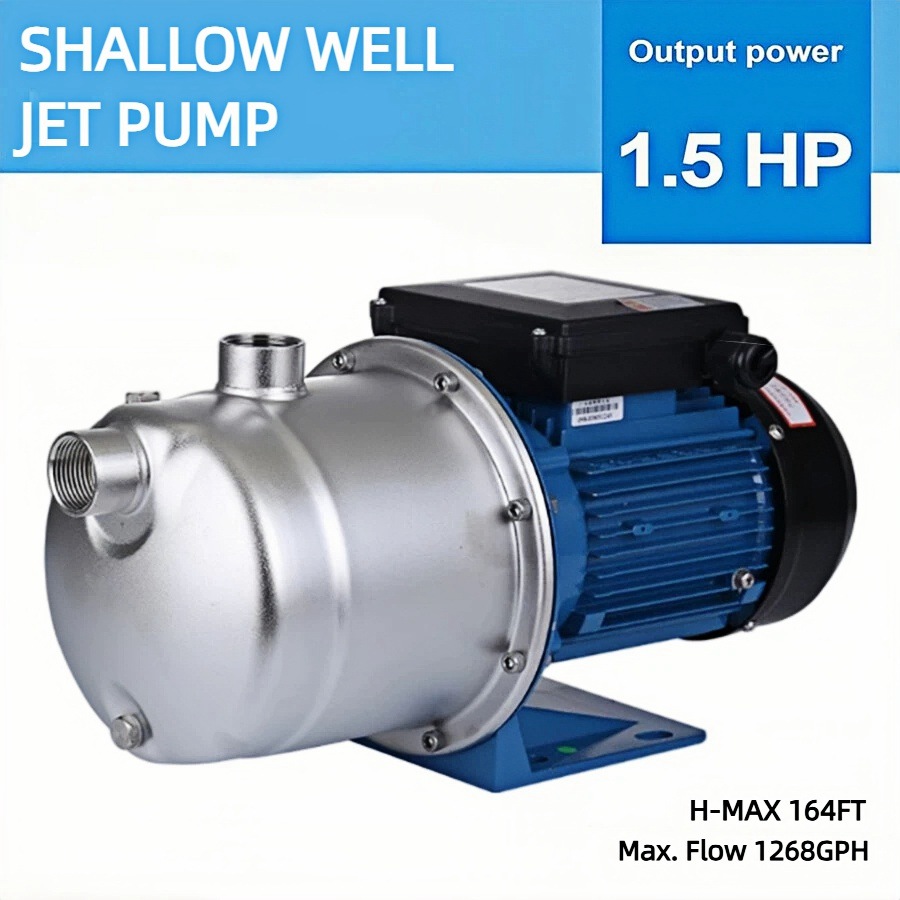

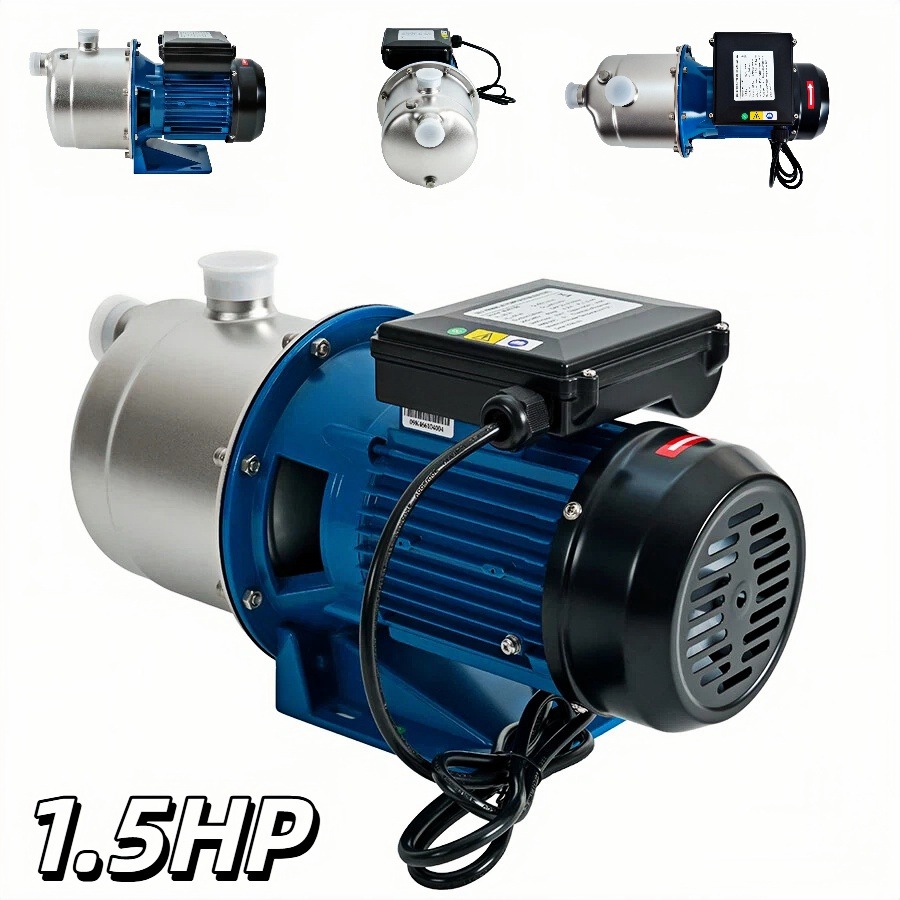

Package Content: 1 Pc 1.5HP SUS304 Shallow Well Jet Pump


Scope of Application:

- For conveying clean, non-corrosive, non-flammable and non-explosive liquids free of solid particles or fibers.
- Pure water filling (compliant with drinking water sanitary standards)

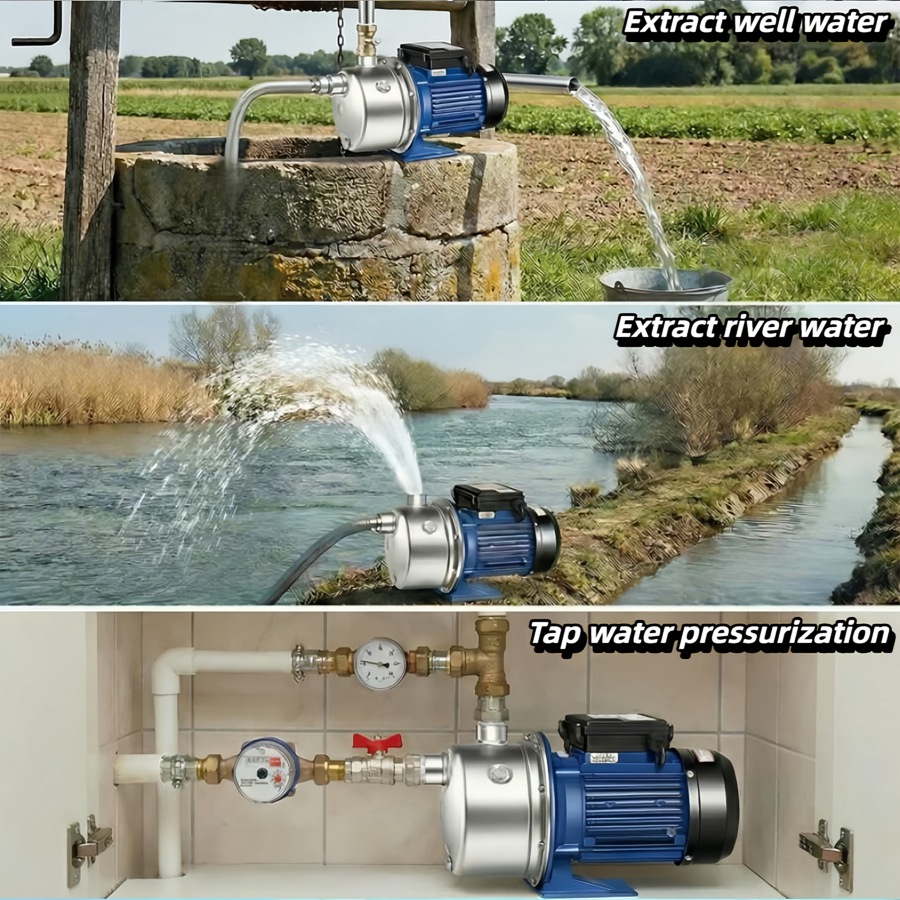

- Household water pressure boosting, garden irrigation & car washing
- Air conditioning, cooling systems, industrial cleaning and other special applications
- Shallow well pump

Features:

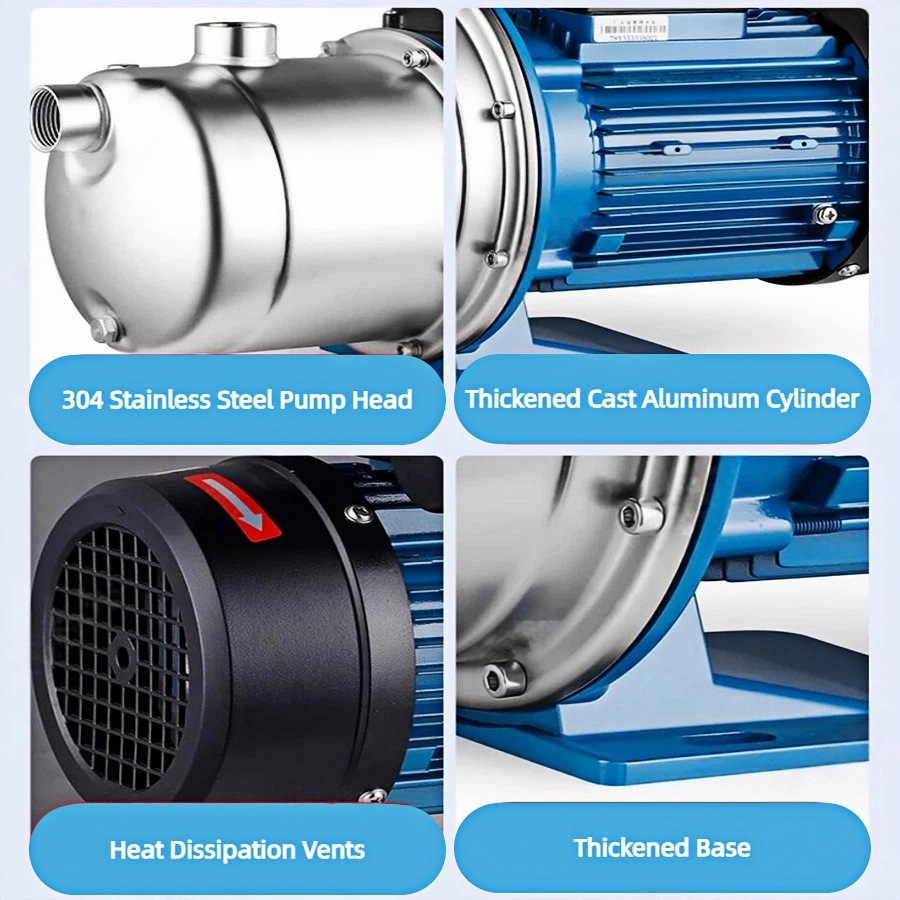

- Pump casing and cover: Made of SUS304 stainless steel
- Motor frame: Premium aluminum alloy
- Ejector: High-strength heat-resistant engineering plastic
- Compliant with drinking water sanitary standards
- Fitted with high-quality special mechanical seal
- Low noise, low vibration, long service life & high safety
- Class B insulation, IP55 protection grade

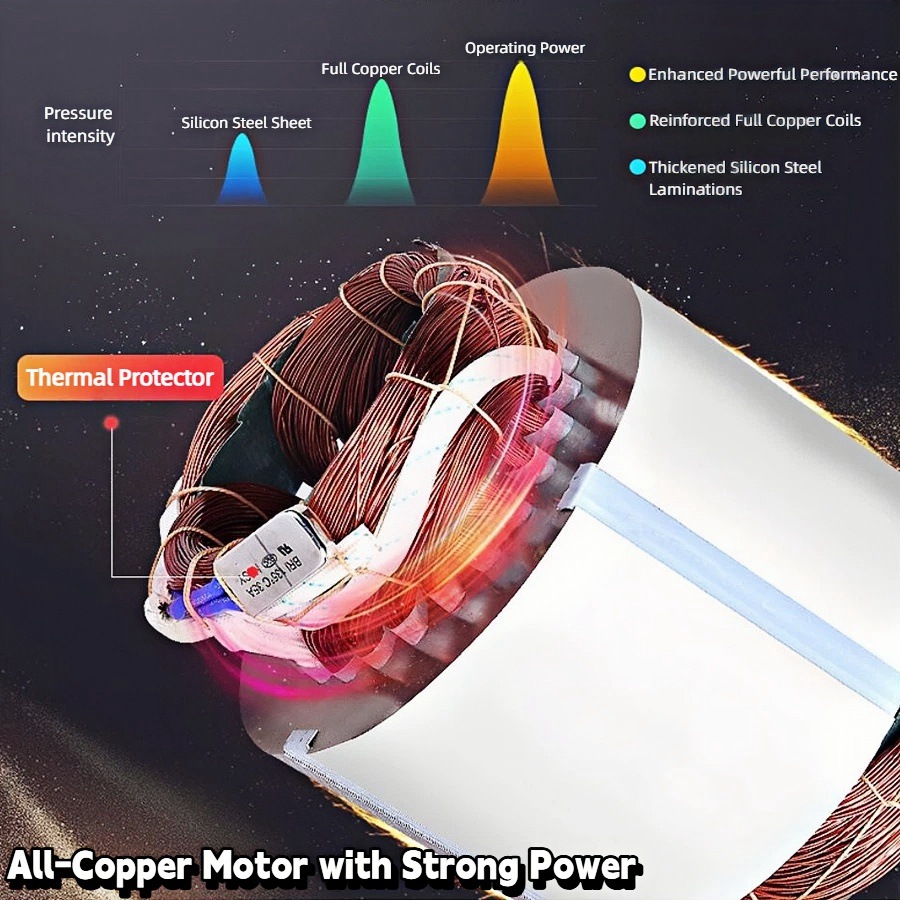

- Built-in T1 thermal overload protector (single phase)

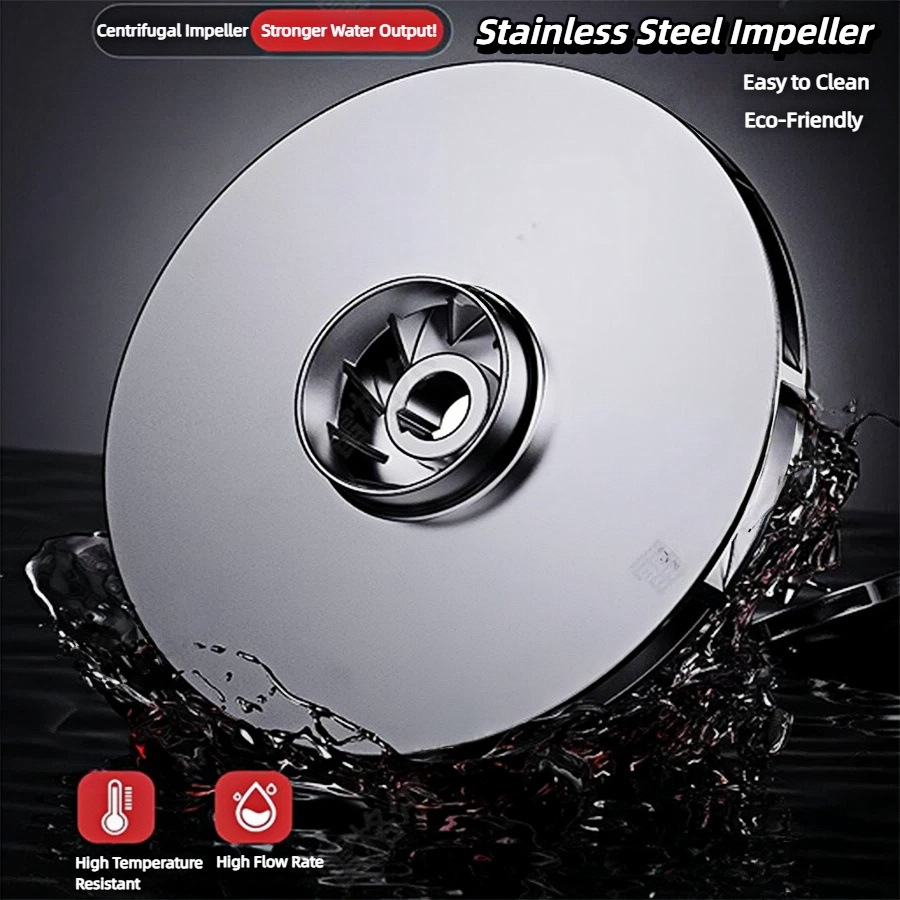

- Impeller type: Closed impeller

Specifications

- Hosepower: 1.5 HP
- Rate Power: 1 KW
- Main Material: SUS304 stainless steel
- Voltage: 220 V
- Working Frequency: 60 HZ
- Motor Speed: 2900 RPM
- Max. Flow: 1268 GPH  / 21 GPM
- Max. Head: 164 FT / 50 M
- Max. Temperature of water handled: 70 ℃ / 158 ºF
- Max. Ambient Temperature: +50ºC / 122ºF
- Medium Temperature Range: +5ºC ~ +60ºC (41ºF ~ 140ºF)
- Max. Suction: 29.5 FT / 9 M
- Max. pressure: 6 BAR / 87 PSI
- Noise: ≤ 35 dB
- Protection Degree: IP55
- Insulation Class: 155(F)
- Inner & outer pipe diameter: 1" NPT
- Product size: 16.42" × 7.8" × 8.5"
- Weight: 19.6 LB / 8.9 KG
