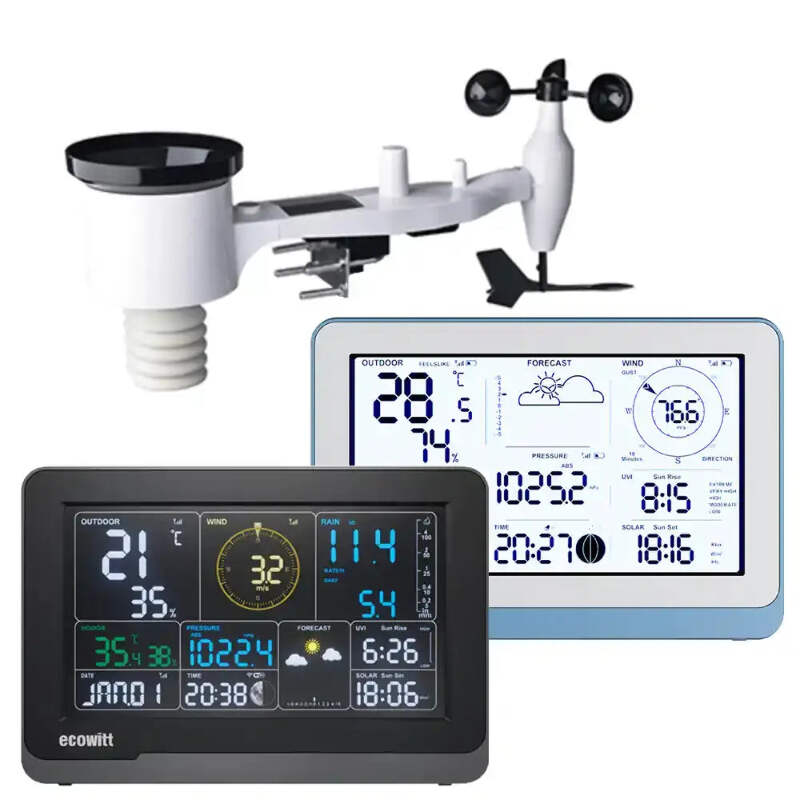

Ecowitt WS3800/WS3900 with 7.5" Mono/Colour Display, 7-in-1 Sensor & WiFi

The Ecowitt weather station has a bright mono (WS3800) or colour (WS3900) 7.5" LCD large display. It's WiFi enabled weather station which supports monitoring both indoor and outdoor conditions with the included sensor array. The weather station also supports connection to the Ecowitt IoT devices, such as the Ecowitt WFC01 and AC1100, achieving smart control through the Ecowitt App. The display console connects to your 2.4GHz Wi-Fi network for viewing uploaded data on your phone, tablet, or computer browser, all for free when uploaded to Ecowitt.net The display has built-in temperature, humidity and barometric pressure sensors receiving readings from Ecowitt sensors on the 868MHz frequency. Included is the 7-in-1 sensor array which transmits wind speed, wind direction, rainfall, UV, solar radiation, temperature and humidity to the console. The 7-in-1 sensor array also includes a solar panel to power the unit during daylight and extend the battery runtime. Included The package contains: Choice of display console WS3800AE mono 7.5" console WS3900AE colour 7.5" console UK Power Adapter External WS69AE 7-in-1 sensor pack Wind cups Wind vane Rain funnel (pre installed) Hardware for pole attachment maximum 50mm diameter (pole not included) Requires 5 x AA batteries (not included) Technical Features: 7.5" LCD console Five icon forecast Internet controlled clock for accuracy Indoor temperature and humidity Solar and battery powered 7-in-1 outdoor sensor with Outdoor temperature and humidity Rain measurement Wind speed Wind direction UV sensor Daylight sensor for measurement in Lux 0-400k, fc or w/m2 Pressure measurement in hPa, historical pressure for last 12, 24, 48 and 72 hours Pressure trend Daily minimum and maximum values Measurement alarms External sensor calibration 868MHz UK and EU frequency (AE suffix) Mains powered with backup battery (1 day backup) 2.4GHz WiFi with 30 meter unobstructed transmission range FREE data upload to Ecowitt.net, Weather Underground, Weather Cloud & your own customer server Sensor signal reception indicator Mountable external sensor on pole up to 50mm diameter Measurement ranges: Transmission range unobstructed maximum 100m (330 ft) Outdoor Temperature -25C - +60C (-14F to +140F) resolution 0.1C Indoor Temperature -9.9C - +60C resolution 0.1C Outdoor Humidity 10% - 99% Indoor Humidity 1% - 99% Rain 0.25mm 0-6000mm +/-10% Wind speed 0-100mph (0-50m/s) Light 0-400k Lux +/- 15% UV Level 1 - 15 +/- 3 Measuring interval 16 seconds Air Pressure 300-1100hPa (8.85-32.5in Hg) +/- 3hPa Calibration available for accurate readings Sensor Data Can be Displayed directly on the Console: Sensor Model Max QTY Displayed Readings WS90 1 Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall WS80 1 Outdoor temperature & humidity, light, UV, wind speed/direction WS69 (included) 1 Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall WS68 1 Light, UV, wind speed/ direction, WH40 1 Rainfall WN32P 1 Indoor temperature, humidity and pressure WN32 1 Outdoor temperature and humidity WH45/WH46 1 WH45: CO2, PM2.5, PM10, temperature and humidity WH46: CO2, PM1.0, PM2.5, PM4.0, PM10, temperature and humidity WN31/WN30/WN36 8 WN31: Temperature and humidity WN30: Temperature probe sensor WN36: Pool temperature Sensor Data Can Only be Uploaded for viewing on the internet at Ecowitt.net: Sensor Model Max QTY Function WH57 1 Lightning detection WH41/WH43 4 PM2.5 Air Quality WH55 4 Water leak detection WH51L 8 Soil moisture WH51 WN34L/S/D 8 Soil/liquid temperature WN35 8 Leaf wetness WN38 1 Black Globe Thermometer, Wet Bulb Globe Temperature IoT Device Control: Sensor Model Max QTY Function of Device WFC01 16 Smart water timer AC1100 Smart plug

Ecowitt WS3800/WS3900 with 7.5" Mono/Colour Display, 7-in-1 Sensor & WiFi

The Ecowitt weather station has a bright mono (WS3800) or colour (WS3900) 7.5" LCD large display. It's WiFi  enabled weather station which supports monitoring both indoor and outdoor conditions with the included sensor array.

The weather station also supports connection to the Ecowitt IoT devices, such as the Ecowitt WFC01 and AC1100, achieving smart control through the Ecowitt App.

The display console connects to your 2.4GHz Wi-Fi network for viewing uploaded data  on your phone, tablet, or computer browser, all for free when uploaded to Ecowitt.net

The display has built-in temperature, humidity and barometric pressure sensors receiving readings from Ecowitt sensors on the 868MHz frequency.

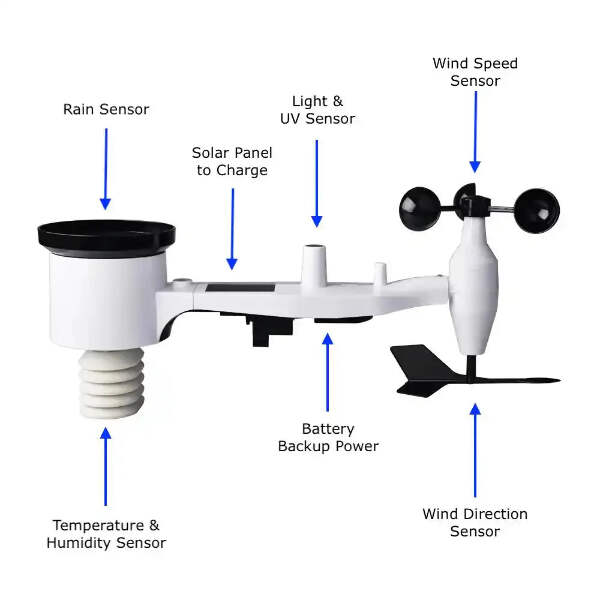

Included is the 7-in-1 sensor array which transmits wind speed, wind direction, rainfall, UV, solar radiation, temperature and humidity to the console. The 7-in-1 sensor array also includes a solar panel to power the unit during daylight and extend the battery runtime.

Included

The package contains:

  • Choice of display console

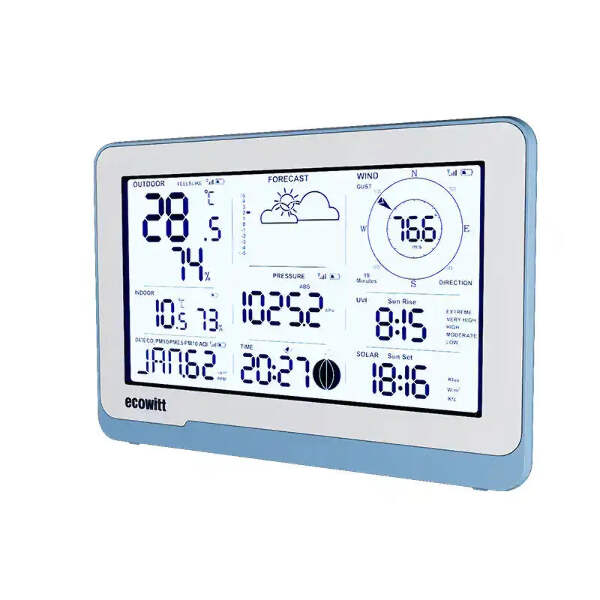

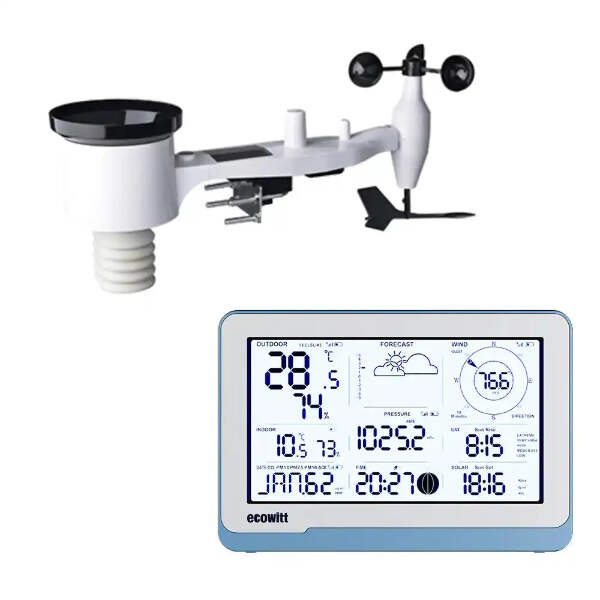

    • WS3800AE mono 7.5" console

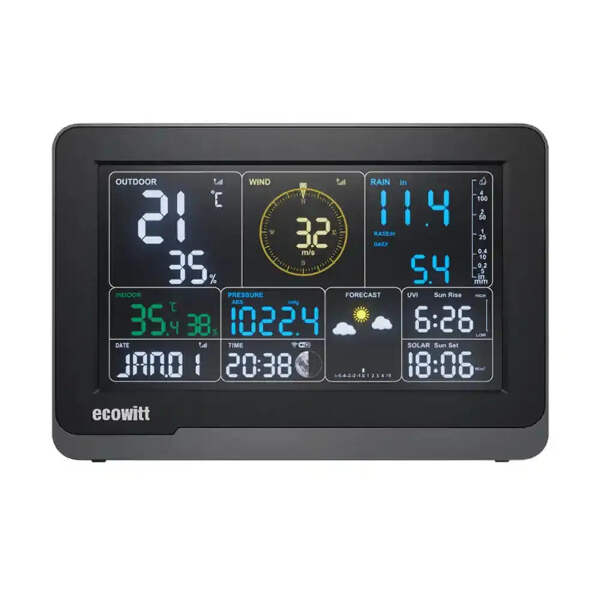

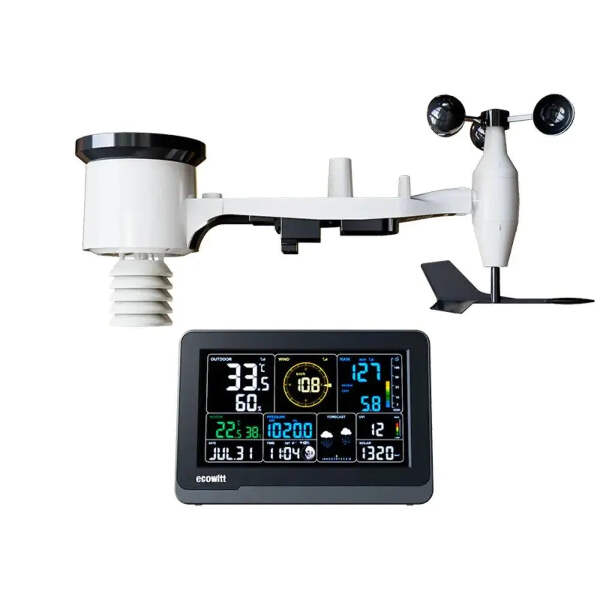

    • WS3900AE colour 7.5" console
  • UK Power Adapter
  • External WS69AE 7-in-1 sensor pack
  • Wind cups
  • Wind vane
  • Rain funnel (pre installed)
  • Hardware for pole attachment maximum 50mm diameter (pole not included)
  • Requires 5 x AA batteries (not included)
Technical

Features:

  • 7.5" LCD console
  • Five icon forecast
  • Internet controlled clock for accuracy
  • Indoor temperature and humidity
  • Solar and battery powered 7-in-1 outdoor sensor with
    • Outdoor temperature and humidity
    • Rain measurement
    • Wind speed
    • Wind direction
    • UV sensor
    • Daylight sensor for measurement in Lux 0-400k, fc or w/m2
  • Pressure measurement in hPa, historical pressure for last 12, 24, 48 and 72 hours
  • Pressure trend
  • Daily minimum and maximum values
  • Measurement alarms
  • External sensor calibration
  • 868MHz UK and EU frequency (AE suffix)
  • Mains powered with backup battery (1 day backup)
  • 2.4GHz WiFi with 30 meter unobstructed transmission range
  • FREE data upload to Ecowitt.net, Weather Underground, Weather Cloud & your own customer server
  • Sensor signal reception indicator
  • Mountable external sensor on pole up to 50mm diameter

      Measurement ranges:

      • Transmission range unobstructed maximum 100m (330 ft)
      • Outdoor Temperature -25C - +60C (-14F to +140F) resolution 0.1C
      • Indoor Temperature -9.9C - +60C resolution 0.1C
      • Outdoor Humidity 10% - 99%
      • Indoor Humidity 1% - 99%
      • Rain 0.25mm 0-6000mm +/-10%
      • Wind speed 0-100mph (0-50m/s)
      • Light 0-400k Lux +/- 15%
      • UV Level 1  - 15 +/- 3
      • Measuring interval 16 seconds
      • Air Pressure 300-1100hPa (8.85-32.5in Hg) +/- 3hPa
      • Calibration available for accurate readings



        Sensor Data Can be Displayed directly on the Console:

        Sensor Model

        Max QTY

        Displayed Readings

        WS90

        1

        Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall

        WS80

        1

        Outdoor temperature & humidity, light, UV, wind speed/direction

        WS69 (included)

        1

        Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall

        WS68

        1

        Light, UV, wind speed/ direction,

        WH40

        1

        Rainfall

        WN32P

        1

        Indoor temperature, humidity and pressure

        WN32

        1

        Outdoor temperature and humidity

        WH45/WH46

        1

        WH45: CO2, PM2.5, PM10, temperature and humidity

        WH46: CO2, PM1.0, PM2.5, PM4.0, PM10, temperature and humidity

        WN31/WN30/WN36

        8

        WN31: Temperature and humidity

        WN30: Temperature probe sensor

        WN36: Pool temperature


        Sensor Data Can Only be Uploaded for viewing on the internet at Ecowitt.net

        Sensor Model

        Max QTY

        Function

        WH57

        1

        Lightning detection

        WH41/WH43

        4

        PM2.5 Air Quality

        WH55

        4

        Water leak detection

        WH51L

        8

        Soil moisture

        WH51

        WN34L/S/D

        8

        Soil/liquid temperature

        WN35

        8

        Leaf wetness

        WN38

        1

        Black Globe Thermometer, Wet Bulb Globe Temperature


        IoT Device Control

        Sensor Model

        Max QTY

        Function of Device

        WFC01

        16

        Smart water timer

        AC1100

        Smart plug
