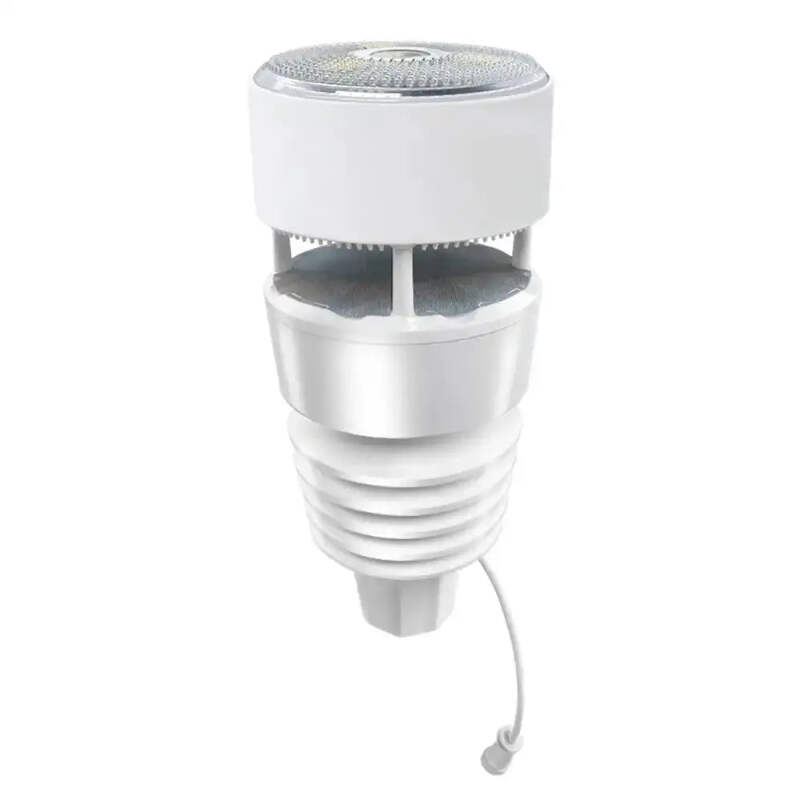

Ecowitt WS90 7-in-1 Sensor Array with Sonic Anemometer & Haptic Rain Sensor

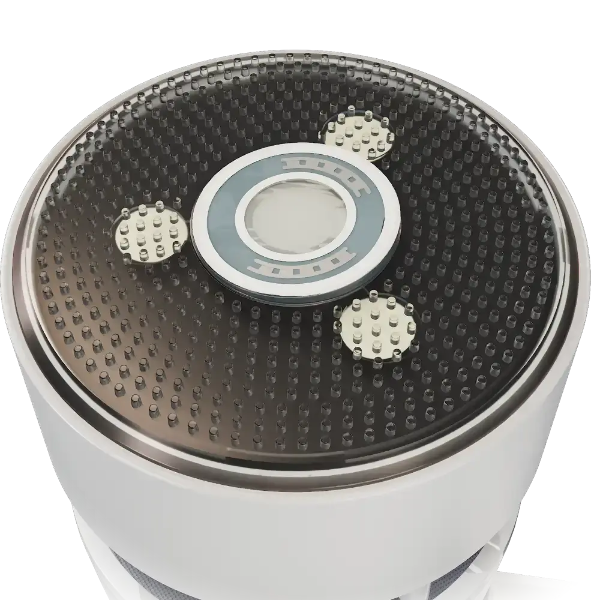

The 7-in-1 outdoor sensor array (WS90) which no longer uses the traditional tipping bucket rain gauge, but a haptic sensor which measures rainfall. The revised rainfall sensor is slightly sloped to improve accuracy and prevent rain pooling.
The outdoor sensor also measures temperature, humidity, wind speed, wind direction, rainfall, UV level and light intensity. It requires mounting on the top of a 1 inch pole to ensure accurate readings and should be uséd with a compatible GW series gateway or display console.
Included
The Ecowitt WS90 includes the following items:
- WS90A 7-in-1 external sensor array 868MHz (UK/EU approved)
- Electronic manual via QR code or website
Technical & Manual

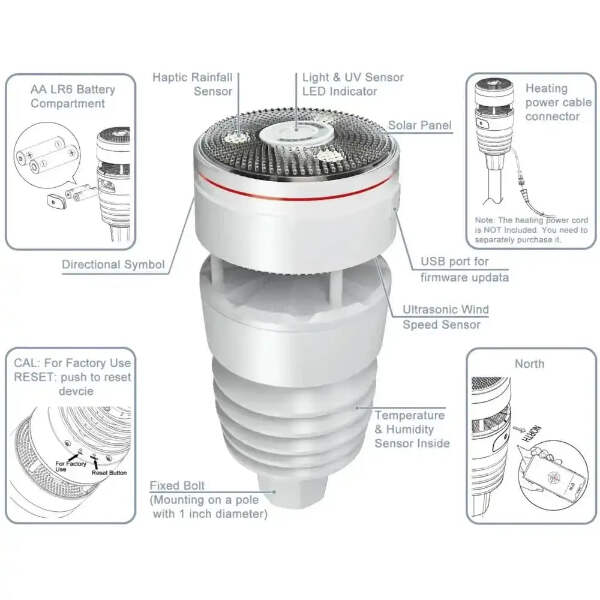

External 7-in-1 sensor suite (WS90)
- Outdoor temperature and humidity
- Wind speed, gust speed, and wind direction

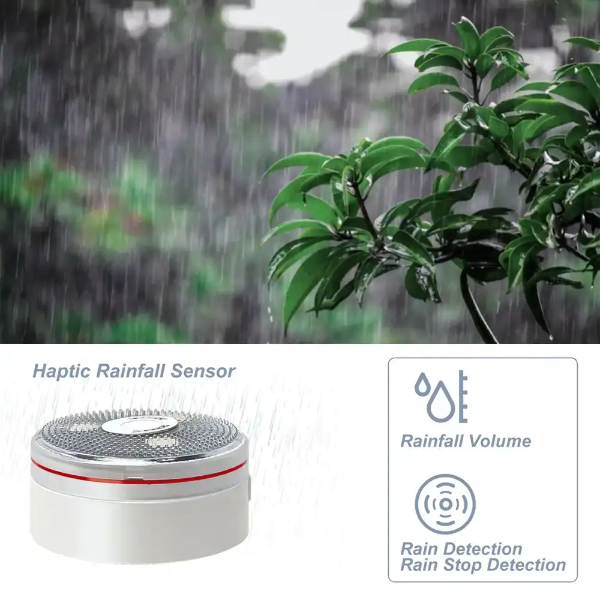

- Haptic rainfall sensor with rate and totals for day, week, month, and year
- Calculated wind chill, dew point and heat index display on the WS View App
- Solar light intensity
- UV index
- Solar powered with 2 x AA battery backup (batteries required for 24 hour operation)
- 868MHz UK / European frequency (A suffix)
- Requires mounting onto top of 25mm / 1 inch pole (available separately) and a suitable gateway or console to receive readings
An installation guide from Ecowitt can be found by clicking here.
