About Product

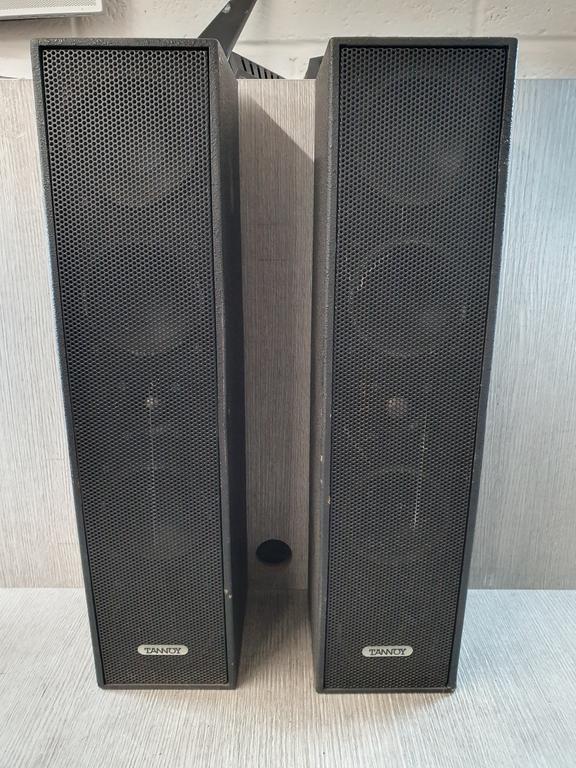

The Tannoy i7 is a tall and slim loudspeaker cabinet equipped with four 100mm (4.00”) low

frequency direct radiating drive units and one 25mm (1.00”) titanium dome tweeter

arranged as a line source.

Designed for use in acoustically difficult applications where controlled coverage is required,

the dispersion characteristics of the i7 direct sound into the desired space while minimizing

reflections from the ceiling. This makes it ideal for high quality music and speech

reinforcement in highly reverberant environments ranging from houses of worship to retail

environments and airports to conventions centres.

• Frequency Response (-3dB) (1) 90Hz - 20kHz
• Frequency Range (-10dB) (1) 86Hz - 25kHz
• System Sensitivity (1W @1m) (2) 89dB (1W = 2.83V for 8 Ohms
• Dispersion (-6dB) 110 deg (H) x 50 deg (V)
• Driver Complement
• Low Frequency 4 x 100mm (4.00”) bass unit,
• High Frequency 1 x 25mm (1.00”) titanium
• tweeter, partially horn loaded
• Crossover Passive, 1.8 kHz, 2.5 kHz
• Directivity Factor (Q) 9, averaged 1kHz to 10kHz
• Directivity Index (DI) 8.9, averaged 1kHz to 10kHz
• Rated Maximum SPL (2)
• Average 108dB
• Average 106.5dB - 60W tapping on transformer
• Peak 114dB
• Power Handling
• Average 90W
• Programme 180W
• Peak 360W
• Recommended Amplifier Power 180W @ 8 Ohms

• Grade A – Like new, no scratches.
• Grade B – Fully working, minor cosmetic wear.
• Grade C – Fully working, heavy cosmetic wear or network-locked.
• Grade D – Requires repair (“Spares or repair”).

Free Delivery applies to UK Mainland (excludes Scottish Highlands & Islands, Northern Ireland and Channel Islands). Items usually ship via DPD.

For excluded areas, please contact us for a delivery quote. You still benefit from the mainland “free shipping” portion.

Returns are dealt with honestly and fairly. If you have an issue, please message us or call during office hours on 0161 928 1144.

This is much faster than opening an eBay case. We aim to be flexible and resolve issues quickly.

Please leave feedback only after contacting us first — this helps other buyers see how well we support customers after the sale.
