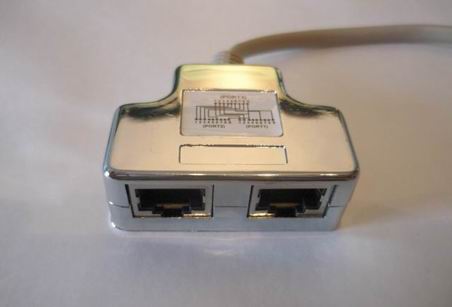

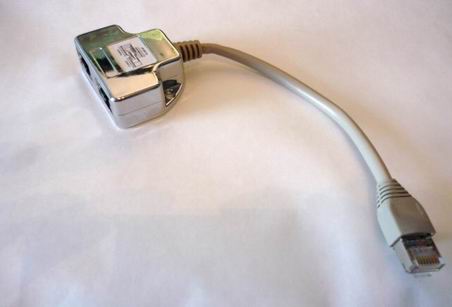

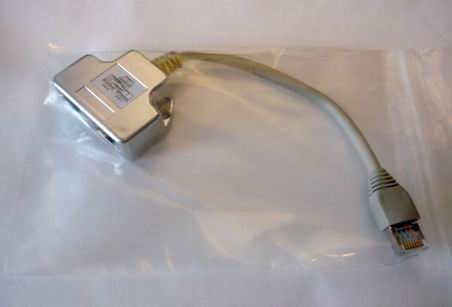

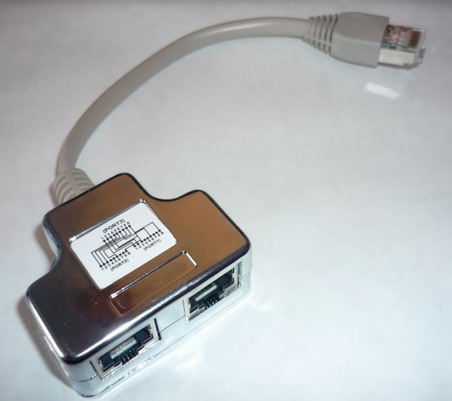

High-quality & professional RJ45 DISTRIBUTOR / network distributor - 2x RJ45 sockets & 1x plug - shielded modular distributor

A notice:

With the adapter, 2 network cables can be combined and separated again for specific applications. 2 adapters are required for this!

It is not possible to operate two PCs, game consoles or similar hardware on this adapter!

The connection doubler allows two Ethernet cables to be easily routed via a CAT cable (cable sharing). This is possible because half of the wires in the network cable are not used. The connection doubler does not require power, but must always be used in pairs - one at each end of the line. The first piece combines the signals on one cable, the second piece separates them again onto normal network sockets. However, this only works if you don't use a Gigabit LAN or PoE. More wires are needed there and the trick doesn't work.

  • High-quality & professional RJ45 distributor / network distributor
  • Cable sharing adapter for the simultaneous operation of two 4-wire services, 2x Ethernet, via an 8-wire installation cable
  • Allows two Ethernet cables to be routed over one CAT cable (cable sharing)
  • Serves as an RJ45 port doubler for structured cabling
  • With FTP shielding, connections: 1x RJ45 plug and 2x RJ45 sockets (2x PIN 1-2-3-6)
  • Always used in pairs: one adapter on the junction box, one adapter on the distributor
  • Metalized housing ensures longevity of the T-adapter.
  • Only works with Fast Ethernet (10/100 MBit). Not applicable for Gigabit or PoE.
  • Type: Modular distributor
  • 10/100 Base T
  • shielded
  • Length: 15cm
  • Wiring: 2x CAT 5e Ethernet
  • 1-1, 2-2, 3-3, 6-6, 4-1, 5-2, 7-3, 8-6
  • Adapter is without switch
  • 1 x RJ45 distributor / network distributor
  • NEW
