Step-down Power Module 50W DC Converter Aluminum Alloy Shell Silicone Potting
DESCRIPTION

Features:

*50W High Power: Delivers stable and efficient power conversion with a 50W output for reliable performance.

*Wide Input Range: Supports 12V/24V input voltage, making it FOR versatile for various applications and environments.

*IP68 Waterproof Rating: Features a sturdy aluminum alloy shell with silicone potting for excellent waterproof and dustproof protection.

*Multiple Protections: Includes over-current, over-temperature, short-circuit, reverse polarity, and low-voltage protection for enhanced safety.

*High Efficiency: Provides over 94% efficiency, with minimal energy loss and optimal power conversion.


Specifications:

*Product Name:Power supply

*Material:aluminum alloy

*Color:WG-1224S0510

*Size:6.4*5.7*2.2cm

Model: WG-1224S0510
Rated Input Voltage: 12V/24V DC
Input Voltage Range: 8-36V DC
Conversion Efficiency: 92%
Output Voltage: 5V DC
Output Current: 10A
Output Power: 50W
Voltage Regulation: <1%
Load Regulation: <2%
Ripple & Noise: 100mVp-p
No-Load Loss: 30mA
Operating Temperature: -40°C ~ +80°C
Waterproof Rating: IP68
Dimensions: 64*57*22mm
Weight: <110g

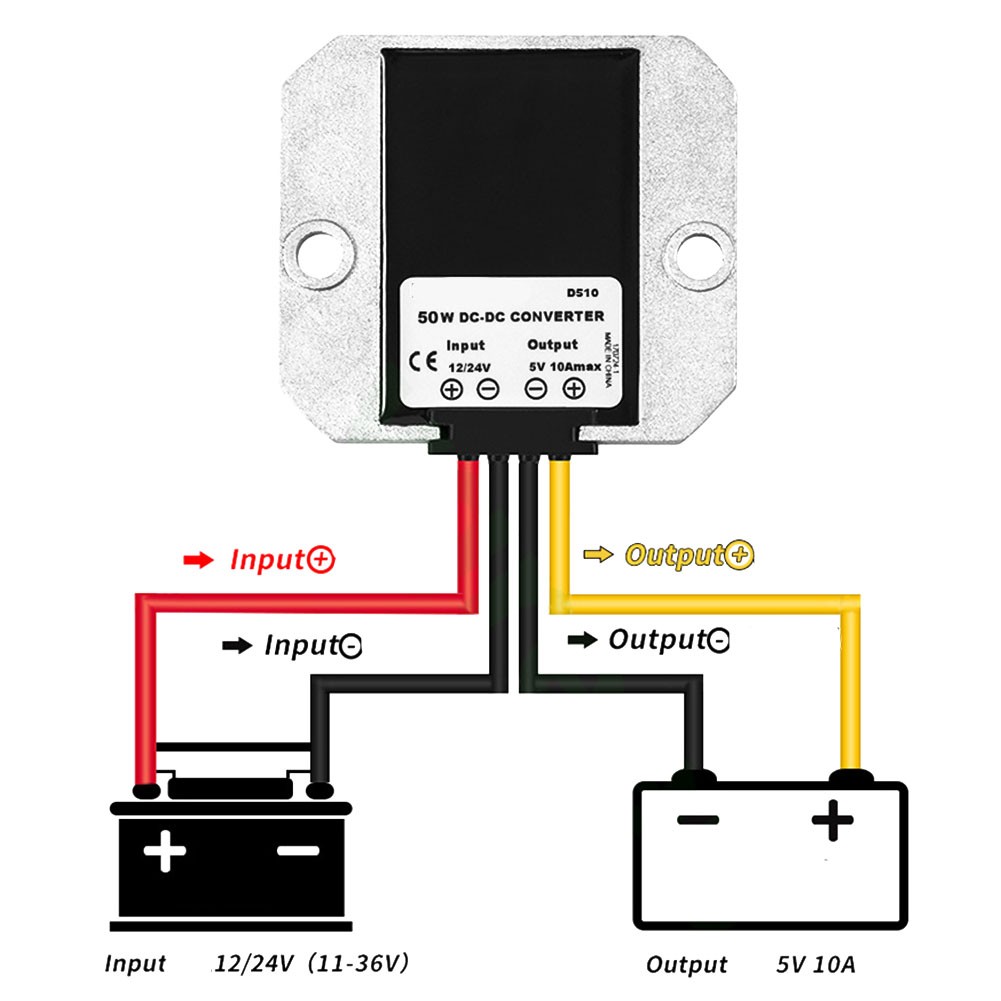

Input Wiring Type: 20AWG Wire (Red Positive/Black Negative)
Output Wiring Type: 18AWG Wire (Yellow Positive/Black Negative)


Package Content:

1*DC Converter



Note:

1. The for real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
