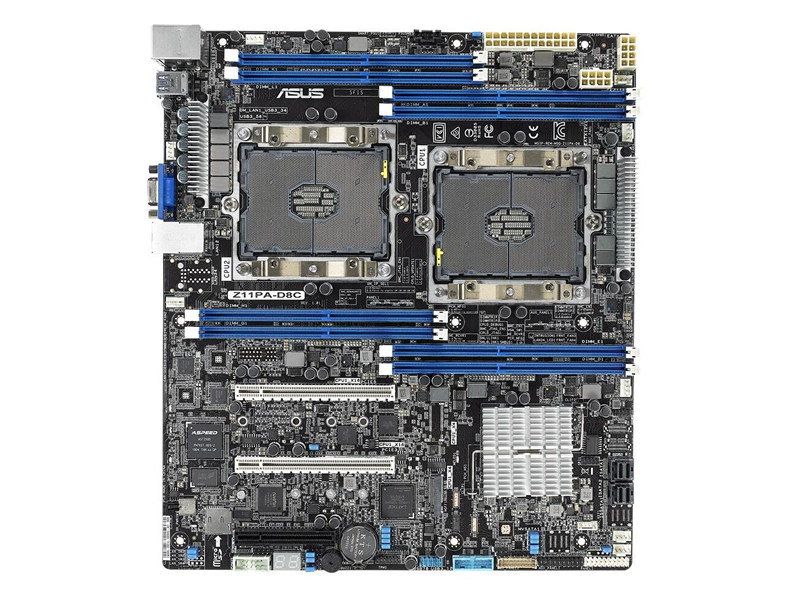

ASUS Z11PA-D8C LGA3647 Intel Xeon PCH C621 DDR4 CEB mainboard server sas RAID

Processor/system bus
2 x Socket P (LGA 3647) Intel Xeon Scalable Processor Family (140W) * Please check the ASUS website for CPU support list
UPI (10.4 GT/s)
Chipset specifications
Intel® Lewisburg PCH C621
memory
Number of memory slots : 8 memory slots (4 channels/CPU, 4-DIMM slots/CPU)
Memory capacity : up to 256GB RDIMM/up to 512GB LRDIMM/up to 4096GB LR-DIMM 3DS
Memory Type : 2666/2400
Memory specifications: 32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB 128GB
, 64GB LR-DIMM 3DS
*Please refer to the support page for more information.
* Actual memory frequency depends on the type of Intel processor and number of memory modules used with the host. Please check Intel's official website for more information on the types of memory supported by the CPU.
Expansion slots
Total number of slots : 3 slot position 1 : PCI-E x8 slot position 3
: PCI-E x16

slot position 5 : PCI-E x16
Size specifications
CEB (12"x10.5", 305mm x 267mm)
ASUS features
ASUS fan speed control technologyASUS
Remote Management Center
Storage capabilities (depending on shipment)
SATA controller:
Intel C621 8 x SATA 6Gb/s interface (
8 by 2 mini-SAS connector) + 1 x M.2 connector
Intel ® Rapid Storage Technology Enterprise (RSTe) (for Linux/Windows)
(supports software RAID

SAS/SATA CONTROLLER:
ASUS PIKE II 3008-8i 8-port SAS 12G RAID Card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID CARD
Network (depending on shipment)
2 x Intel® I210AT+1 x Gigabit management network interface
Graphical display
Aspeed AST2500 + 64MB VRAM
On-board I/O
1 x TPM connector 1 x PSU power connector , 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector 1 x USB 3.0 pin connector , up to 2 devices

1 x USB 2.0 pin connector , up to 2 devices
8 x fan connectors, 4pin (3pin/4pin fan dual support)
1 x serial port header 1 x SMBus
1 x chassis open detection interface
4 x Front LAN LED
1 x M.2 connector , NGFF type : 22110/2280/2260/2242

1 x VROC Key header
1 x Q-Code/Port 80 LED

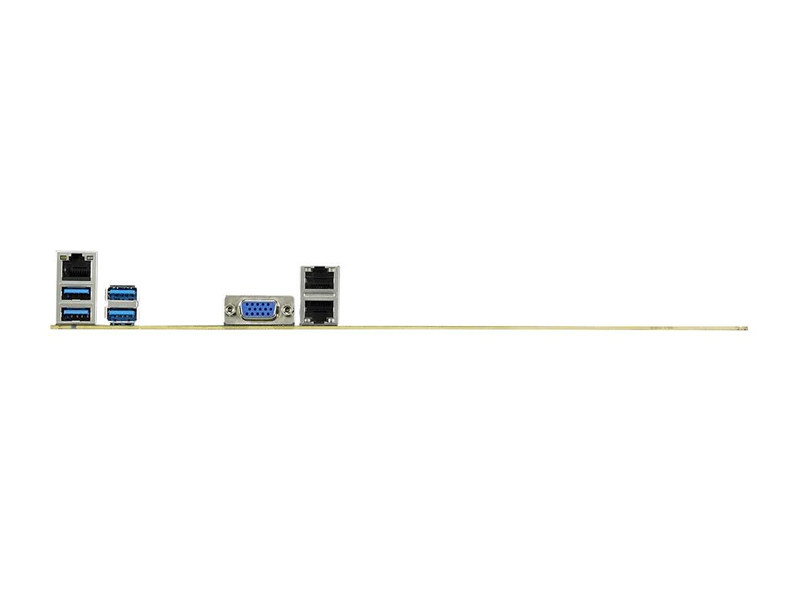

Backplane I/O interface
4 x USB 3.0 ports1
x VGA connectors2 x RJ-45 GbE LAN connectors1

x RJ-45 Mgmt LAN connector

rear switch/LED:
1 x Power switch1
x Message LED
1 x HDD LED
1 x Location LED
1 x BMC LED
1 x P5V LED
Manage features
ACC (Asus Remote Management Center)
On-Board ASMB9-iKVM for KVM-over-Internet
weight
COLOR BOX (1 IN 1) NET WEIGHT: 1.24 KG GROSS WEIGHT: 2.32 KG BULK BAG (10 IN 1)
NET WEIGHT: 1.24 KG GROSS WEIGHT: 16.26 KG
environment
Operating temperature: 10°C ~ 35°C Non-working temperature: -40 °C ~ 70°C

Non-working humidity: 20% ~ 90% (non-condensing)
fittings
I/O bezel
1 x supports DVD
2 x LGA3647 carrier
monitor
CPU temperature
, fan speed
