Basic Specifications
Measuring Range: ±36.80 kPa (Displays “HI” above +37 kPa and “Lo” below -37 kPa)
Maximum Overload Pressure: 10 kPa
Accuracy: ±0.3% FS
Repeatability: ±0.2% (Max. ±0.5% FS)
Linearity / Hysteresis: ±0.29% FS
Response Time: Approx. 0.1 seconds

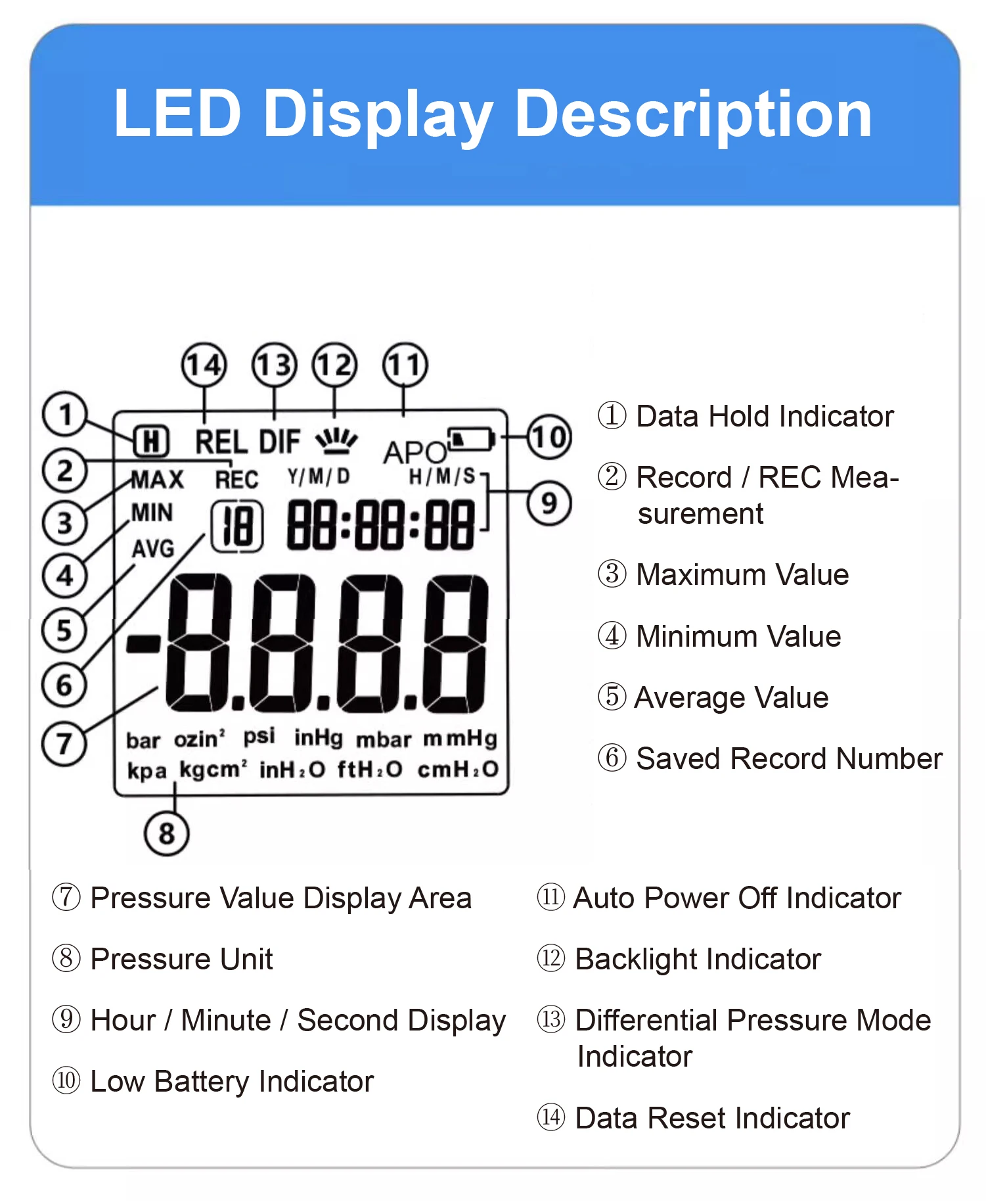

Display: Large LCD screen
Data Storage: 19 sets of records
Features: LED backlight, differential pressure measurement, unit conversion, max/min/normal/average value display, data hold, zero calibration, auto power off, low battery alert
Environment and Power
Operating temperature: 0–50°C
Storage temperature: -10–60°C
Power Supply: 3 × AAA 1.5V batteries
Standard Accessories: Differential pressure gauge, color box, instruction manual, 2 hoses, 1 metal barb connector
Product Dimensions: 155 × 61 × 31 mm
Net Weight: 138 g
Manual measurement error, to prevail in kind
