Product Description

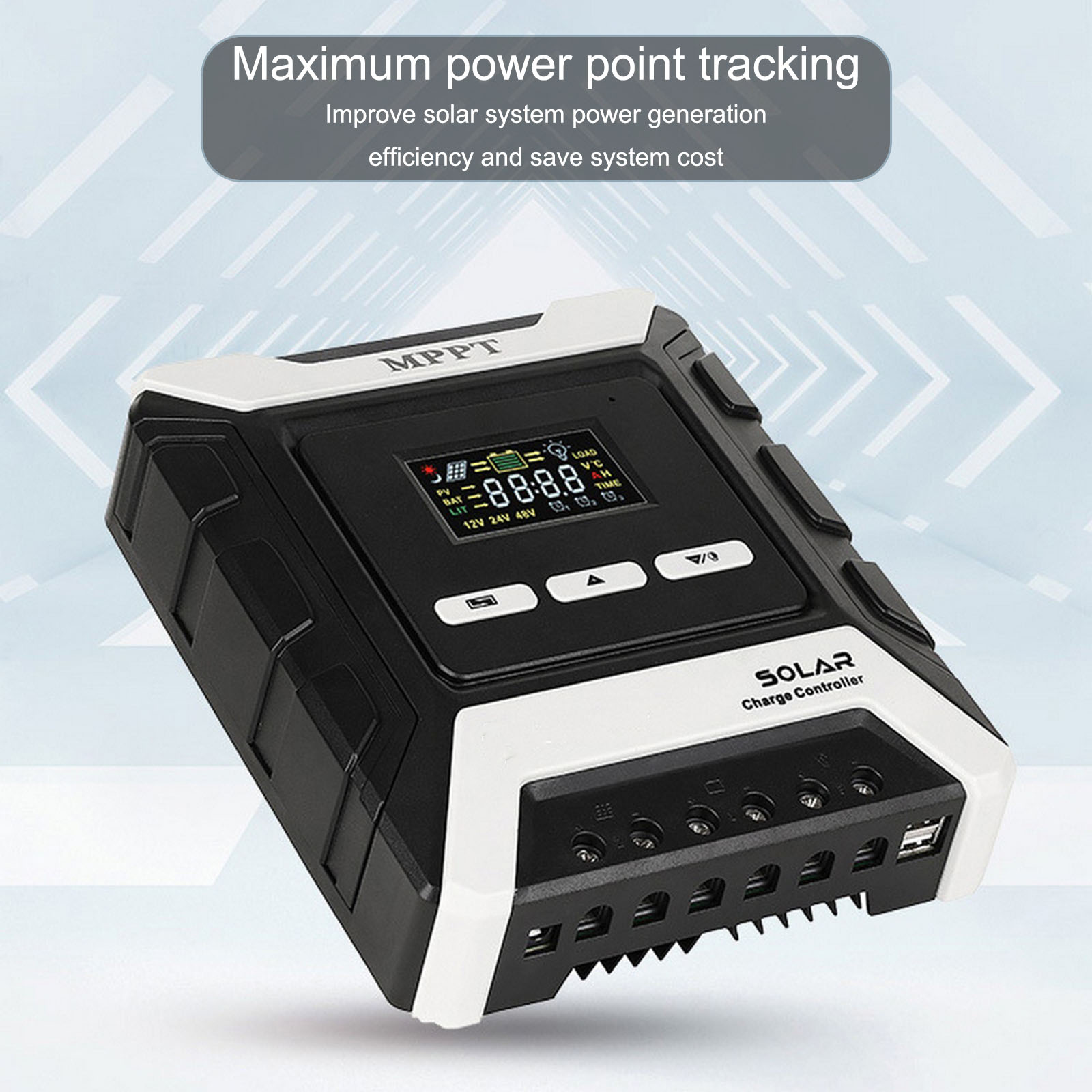

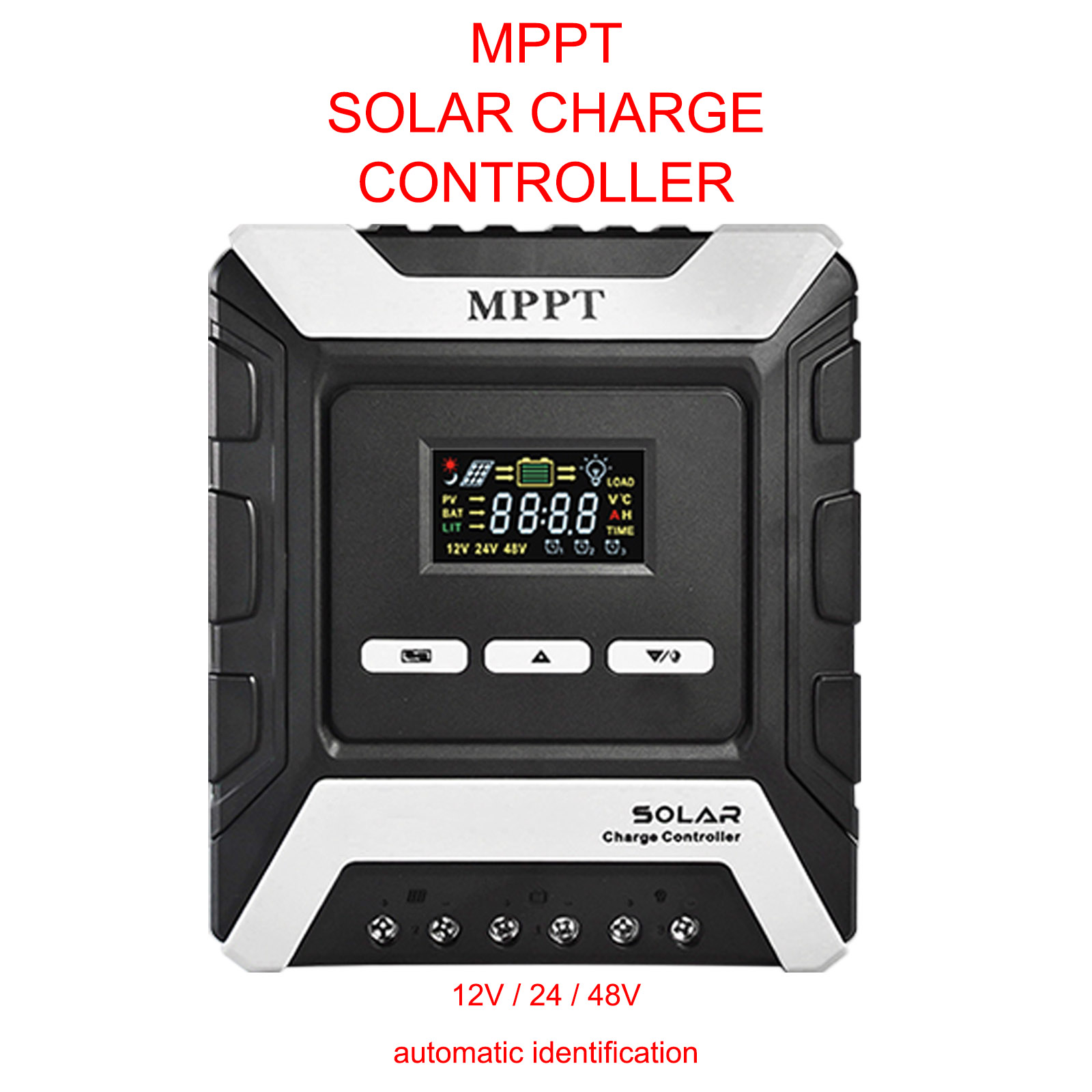

20A / 30A / 60A MPPT AUTO Solar Charge Controller Charger Fits 12V / 24V / 48V Lead-acid LiFePO4 Lithium Battery
Description:
MTTP solar charger controller,which has the Max Power Point Target Function,is suitable to be used in the battery or batteries pack solar energy charginf and load charginf control.
it is suitable for off-grid solar energy system witch wide voltage.
MTTP solar charge controller,combine the most advance charging technology with high effciency & professional battery maintenance technology
has numbers programming options,perfect protection function & intuitive LCD display.
Features:
1. 12V/24V/48V voltage automatic switching,12V/24V/48V Auto identifying system voltage with high tracking efficiency up to 99% and peak Conversion efficiency of 98%.Applicable range of system voltage:12V-80V.Max Input Power: 480W/12V, 960W/24V,1600W/48V. Max input Voltage: 80V.
2. Multiple protection,Over charge,Deep discharge,Short-circuit,Battery Open circuit,Overheat temperature,Battery overpressure over current protection.
3. Support for 4 type Battery charging: Lead-acid (Sealed, AGM, Gel, Flooded) and User ( Lithium Battery).
4. Multiple applications: solar RV, household system and industrial field monitoring, etc.
5. LCD color-screen: operation interface, parameter setting, fault message and other contents are displayed,It is convenient for you to grasp the controller status in real time.
20A Specifications:
Charging Current:20A
System Voltage:12V 24V 48V
Max.Solar Power Input:240W/480W/960W
MPPT Voltage:12V<operating voltage<80v
Module Current:20V
Environment Temperature:-20℃~+40℃
Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium battery.
Product Size:130×156×50mm
30A Specifications:
Charging Current:30A
System Voltage:12V 24V 48V
Max.Solar Power Input:480W/960W/1600W
MPPT Voltage:12V<operating voltage<80v
Module Current:Max.40V
Environment Temperature:-20℃~+40℃
Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium battery.
Product Size:153×190×53mm

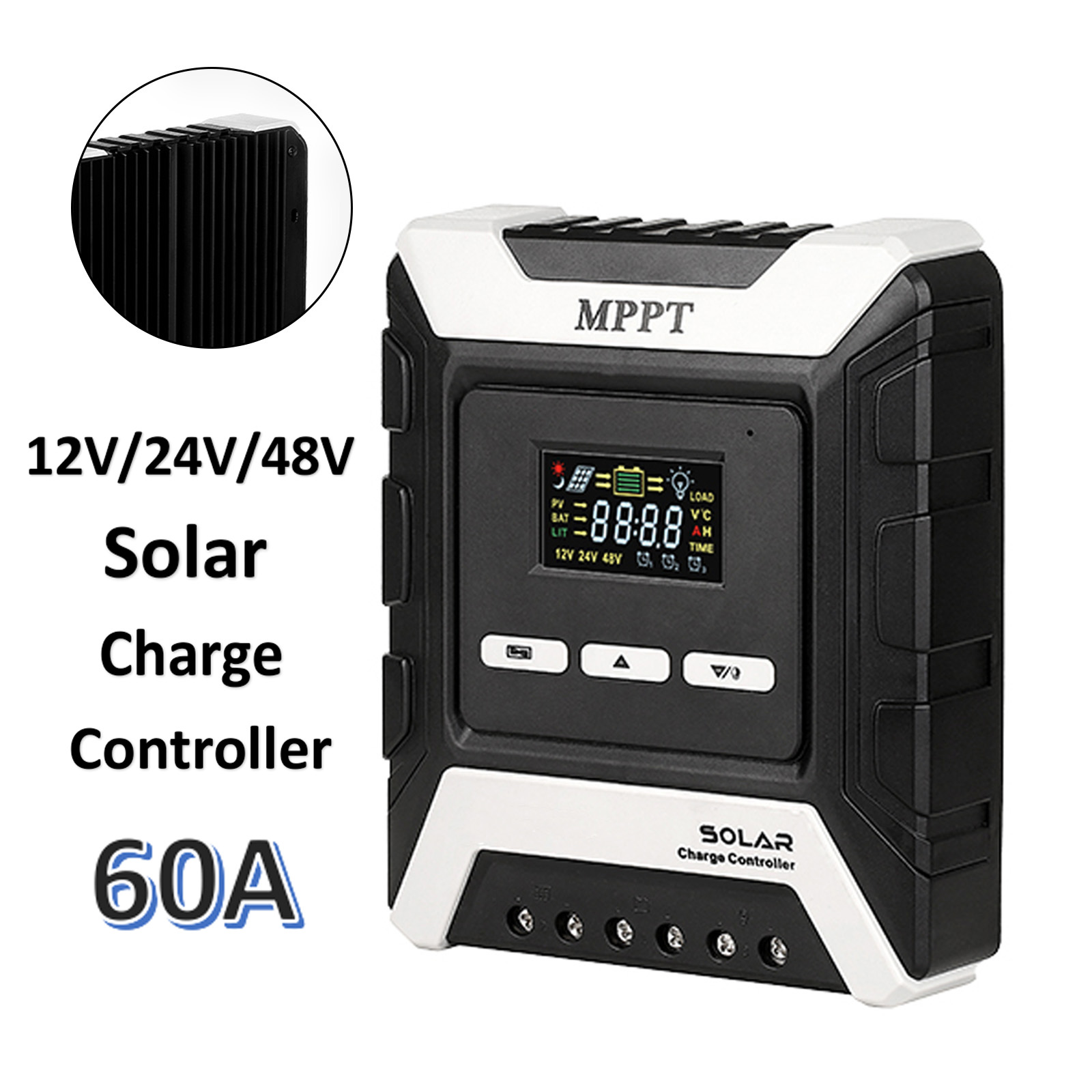

60A Specifications:
Charging Current:60A
System Voltage:12V 24V 48V
Max.Solar Power Input:720W/1440W/2880W
MPPT Voltage:12V<operating voltage<80v
Module Current:Max.60V
Environment Temperature:-20℃~+40℃
Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium battery.

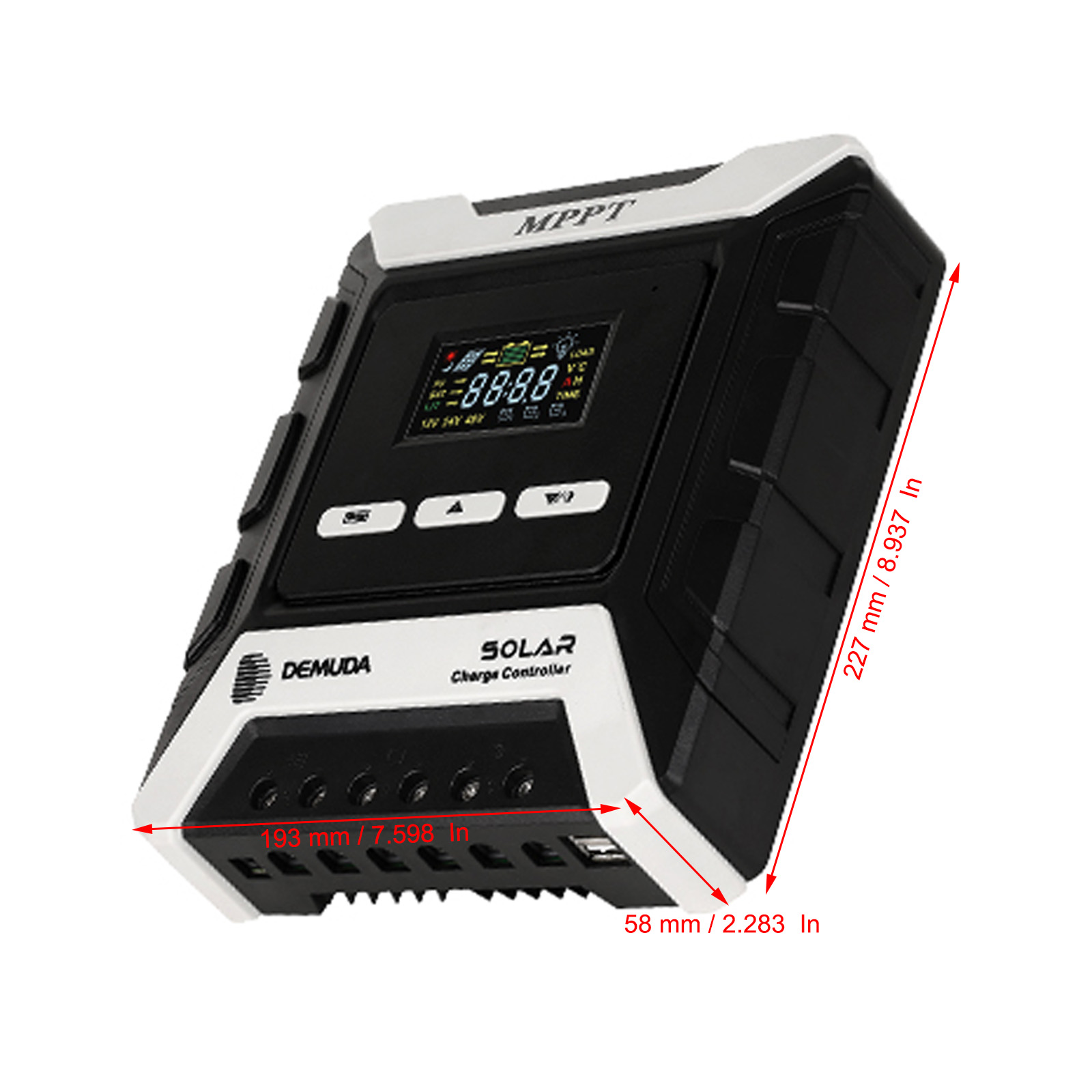

Product Size:193×227×58mm
Protection
Over charge protection
Deep discharge protection
Short-circuit protection
Battery Open circuit protection
Overheat temperature protection
Battery overpressure over current protection
Note:
This product is a basic MPPT controller, which is a high quality product. But this controller does not have a communication interface, so it may be a little different from the "pure MPPT controller", it is a simplified version of the MPPT controller, please know before you purchase.
Package Included:
1 * Solar controller unit
1 * Detailed User manual
<operating voltage<80v
<operating voltage<80v
<operating voltage<80v
MPPT Gold:<operating voltage<80v
<operating voltage<80v
<operating voltage<80v

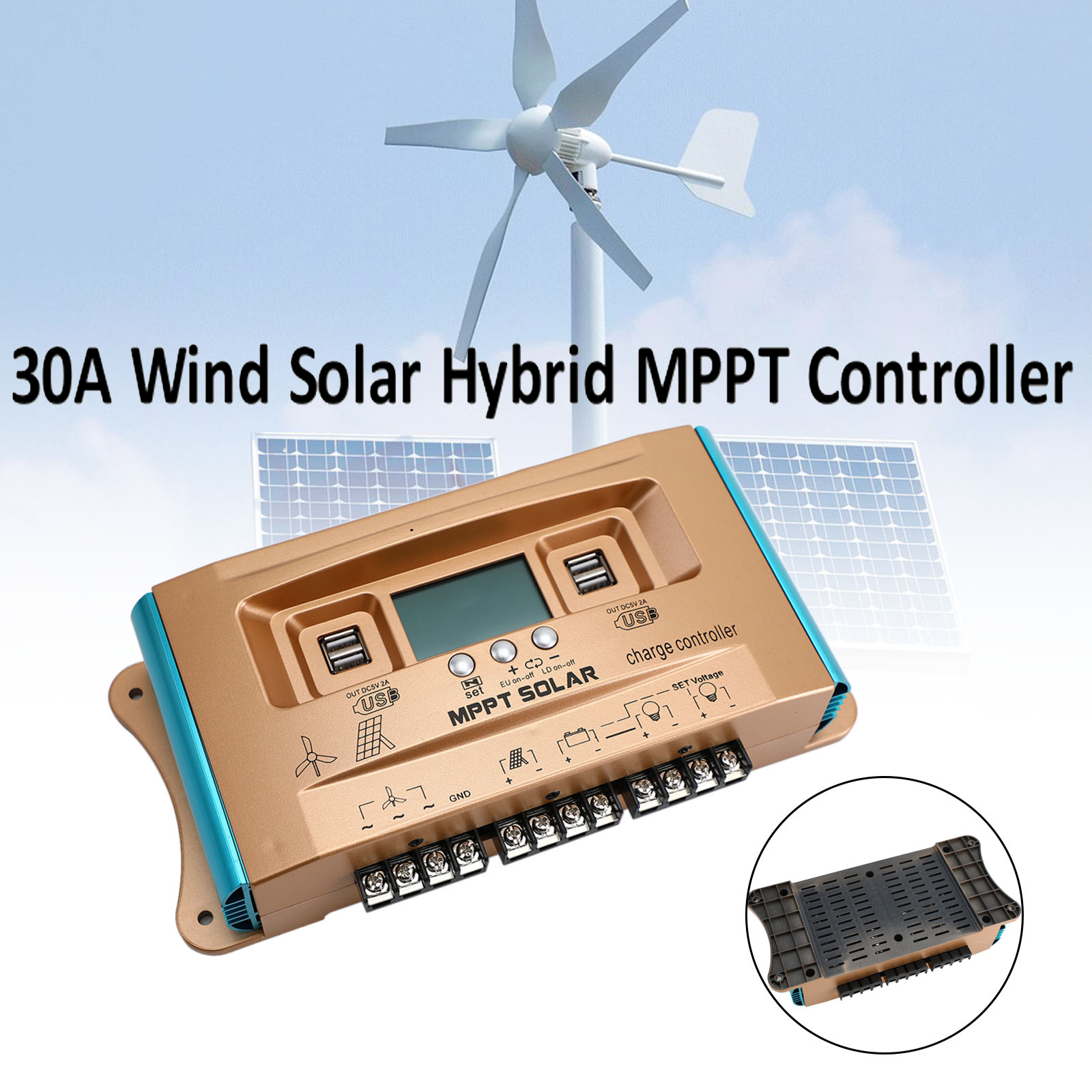

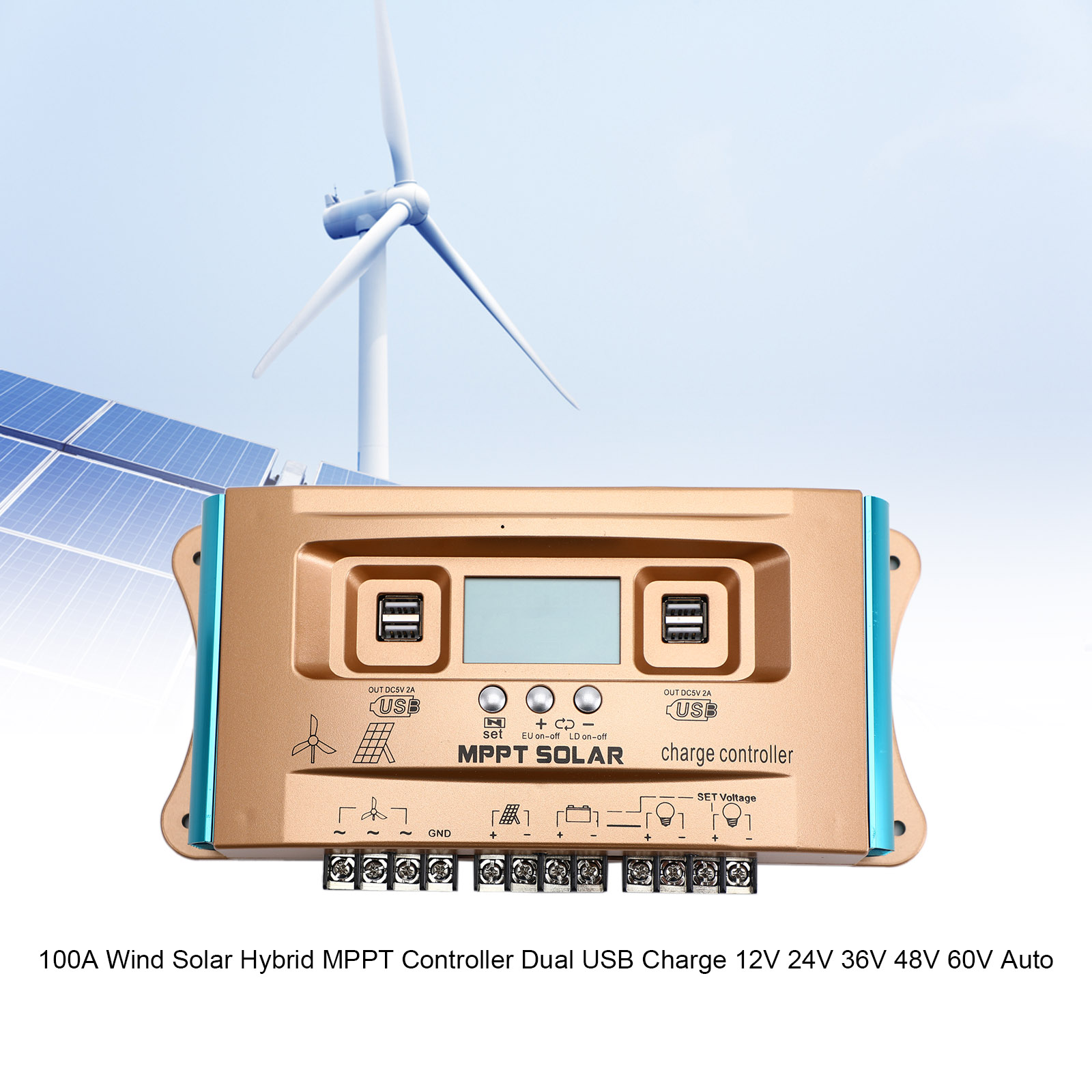

30A-100A Wind Solar Hybrid Charge MPPT Controller Dual USB Charge 12V 24V 36V 48V 60V Auto
Description:
1. Wind Solar Hybrid Controller for 12V 24V 36V 48V 60V Battery Charging.Auto-focus MPPT tracking charging, high charging efficiency, non-stop detection during the charging process two-way focus tracking.
2. Large-screen LCD display, adjustable charging and discharging parameters UItra-wide charge and discharge can be adjusted.accurate real-time display of temperature, charging current, and discharging current, and the cumulative power generation is clear at a glance.
3. Complete 3-stage charge management, effectively protect the battery, and the battery is more durable.This controller is suitable for all kinds of lead-acid batteries (including open, sealed, and colloida. Lithium batteries require user-defined parameters).
4. Both charging and discharging are combined with multiple MOS, high-power charging and discharging, and the Phoenix wing aluminum alloy has good heat dissipation performance.Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat generation.
5. Built-in overheating, overcurrent, short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller will automatically recover without damaging the equipment. It is strictly forbidden to short-circuit the boost output power port!
Note:
1. The BL4600 wind solar hybrid charge controller is the strongest current focus tracking MPPT charging and boosted MPPT charging.
2. The first group of batteries is to track the current and focus on the highest power point of the MPPT to adjust the internal charging method to maximize the conversion of light energy into electrical energy. The second set of batteries is MPPT charging with low-voltage boost and high-voltage constant voltage tracking. Please recognize the technical characteristics when purchasing, so as to avoid misunderstanding.
3. This MPPT Controller don't have APP Control function ,please know that.
4. The actual operating current is not as high as the rated current. The rated current works for a short period of time without problems, the power will be reduced later to ensure that the product is reliable and safe without breaking down as a principle, the actual application current will be reduced, please know. Our machines are a little more cost effective, if you must reach a very high standard, please buy with caution.
Features:
1. Industrial-grade main control chip, 16-level AD sampling accuracy, accurate real-time display of temperature, charging current, and discharging current, and the cumulative power generation is clear at a glance
2. Auto-focus MPPT tracking charging, high charging efficiency, non-stop detection during the charging process two-way focus tracking. Input 15V to 40V boost MPPT for efficient charging.
3. Large-screen LCD display, adjustable charging and discharging parameters UItra-wide charge and discharge can be adjusted. As long as you understand the characteristics of the battery and set its corresponding charging parameters, you can charge any battery. The output power off minute and hour can be adjusted, which is more convenient (the market only has no minute adjustment)
4. Complete 3-stage charge management, effectively protect the battery, and the battery is more durable.This controller is suitable for all kinds of lead-acid batteries (including open, sealed, and colloida. Lithium batteries require user-defined parameters).
5.To charge the 12V/24V/36V/48V/60V battery, the voltage value of the solar panel is 1.5 times the voltage value of the battery to be recharged.
6. Built-in overheating, overcurrent, short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller will automatically recover without damaging the equipment. It is strictly forbidden to short-circuit the boost output power port!
7. Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat generation.
8. Both charging and discharging are combined with multiple MOS, high-power charging and discharging, and the Phoenix wing aluminum alloy has good heat dissipation performance
9.No battery is needed to supply power to the load, it is a real sunshine application.
Specifications:
Type: MPPT Controller
Color: Gold
Self-Consume: <10mA
USB Output: 5V/2A Max
Operating Temperature: -10-+60℃

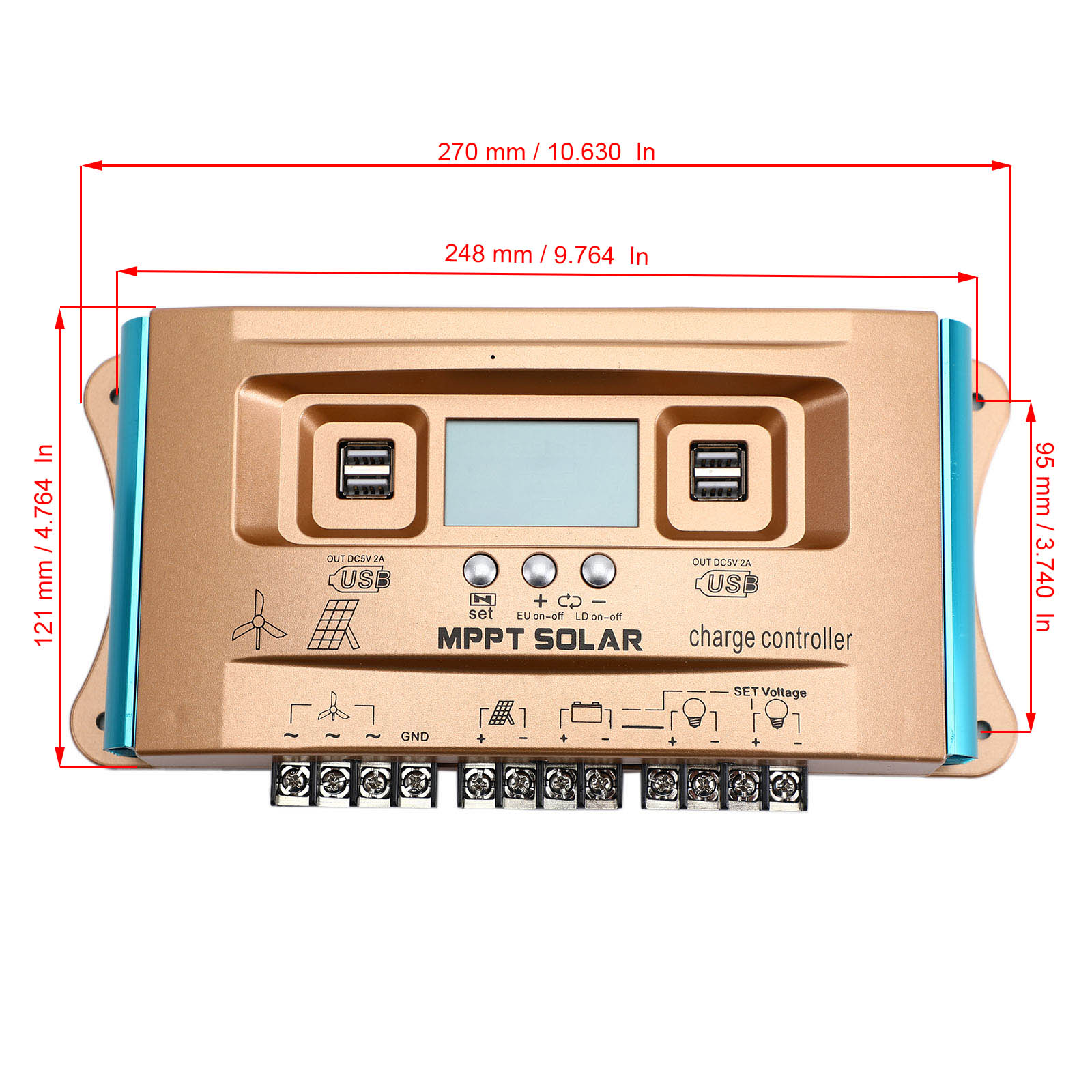

Siez/Weight : 268*138*66mm/650g
MPPT-30A Gold:
Rated Charge Current: 30A
Rated Discharge Current: 10A
MPPT-60A Gold:
Rated Charge Current: 60A
Rated Discharge Current: 20A
MPPT-100A Gold:
Rated Charge Current: 100A
Rated Discharge Current: 30A
Package Included:
1 * MPPT Controller

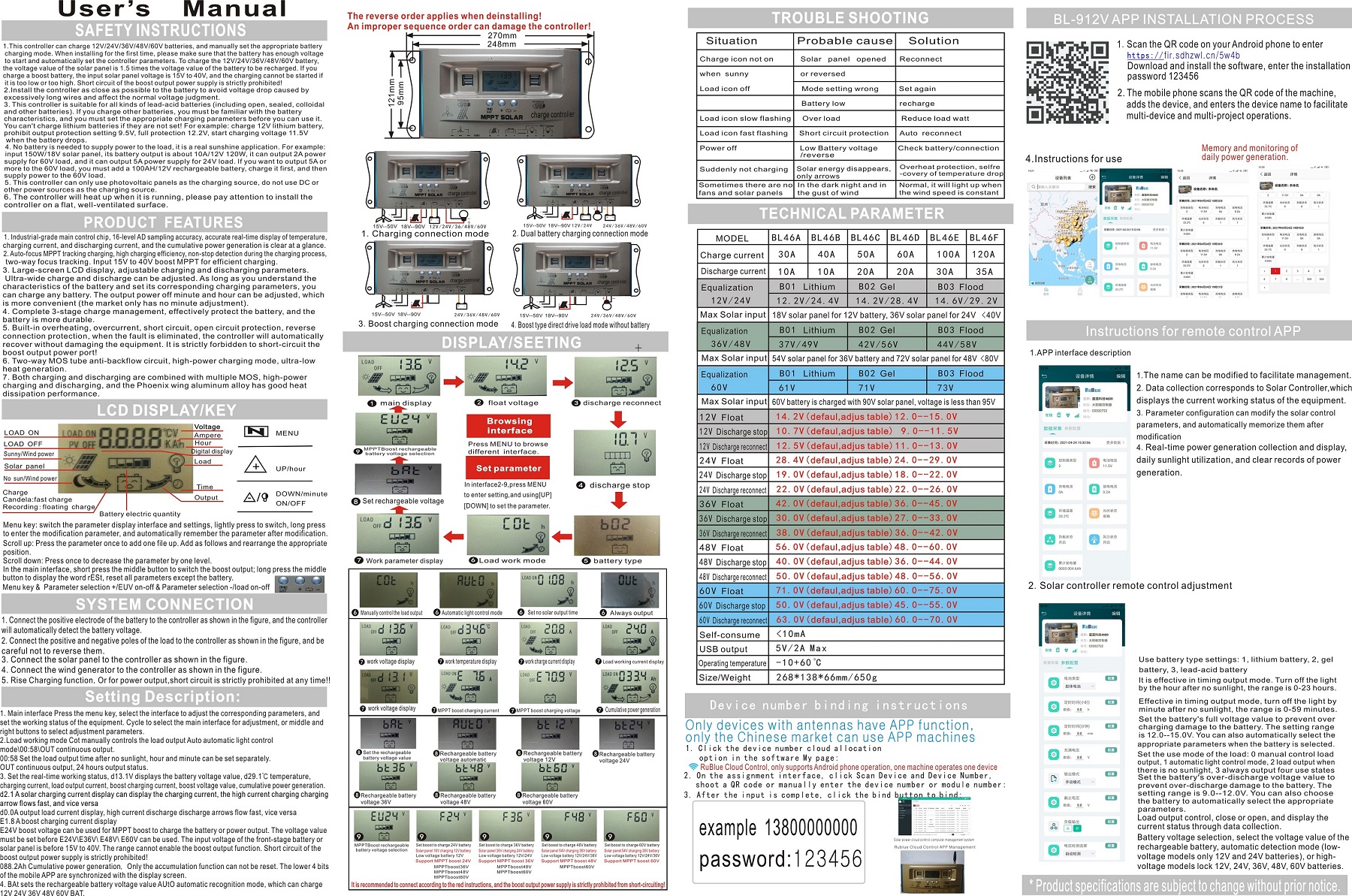

1 * Detailed User manual
