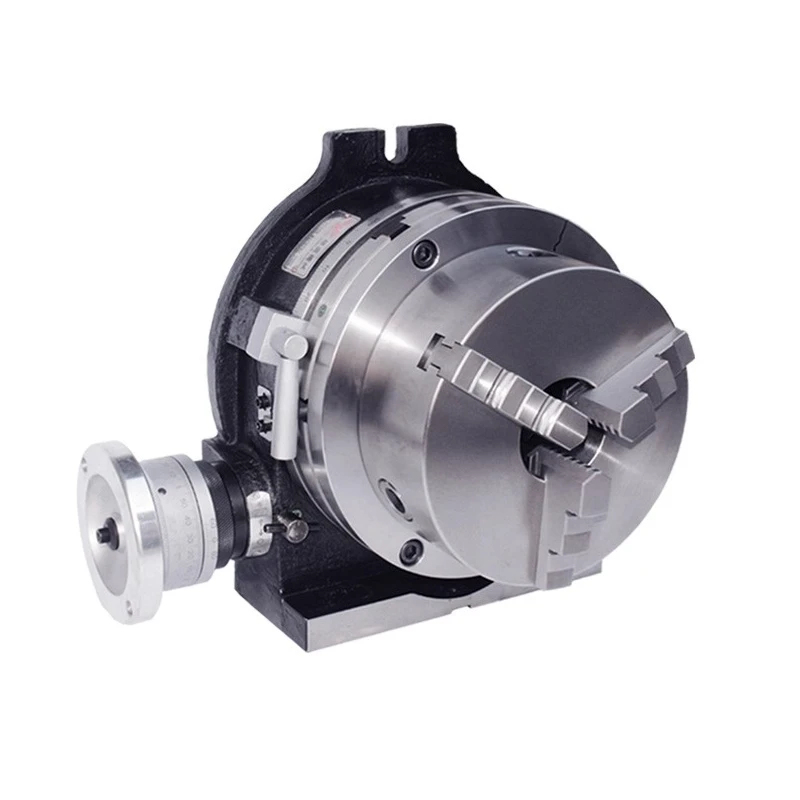

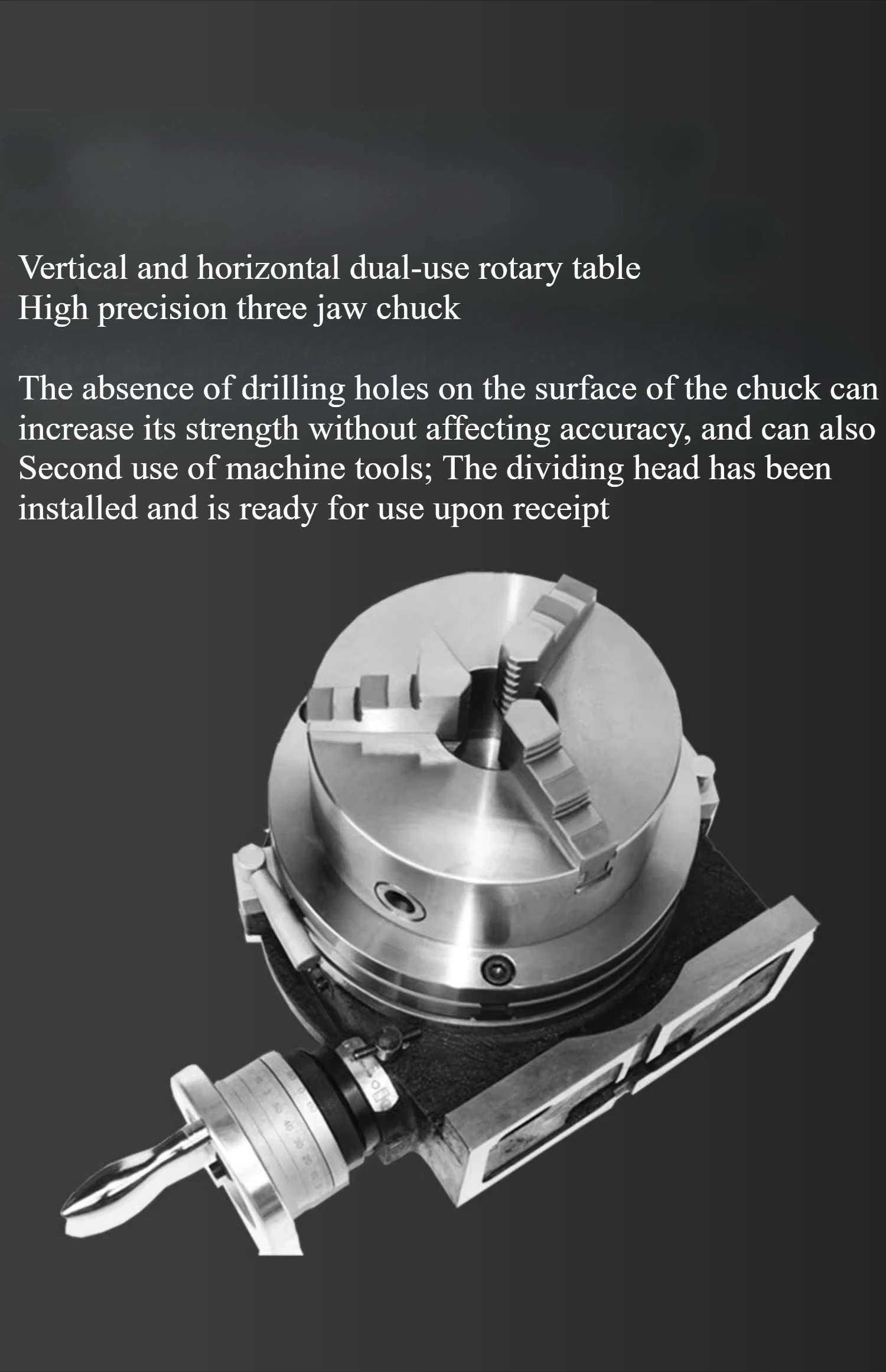

Name: Milling machine indexing head rotary worktable three jaw chuck
Graduated disc diameter: 110mm
Center taper hole of countertop: MT2
Table T-shaped groove width: 12
Positioning pin width: 12
Number of countertop slots: three
Turbine ratio: 1:75
Maximum load capacity (horizontal): 40kg
Maximum load capacity (vertical): 20kg
Dividing error: 0.1 °
Scale division: 360 °

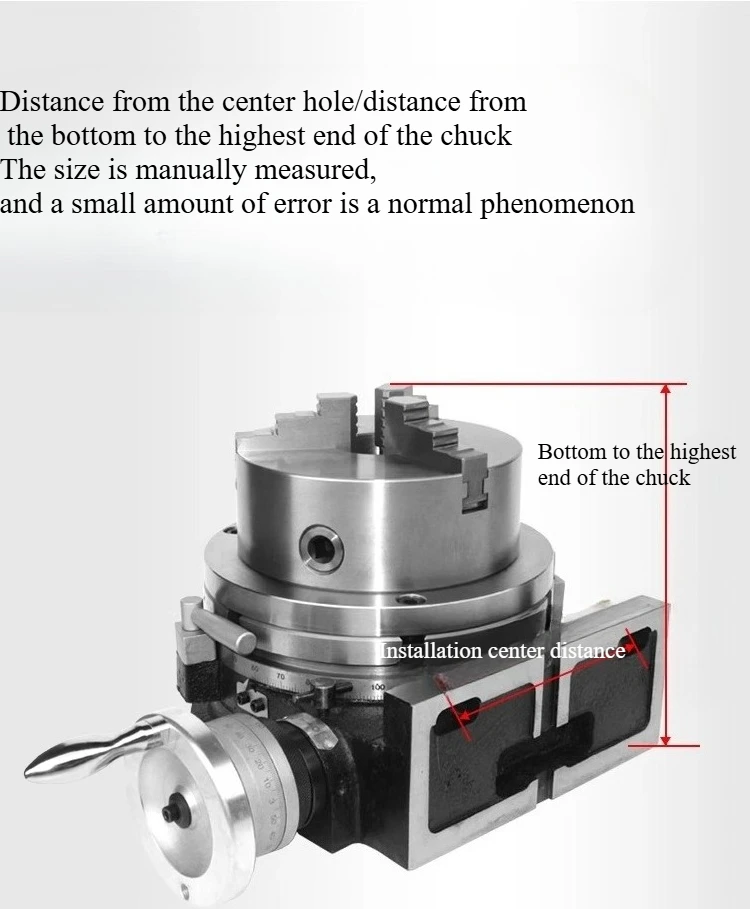

Vertical height: 145mm
Bottom length: 114mm
Center height: 85.5mm
Chuck diameter: 80mm/100mm
Horizontal height: 148mm/156mm
Center taper hole: MT2
Bottom width: 68mm
Bottom length: 120mm
