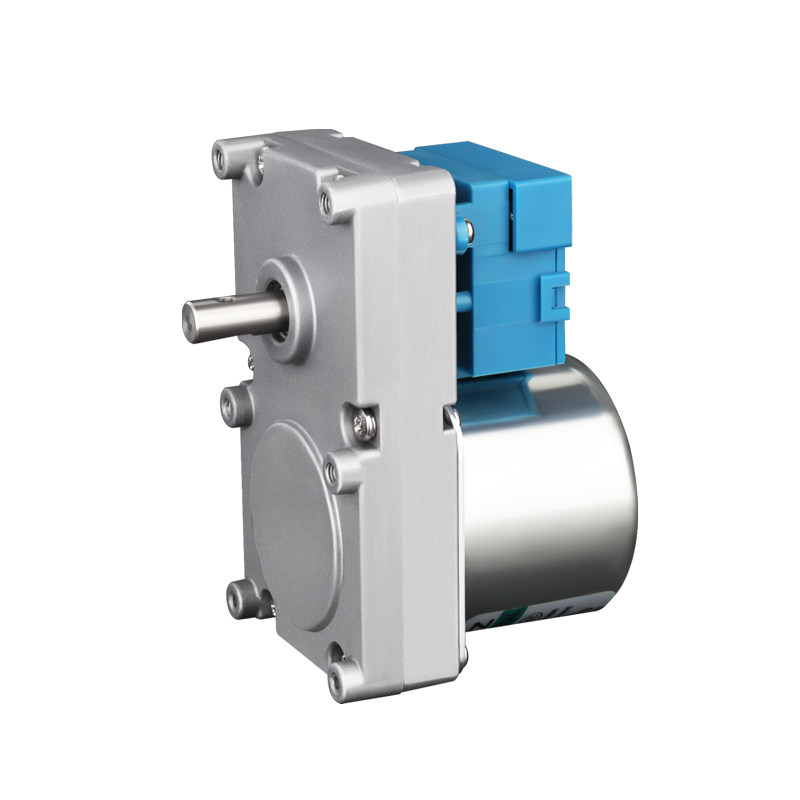

Deceleration motor, low-speed, large torque, 220V heating stove motor, discharging machine, synchronous small motor
2 rpm Specifications
Voltage AC (V): 220V,
Power (W): 22/40,
No-load current (A): ≤0.15/0.17,
Temperature rise (°C): ≤90,
Weight (kg): 1.14,
Resistance (Ω): 670 Ref./1320 Ref.,
Torque (kgf·cm): 270/280,
Rotation Direction: CW/CCW,
Noise Level (dB): 45,
Duty Cycle (S): S2.
3 rpm
Voltage AC (V): 220V,
Power (W): 22/25,
No-load current (A): ≤0.15,
Temperature rise (°C): ≤90,
Weight (kg): 1.14,
Resistance (Ω): 670 Ref.,
Torque (kgf·cm): 200,
Rotation Direction: CW/CCW,
Noise (dB): 45,
Duty Cycle (S): S2.
2 rpm Specifications
Voltage AC (V): 220V,
Power (W): 22/40,
No-load current (A): ≤0.15/0.17,
Temperature rise (°C): ≤90,
Weight (kg): 1.14,
Resistance (Ω): 670 Ref./1320 Ref.,
Torque (kgf·cm): 270/280,
Rotation Direction: CW/CCW,
Noise Level (dB): 45,
Duty Cycle (S): S2.
3 rpm
Voltage AC (V): 220V,
Power (W): 22/25,
No-load current (A): ≤0.15,
Temperature rise (°C): ≤90,
Weight (kg): 1.14,
Resistance (Ω): 670 Ref.,
Torque (kgf·cm): 200,
Rotation Direction: CW/CCW,
Noise (dB): 45,
Duty Cycle (S): S2.
