Product Description

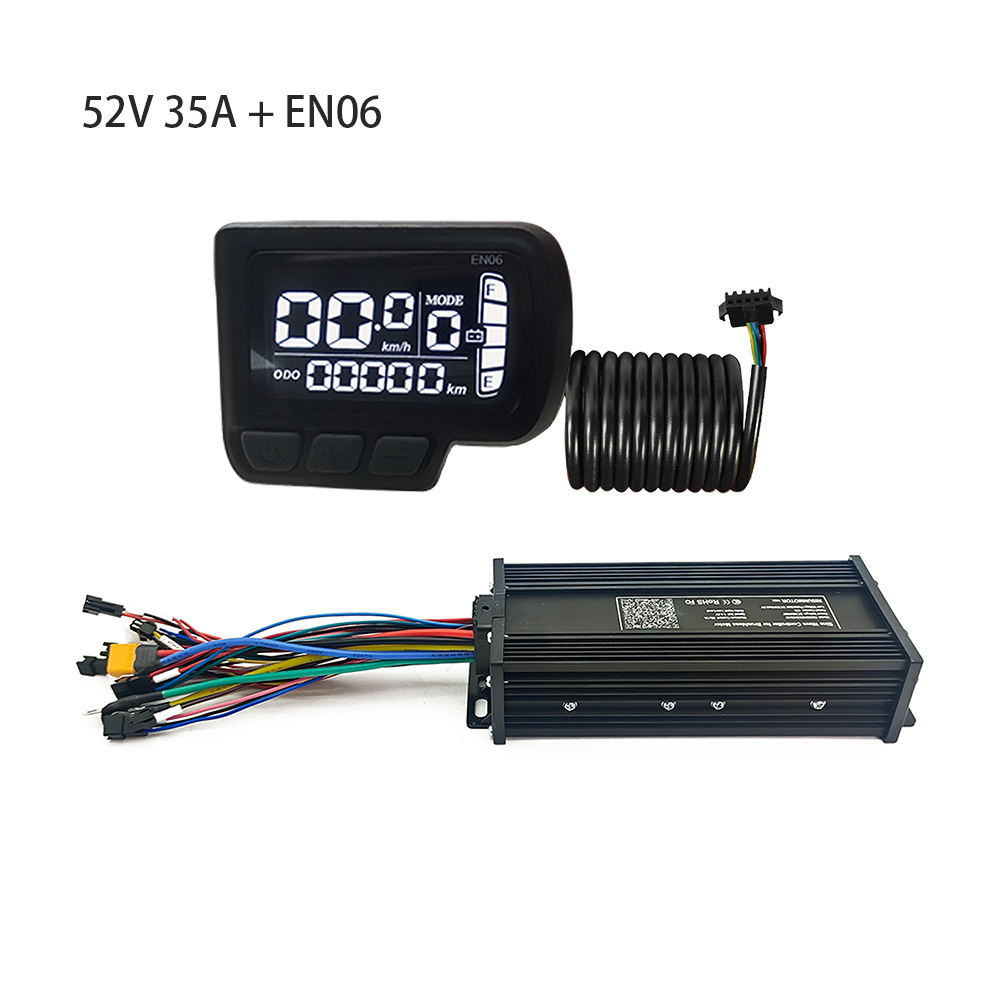

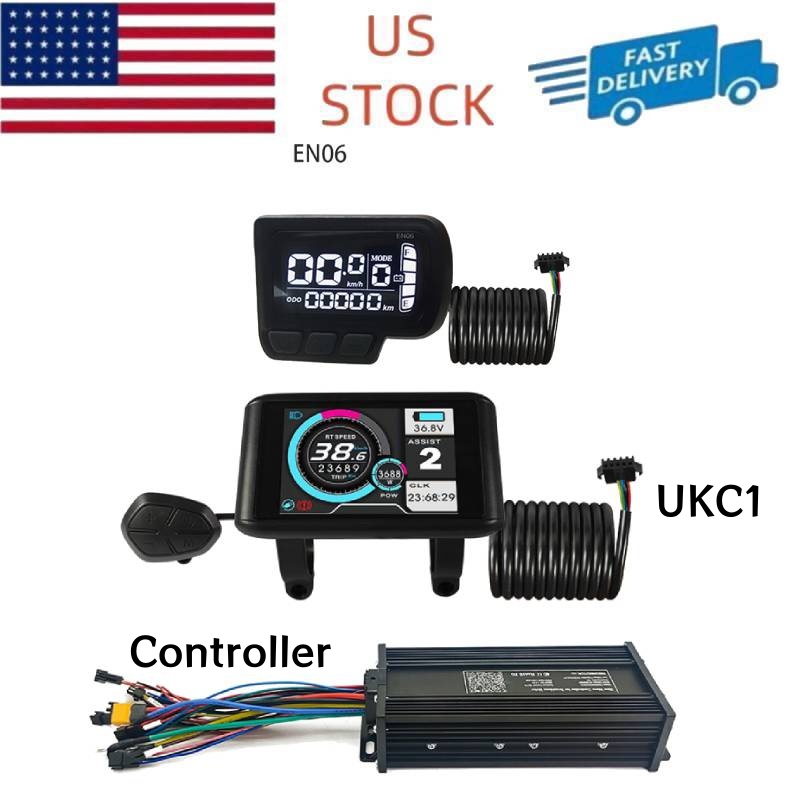

E-Bike 36V 48V 52V 1500W 35A Sine Wave Controller + EN06/UKC1 Colorful Display ~


Note:



Before using, If you need Self-learning Function, please connect the wire, then turn on the display, and then insert the learning plug. After the motor is in the correct direction, continue to rotate for 5 seconds, and then unplug the learning plug to complete the initial operation



The QR code on the product is the wiring diagram of our product. Customers can scan and download the file through the mobile phone.

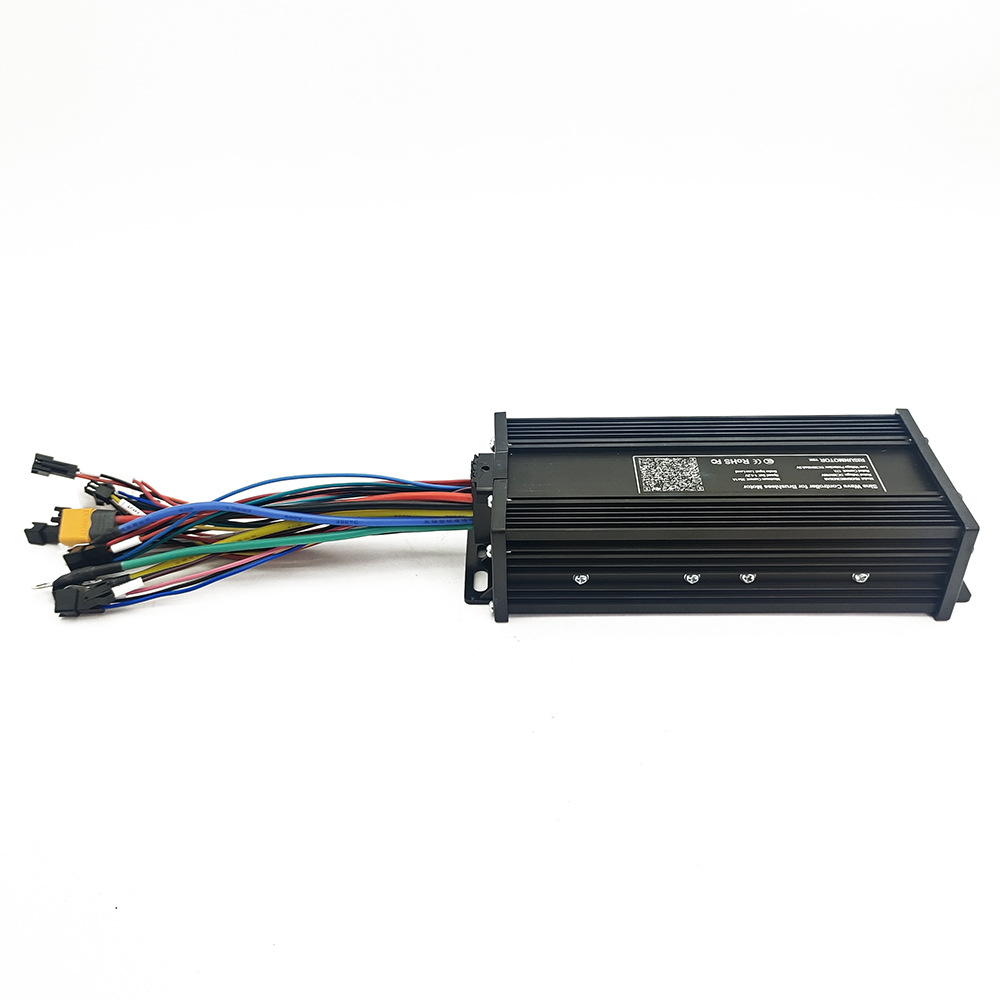

E-bicycle controller：

1.Rated power: 36V 750W/ 48V 1000W/ 52V 1500W

2.Peak power: 36V 1200W/ 48V 1600W/ 52V 1800W

3.Brake: low voltage brake

4.Current: 35A(MAX)

5. Rotor position detection method: Hall sensor

6. Size: 212x86.5x48.5mm

7. Net weight: 610g

8. Waterproof rating: IP65

9. Voltage range: 36V/48V/52V



Advantage:



1. Sine Wave Controller which support 3-mode (hall sensor mode, non-hall mode, self-learning) and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience

2. Universal Input Voltage Range: 36V/48V/52V

3. Work with or without display

4. Parameter setting via display

5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection

6. Multi functions: Work with hall sensor mode or non-hall mode, smart match with different motor, 5-speed level for throttle and PAS, Speed limit, Reverse, Cruise, Push Assistant, Anti-thief, Regenerative Braking, Electric Braking and etc.

7. Best heat sinking with Aluminium Case 8. Black anodized Aluminium Controller Case against scratch

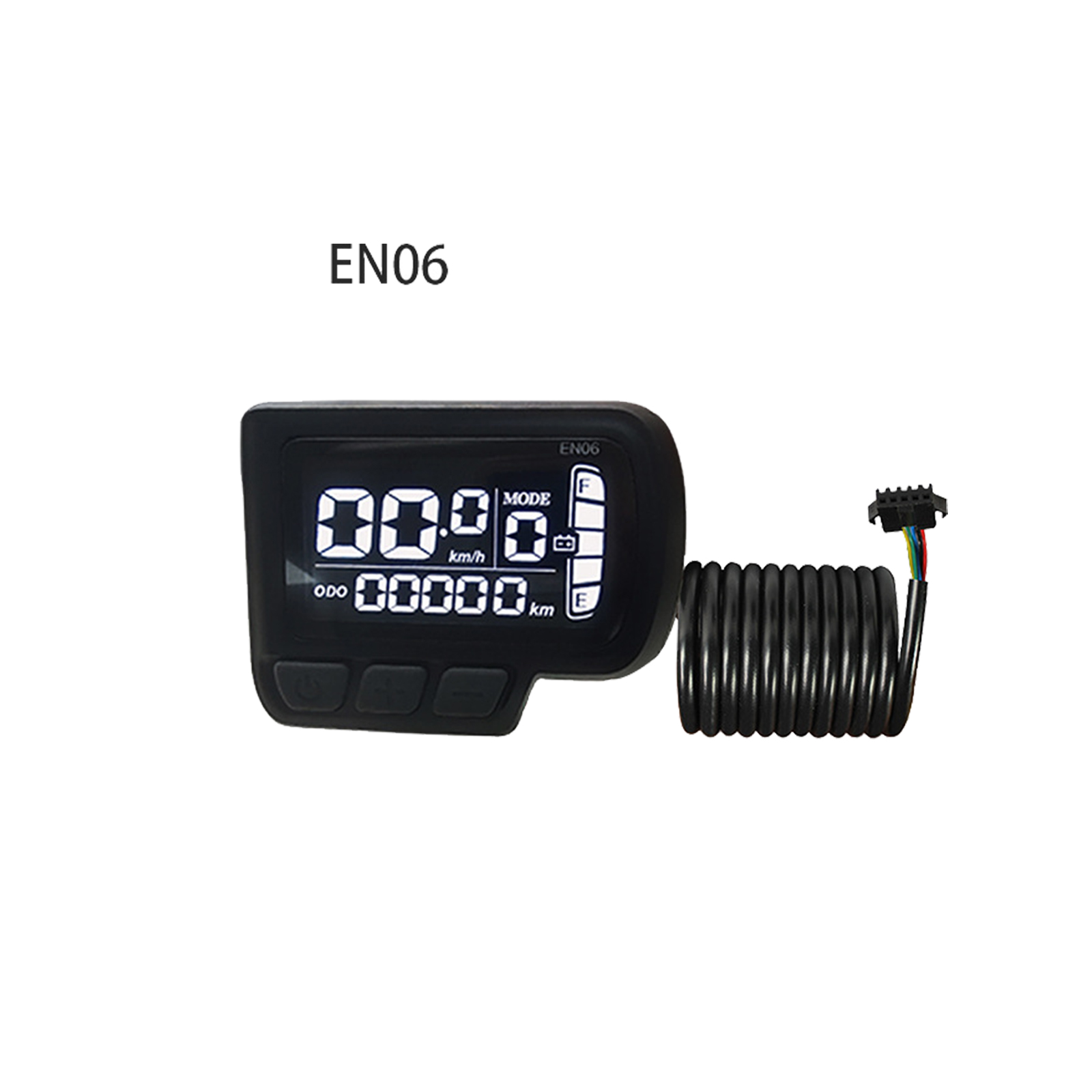

EN06 FOCAN-LCD display：

Type:EN06 FOCAN-LCD display

Voltage:24V 36V 48V adjust By P03 set on screen

Color:Black

Handlebar size for holding:Φ22.2mm

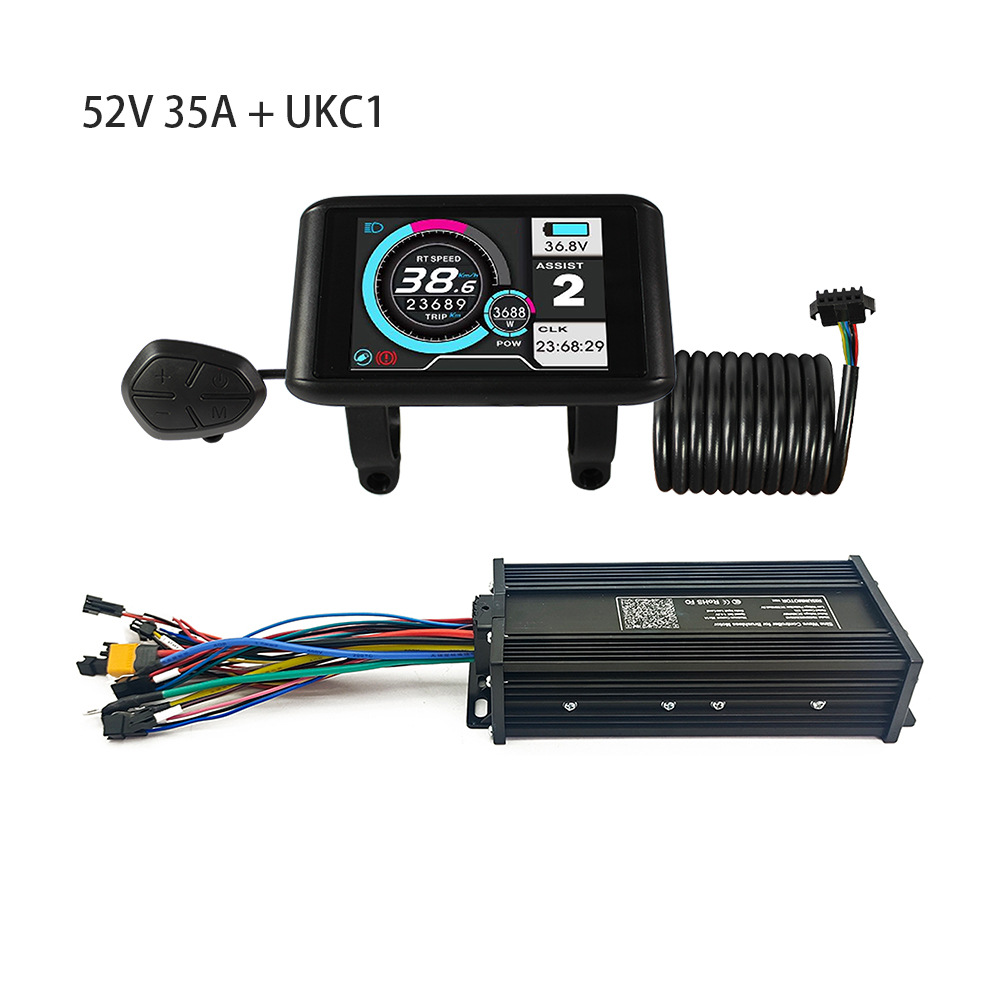

UKC1 LCD display

36V, 48V, 60V, 72V Universal

 UKC-1 Display Can Custom Switch Between Horizontal and Vertical Screen, with USB 5V Interface, Can Charge the Phone

 NOTEM DOES NOT INCLUDE Controller. Just The Display ONLY

 Only for Below Our 1000W-5000W Intelligent ProgramMable Sine Wave Controller



Display Characteristic:



1. High-Contrast 3.5 Inch IPS Colorful Matrix Screen.

2. Suitable for Low Temperature, MAX -20 ° C.

3. The Rotatable Screen Can Be Free Switch Horizontally and Vertical.

4. Speed Display: AVG Speed, Max Speed, Speed (Real-Time).

5. Kilometer / Mile: Can Be Set According to Customers' Habits.

6. Intelligent power indicator contains below: It can Provide a stable power indication through the optimization algorithm The power is not affected by the start-stop fluctuation of the motor If the system supports battery communication, the accurate percentage of power will be displayed..

7. Adjusting 5 Levels Backlight Brightness: 1st Level Is The Darkest, 5th Is The Lightest

8. 9-Level Assist: 3-Level / 5-Level / 6-Level / 9-level is Optional.

9. Mileage INDICATOR: ODMETER / TRIP DISTANCE / Clock / Riding Time.

10. Power Indicator: Real Time Power Indicator, Digital or Analog.

11. Error Code INDICATOR.

12. SPEED LIMITED CAN Be setted



Bicycle self-checking function



Battery Information Display (Battery Communication Is Required)

Endurance Mileage Showing (Battery Communication is Required)

USB Charging Port, 500mA / 5V

Software Upgraded: Software Can Be Upgraded THROUGH UART

TECHNOLOGY DATA





Screen Size 3.5 inch IPS Screen

VOLTAGE 36V / 48V / 52V / 60V / 72V Battery Supply

Rated Operating Power 1W

Max Operating Power 5W

USB Charging Port 5V 500mA

Off Leakage Current 1UA

Support Current to Controller 100mA

Operating temperature -20 ~ 70 ° C, Storage Temperature: -30 ~ 80 ° C





Why 3-mode Controller?



1. Support Hall Sensor Mode (Sine Wave Mode)



2. Support Non-Hall Mode (If your motor hall sensor burned or not match, controller will still work in square wave mode)



3.Self-learning Function: Even wrong 3-phase combination between motor and controller, doesn’t matter, above self-learning process can correct it!



Package includes(optional)



1*E-bicycle controller

1*EN06 LCD display

1*UKC1 LCD displa
