Packing List
1 PCS * Front or rear hub motor
1 PCS * Motor mounting screws and nuts
1 PCS * Motor extension cable
500W Motor
Rated Voltage(V) : 36V/48V
Rated Power(W) : 500W
Construction: Geared motor
Wheel Size (inch) : 16''18''20''22''24''26''27.5''700C
RPM : 425 for 48V
Rated Speed(km/h) : 40-47
Rated Efficiency(%) : >=80
Reduction Ratio : 1:05
Weight(KG) : 3.5
Open Size(mm) : 100/135
Drive and Freewheel : 6/7S
Cable Location : shaft center right
Spokes Specification : 12G/13G
Hallsensor : Yes
Integrate speed sensor : Yes
Surface : Black
Brake type : V/Disc brake
Salt fog test : 24/96
Noise(db) : <55db
Waterproof Grade : IP54
Operating Temperature: -20-45℃
250W/ 350W Motor
Rated Voltage(V) : 36V/48V
Rated Power(W) : 250W/350W
Wheel Size (inch) : 16''18''20''22''24''26''27.5''700C
RPM : 350 for 350
Rated Speed(km/h) : 25-32/30-35
Rated Efficiency(%) : >=80
Reduction Ratio : 1:05
Weight(KG) : 3.5
Open Size(mm) : 100/135
Drive and Freewheel : 6-7S
Cable Location : shaft center right
Spokes Specification : 12G/13G
Hallsensor : Yes
Integrate speed sensor : Yes
Surface : Black
Brake type : V/Disc brake
Salt fog test : 24/96
Noise(db) : <55db
Waterproof Grade : IP54
Operating Temperature: -20-45℃

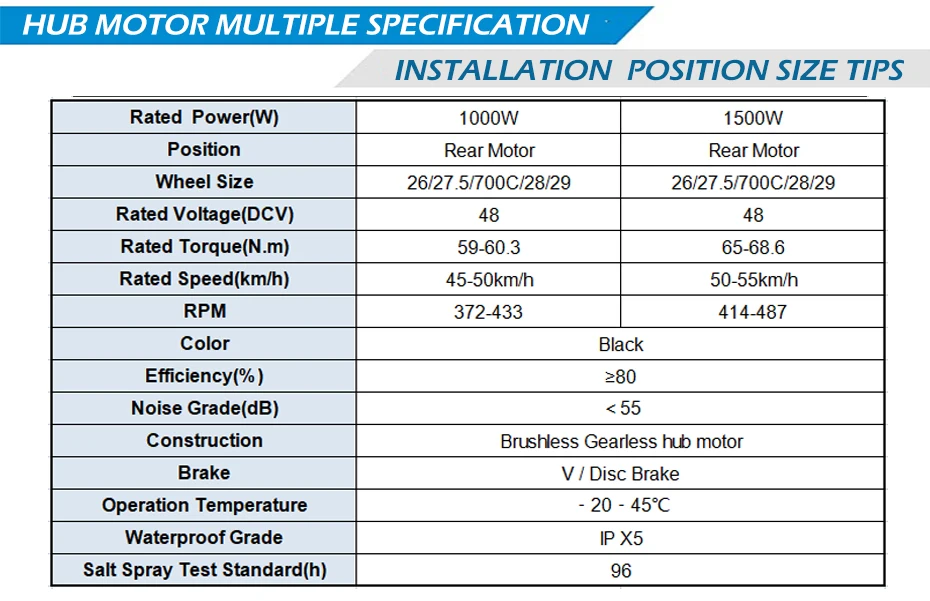

1000W Motor
Rated Voltage：48V
Rated Power：1000W
Rated Speed：about 45-50km/h
RPM：372-433 RPM
Torque(N.M)：59-60.3 N.M
Brake Type：Disc Brake
Position: Front/Rear
Construction: Gearless
Operating Temperature(℃): -20-45
IP Grade: IP65
Wheel Size (inch) : 20''24''26''27.5''28''29''700C
Tyre: Brushless Gearless hub motor
Spokes Specification: 12G
Rated Efficiency(%): >=80
Fork(mm): 135mm rear rotate
Noise(db): <55db
1500W Motor
Rated Voltage：48V
Rated Power：1500W
Rated Speed：about 50-55km/h
RPM：414-487 RPM
Torque(N.M)：65-68.6 N.M
Brake Type：Disc Brake
Position: Front/Rear
Construction: Gearless
Operating Temperature(℃): -20-45
Wheel Size (inch) : 20''24''26''27.5''28''29''700C
Tyre: Brushless Gearless hub motor
Spokes Specification: 12G
Rated Efficiency(%): >=80
Fork(mm): 135mm rear rotate
Noise(db): <55db
2000W Motor
Rated Voltage：48V
Rated Power：2000W
Rated Speed：about 50-60km/h
RPM：442-497 RPM
Torque(N.M)：71-74.6 N.M
Brake Type：Disc Brake
Position: Front/Rear
Construction: Gearless
Operating Temperature(℃): -20-45
Wheel Size (inch) : 20''24''26''27.5''28''29''700C
Tyre: Brushless Gearless hub motor
Spokes Specification: 12G
Rated Efficiency(%): >=80
Fork(mm): 135mm rear rotate
Noise(db): <55db
Packing List
1 PCS * Front or rear hub motor
1 PCS * Motor mounting screws and nuts
1 PCS * Motor extension cable
