Product Description

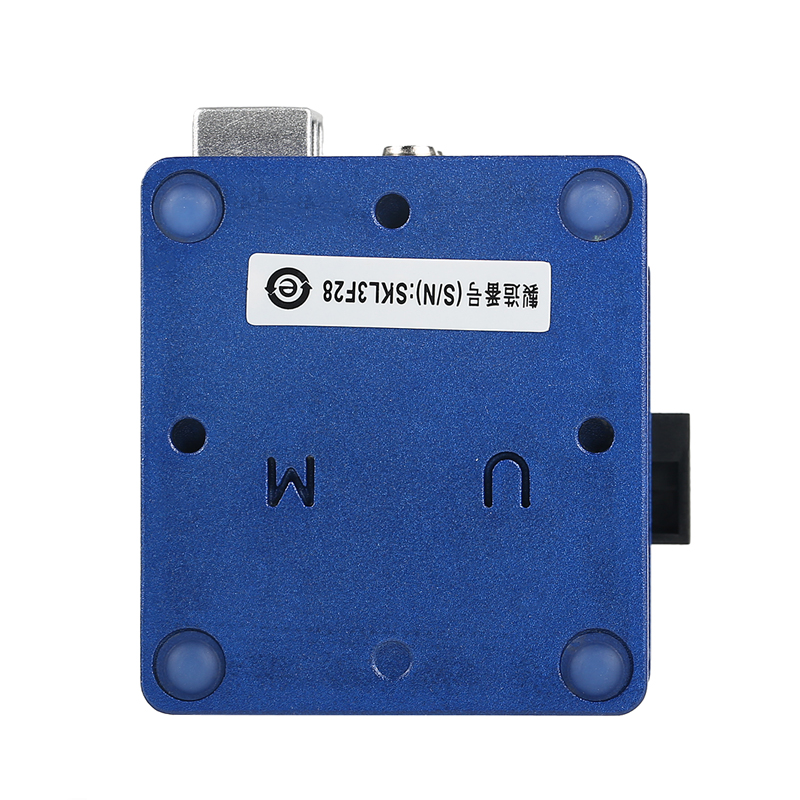

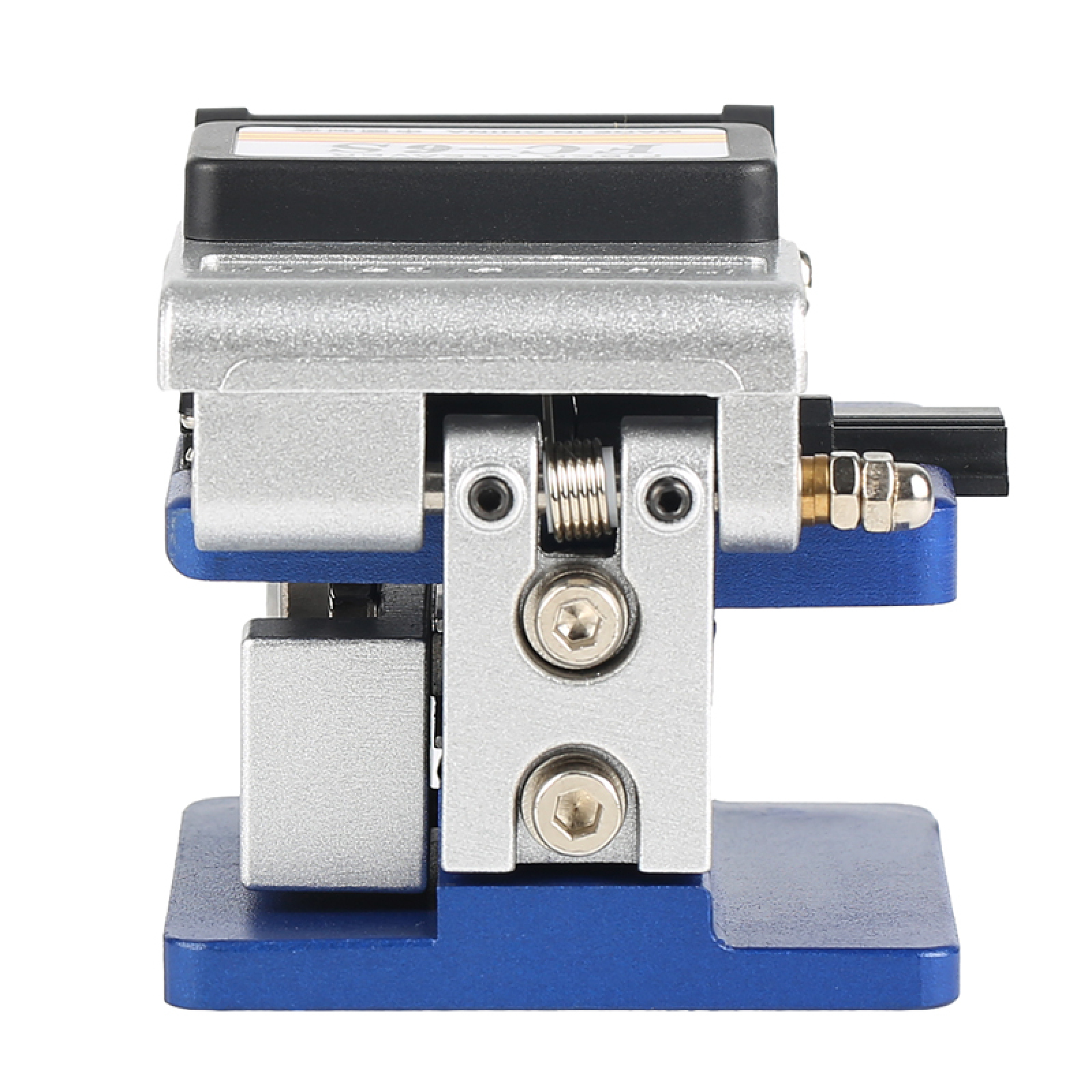

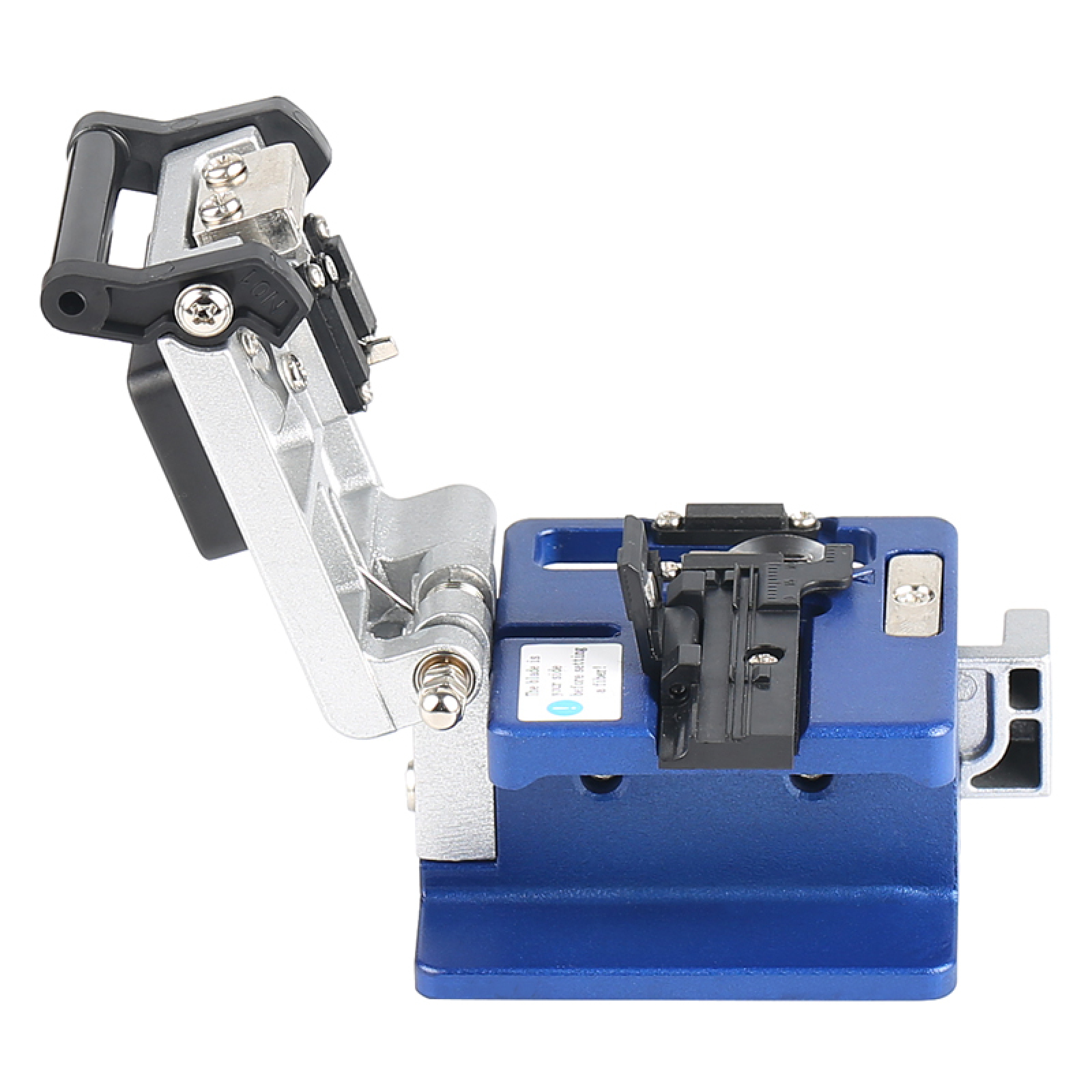

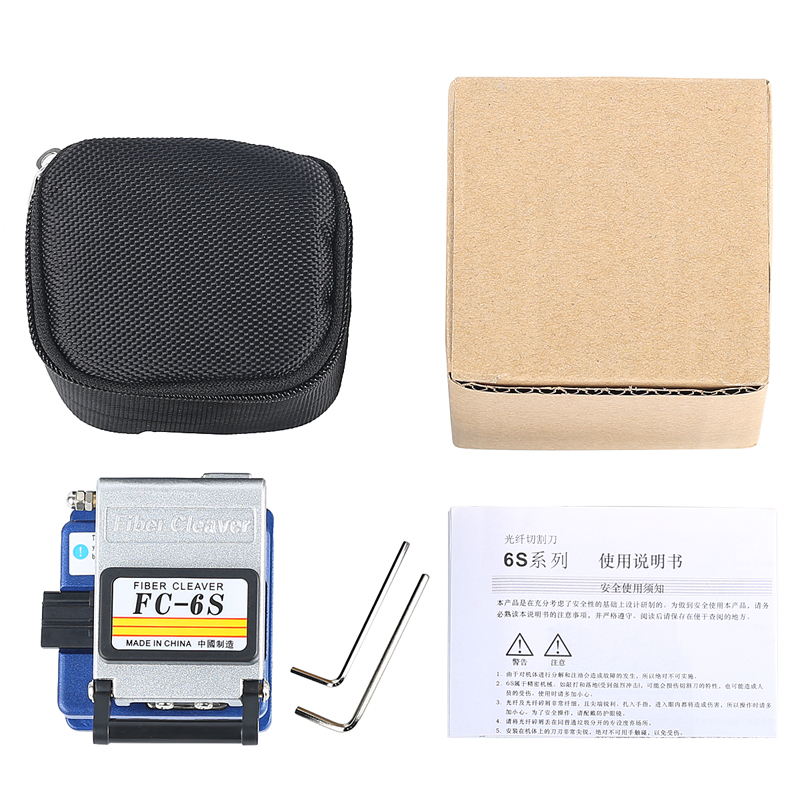

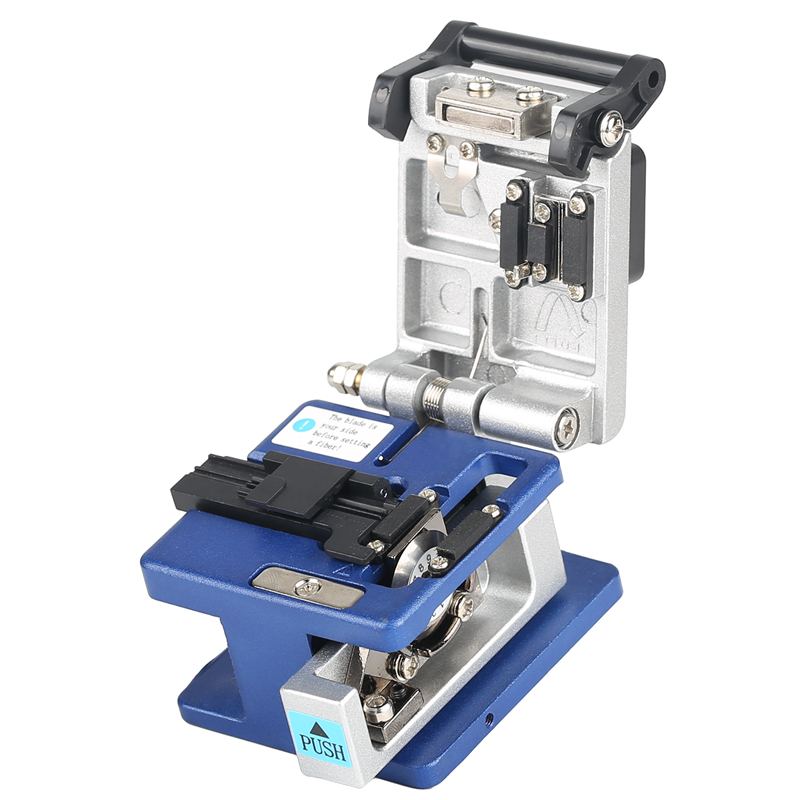

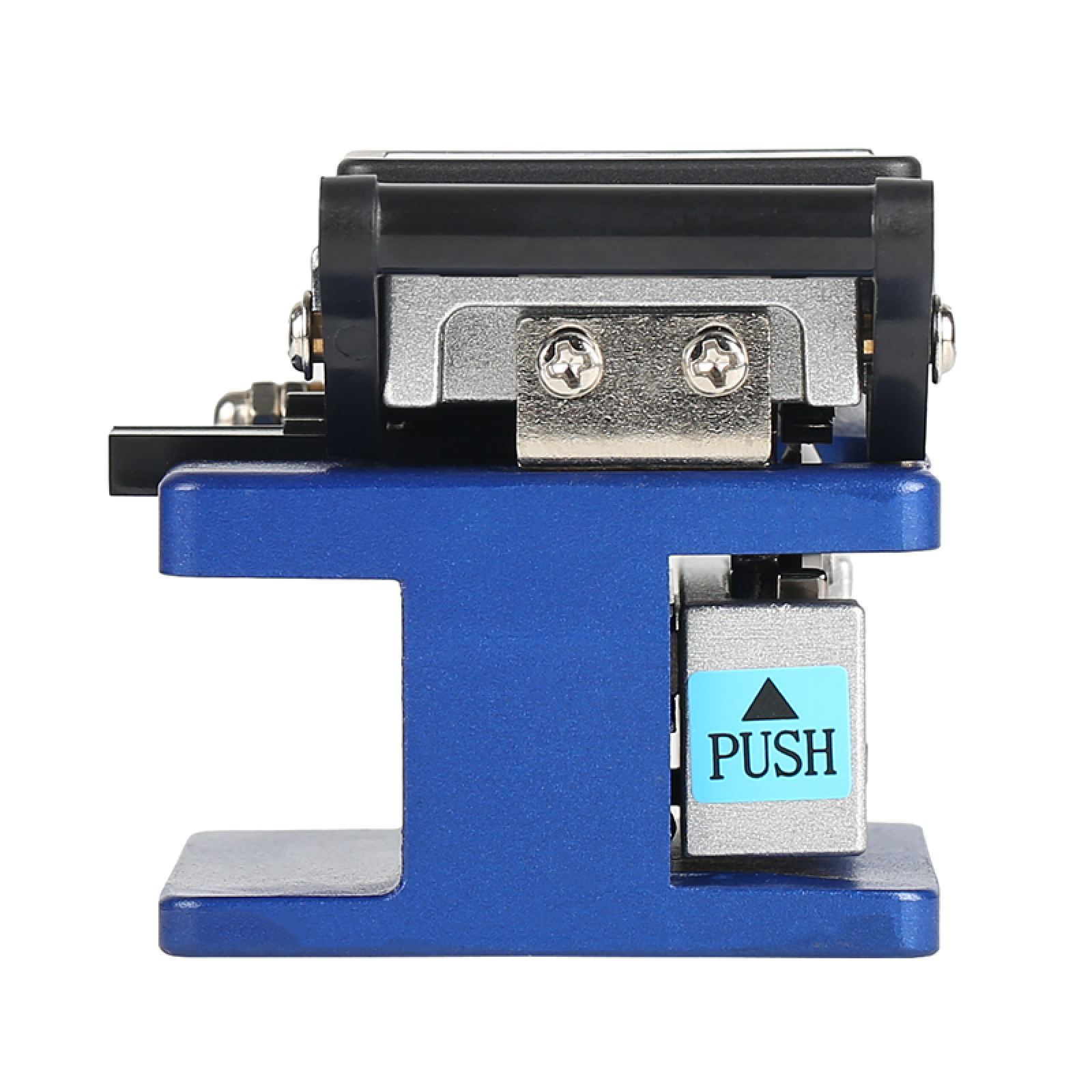

FC-6S Fiber Cleaver

fiber cutter

Same as Sumitomo FC-6S optical fiber cleaver

fiber cleaver for sumitomo fusion splicer

blade life of 36,000 cleaves

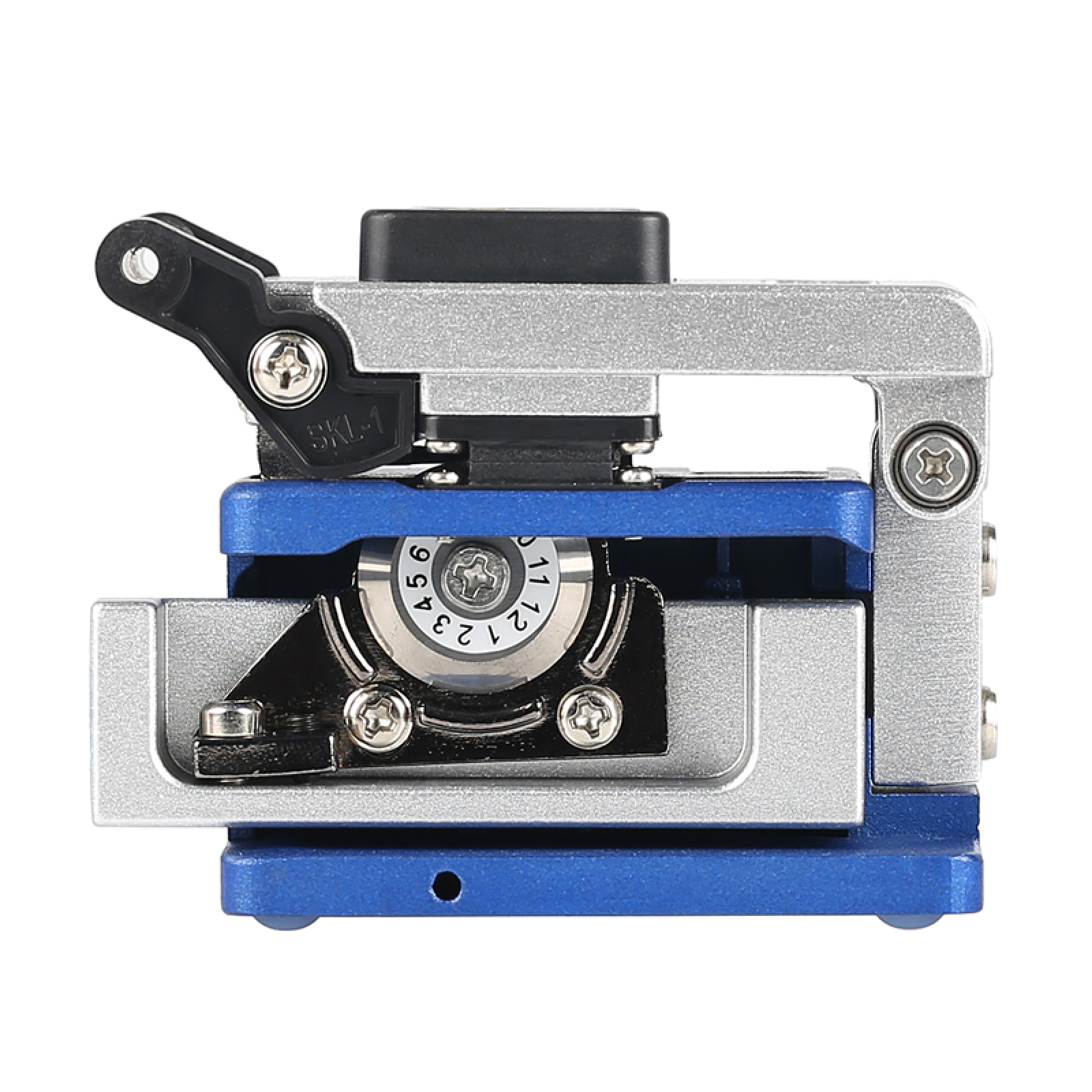

The Sumitomo FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest Sumitomo cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.





Model

FC-6M

FC-6M-C

FC-6S

FC-6S-C





Applicable
Fiber

Fiber diameter

125um

Fiber count / size

Single fiber (0.25 & 0.9mm)
and up to 12-fiber ribbon

Single fiber
(0.25 & 0.9mm)

Cleave length

10mm

9 ~16mm (0.25)
10~16mm (0.9 )

Typical cleave angle

0.5°

Dimensions / Weight

63(W) x 76(D) x 63(H)mm / 430g (FC-6M/FC-6S)
100(W) x 81(D) x 63(H)mm / 480g (FC-6M-C/FC-6S-C)

Blade life

36,000fibers
(1,000fibers x 12 edge positions x 3-step edge height)

Option

Adapter for single fiber : AP-FC6M
(Standard installation with the FC-6S/FC-6S-C)
Offcut collector : CU-FC6
(Standard installation with the FC-6M-C/FC-6S-C)
