Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. 24 levels of damping force adjustability. A wide range of dampening adjustments can be made to provide a variety of responses to different road conditions and to tune the ride feel.
3. Front camber plates with pillowball mount for camber adjustment;
4. Full length dust boot keeps shaft and oil seal from damage.
5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.

Fitment

For Honda Civic hatchback (FK) 2016-2021

Fit 52mm clamp diameter only

Excluding coupe and sedan, excluding Si and type-R.

Specifications

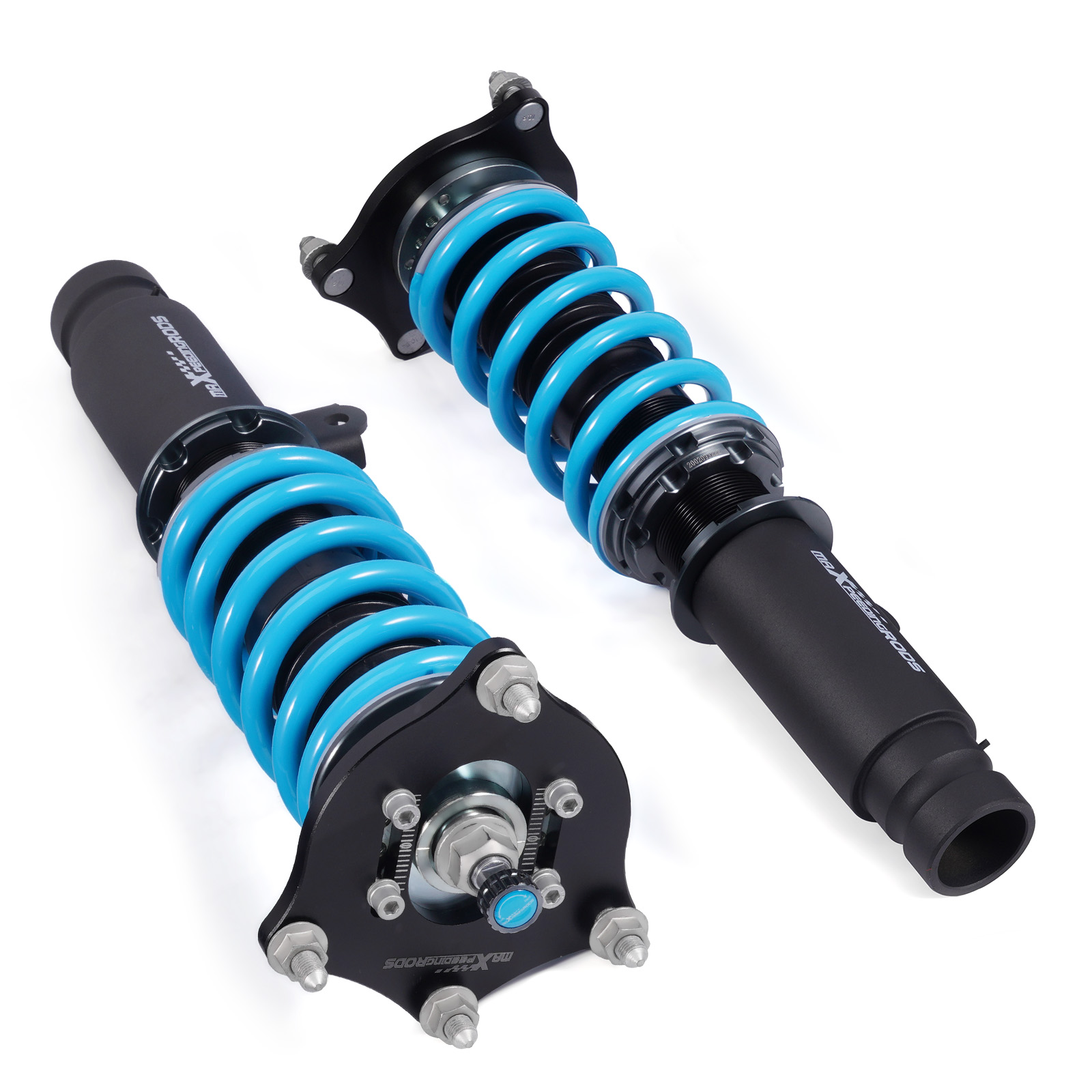

- Front top mount: pillow ball with camber plate
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models depending on the vehicle models
- Camber adjustable: Available
- Spring rate Front: 6 kg/mm (336 lbs/in)
- Spring rate Rear: 5.5 kg/mm (308 lbs/in)
- Spring length Front: 180 mm
- Spring length Rear: 195 mm
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 60-71 mm
- Spring Preload advised: 7-10 mm
- Color: Black body with blue spring

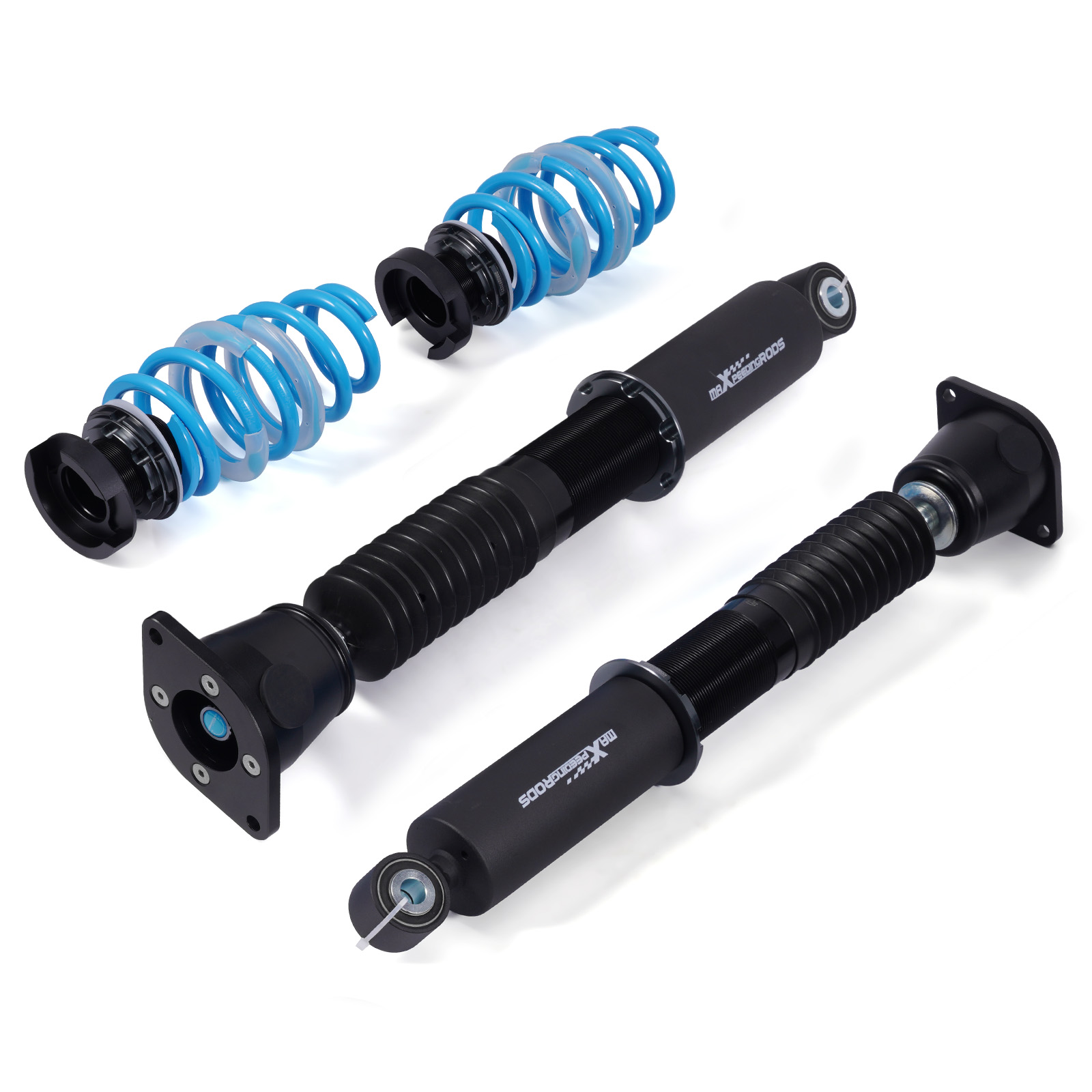

Package included

2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners

★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
