ES-11H+

ES-11H+

Digital Temperature Controller with Probe (IP65 Waterproof Wall-Mount Housing)

  • Heating or Cooling modes

  • Measuring Range: -50.0°C ... +150.0°C

  • 2 Relay Outputs (Control and Alarm)

  • 1x 20A Relay up to 4500W

  • 1x 8A Relay

  • Adjustable Hysteresis: 0-20 °C

  • Stainless Steel IP68 NTC 5k Ohm Sensor Included (2m - extendable)

  • Additional Potential-free NO/NC Signal Input (for safety thermostat or remote button)

  • Low and High Temperature Alarms (Internal BUZZER)

  • Memory for MAX/MIN temps and output runtime

  • Settings memory after power failure

  • English User Manual Included

IMPORTANT: ORIGINAL product developed in the European Union.

Universal controller for HEATING systems:

  • Electric heaters, stoves/ovens
  • Heating cables, de-icing systems
  • Incubators, terrariums, aquariums
  • Boilers, radiators, etc.
  • Central heating pumps and water heaters

and COOLING systems:

  • Fridges, freezers, cooling counters
  • Fans, coolers
  • Car cooling aggregates (12V or 24V versions available)

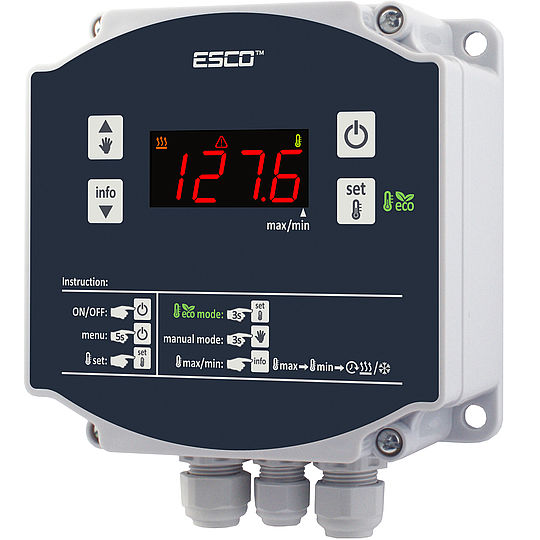

Application
Thermostat display

Digital thermostat with ON/OFF control and adjustable hysteresis.

Universal (HEAT / COOL mode selectable) - suitable for heating, cooling, or defrosting.

The 20A relay allows direct control of devices up to 4500W.

Technical Data

Input:NTC 5kΩ at 25°C, Digital Input, Alarm
Measuring Range:-50.0 to +150.0°C
Accuracy:+/-0.5°C
Sampling Period:330 ms
Display Resolution:0.1°C
Setting Resolution:0.1°C
Display:LED, 4 digits (14mm height) with icons
Control Method:ON-OFF with hysteresis
Control Accuracy:Adjustable 0.1 to 20.0°C
Outputs: Control: 20A Relay (100k cycles)
Resistive: 4500W | Inductive: 1500W
Alarm: 8A Relay (100k cycles)
Resistive: 1800W | Inductive: 400W
Mounting:Wall-mount
Protection:IP65 / Class II
Power Supply:230VAC, 12V AC/DC, or 24V AC/DC
(Please select one)
Power Consumption:max 3 VA
Technical specs

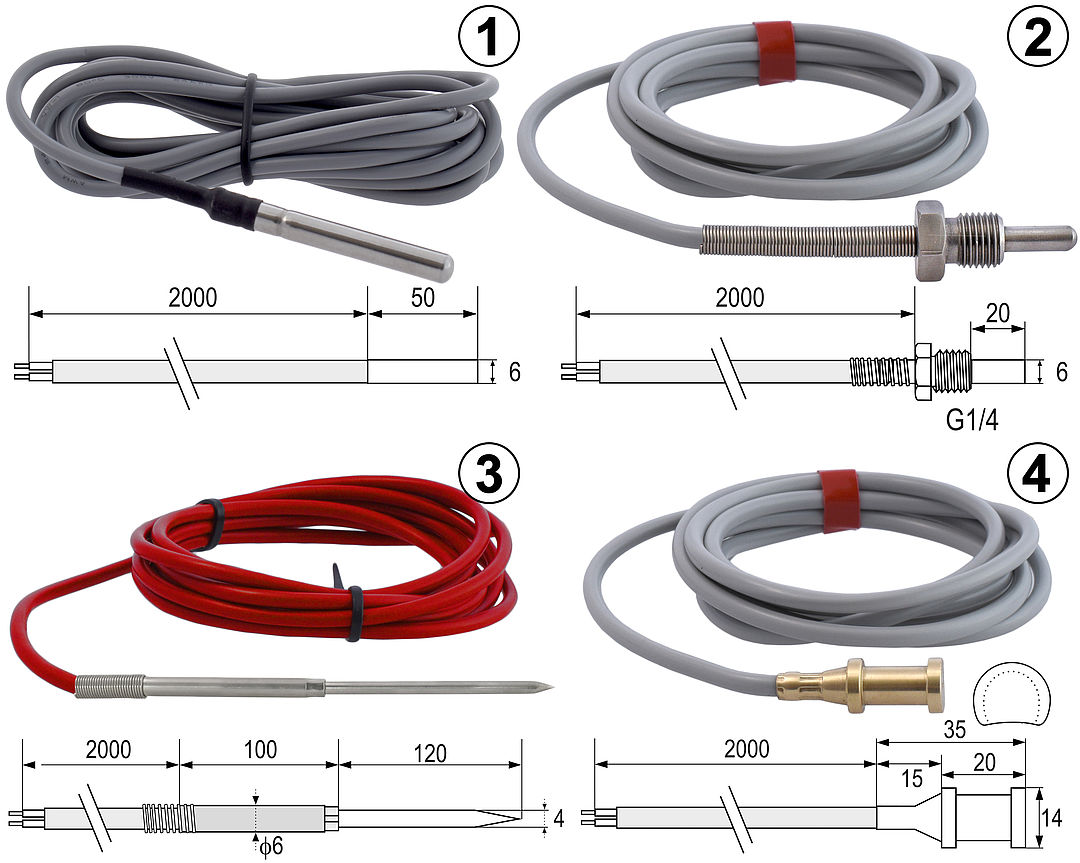

Sensor types

Available sensor types for this controller:

1 - Standard probe | 2 - 1/4" Threaded probe | 3 - Penetration probe | 4 - Surface/Clip-on probe

What's in the box:

1x Brand new Digital Temperature Controller
1x NTC Temperature Sensor
1x User Manual (English/German)

Please note: Power cord with plug is not included.
