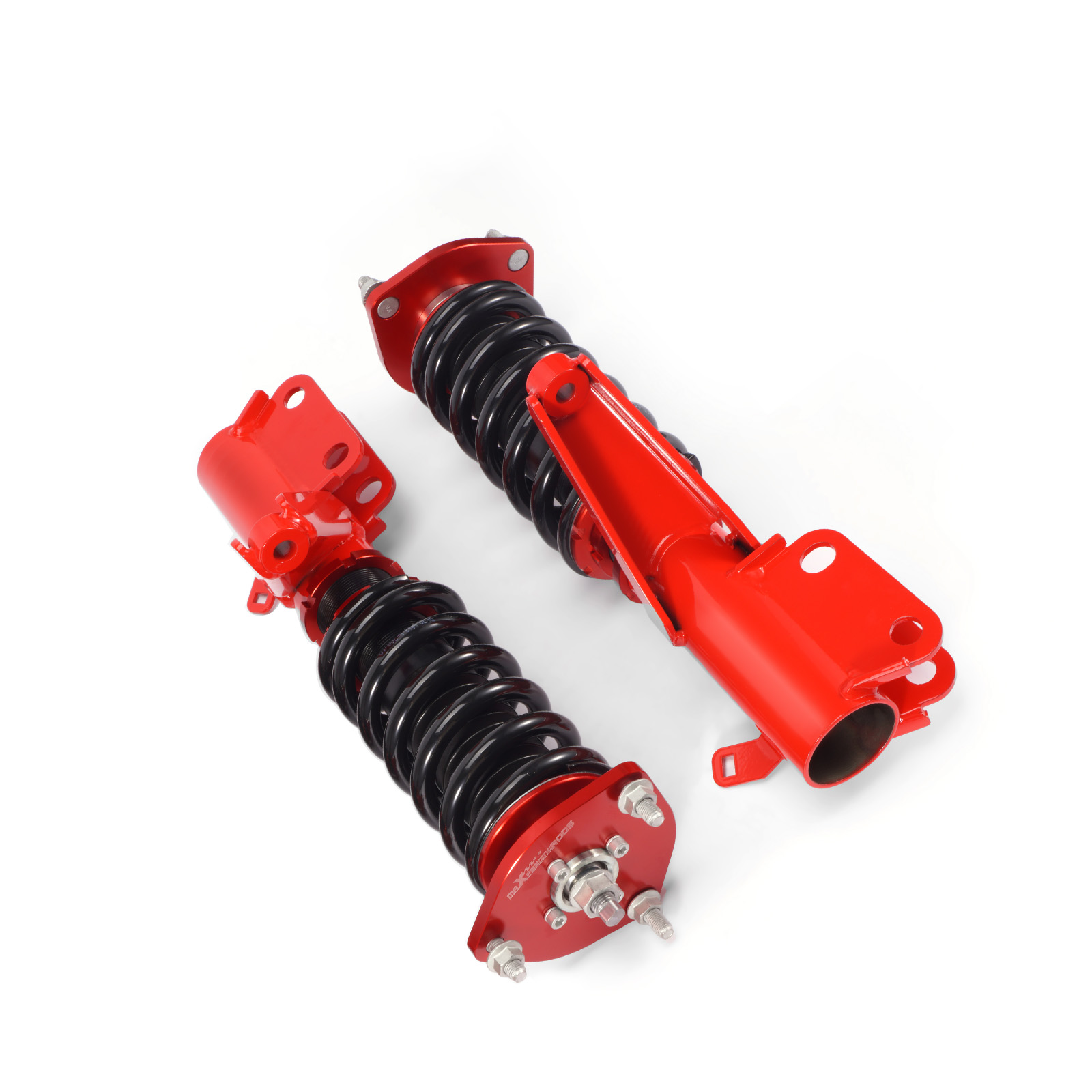

Adjustable Coilovers Suspension Kit For HONDA CIVIC Coupe & Sedan 2001-2005



55mm Large Diameter Damper Body

High Oil Capacity For Superior Heat Dissipation, Consistent Damping Performance, And Extended Service Life.

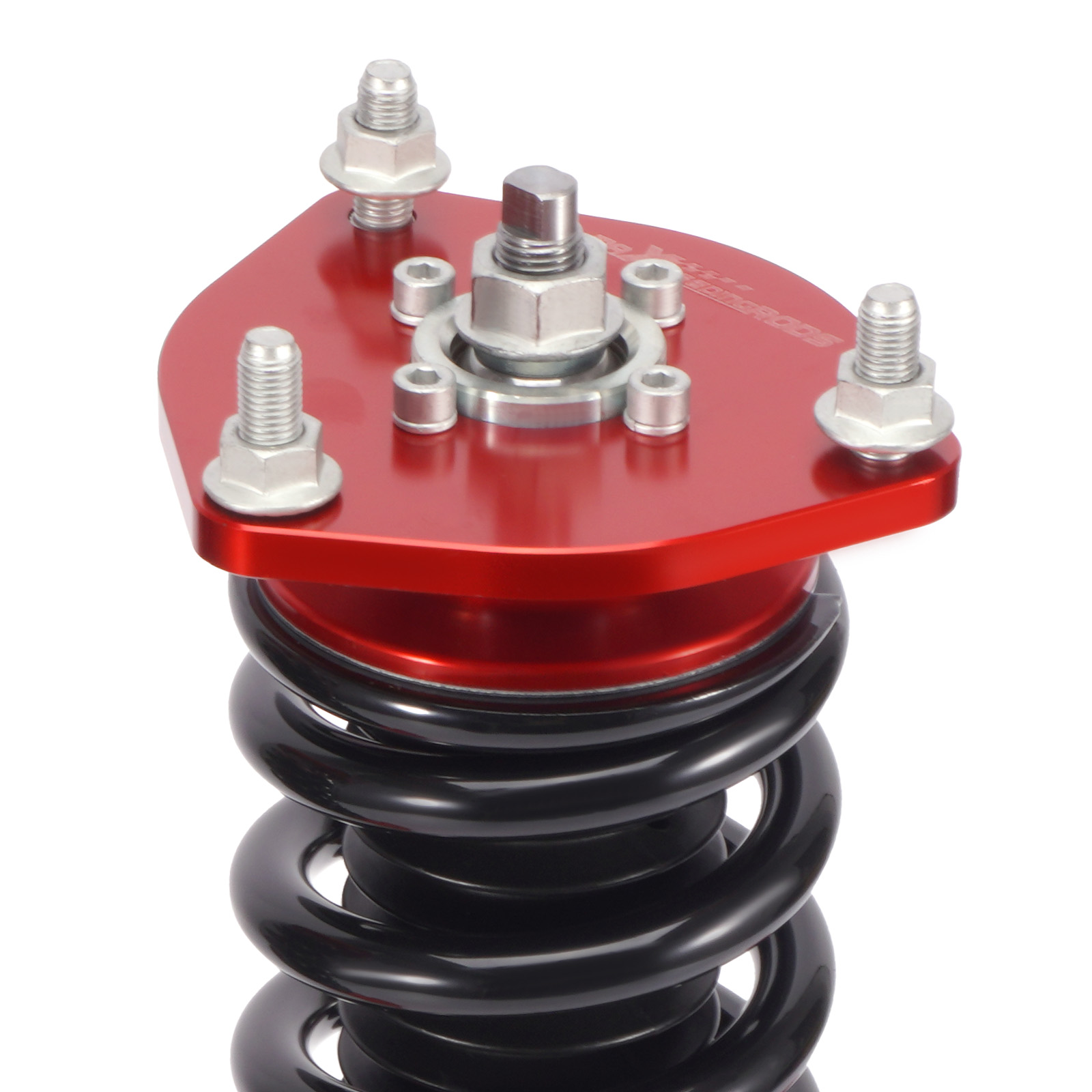

CNC Machined T6 6061 Aluminum Top Mount

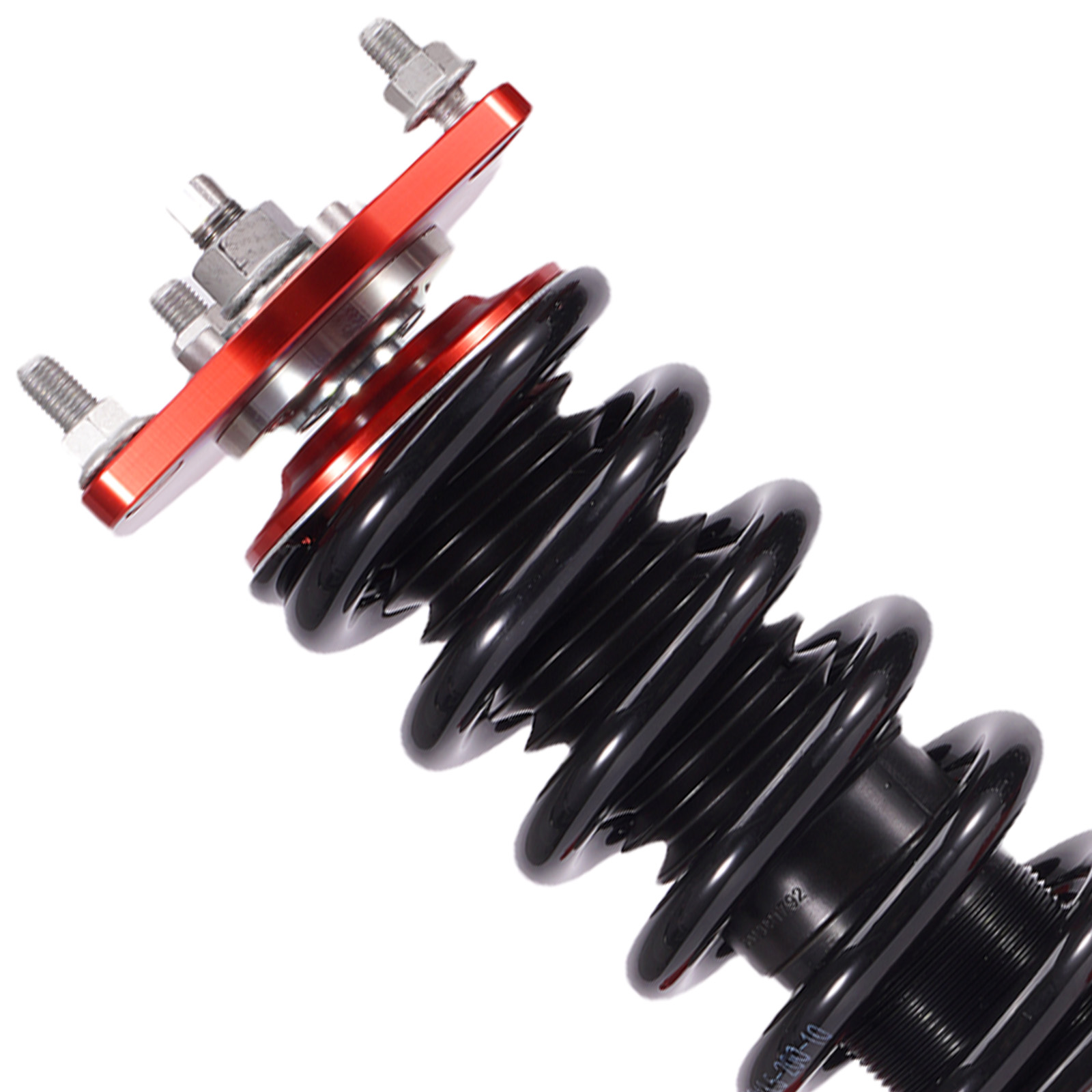

High-precision Pillow Ball Top Mount with Premium-Grade Sealed Spherical Bearings.

High Rigidity 55CrSi Steel Cold-bent Coil Springs

720-Hour Salt Spray Tested — Exceptional Corrosion Resistance.

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Specifications


Top mount material Aluminum
Adjustable height Yes, Lowering 1-3 inch
Front Spring length 200 mm
Rear Spring length 140 mm
Front spring length 10 kg/mm (560 lbs/in)
Rear spring length 6 kg/mm (336 lbs/in)
Front spring inner diameter 70.5 mm
Rear spring inner diameter 62 mm
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features


Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver
High-precision Pillow Ball Top Mount with Premium-Grade Sealed Spherical Bearings.
High Rigidity 55CrSi Steel Cold-bent Coil Springs

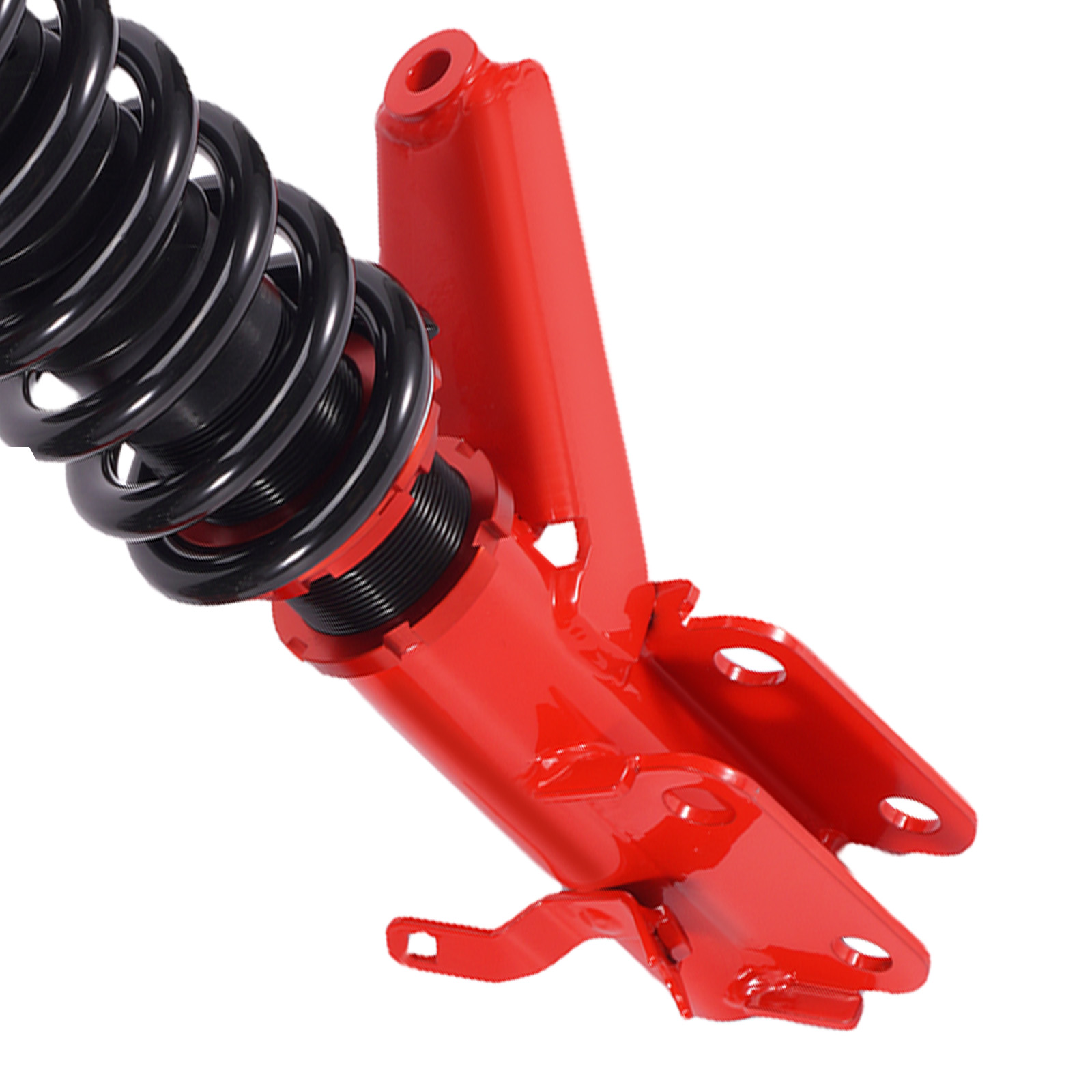

Weight Saving Aluminum Lower Mount Brackets
Anodized Shock Body With Anti-Corrosion Coating

Optimal Pre-Set Soft and Hard Settings - No Manual Damping Adjustment Required
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase


Applications


For Honda civic VII DX/EX/GX/HX/LX/Si  Coupe (EM2) 2001-2005
For Honda civic VII DX/EX/GX/HX/LX/Si Sedan (ES, ET) 2001-2005
NOTE：Not fit for Hybrid


Specifications


- Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Not available
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)

- Coilover overall length Front: 490-620mm

- Coilover overall length Rear: 395-410mm

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ50mm (1.97")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 200 mm
- Spring length Rear: 140 mm
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

- 100% Brand New, Never Used Or Installed - Independent Ride Height Adjustable - 55mm Large Diameter Damper Body - High Durability Bearing and Thrust Seat - Reinforced Rubber Bushing with T-6061 Billet Aluminum Upper Mount - 55CrSi Steel Cold-bent Spring - Balanced Comfort & Performance - Full 1 Year Limited Warranty From Date of Purchase.
