Product Paramenters
|
Item
|

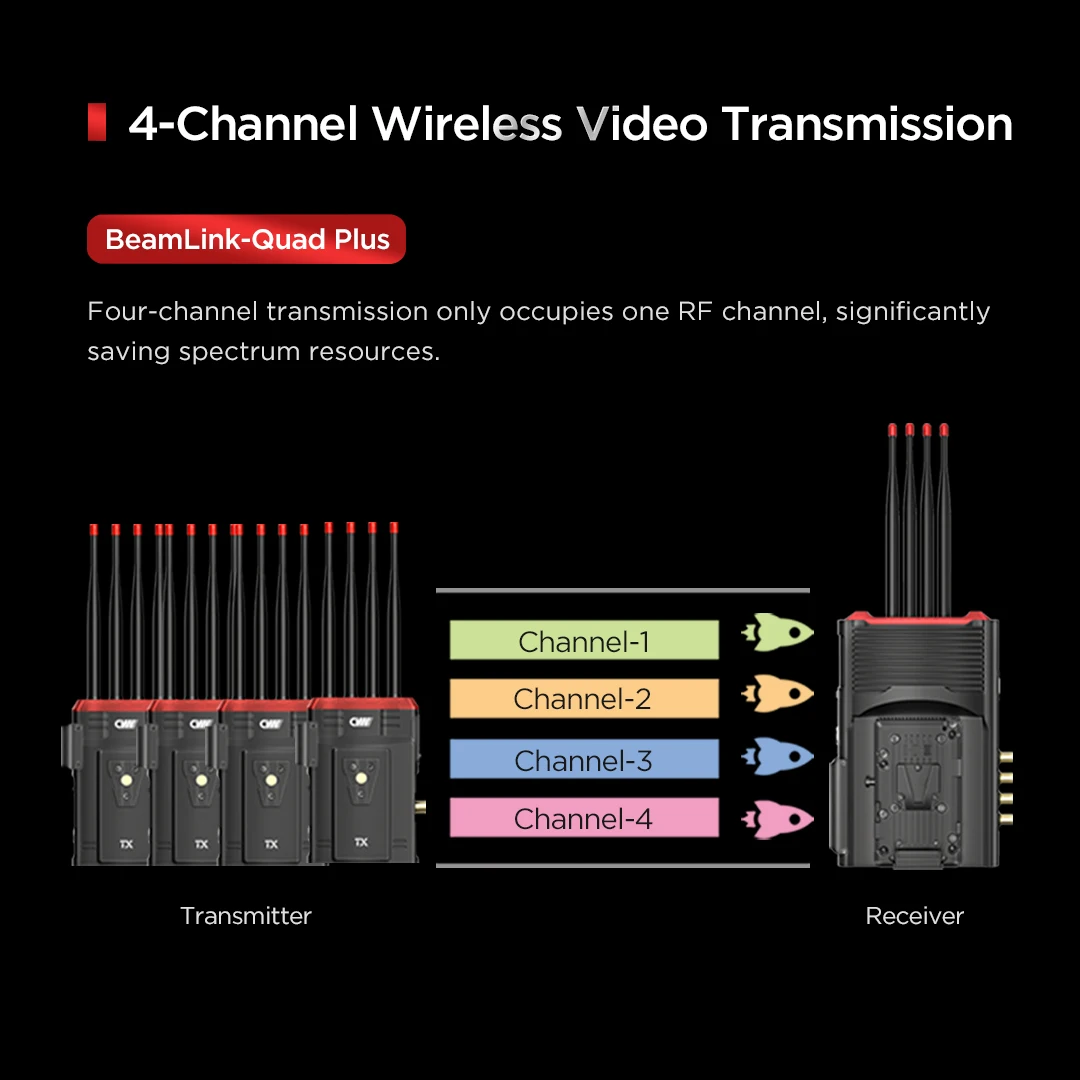

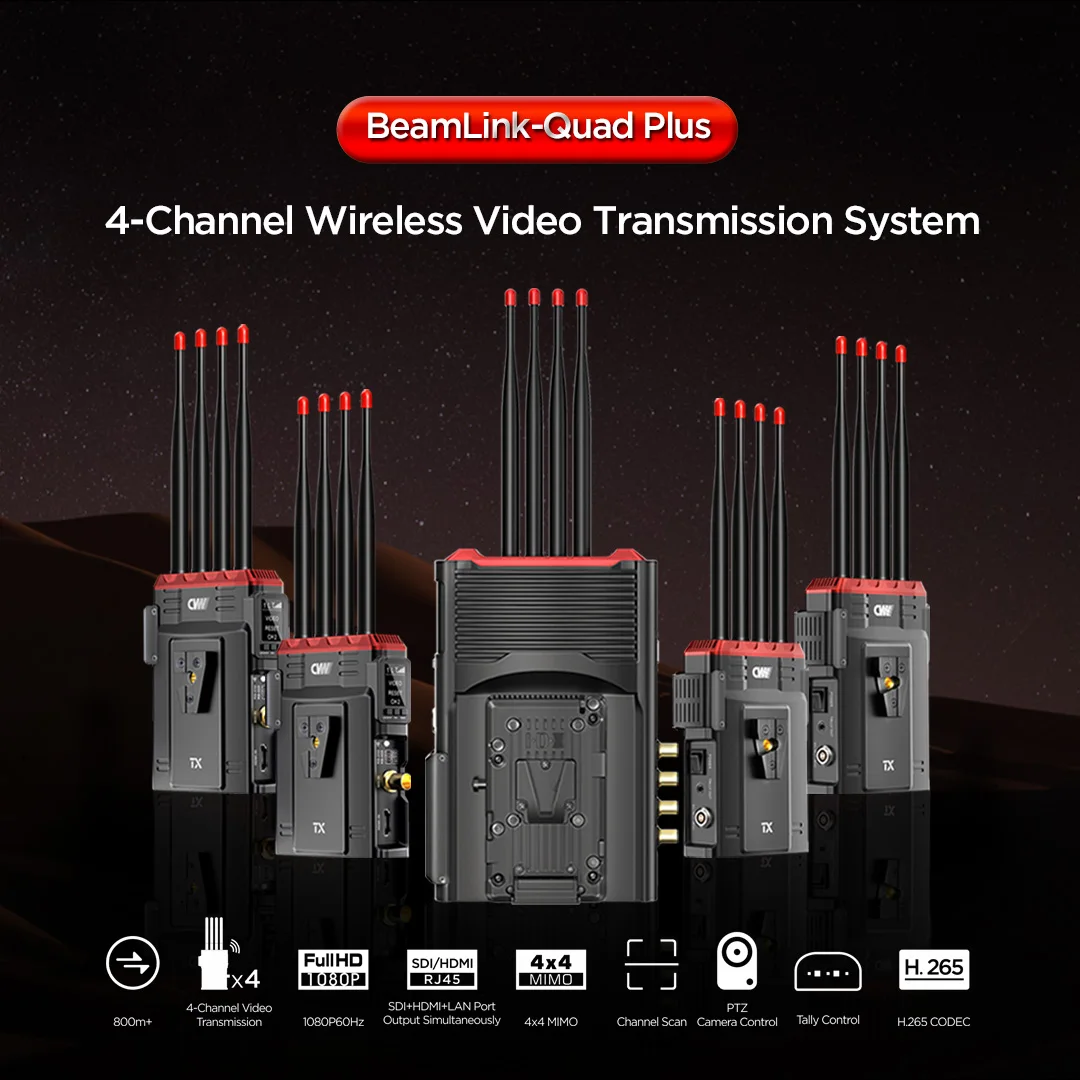

Transmitter:7060*4
|
Receiver:3060
|
|
Antenna
|

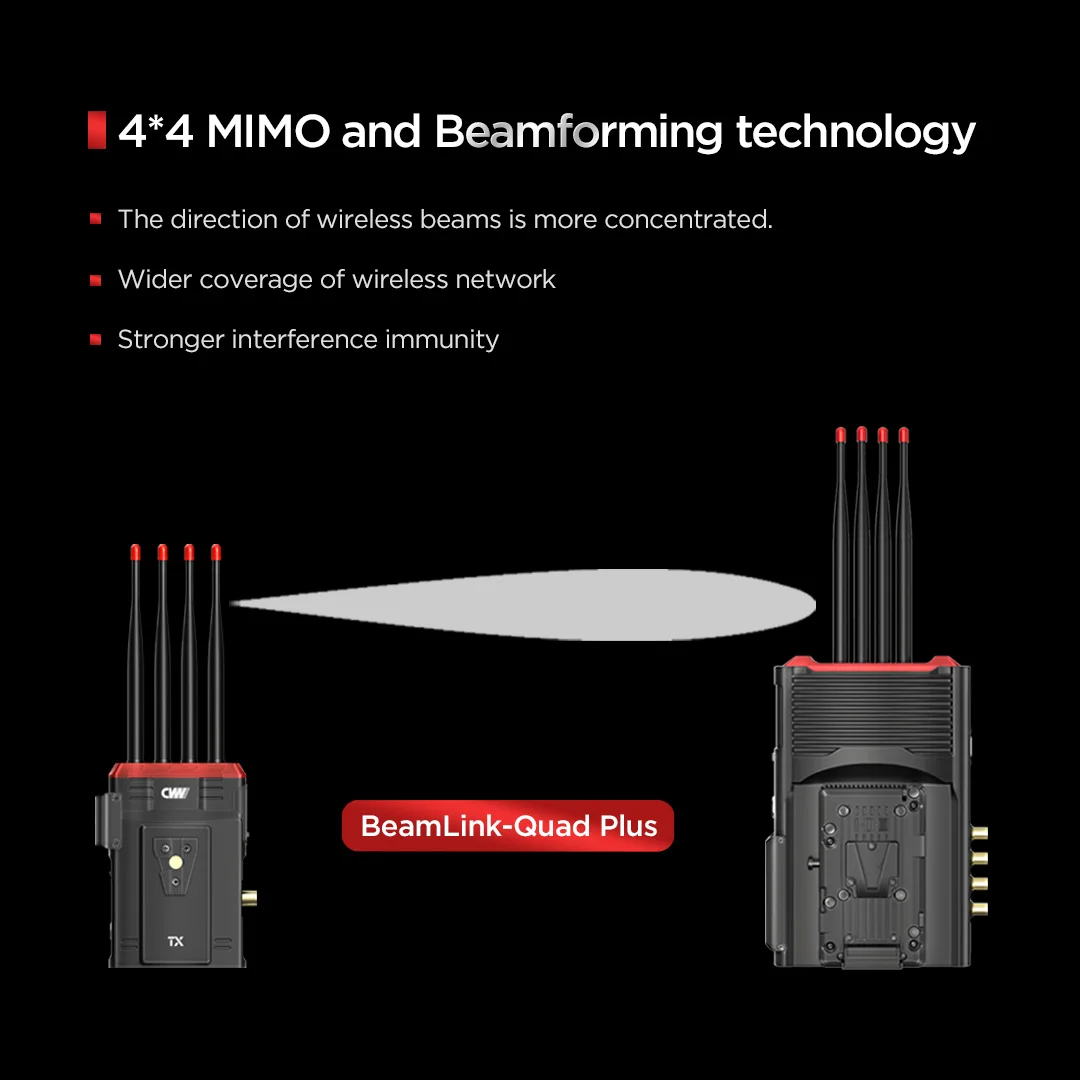

4*4 MIMO, 5dBi External Antenna
|
|
|
OperatingFrequency
|
5.1-5.8GHz
|
|
|
Channel Bandwidth
|
40MHz
|
|
|
Video Resolution
|
1080P2398/24/25/2997/30/50/591/96720P50/59.94/60
|
|
|
Input/Output
|

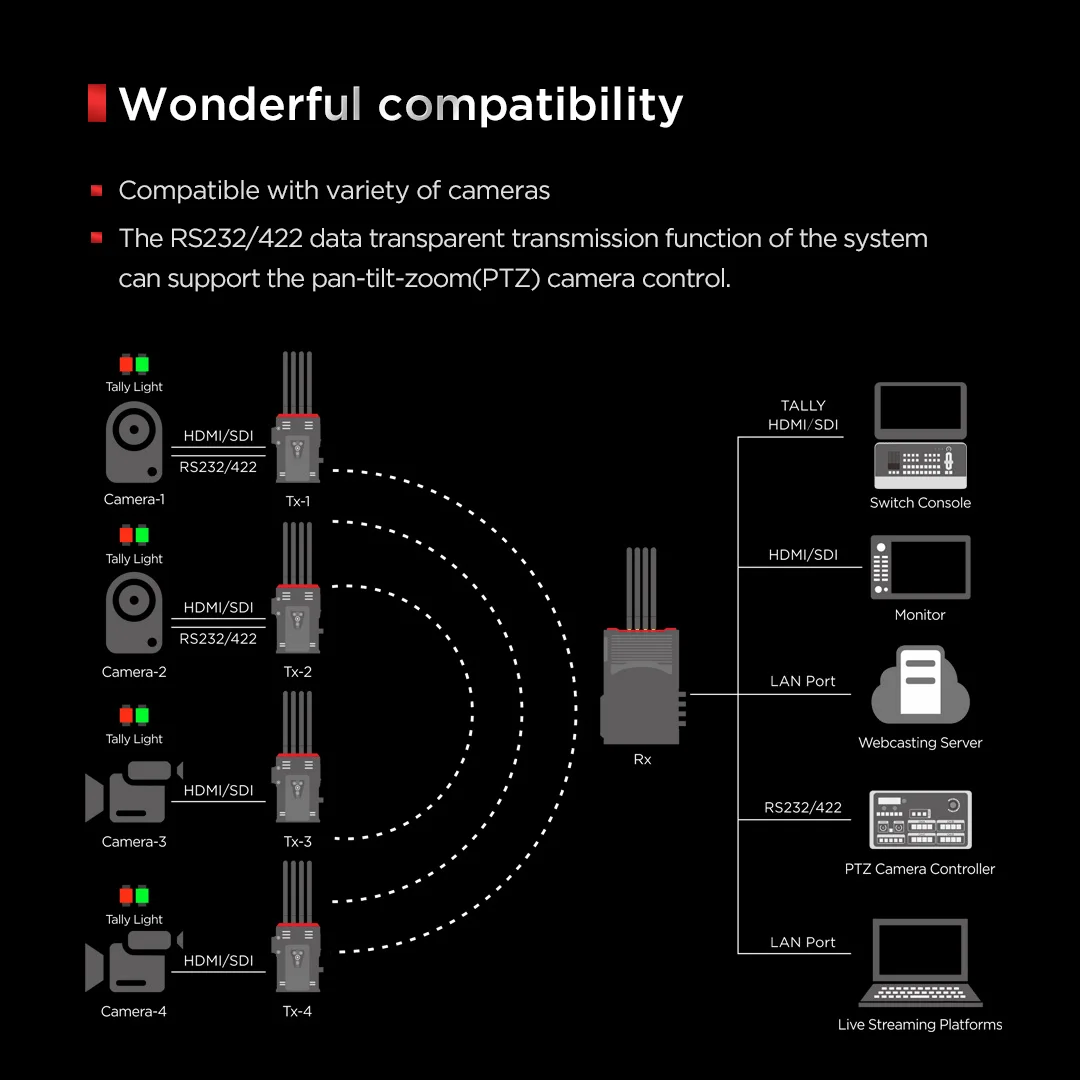

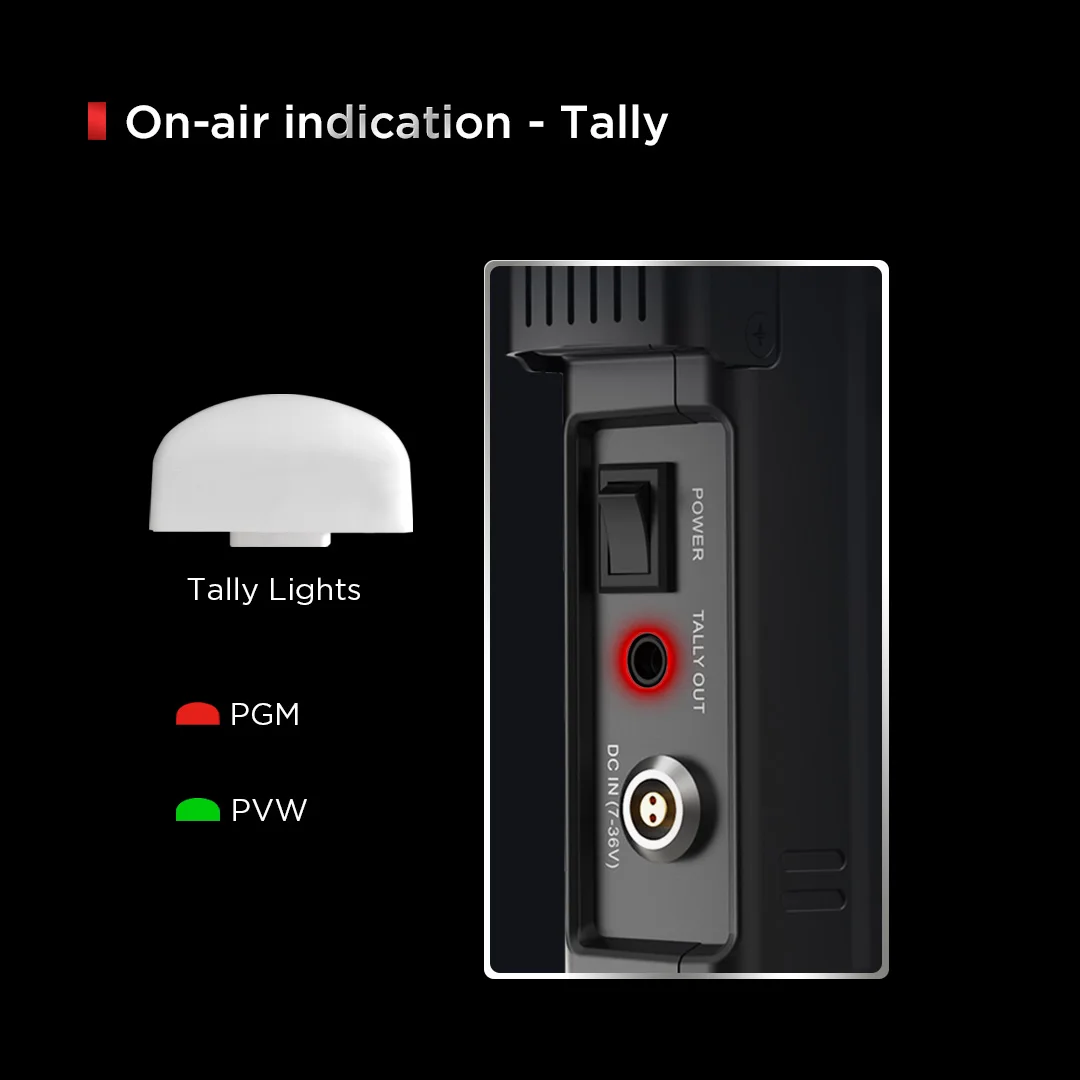

HDMI*13G-SDI*1,Tally1RS232/4221
|

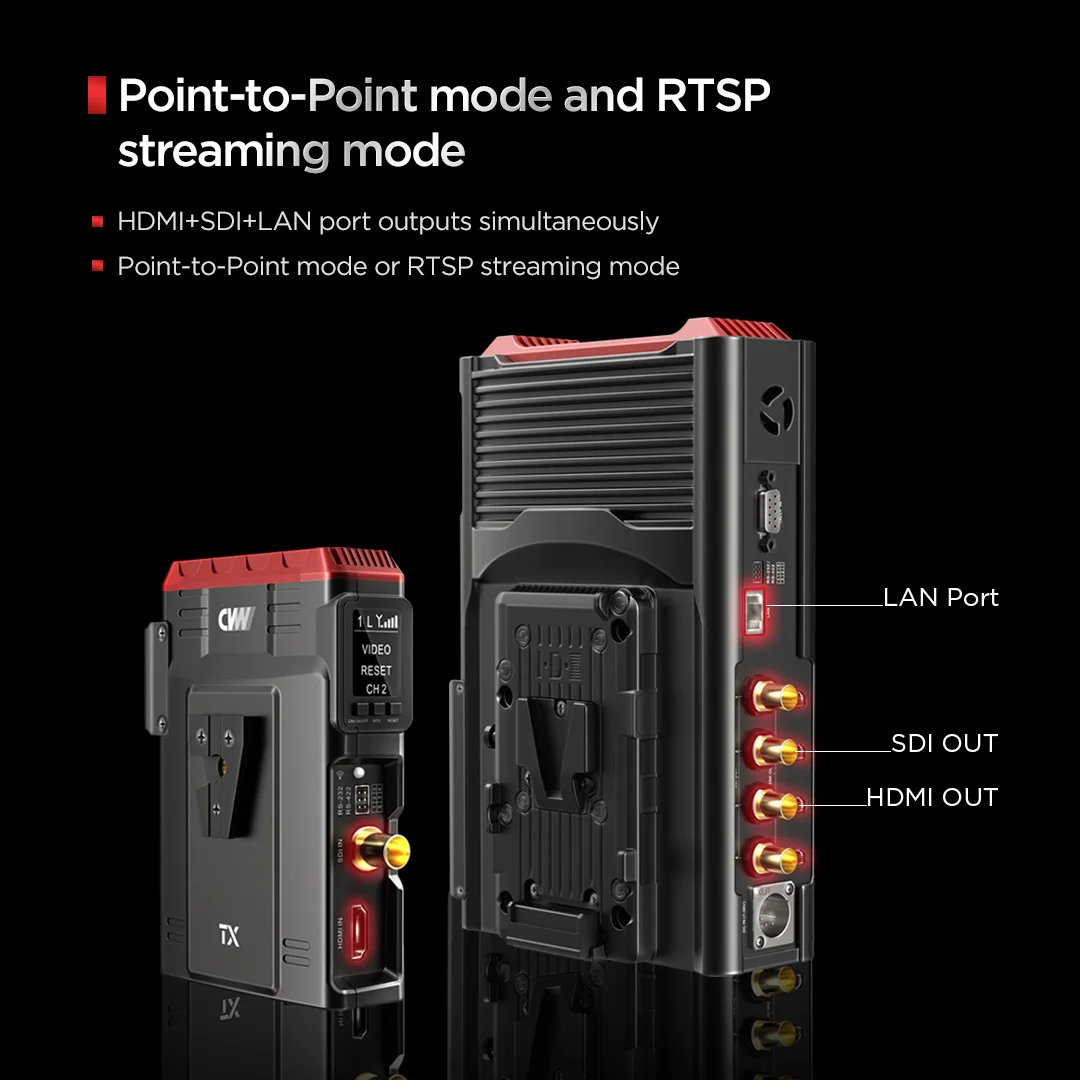

HDMI*4,3G-SDI4,Tally*,RS232/422*1, LAN Port1
|
|
Transmit Power
|
17dbm (per antenna)
|
Receiving Sensitivity:≤-70dBm
|
|

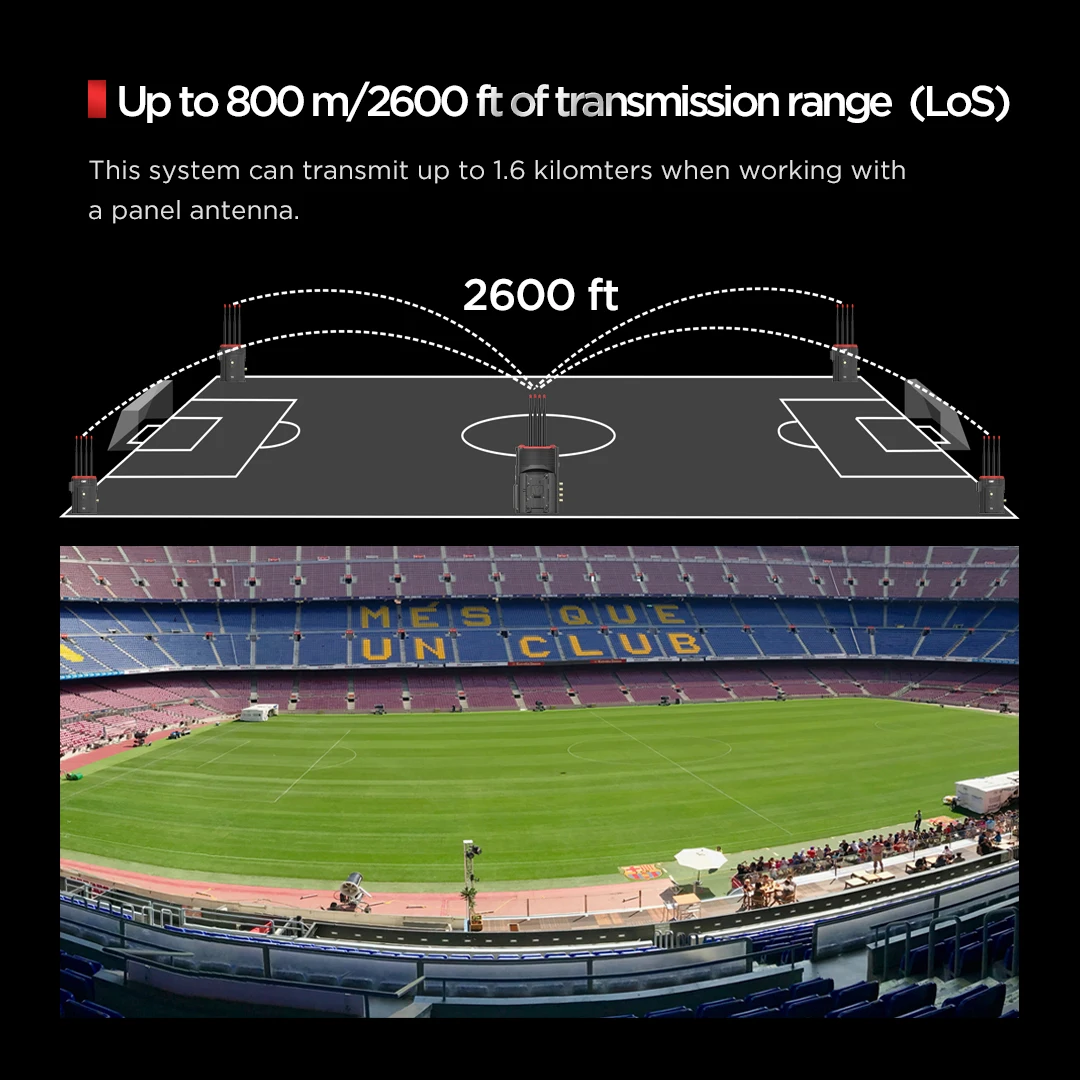

Transmission Range
|
800m/2600ft(LoS)
|
|
|
Audio Format
|
AAC
|
|
|
Video Compression Format
|
H.265
|
|
|
Operating Voltage
|
7V-17V
|
7V-36V
|
|
Operating Power Supply
|
DC12V/2A
|
DC12V/3A
|
|
Power Consumption
|
MAX 10W
|
MAX 20W
|
|
Product Size(mm)
|
94(L)*39(W)*126(H)
|
176(L)*81(W)235(H)
|
|
Temperature
|
-10-50C(Working);-20-80°C(Storage)
|
|
