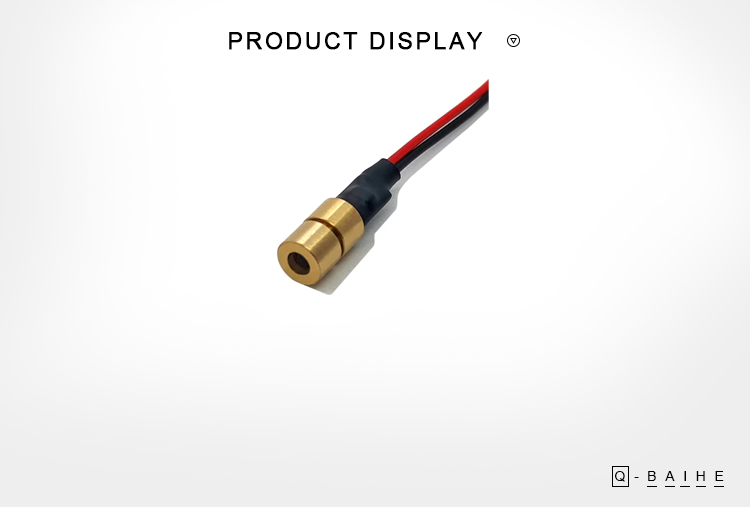

| Title： | Φ5X8mm 635nm 650nm 0.4mW 1mW 5mW 10mw Red Light Adjustable Focus Laser Module | ||
| Specification: |
Size: Φ5X8mm
Material: Copper/Aviation Aluminum (Full Metal Shell)
Surface treatment/color: Brass shell
Wavelength: 650nm ± 10nm；635nm ± 10nm
Exit pupil power:<0.4mW，< 1mW，< 5mW
Range:Dot：<100 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)
Spot shape and size: Dot, elliptical light
Focusing method: Adjustable Focus
Circuit control: APC circuit
Working voltage: 2.8~5.2VDC
Working current:<20mA(0.4mW)，<30mA(1mW)，<35mA(5mW)
Working temperature:- 10℃~+50℃
Storage temperature:- 20℃~+70C
Service life: Continuous output>10000 hours
Tail wire: 28 # red and black electronic wire, approximately 15cm long
Security level: Class I(0.4mW)，Class III(1mW)，Class IIIA(5mW)
|
||
| Package: |
1x 635nm Red Light Module |
||
