Timing Belt Kit (K015560XS) • Toyota 1KD / 2KD D-4D
Designed for specific Toyota diesel applications — please match your engine and vehicle code using the table below to avoid wrong orders & returns.
✅ Part No: K015560XS
✅ Belt: 97 teeth • 25mm width
✅ Kit type: Belt + tensioner/rollers (as pictured)
🌍 Worldwide delivery via eBay international shipping (where available)

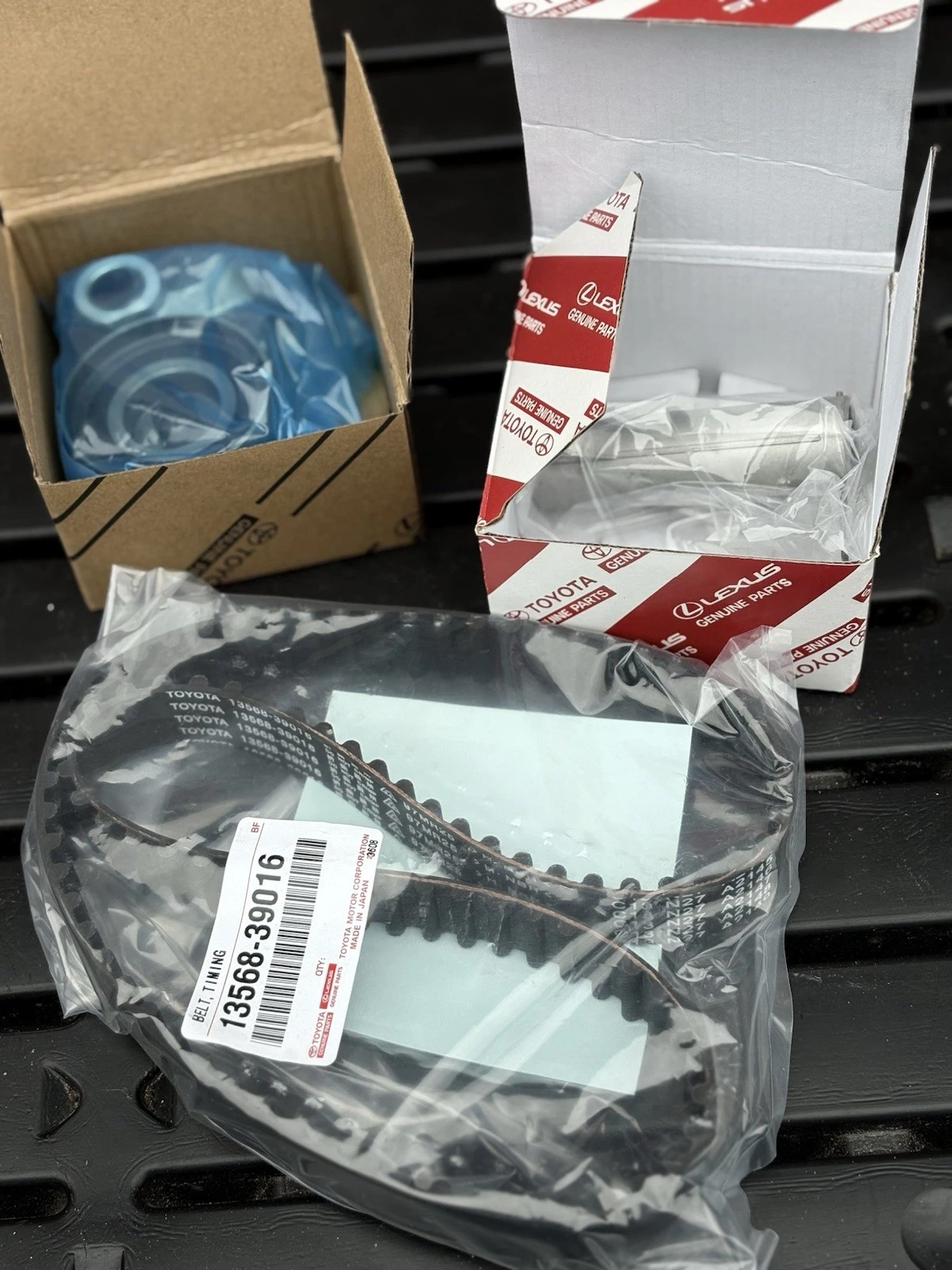

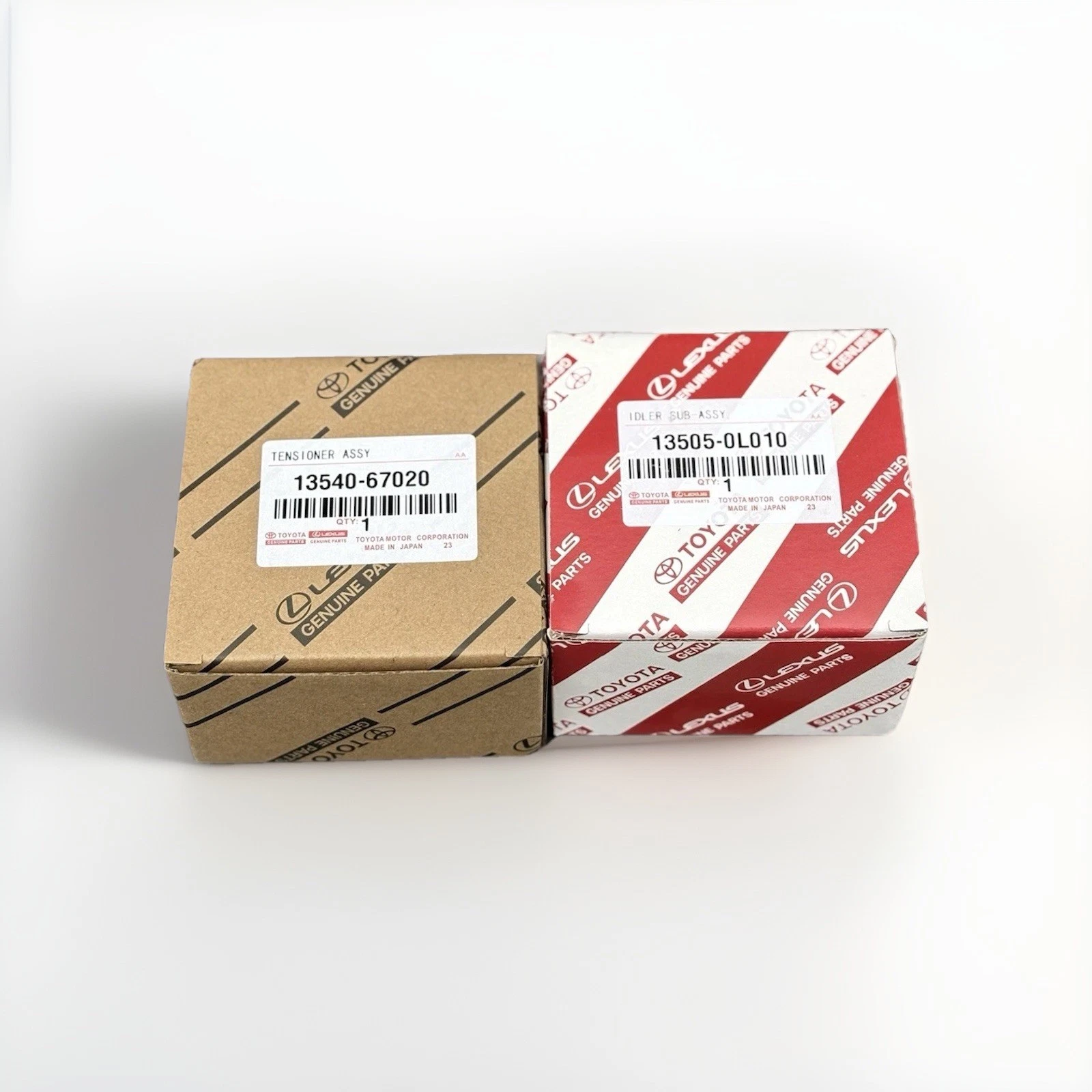

Photos of the actual item (please verify against these images)
Tip: If your original part labels/shape don’t match the photos above, message us before buying and we’ll help confirm fitment.
Fitment check (this is how you avoid ordering the wrong kit)
✅ This kit is for
- Toyota 2.5 D-4D (2KD family) and 3.0 D-4D (1KD family) belt-driven applications.
- Vehicles such as Hilux, Hiace, Land Cruiser Prado, Dyna — but only the exact variants listed in the compatibility table.
- Belt specification: 97 teeth • 25mm width (match before purchase).
❌ This kit does NOT fit
- Petrol engines, non D-4D diesels, or different belt tooth/width setups.
- Later Toyota diesel families that use different timing systems (always verify your engine code and match the photos).
- If your vehicle is outside the table below, do not guess — message us with your VIN/reg.
Send us this & we’ll verify
- UK reg (or VIN/chassis no.)
- Engine code (if known)
- A clear photo of the existing belt label / timing cover sticker (if present)
We can verify fitment
Fitting service available (subject to availability)
Important: Please ensure your checkout address is correct — we can’t change it after purchase.
Part identification (high-value search keywords)
Primary kit K015560XS (Timing Belt Set)
Trade numbers 5560XS • 7883-11268 • T41183
Key specs Timing belt: 97 teeth • 25mm width
Packaging/labels in the photos may show Toyota/Lexus reference numbers (examples often seen on boxes: 13568-39016, 13540-67020, 13505-0L010, 13505-67042). Always match by photo + spec + vehicle table.
Where the part fits & what it controls (reference photos)
Reference: Toyota 1KD engine. The timing belt sits behind the front timing covers on the belt side of the engine.
Reference: Example timing belt installed on an engine (illustrative). Your kit components perform this same job: synchronising crankshaft and camshaft timing.
What it controls
- The timing belt keeps the crankshaft and camshaft(s) synchronised so valves open/close at the correct time.
- The tensioner and rollers keep correct belt tension and alignment to prevent slip/noise and premature wear.
Symptoms of a worn / failing timing belt kit
- Chirping, squealing or rumbling noises from the belt/tensioner area
- Visible belt cracking, glazing, missing teeth, fraying edges
- Timing-related running issues: rough running, hesitation, hard starting
- Oil contamination around the belt area (accelerates belt wear)
Why replace with a quality kit (not a cheap copy)
- Correct tolerances reduce noise, misalignment and repeat labour.
- Better bearing and tension control helps belt life and reliability.
- A failed belt system can cause breakdown and may lead to severe engine damage on some engines.
Confirmed compatibility table (match your exact vehicle variant)
Tip: Production dates are shown as YYYY-MM. If your vehicle sits on a changeover year, verify by VIN/engine code and compare your part to the photos above.
| Vehicle (Series/Body) | Variant / Codes | Produced | Power | CC |
|---|---|---|---|---|
| TOYOTA DYNA | ||||
| DYNA Platform/Chassis | 3.0 D4D (KDY221, KDY231) | 2009-10 → onwards* | 100kW | 2982 |
| DYNA Platform/Chassis | 3.0 D4D (KDY261_, KDY251_, KDY231_, KDY221_...) | 2006-09 → onwards* | 80kW | 2982 |
| DYNA Platform/Chassis | 3.0 D4D (KDY221, KDY231, KDY251, KDY261) | 2006-09 → onwards* | 106kW | 2982 |
| DYNA Platform/Chassis | 2.5 D4D (KDY220_, KDY230_) | 2001-07 → onwards* | 65kW | 2494 |
| DYNA Platform/Chassis | 2.5 D4D (KDY230, KDY250, KDY220) | 2001-08 → onwards* | 75kW | 2494 |
| TOYOTA HIACE | ||||
| HIACE IV Van (__H1_, __H2_) | 2.5 D-4D (KLH12, KLH22) | 2001-08 → 2006-08 | 65kW | 2494 |
| HIACE IV Van (__H1_, __H2_) | 2.5 D-4D (KLH12, KLH22) | 2001-08 → 2006-08 | 75kW | 2494 |
| HIACE IV Van (__H1_, __H2_) | 2.5 D-4D 4WD (KLH18, KLH28) | 2001-08 → 2006-08 | 75kW | 2494 |
| HIACE IV Bus (__H1_, __H2_) | 2.5 D-4D (KLH12) | 2001-08 → 2006-08 | 65kW | 2494 |
| HIACE IV Bus (__H1_, __H2_) | 2.5 D-4D (KLH12, KLH22) | 2001-08 → 2006-08 | 75kW | 2494 |
| HIACE/COMMUTER V Bus | 2.5 D-4D 4WD (KDH205, KDH227, KDH225) | 2004-08 → 2007-09 | 94kW | 2494 |
| HIACE V Van | 2.5 D-4D (KDH200, KDH202, KDH212, KDH222) | 2006-09 → onwards* | 86kW | 2494 |
| HIACE/COMMUTER V Bus | 2.5 D-4D (KDH202) | 2006-09 → onwards* | 75kW | 2494 |
| HIACE V Van | 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) | 2004-06 → onwards* | 75kW | 2494 |
| HIACE IV Van (__H1_, __H2_) | 2.5 D-4D 4WD (KLH18, KLH28) | 2001-08 → 2004-08 | 65kW | 2494 |
| HIACE V Van | 2.5 D-4D | 2006-09 → onwards* | 70kW | 2494 |
| HIACE IV Van (__H1_, __H2_) | 2.5 D-4D (KLH12, KLH22) | 2006-09 → 2012-12 | 86kW | 2494 |
| HIACE IV Van (__H1_, __H2_) | 2.5 D-4D (KLH12, KLH22) | 2006-09 → 2012-12 | 70kW | 2494 |
| HIACE IV Van (__H1_, __H2_) | 2.5 D-4D 4WD (KLH28, KLH18) | 2006-09 → 2012-12 | 86kW | 2494 |
| HIACE IV Bus (__H1_, __H2_) | 2.5 D-4D (KLH12, KLH22) | 2006-09 → 2012-12 | 70kW | 2494 |
| HIACE IV Bus (__H1_, __H2_) | 2.5 D-4D (KLH12, KLH22) | 2006-08 → 2012-12 | 86kW | 2494 |
| HIACE IV Bus (__H1_, __H2_) | 2.5 D-4D 4WD (KLH18) | 2006-09 → 2012-12 | 86kW | 2494 |
| HIACE IV Bus (__H1_, __H2_) | 2.5 D-4D 4WD (KLH18) | 2001-11 → 2006-08 | 75kW | 2494 |
| TOYOTA HILUX | ||||
| HILUX VI Pickup (_N1_) | 2.5 D-4D (KDN145, KDN150) | 2001-11 → 2005-07 | 65kW | 2494 |
| HILUX VI Pickup (_N1_) | 2.5 D-4D 4WD (KDN165, KDN170, KDN190) | 2001-11 → 2005-07 | 75kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 2.5 D-4D 4WD (KUN25_) | 2004-11 → 2005-12 | 94kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 2.5 D-4D (KUN15) | 2005-08 → 2006-10 | 65kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 2.5 D-4D (KUN15, KUN10) | 2005-03 → 2015-05 | 75kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 2.5 D-4D (KUN15_, KUN15R) | 2006-06 → 2015-05 | 88kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 2.5 D-4D 4WD (KUN25_, KUN25R) | 2006-06 → 2015-05 | 88kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 2.5 D-4D 4WD (KUN25) | 2007-12 → 2015-05 | 106kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 2.5 D 4WD (KUN25) | 2005-03 → 2015-05 | 75kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 2.5 D-4D (KUN15, KUN35) | 2010-01 → 2015-05 | 106kW | 2494 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 3.0 D-4D 4WD (KUN26) | 2005-03 → 2015-05 | 120kW | 2982 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 3.0 D-4D 4WD (KUN26) | 2005-08 → 2015-09 | 126kW | 2982 |
| HILUX VII Pickup (_N1_, _N2_, _N3_) | 3.0 D-4D 4WD (KUN26) | 2008-05 → 2012-12 | 145kW | 2982 |
| HILUX VII Platform/Chassis (_N1_, _N2_) | 3.0 D 4WD (KUN26) | 2005-02 → onwards* | 126kW | 2982 |
| TOYOTA LAND CRUISER / PRADO | ||||
| LAND CRUISER 90 (_J9_) | 3.0 D-4D 4WD (KDJ90_, KDJ95_...) | 2000-08 → 2002-08 | 120kW | 2982 |
| LAND CRUISER PRADO (_J12_) | 3.0 D-4D (KDJ120, KDJ125) | 2002-09 → 2009-08 | 120kW | 2982 |
| LAND CRUISER PRADO (_J12_) | 3.0 D-4D (KDJ120, KDJ125) | 2004-07 → 2009-08 | 122kW | 2982 |
| LAND CRUISER PRADO (_J12_) | 3.0 D-4D (KDJ120, KDJ125, KDJ121) | 2002-09 → 2010-12 | 127kW | 2982 |
| LAND CRUISER PRADO (_J12_) | 3.0 D-4D (KDJ120_) | 2006-08 → 2009-07 | 150kW | 2982 |
| LAND CRUISER PRADO (_J15_) | 3.0 D-4D (KDJ150_, KDJ150, KDJ155) | 2009-08 → onwards* | 127kW | 2982 |
| LAND CRUISER PRADO (_J15_) | 3.0 D-4D (KDJ155_, KDJ150_...) | 2009-08 → onwards* | 140kW | 2982 |
| LAND CRUISER VAN (_J15_) | 3.0 D4D 4WD (KDJ155, KDJ150) | 2011-01 → onwards* | 140kW | 2982 |
| * Where the catalogue shows “onwards”, the end date isn’t specified there. Always verify by VIN/engine code + compare the photos/specs before purchase. | ||||
Fitting guide (summary) • Tools • Time
Required tools
- Socket set + spanners, screwdrivers, trim tools
- Torque wrench (recommended)
- Jack/stands (if required for access) + wheel chocks
- Crank pulley holding tool (model dependent)
- Marker pen/paint for alignment marks + clean rags
Basic steps (overview)
- Disconnect battery, remove covers/ancillaries for access.
- Rotate engine to timing marks (TDC) and confirm alignment.
- Remove timing covers, release tensioner, remove old belt/rollers.
- Install new rollers/tensioner (as supplied), fit new belt to marks.
- Rotate by hand 2 full turns, re-check timing marks and tension.
- Reassemble, start engine, check for noise/leaks and verify operation.
Safety: If you’re not confident, use a qualified technician. Incorrect timing can cause serious damage.
Estimated repair time
Typical workshop labour time for common 1KD Hilux/Prado applications is often quoted around 1–2 hours (varies by model/spec and access).
DIY first-timers: allow extra time.
DIY first-timers: allow extra time.
Garage labour cost estimator (no calculator allowed on eBay)
Estimated cost = hourly rate × labour hours
| Hourly rate | 1 hour | 2 hours | 3 hours |
|---|---|---|---|
| £60/hr | £60 | £120 | £180 |
| £80/hr | £80 | £160 | £240 |
| £100/hr | £100 | £200 | £300 |
| £120/hr | £120 | £240 | £360 |
We offer fitting & repairs (subject to availability). Message us to book.
