Fonestar Slave Power Amplifier 100V 1000W RMS

Product Description

Description

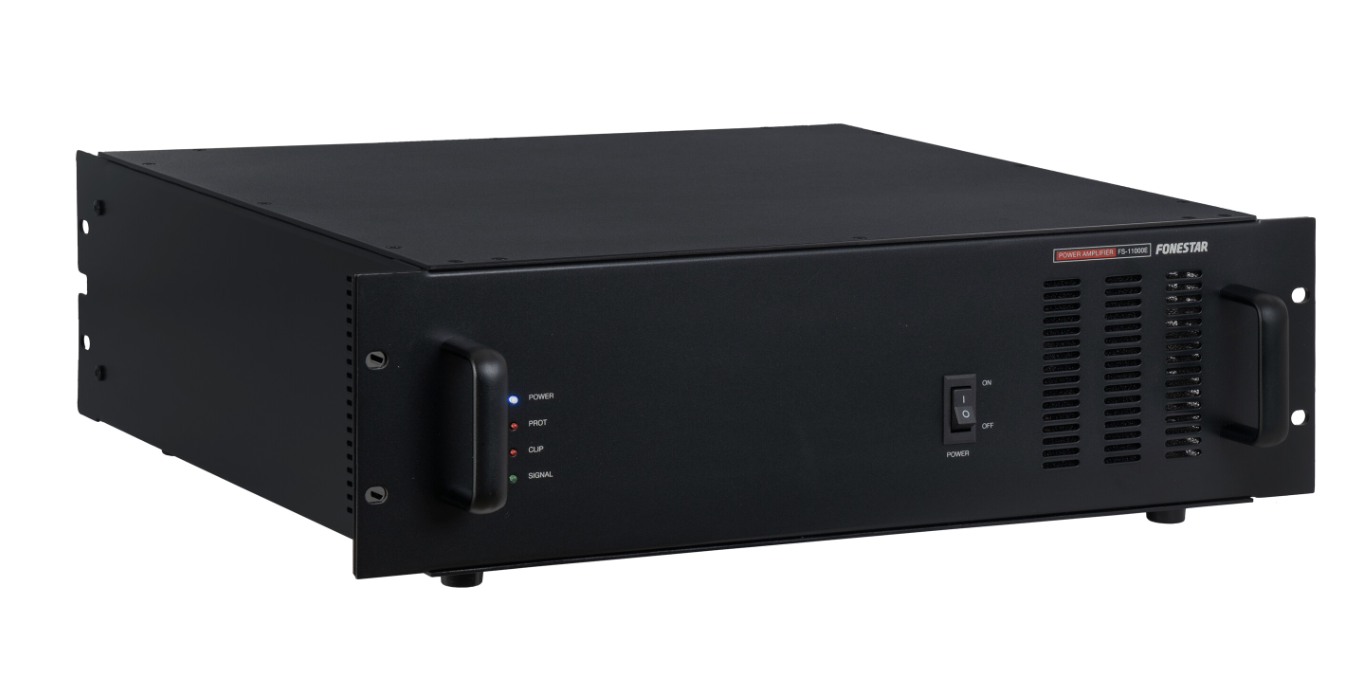

The Fonestar FS-11000E is a professional, high-power mono-channel amplifier (power stage) designed for public address and commercial sound installations where significant power and multi-impedance flexibility are required. It is an ideal solution for large venues such as factories, hotels, and transport stations.

Key Features:

High power output delivers a maximum power of 1,250 W and 1,000 W RMS, making it suitable for large-scale sound reinforcement projects.

Flexible impedance outputs support multiple loudspeaker configurations via screw terminals. Low impedance operation at 4 Ω is supported, along with high voltage line outputs at 100 V and 70 V.

Professional connectivity is provided for both input and output. Inputs include one balanced or unbalanced auxiliary line via XLR, Euroblock/6.3 mm jack, and two RCA connectors. Outputs include one balanced or unbalanced auxiliary line via XLR, Euroblock/6.3 mm jack, and two RCA connectors.

Robust protection is built in, including CC protection, temperature protection, over-current protection, and short-circuit protection to ensure equipment safety.

Reliable operation is ensured through forced ventilation with temperature-sensitive speed control, maintaining optimal operating conditions.

Monitoring is handled via LED indicators for protection status, signal peak, and signal output.

The unit is housed in a durable chassis suitable for 3 U 19-inch rack mounting.

The FS-11000E provides a powerful, protected, and versatile solution for demanding public address systems.

Technical Specifications Summary:

Type: Mono-channel power amplifier (power stage).
Power (RMS/Max): 1,000 W RMS / 1,250 W maximum.
Frequency response: 30 – 20,000 Hz ±3 dB.
Distortion: Harmonic distortion less than 1%.
Output impedances: 4 Ω, 70 V line, and 100 V line via screw terminals.
Input connectors: XLR, Euroblock/6.3 mm jack, and two RCA connectors.
Output connectors: XLR, Euroblock/6.3 mm jack, and two RCA connectors.
Protection: CC, temperature, over-current, and short circuit protection.
Rack size: 3 U, 19-inch.
Dimensions: 483 × 133 × 440 mm (depth).
Weight: 21.5 kg.
