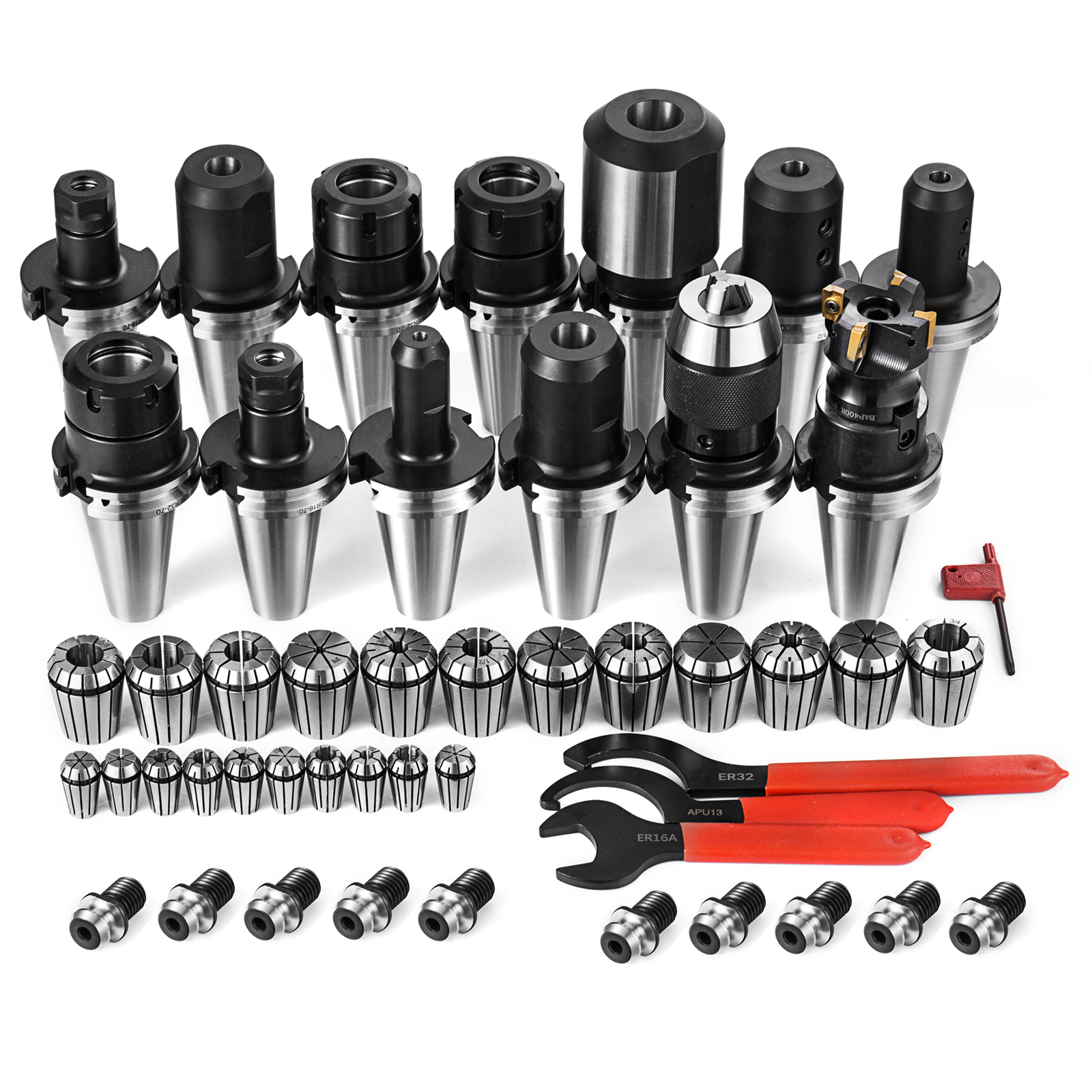

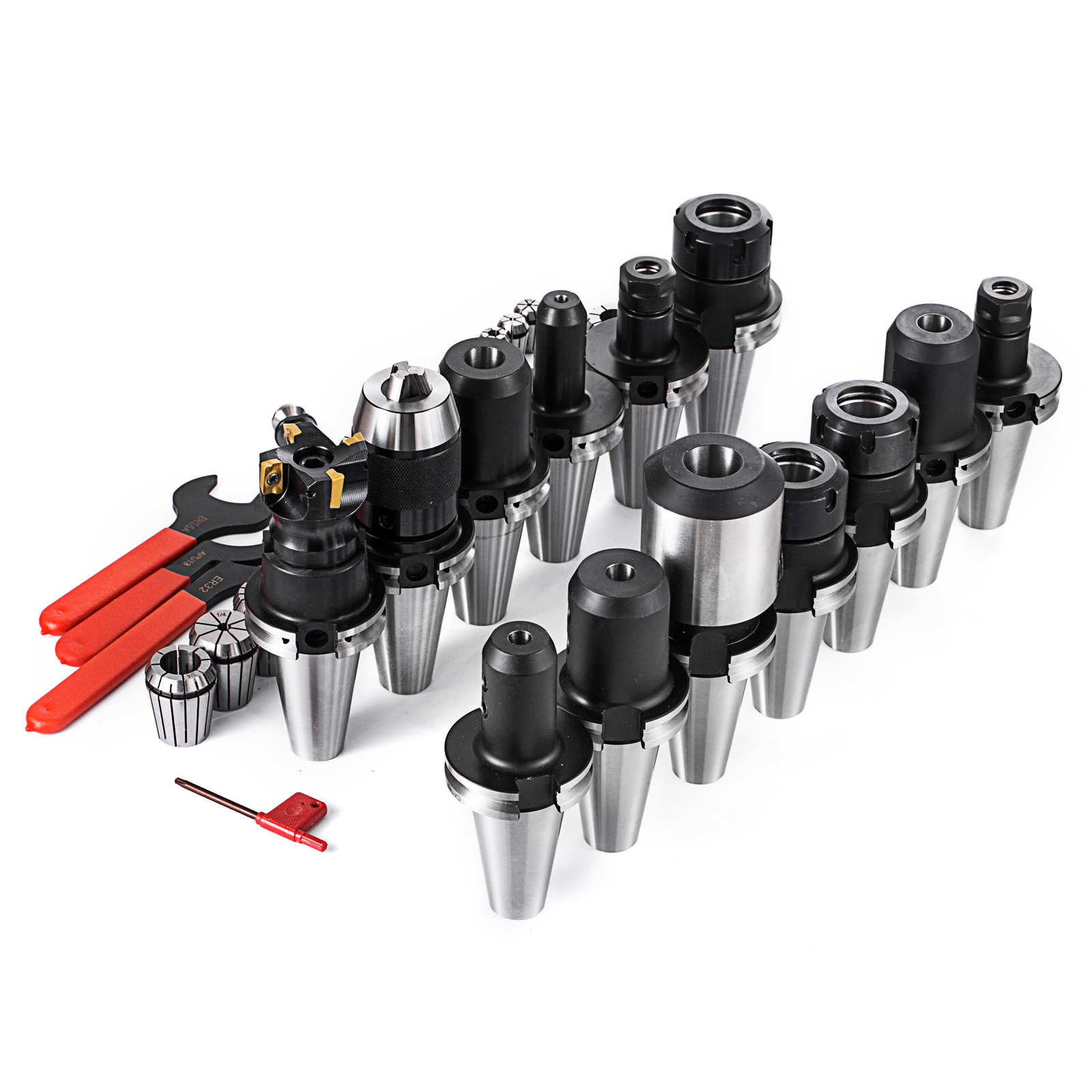

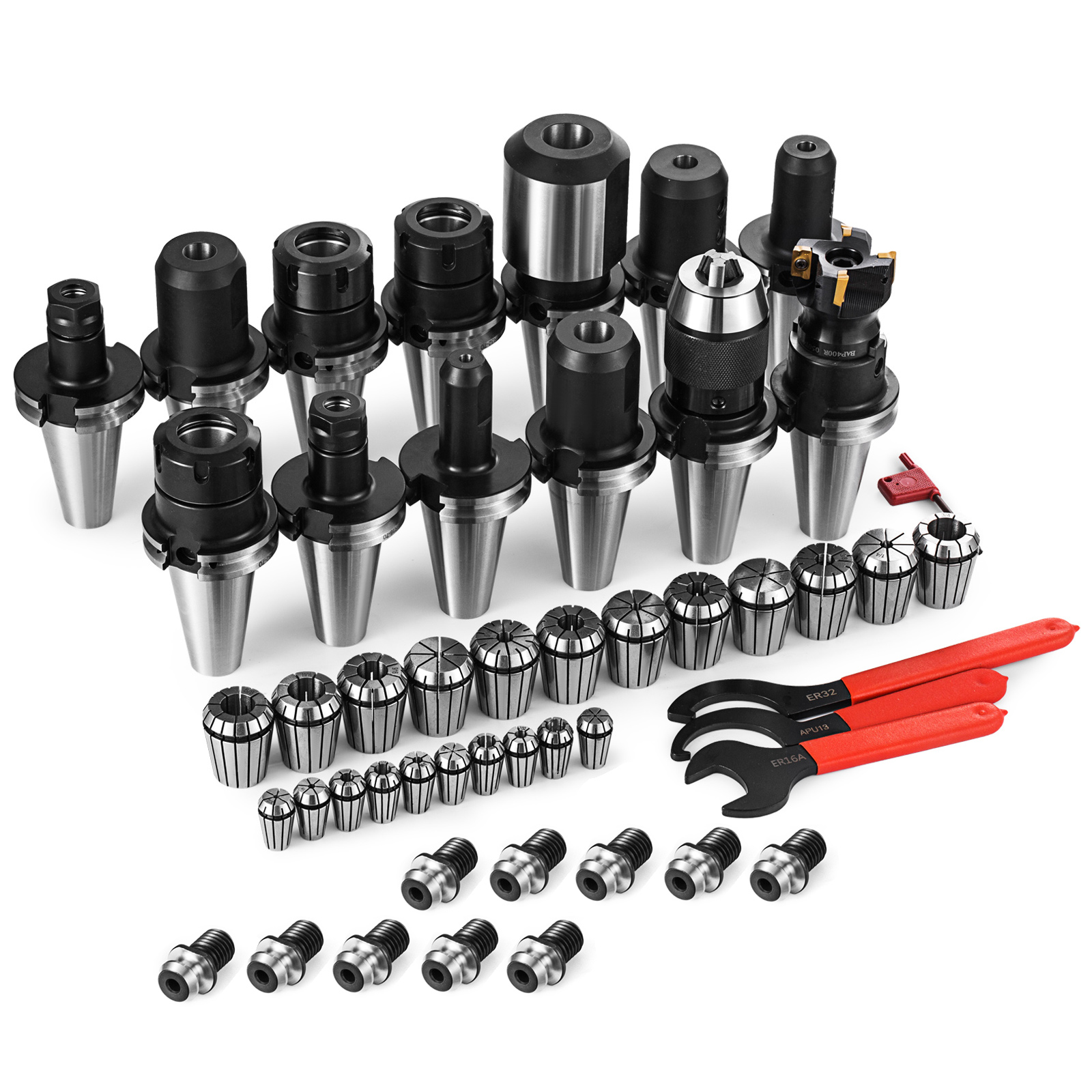

This product includes the following parts:

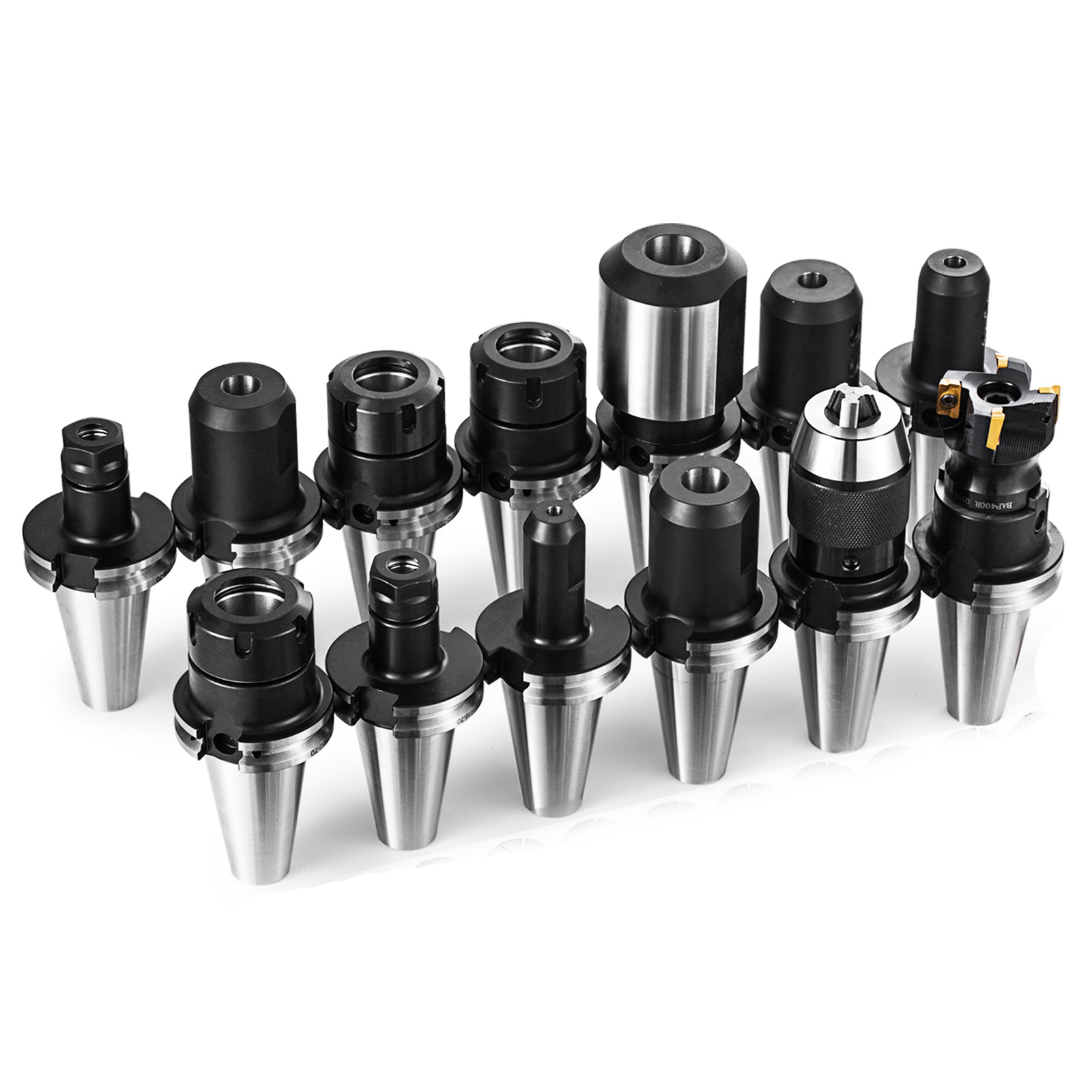

6PC CAT40 End Mill Holder:
Projection Length: 2.5"
6PC Common Size: 1/4", 3/8", 1/2", 5/8", 3/4", 1"
Precision high speed end mill holder for durability and rigidity
Holder balanced for accuracy
Provides a very close tolerance fit with minimum runout between the tool holder's bore and the cutting tool
Thru Hole of the tool holder allows the use of Thru Coolant Tools when used with a Thru Coolant retention knob
3PC CAT40 ER32 Chuck
2PC CAT40 ER16 Chuck
Both ER32 and ER16 Chuck Gage or projection length of ER16 is 2.75in
Accuracy in Tenth
Fully ground flange and V-groove — easy on tool changers for less spindle and changer maintenance
V-Flange CAT 40 is production balanced to high speed spindle turning and meet standard industrial needs
High Speed True Balance in 15-20K RPM
Even though all sellers are saying balance, but it's not true, few smart guy copy few words from seller A, and another words from seller B to make up their description or over describe the item. It's easy to find out balance or not, set spindle speed higher, and you'll see the difference, could be couple thousands, true balanced holder works the same way at low and high speed even up 20K RPM, however, poor or not evenly balanced only works normally under low spindle speed.
Hardened and ground to ensure maximum accuracy.
Through spindle coolant capability from pull stud to collets

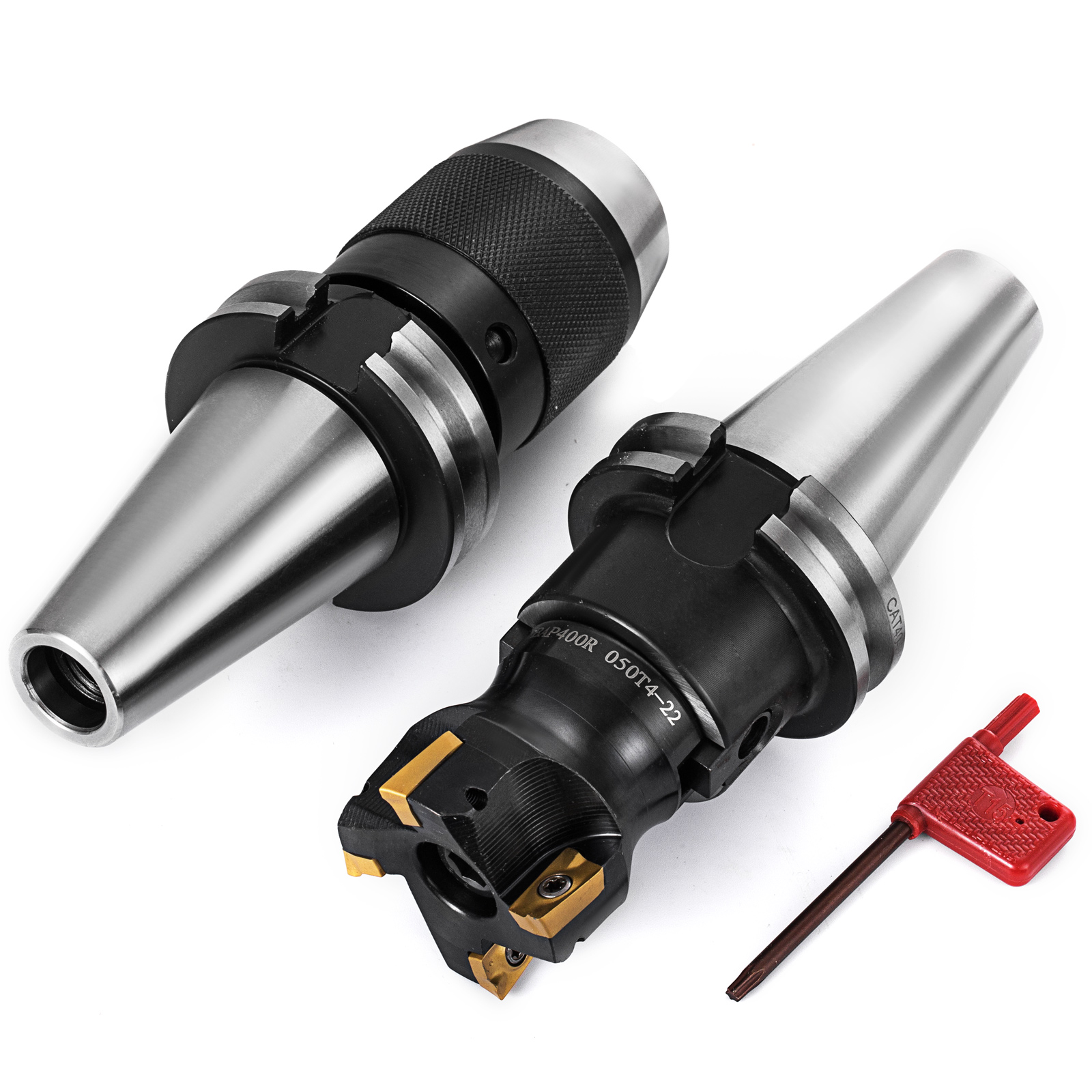

1PC Precision Keyless Drill Chuck:
Keyless Drill Chuck 1/2 Capacity
Drill chuck has very strong holding power.
All Jaws are Hardened
V-Flange CAT 40 is production balanced and meet standard industrial needs
1PC Face Mill Cutter:
2in cutting diameter5PC general purpose carbide inserts,it's a combination of a tough, special cemented carbide substrate and CVD coated grade for milling of steel up to 30-35 HRC before heat treat.

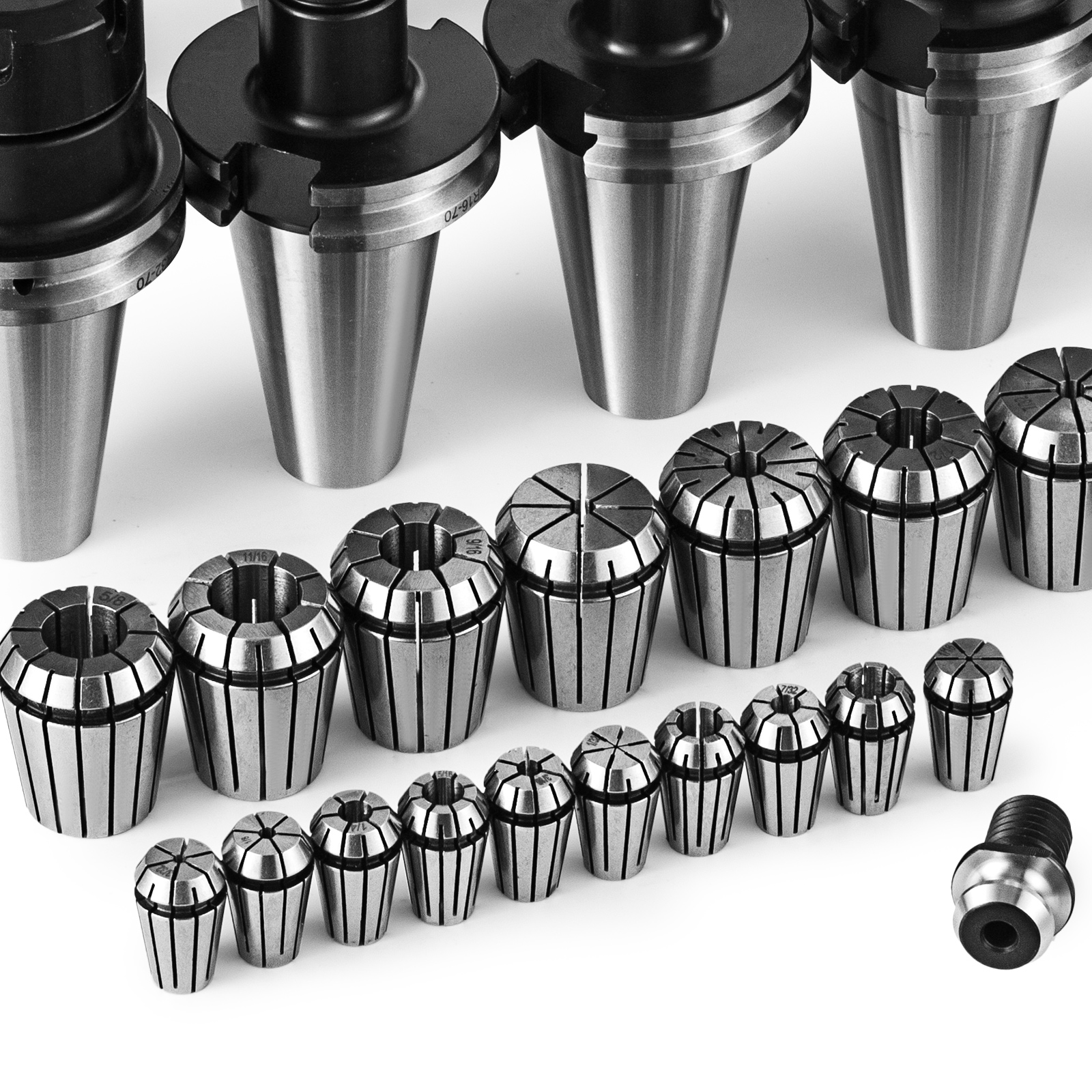

12PC ER32 Collets Set By 1/16
Made of high grade spring steel
Ground roughness is Ra0.4 Microns, plus overall fine polish 12PC set by 16th: 1/8"; 3/16"; 7/32", 1/4"; 5/16"; 3/8"; 7/16"; 1/2"; 9/16"; 5/8"; 11/16"; 3/4".
T.I.R.: 0.0003" or 5um. In order to make all collets running true, on your side, make sure your machine spindle and chuck holder running true, on my side, I'll make sure all those collets running in tenth.
Special angled slots increase rigidity
Better overall balance of tool holder assembly
Protects tool holder from contaminants
Use with any standard ER collet chucks for coolant-thru tool applications.
10PC ER16 Collets by 1/32
Made of high grade spring steel
10PC Size: 1/32", 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8"
T.I.R.: 0.0003" or 5um. In order to make all collets running true, on your side, make sure your machine spindle and chuck holder running true, on my side, I'll make sure all those collets running in tenth.
Special angled slots increase rigidity
Better overall balance of tool holder assembly
Parameter
- Condition : Brand new
- Precision Keyless Drill Chuck : 1PC
- Material : High grade spring steel
- Face Mill Cutter : 1PCS
- CAT40 End Mill Holder : 6PCS
- ER32 Collets Set By 1/16 : 12PC
- CAT40 ER32 Chuck : 3PCS
- ER16 Collets by 1/32 : 10PCS
- CAT40 ER16 Chuck : 2PCS

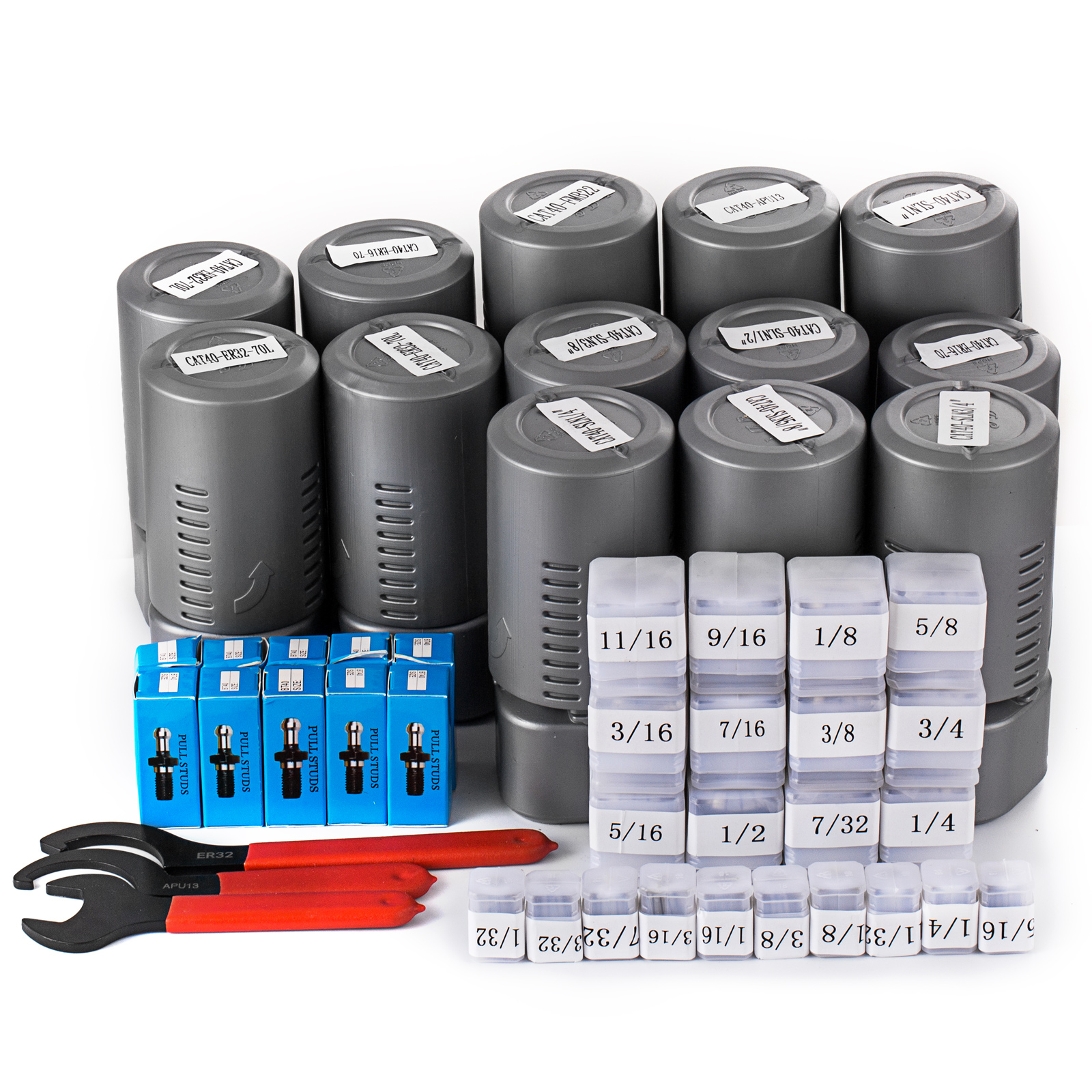

IN THE BOX
- 6 x Common size end mill holder
- 1 x Face mill cutter
- 3 x ER32 collet chuck
- 12 x ER32 collets set by 1/16
- 2 x ER16 collet chuck
- 10 x ER 16 collets set by 1/32
- 1 x 1/2 keyless drill chuck
feature
- Brand new
- Made of high grade spring steel
- Better overall balance of tool holder assembly
- Better performance
- Great variety of goods
- High precision collet chuck
- High quality
- Long life
- Tenth Accuracy on each ER chuck and collet
- High Speed True Balance in 15-20K RPM
- All collet chuck are high speed proved
- Both ER32 and ER16 Chuck Gage or projection length of ER16 is 2.75in
- Accuracy in Tenth, 0.0001in
- Hardened and ground to ensure maximum accuracy
- Through spindle coolant capability from pull stud to collets
