Features:

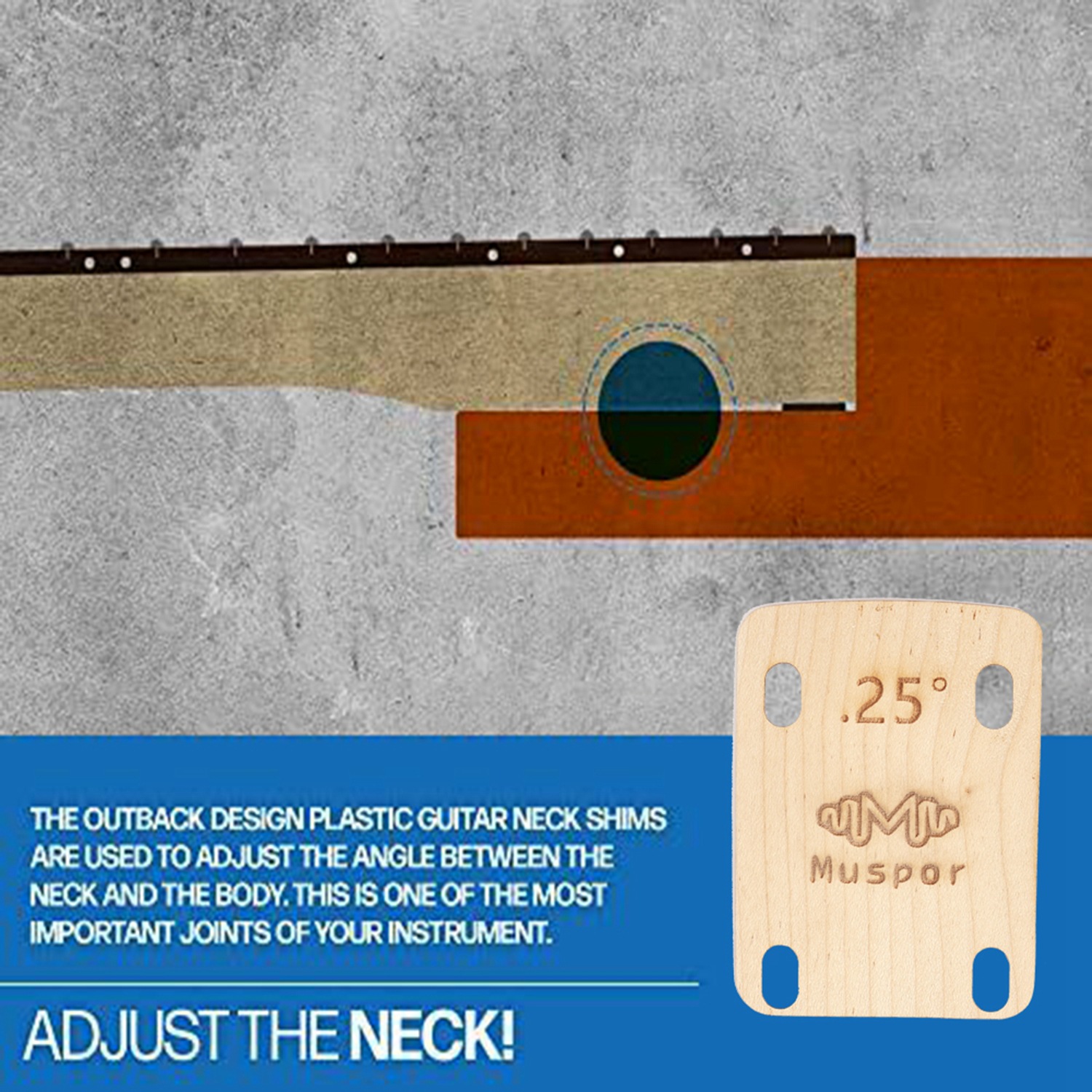

1. Used to change the angle of a bolt-on guitar neck.
2. Made of solid maple to match the guitar neck.
3. Better than the typical homemade "guitar pick" neck joint shims, which create an unwanted gap, these tapered shims cover the entire heel of the neck.
4. Keep these on hand for a quick turnaround on this common repair.

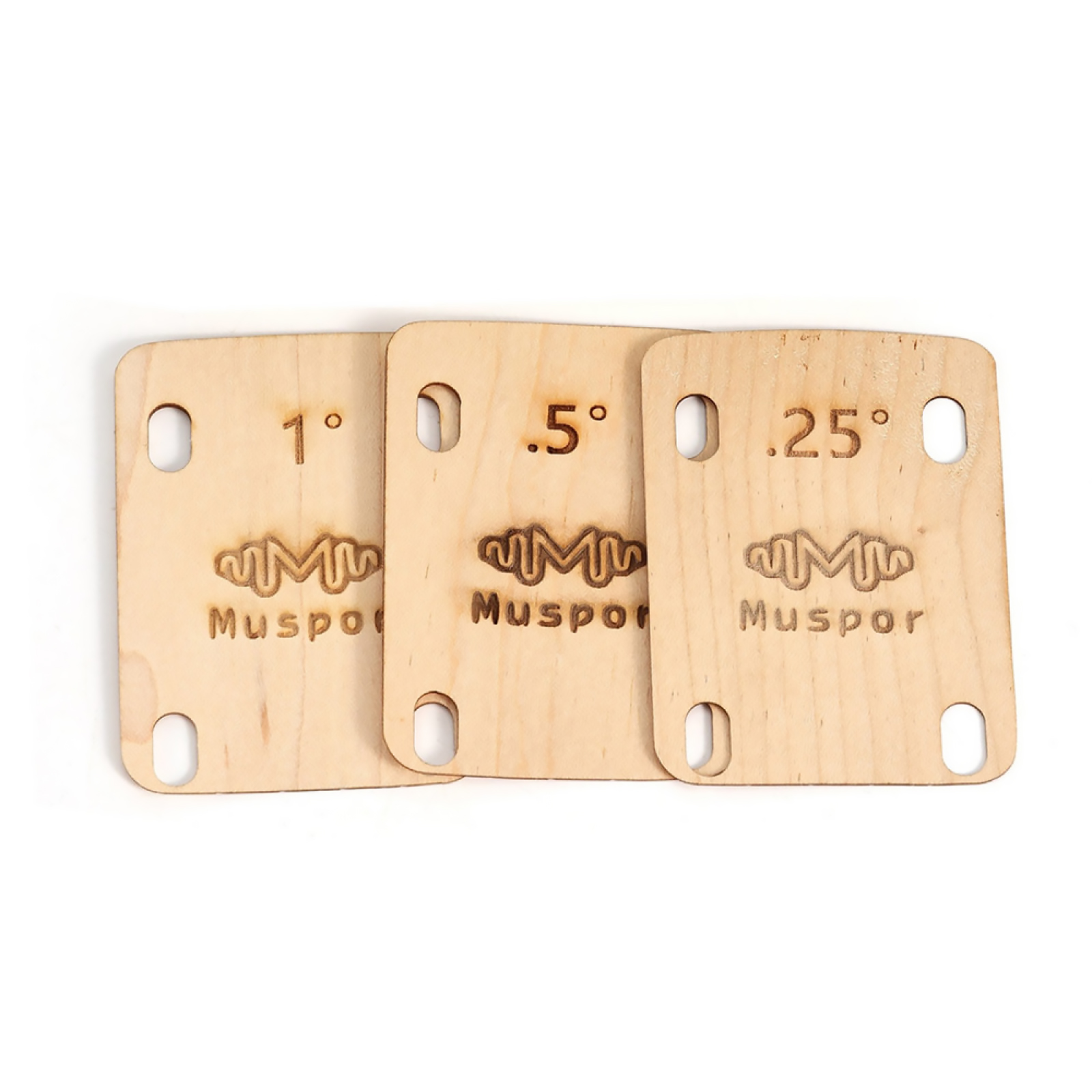

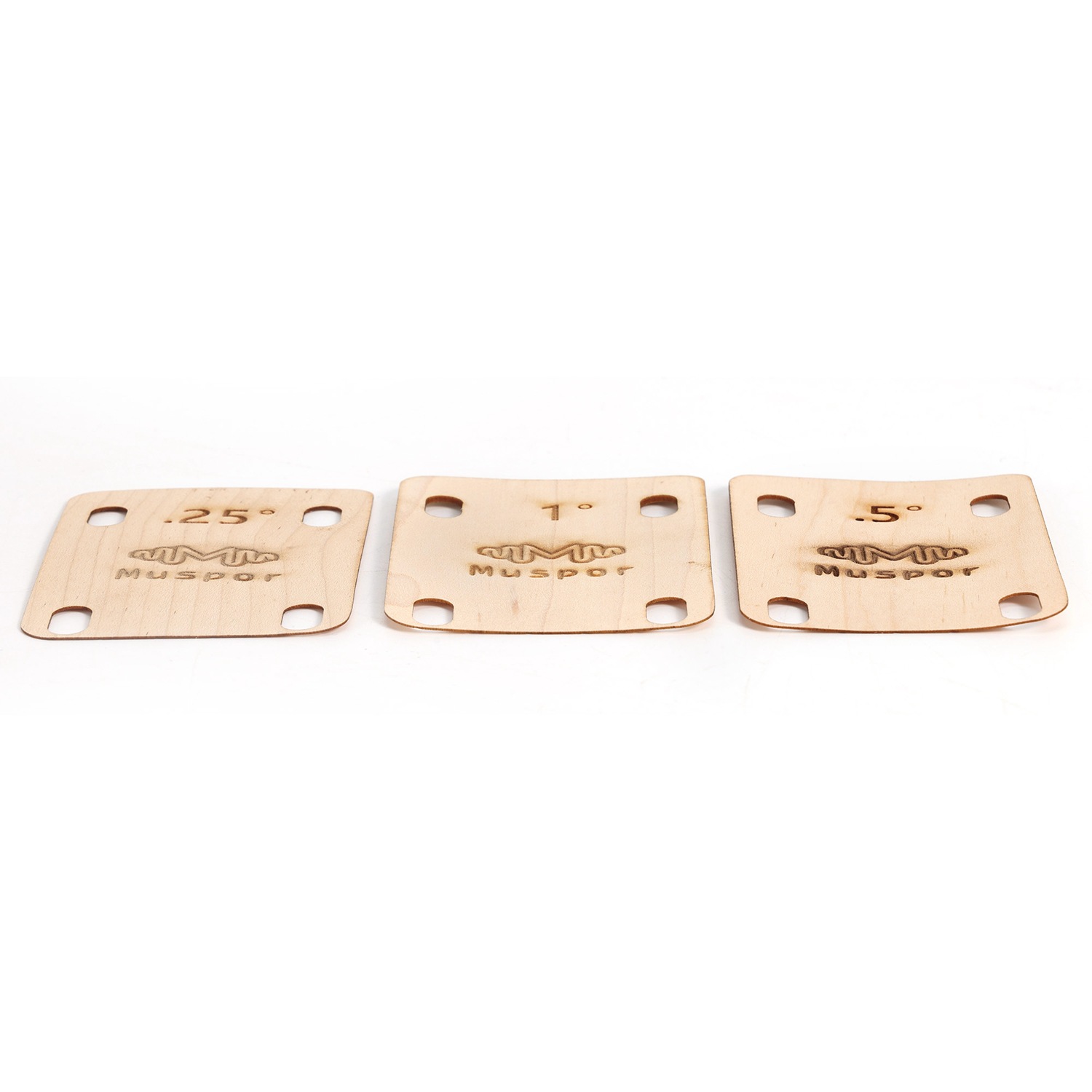

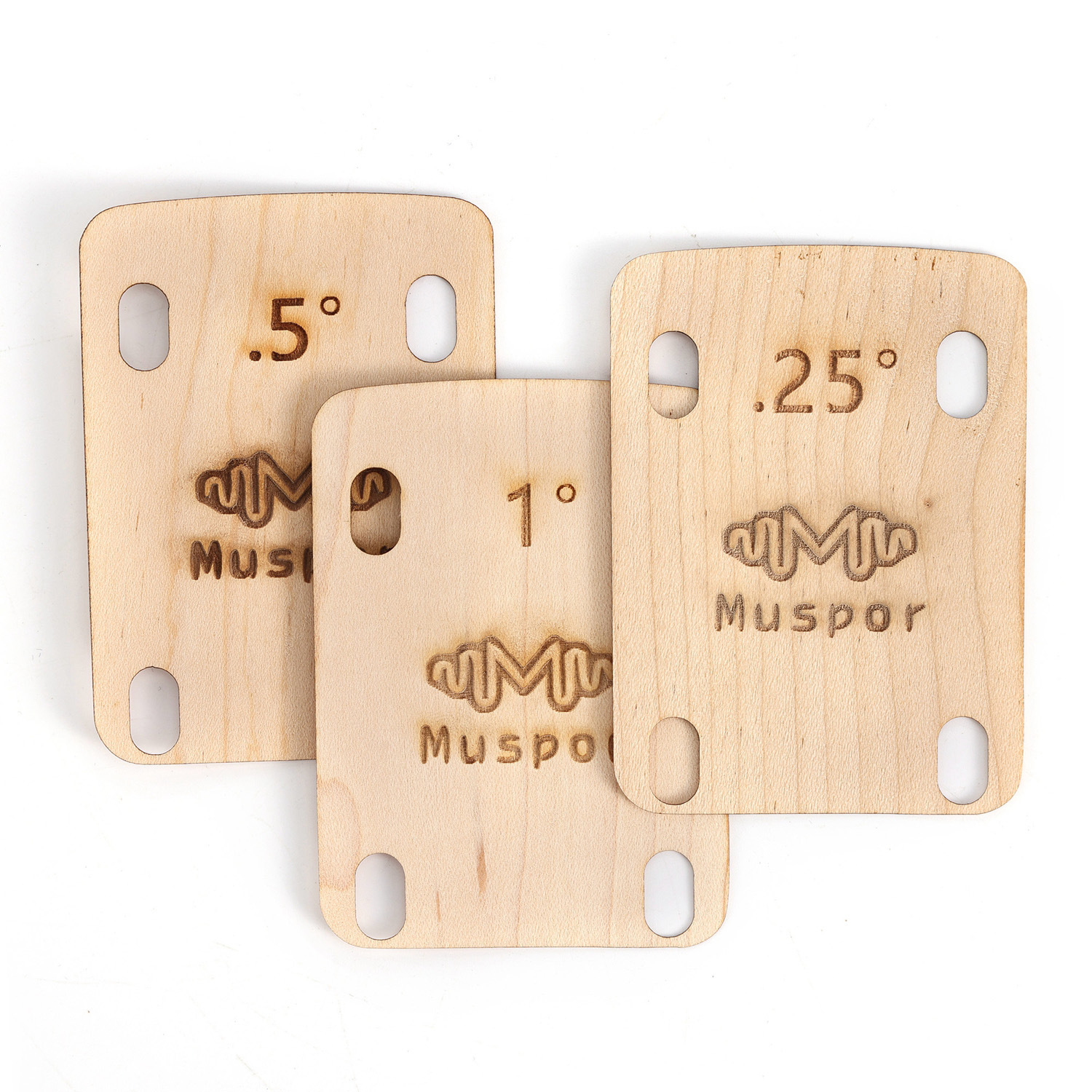

5. Set includes 3 hard maple shims in the following tapers: 0.25-degree taper, 0.5-degree taper and 1-degree taper.
This set includes 3 hard maple shims, each at a different taper for changing the pitch of any bolt-on neck:

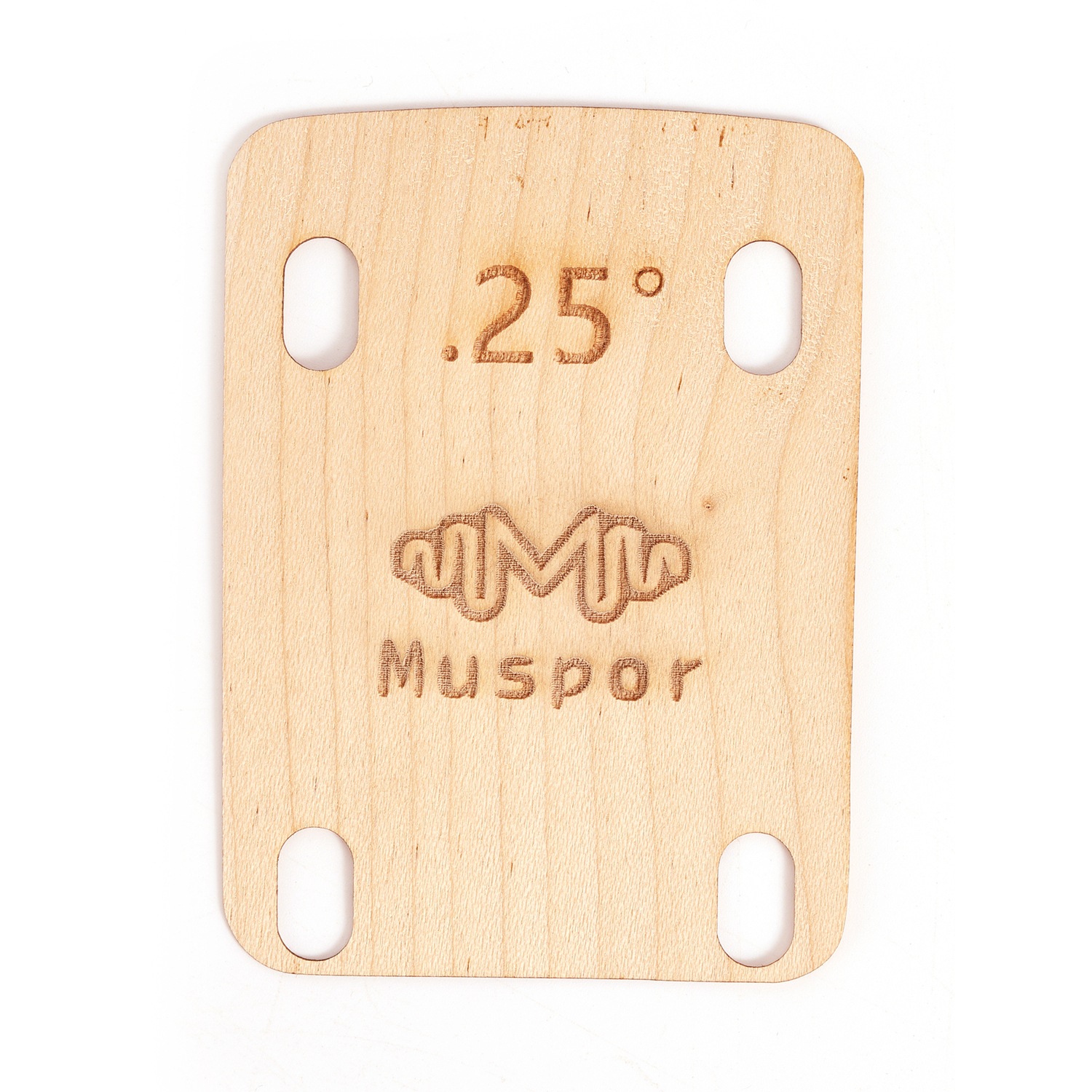

0.25-degree shim offers the most versatility – stacking them will let you really dial in the neck angle you're after.

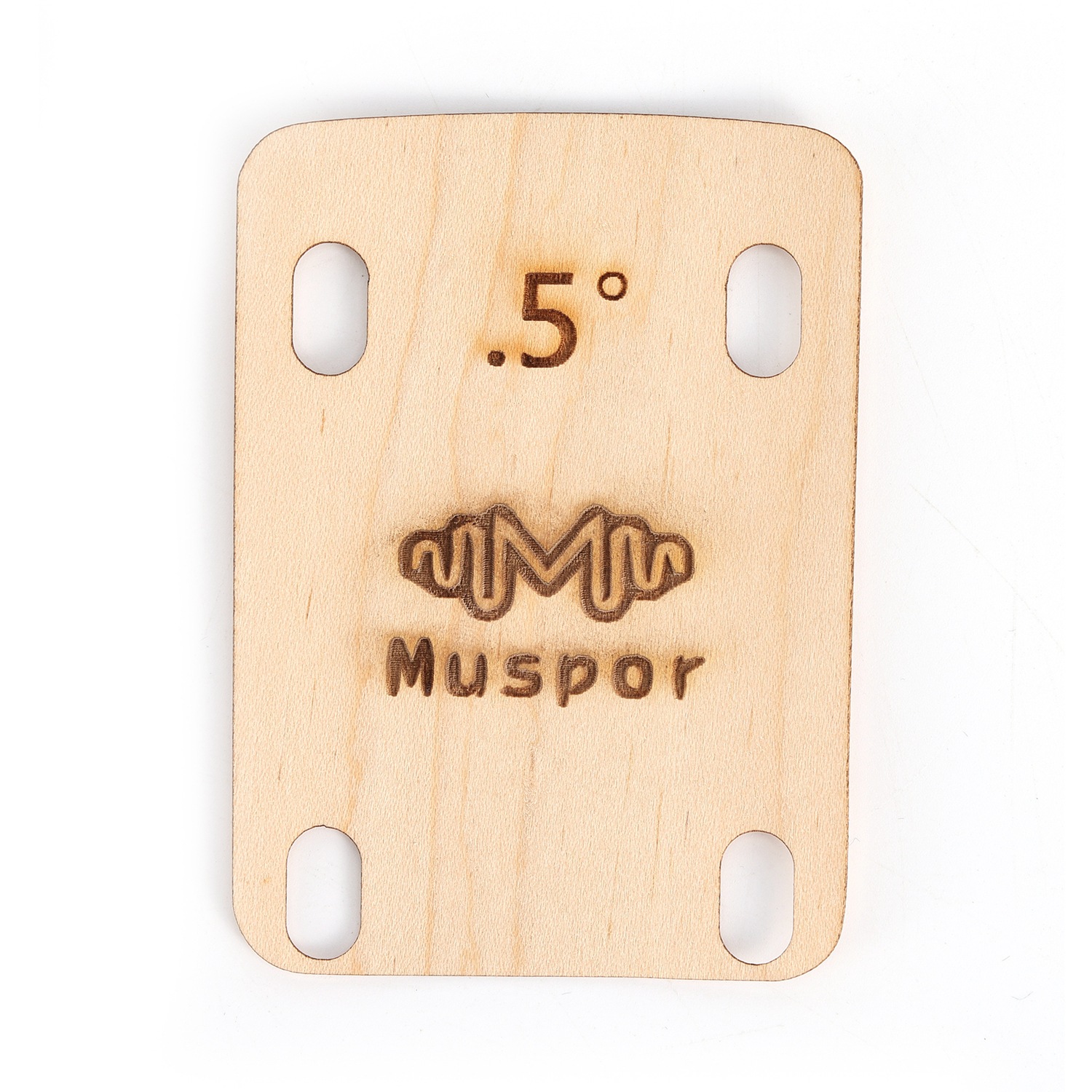

0.5-degree taper is the you'll reach for most often – it works great on many guitars.

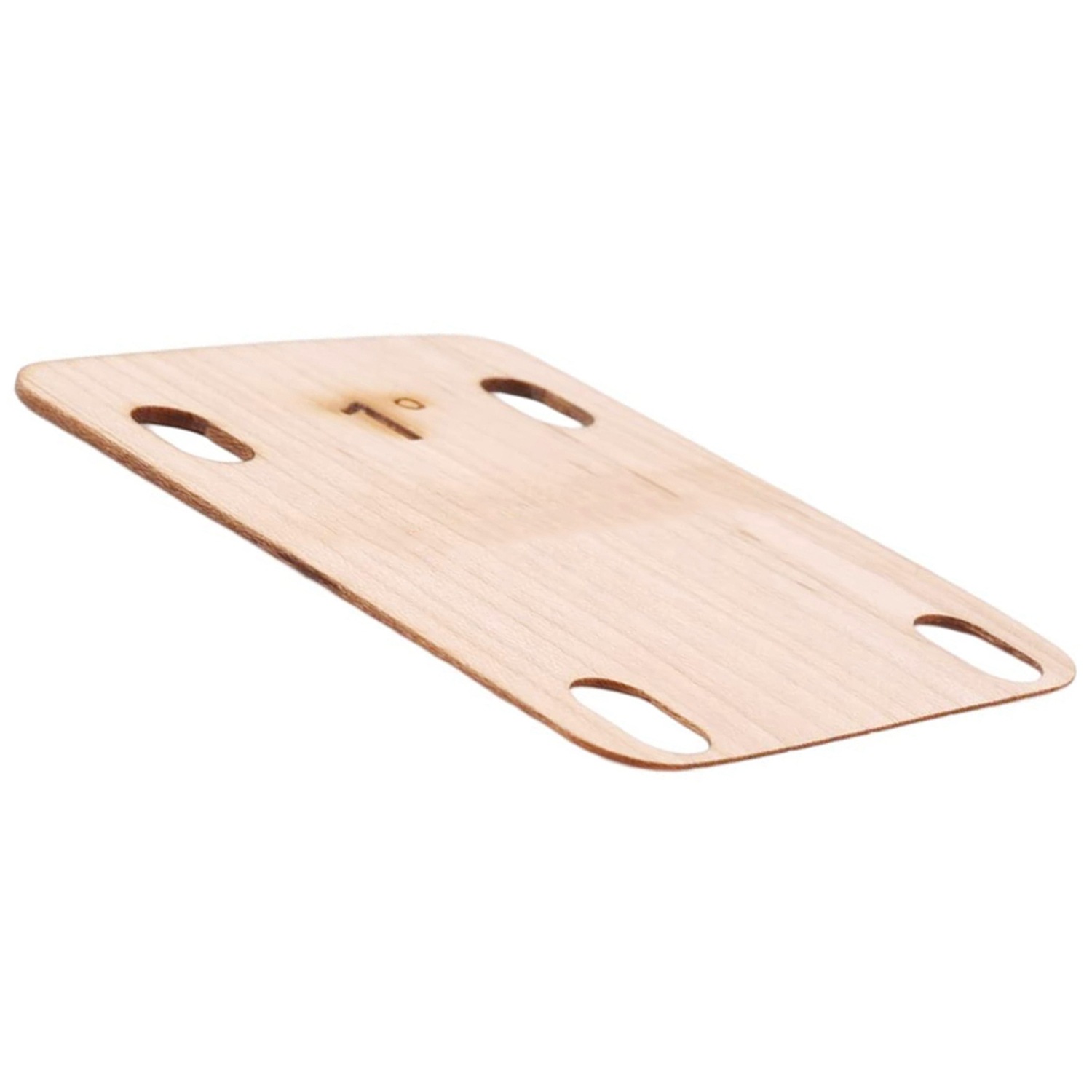

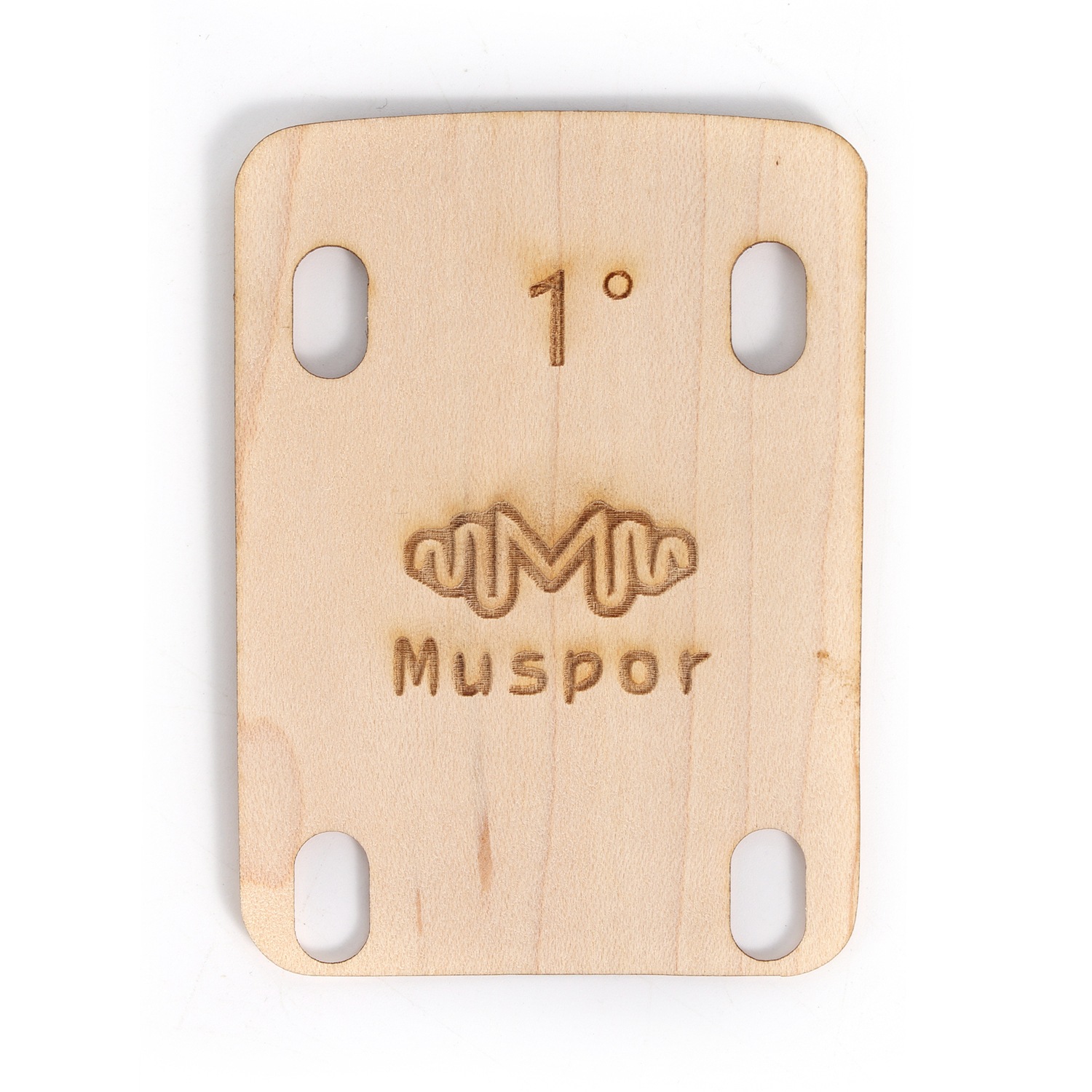

1-degree taper for guitars with a Tune-o-matic bridge.
Taper specs (approximate):
0.25-degree tapers from 0.030" to 0.019" (0.76mm to .048mm)
0.5-degree tapers from 0.028" to 0.008" (0.71mm to .020mm)
1-degree tapers from 0.060" to 0.010" (1.52mm to .025mm)
Specifications:
Material: Maple
Color: Yellow
Size: 2-3/16" x 3" (55.56mm x 76.12mm)
Packing Weight: approx. 40g
Quantity: 3 PCS
Package include:
3 x Neck Shims
Note:
Please be sure to verify the size before you order the item.
Please refer to the measurement. Tiny measuring error is allowable in normal range.
There might be a little color difference due to the monitor, camera or other factors, please refer to the physical item.
