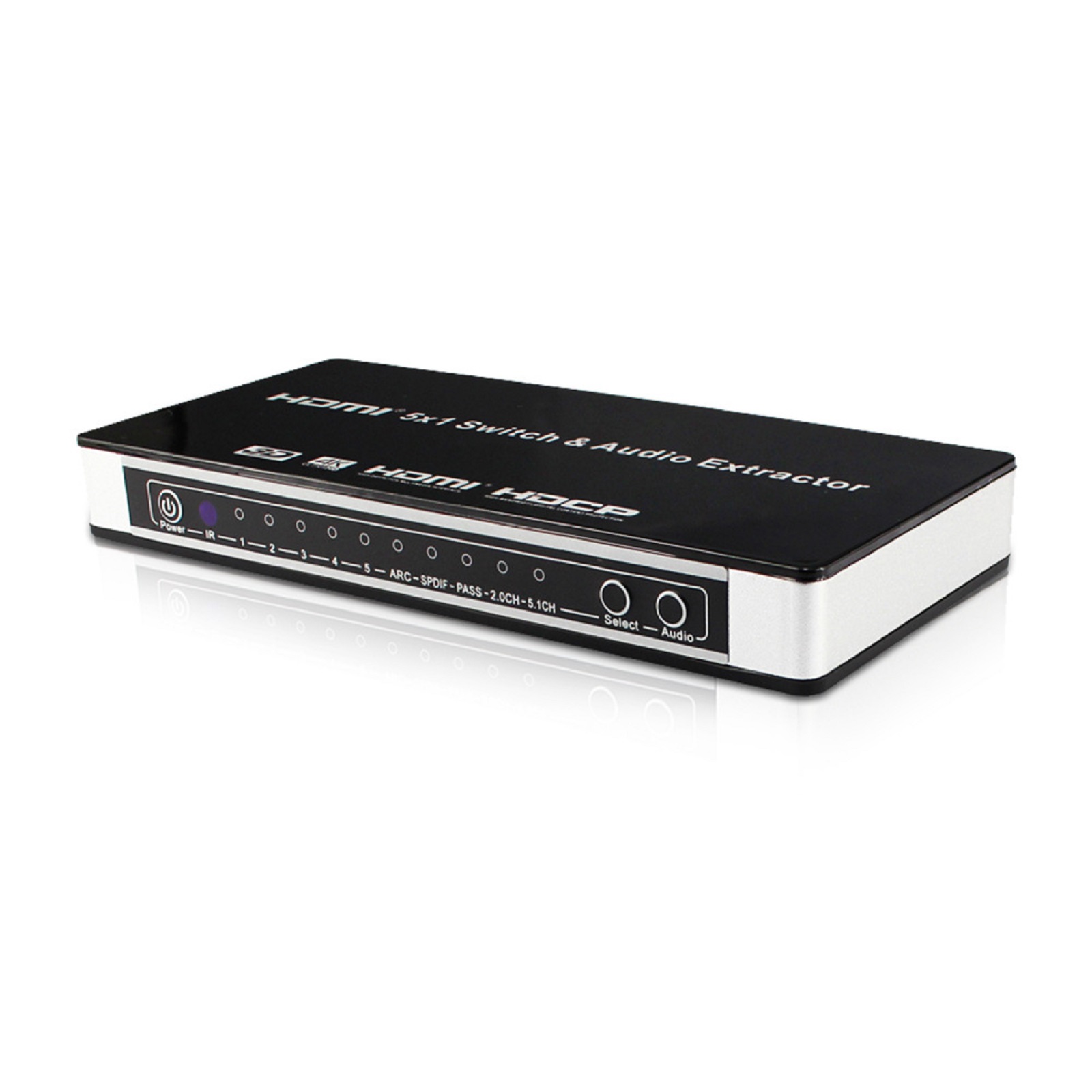

4K 3D 5x1 HDMI Switch 5 in 1 out Switcher with Audio Extractor ARC for PS4 PS5 Xbox TV Box Laptop PC To TV Monitor
Video and AudioHDMI resolution: Ultra HD 4K2K max; 3D 1080p/24 max
Support video color format: 36-bit Deep Color all channels maximum

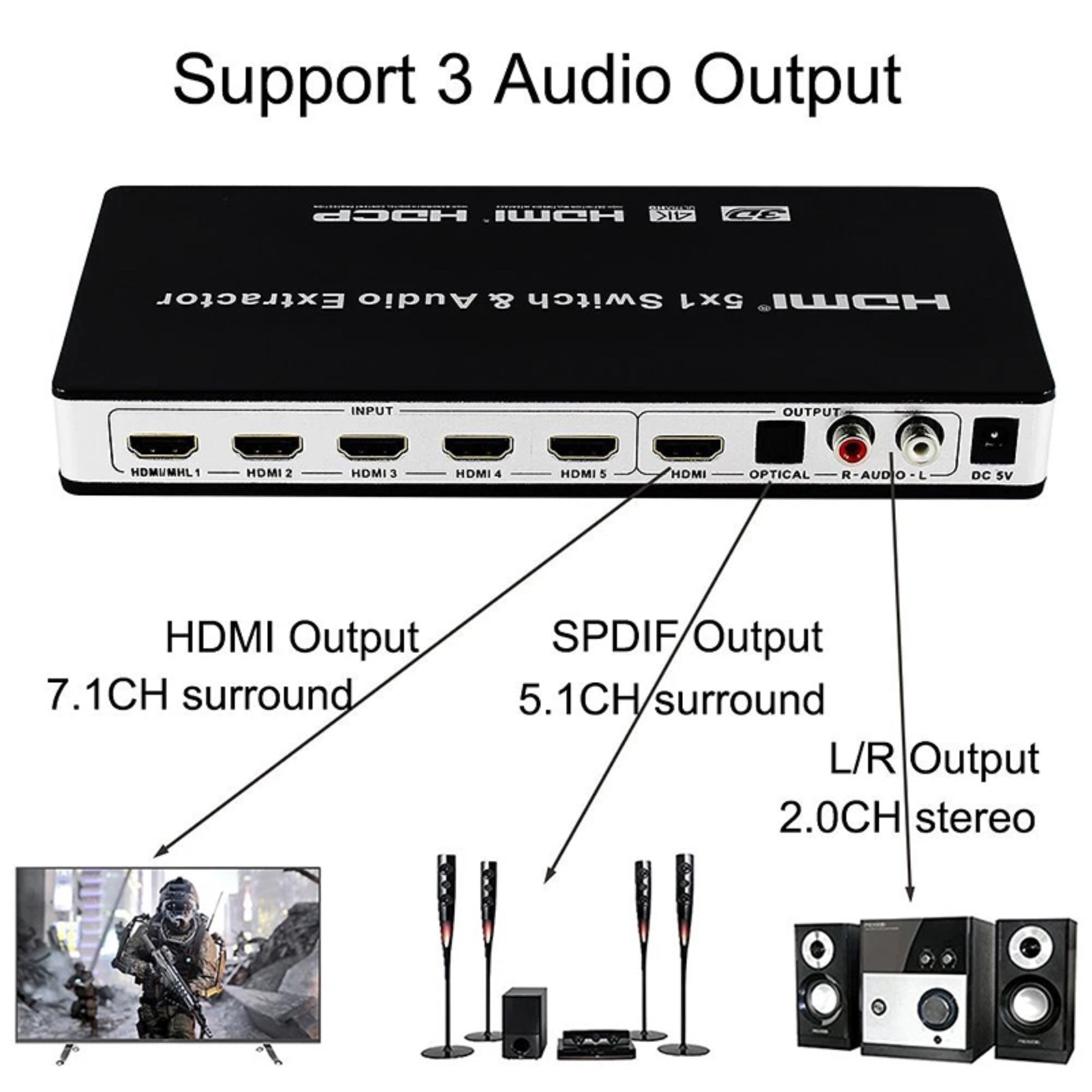

Audio output: HDMl pass-through up to 7.1CH,Toslink output up to 5.1 ch,RCA L/Routput stereo audio
Max bandwidth per channel: 300MHz
Max baud rate per display: 9.95Gbps
Input/Output TMDS signal: 0.5~1.5v p-p(TTL)
Input/Output DDC signal: 5V p-p(TTL)
lnput cable distance: <15m 24AWG HDMI high speed Cable at 1080P@24bit 60Hz
Output cable distance: <15m 24 AWG HDMI high speed Cable at1080P@24bit 6OHz
Environmental
Operating Temperature range: 5°F to 131°F/-15°C to 55℃
Operating Humidity range: 5% to 90% RH(No Condensation)
Power supply: DC5V1A
Features：

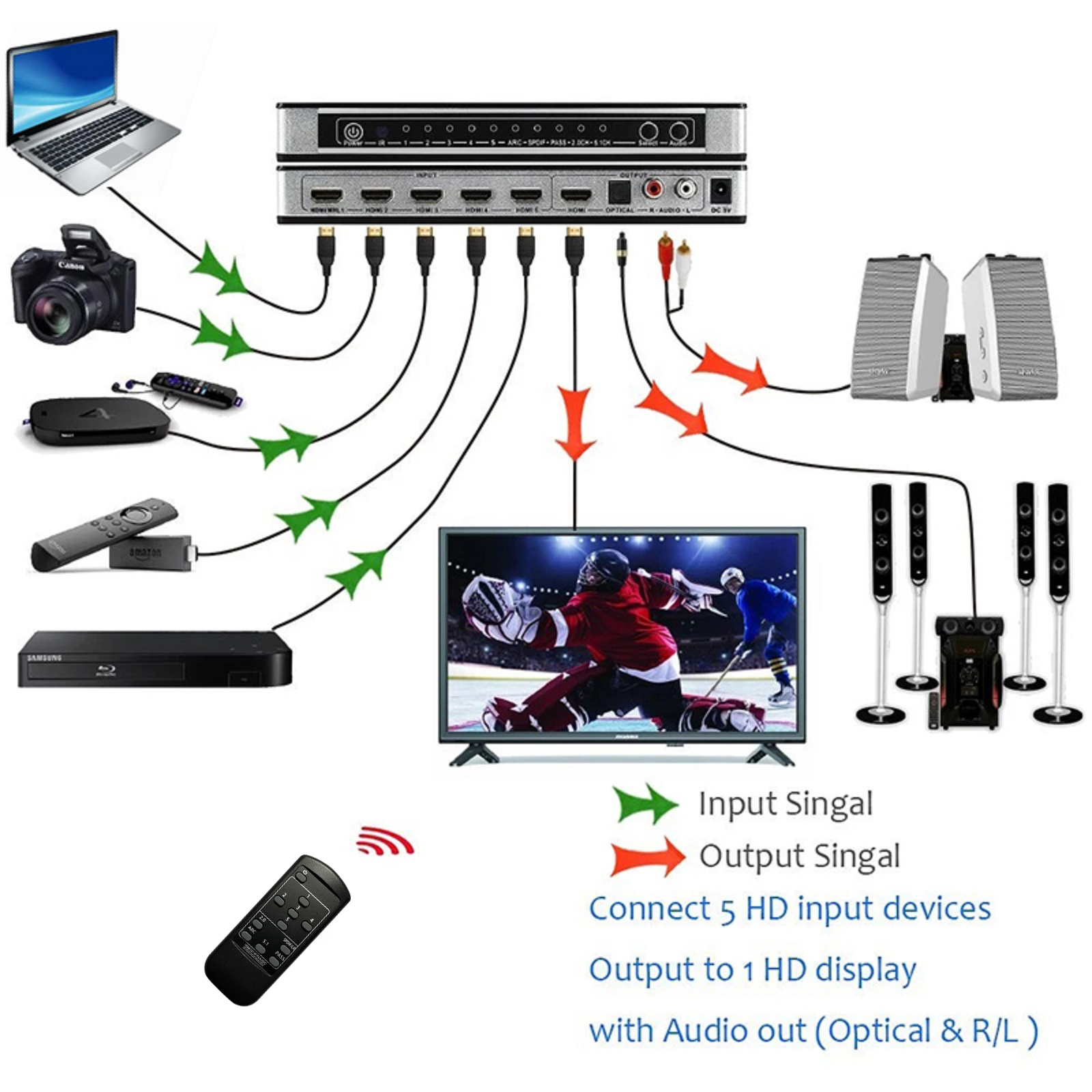

lnput: HDMI x 5.

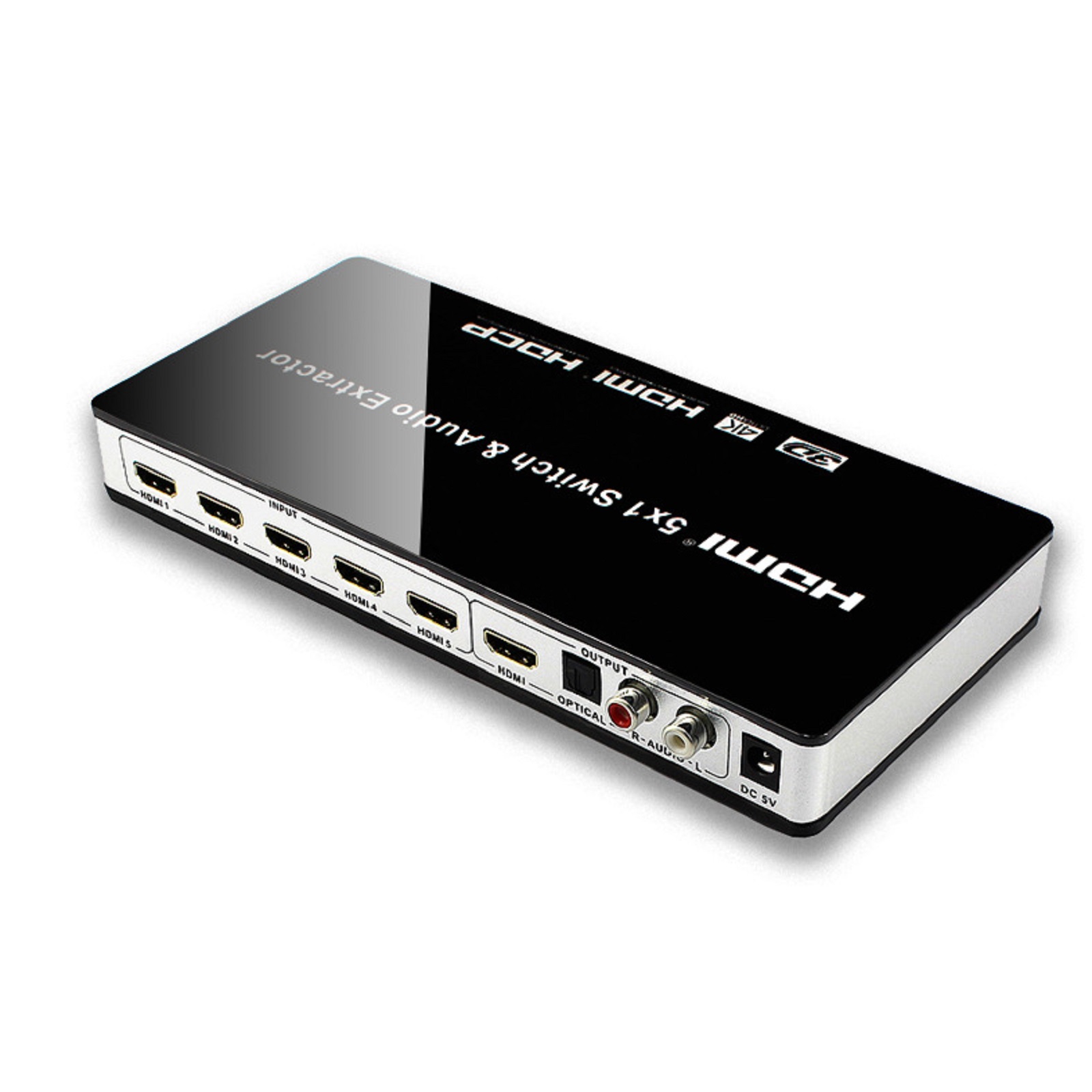

Output: HDMlx 1,Toslink x 1, Stereo RCAx 1.HDMI
version: HDMI 1.4, HDCP1.4.
Supports Ultra HD 4Kx2K@30Hz.Supports Full HD.
supports 3D.
Supports 12-bit Deep Color per channel, maximum 36-bit all channels.Supports 3.0Gbps TMDS/300MHz pixel clock rate per channel, maximumtotal TMDS throughput is 9.95Gbps.
supports uncompressed audio such as LPCM.
Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HD,and Dolby TrueHD.
Supports HDMl pass-through.
supports up to 7.1CH digital surround on HDMl output.
Supports up to 5.1CH digital surround on HDMl or Toslink output.Supports up to 2.0 channel analog stereo on Stereo output.
Supports Standard Audio,DSD Audio, and HD(HBR)Audio.supports ARC(Audio Return Channel).

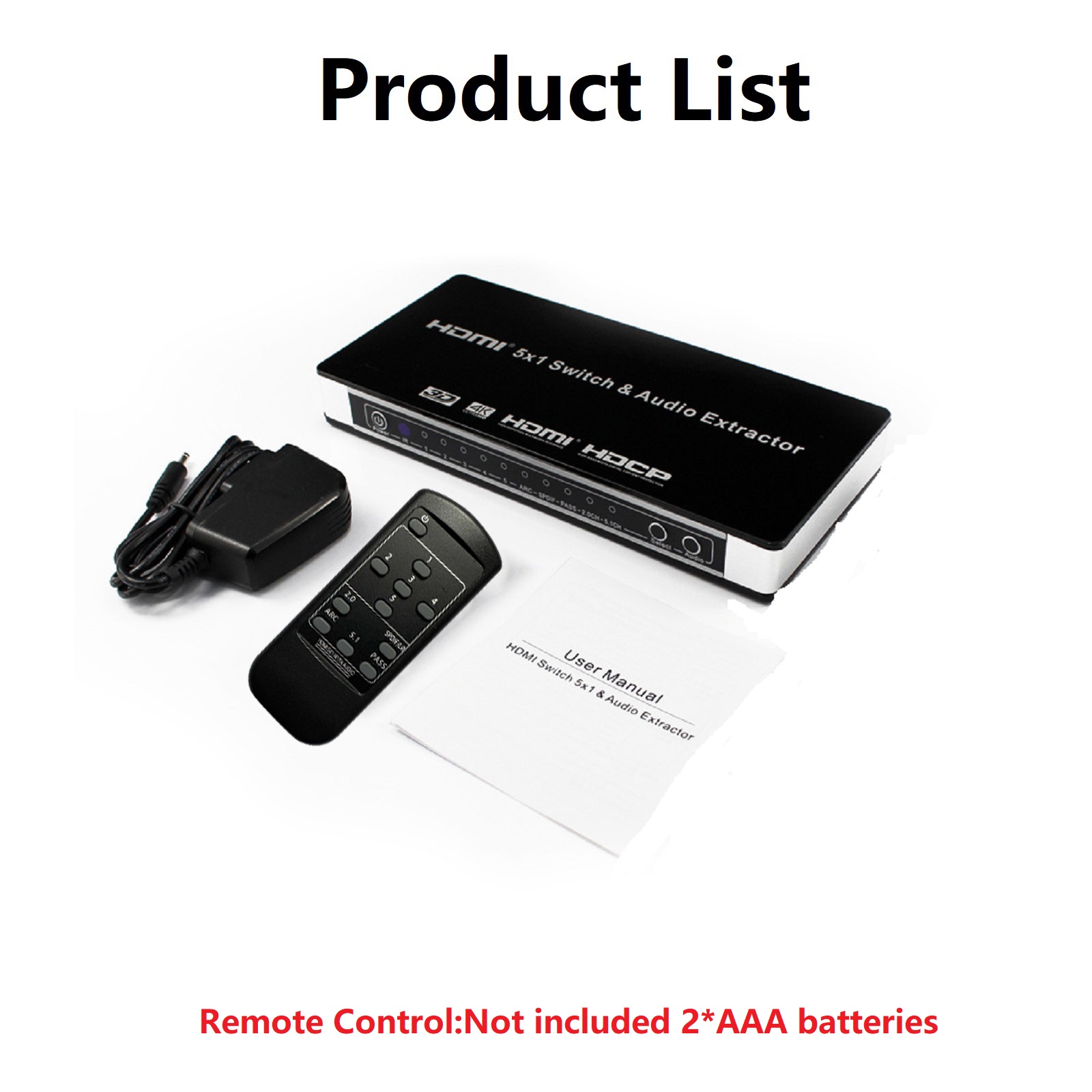

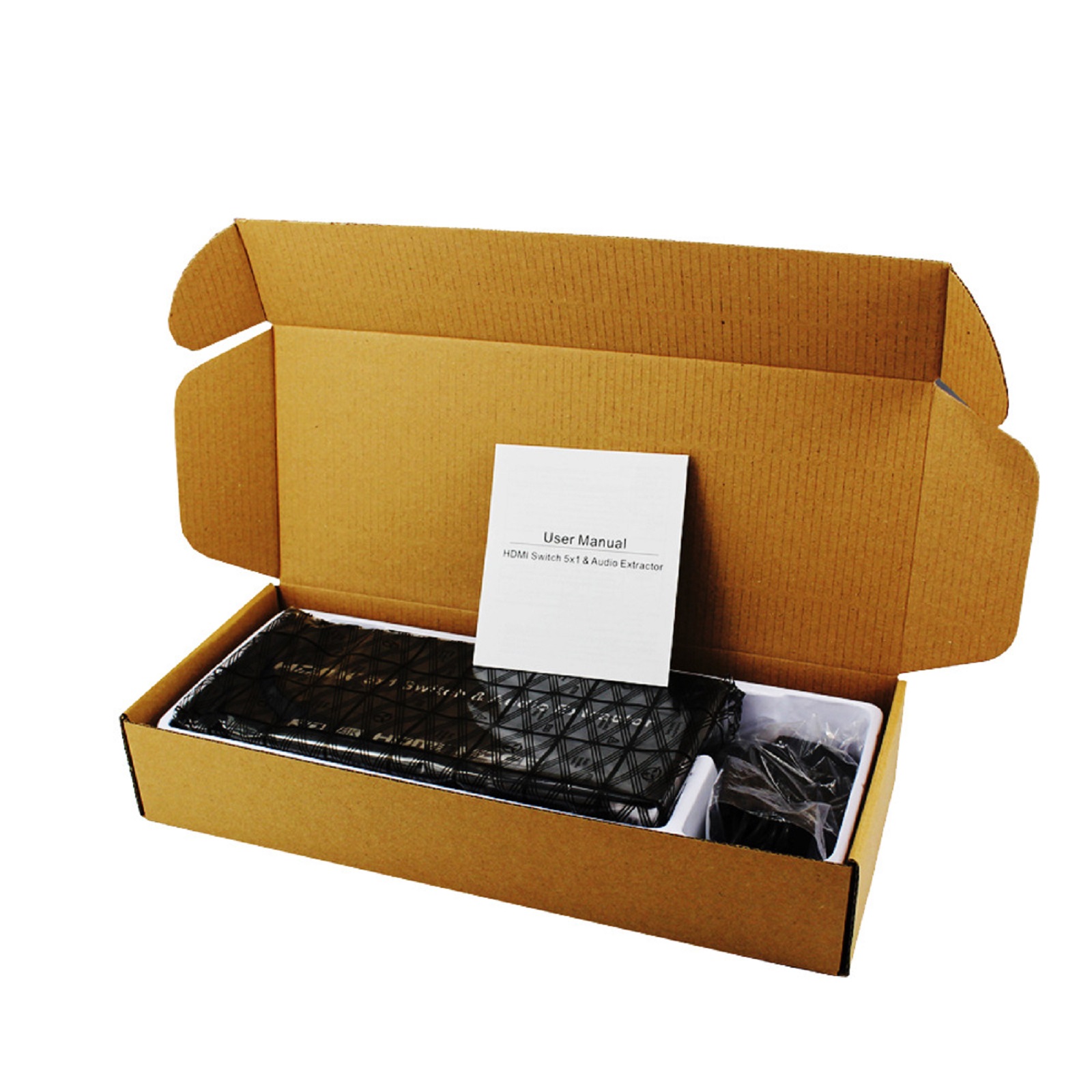

Packaging content:
1x HDMI Switch 5x1& Audio Extractor
1x Power Adapter

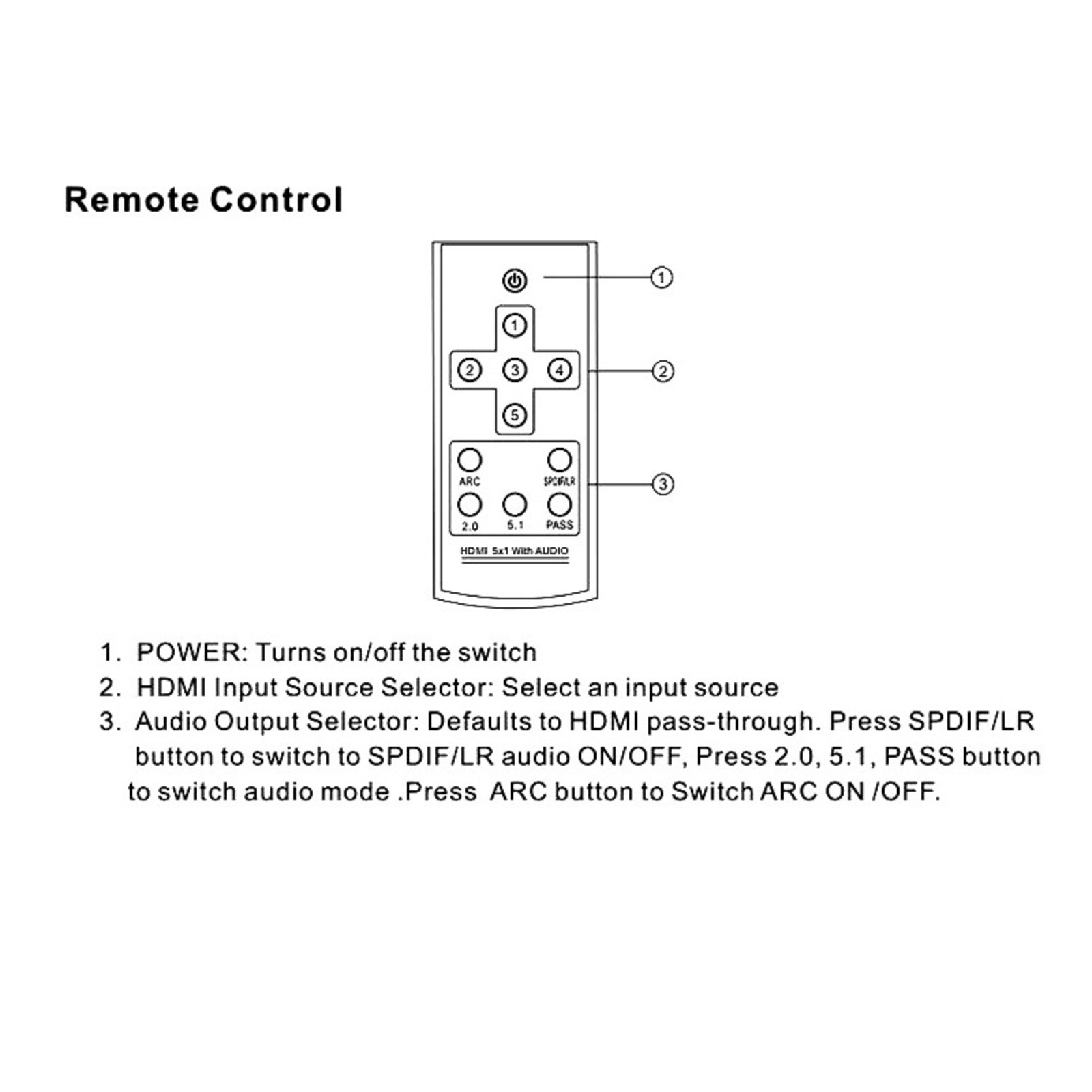

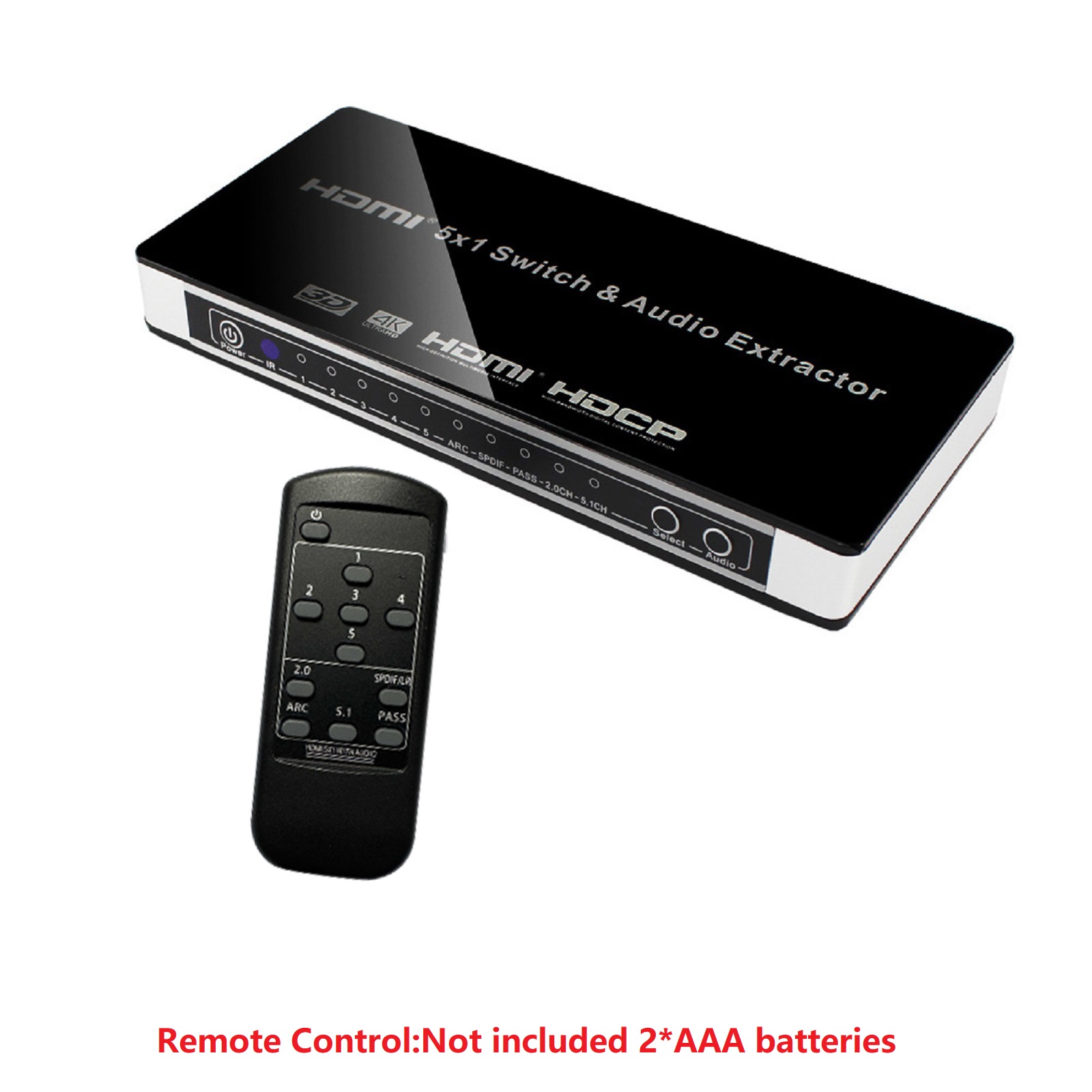

1x Remote Control(Not Included 2*AAA Batteries)
1x User Manual
