Product Name

DC DC Converter 24V 36V 48V 60V 72V to 12V 5A~20A

Module Properties

non-isolated buck module

Rectification

synchronous rectification

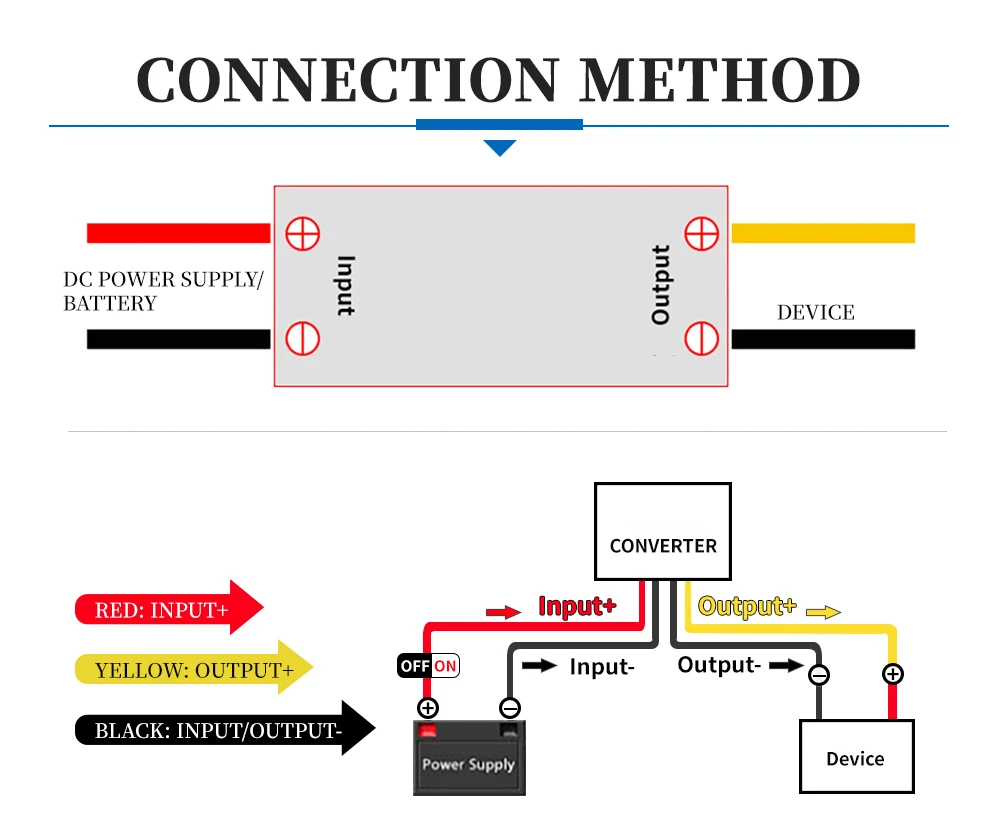

Input (cable length: 13-14cm)

Input Voltage

DC 24V 36V  48V 60V 72V

Input Voltage Range

DC 15-40V / 20-60V / 20-72V / 20-90V (selectable)

Output(cable length: 13-14cm)

Output Voltage

DC 12V

Output Current

 5A  / 8A  / 10A  / 12A   / 15A  / 20A  Max

 Conversion Efficiency

>93%

Voltage Regulation

±3%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

<100mA

Working Temperature

-40~80℃( If ambient temperature exceeds 40°c, lower power use, or  to enhance heat dissipation)

Waterproof Rating

IP68

Protection

Over-current protection / Overheating protection / Short circuit            protection / anti-shock protection

Application

mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and   so on.

 Case Material

Die-casting aluminum alloy

Product Weight

280 g

Warranty

12 months

Cooling Way

Free air convection

OEM&ODM Service

 Acceptable
