Twin Tube Coilovers for Holden VE Commodore All Models 06-13 25-75mm Adjustable





Introduction



MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable, which offer you a lowered stance, and improved performance for your daily use vehicle.












Package Included

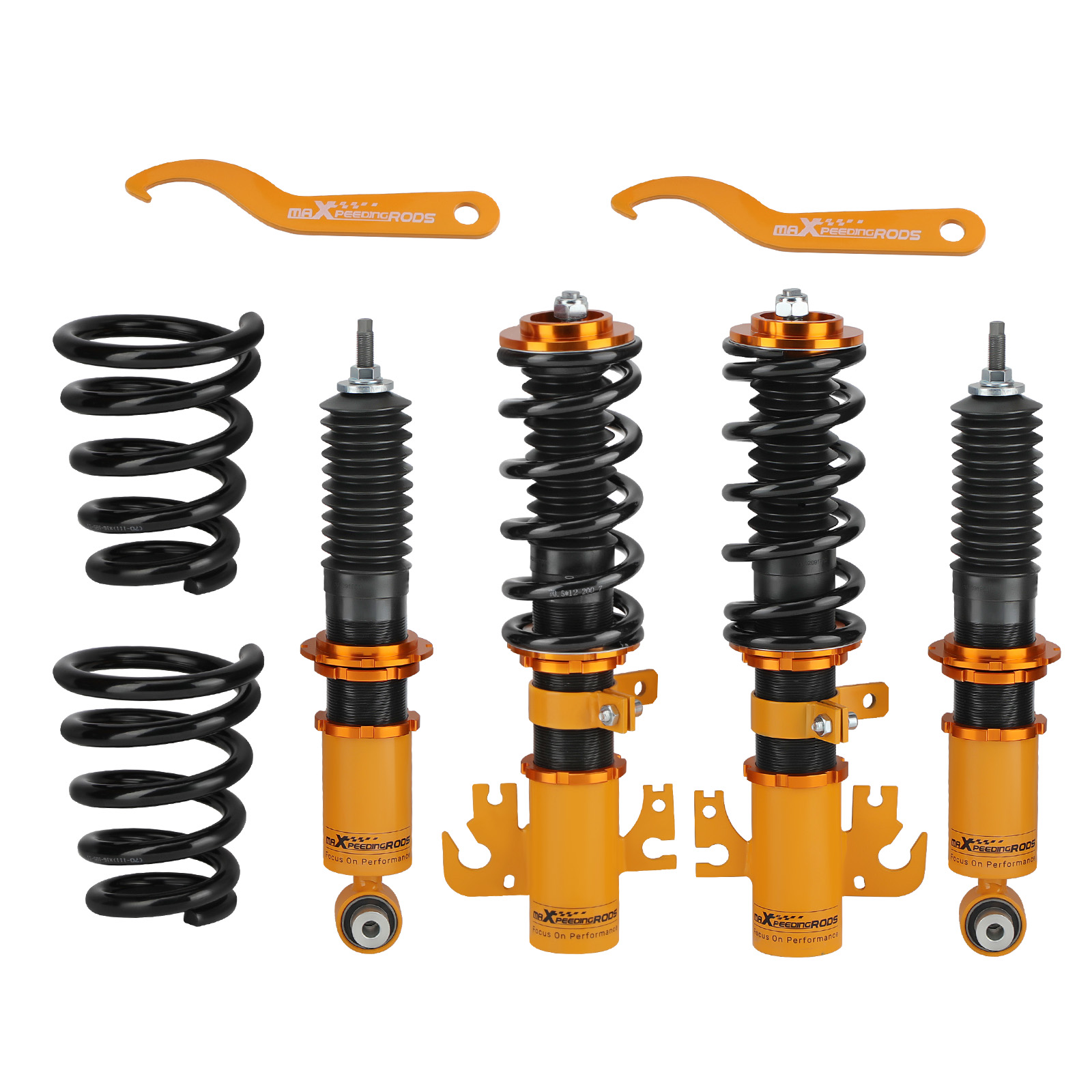

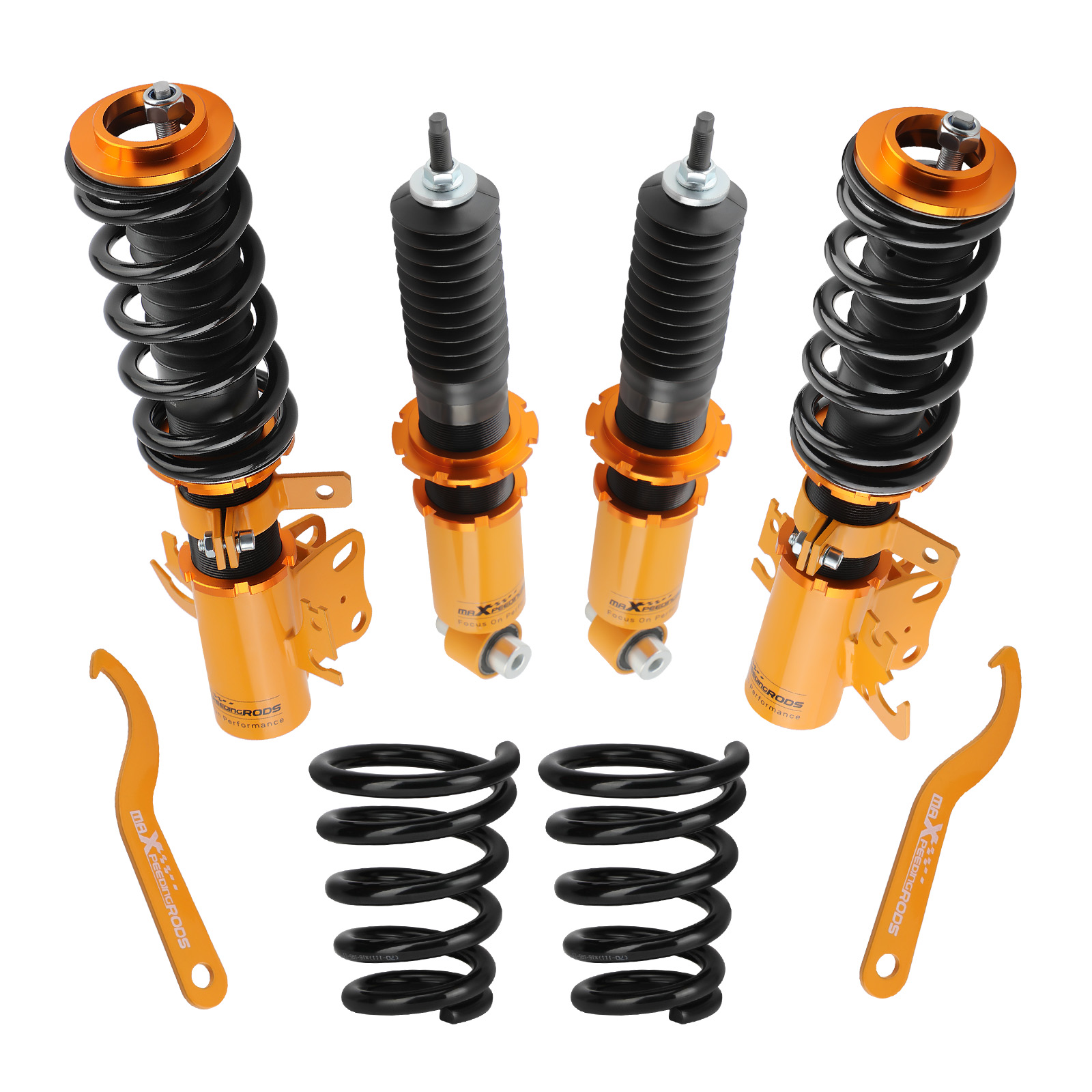

  • 1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
  • 1 x Pair of wrenches for height adjustment
  • (Note: no top mounts included.)



Application

  • For Holden Commodore VE Sedan 2006-2013
  • For Holden Commodore VE Wagon 2008-2013
  • For Holden Commodore VE  Ute   2007-2013


Notice:

  1. The coilovers kit will "Lower your car" and does not keep to the original ride height.
  2. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
  3. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
  4. Impact wrench is prohibited during the installation, it will loosen or damage the product.
  5. Examine the clearance between tires and suspension. (The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
  6. We suggest regular maintenance for the coil-over, spray with some WD40 every 3–4 months will keep it smooth and clean, which helps to extend the lifetime.

Standard Technical Specifications


Top mounts Front and rear OE top mounts required
Damping adjustable Not available
Camber adjustable Not available
Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Front Spring Rate 7 kg/mm (392 lbs/in)
Rear Spring Rate 8 kg/mm (448 lbs/in)
Spring length Front 200 mm
Spring length Rear 185 mm
Spring Preload advised 7-10 mm

Details

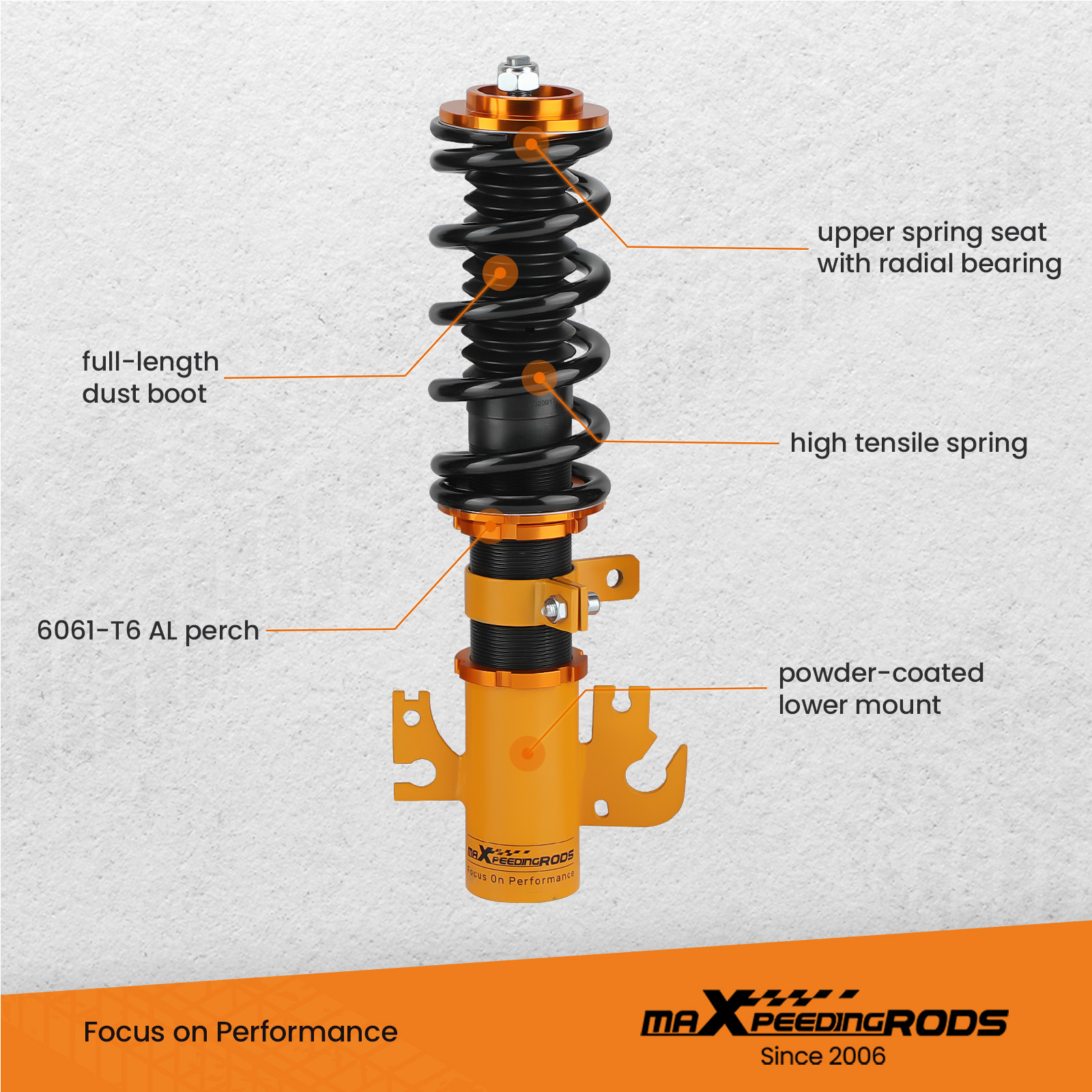

Feature

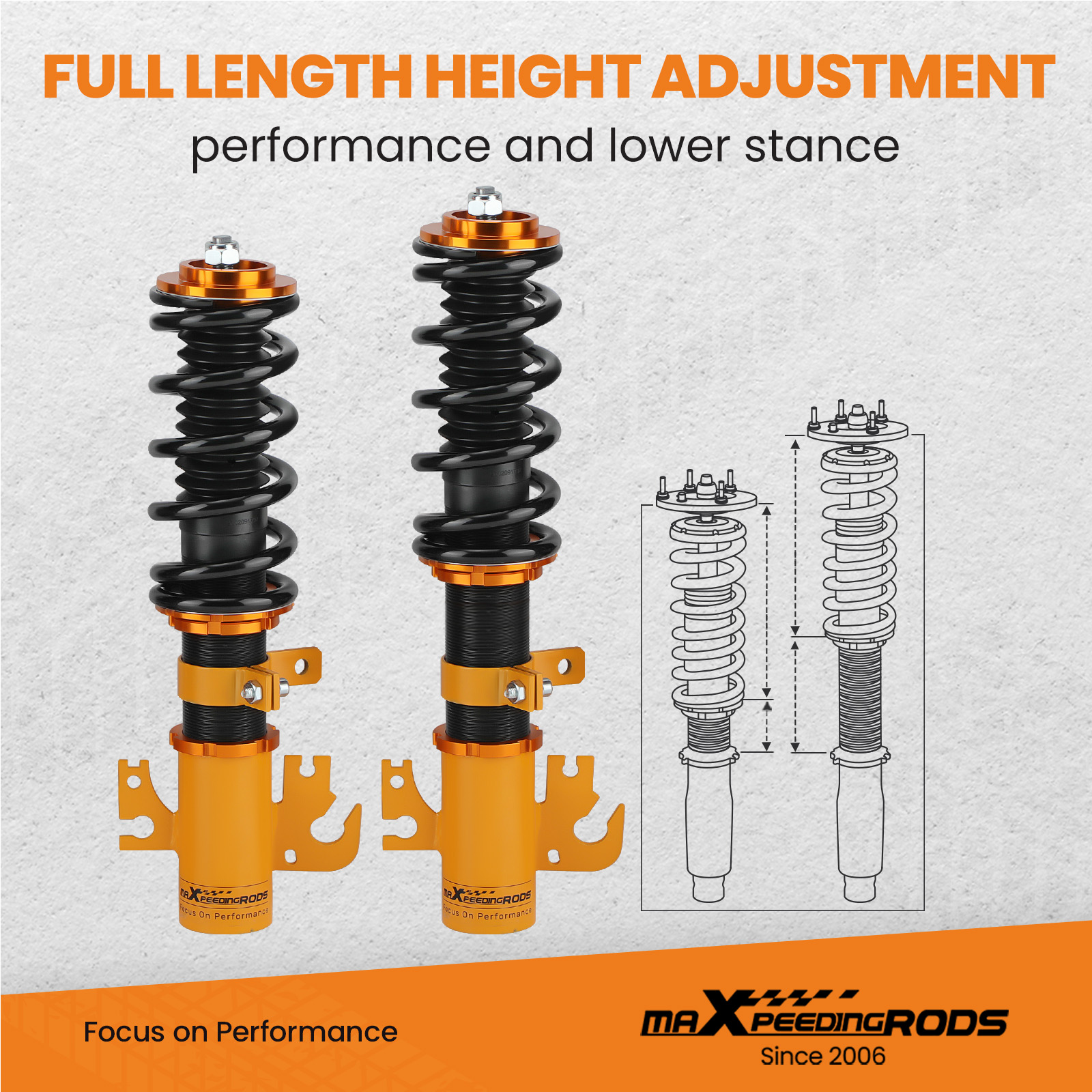

  1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
  2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

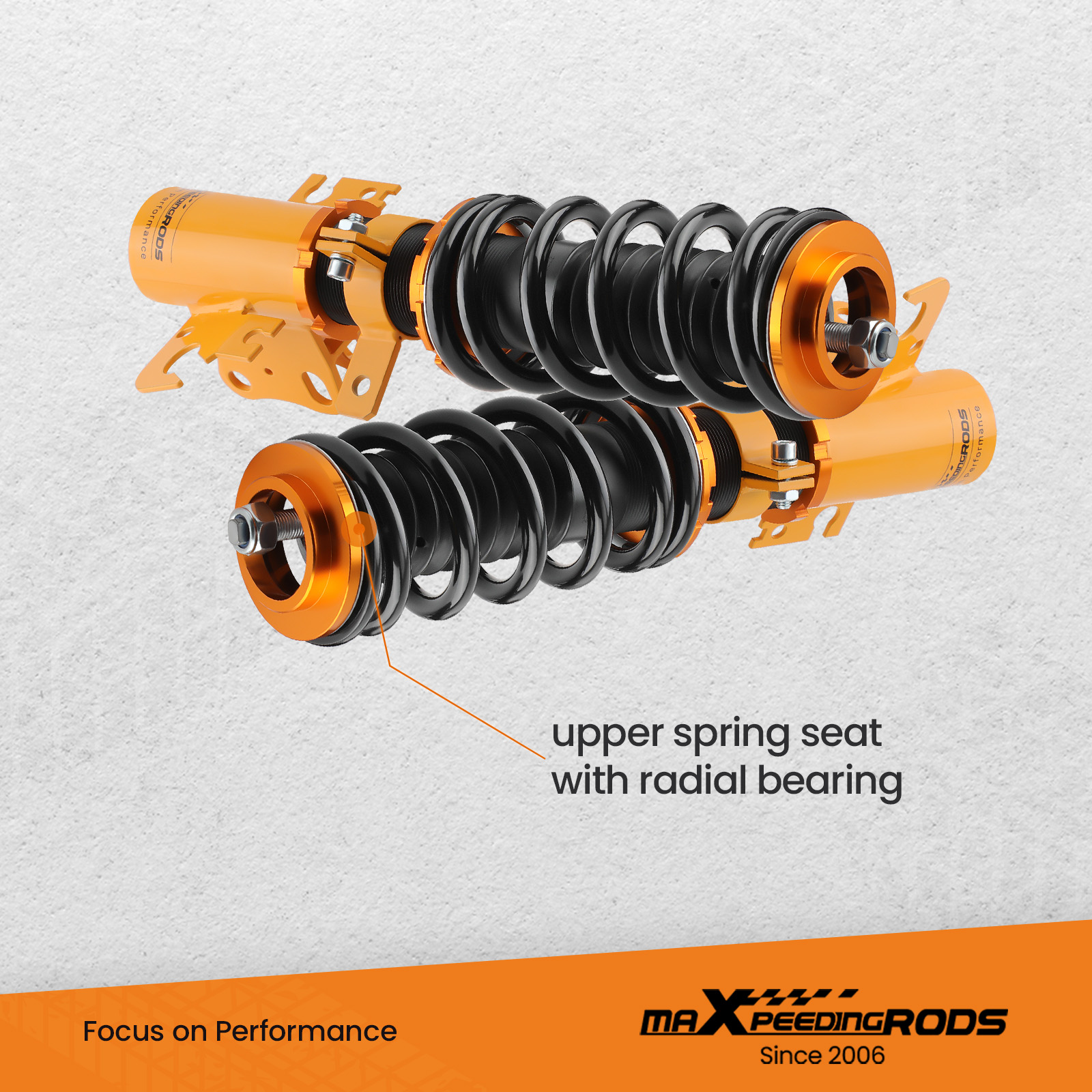

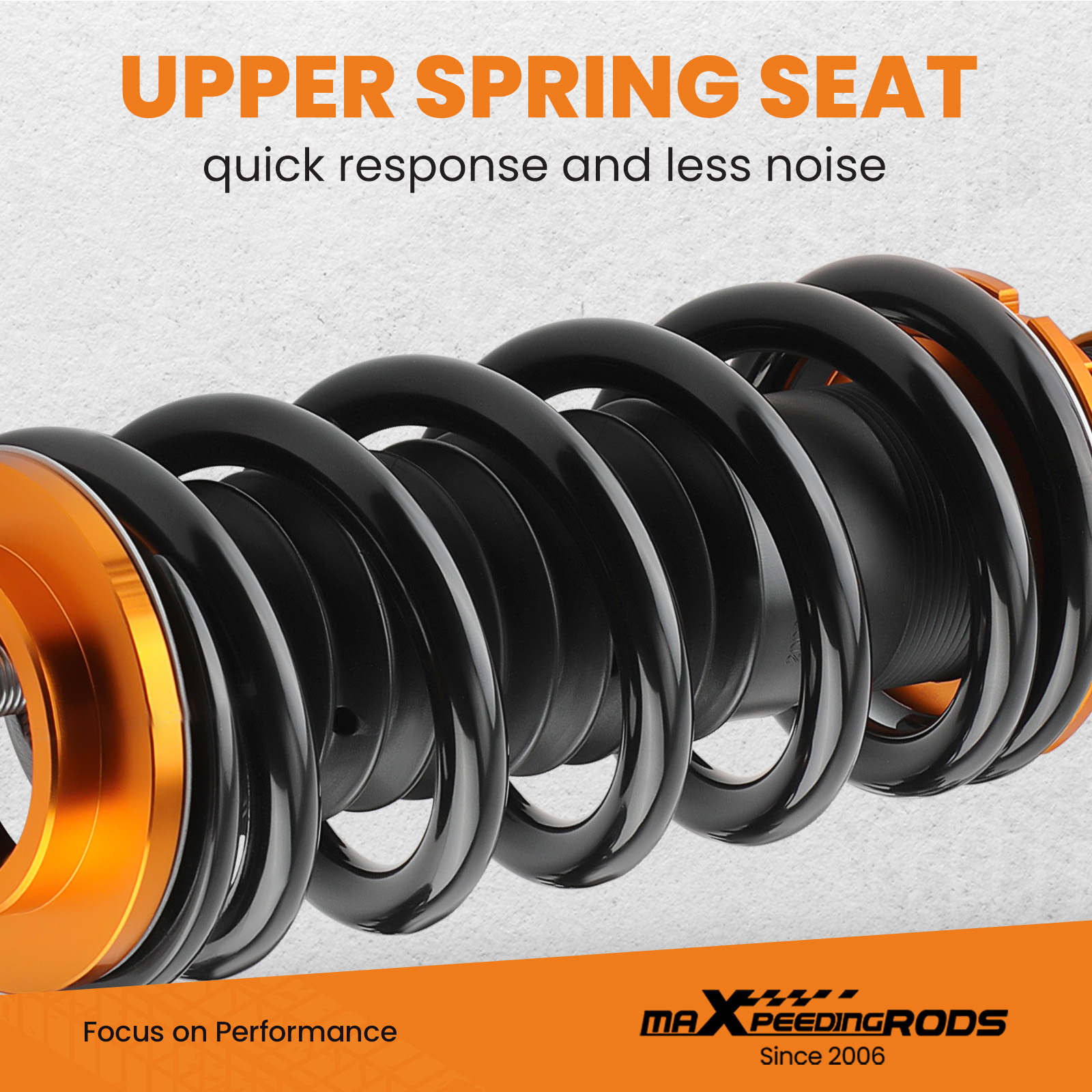

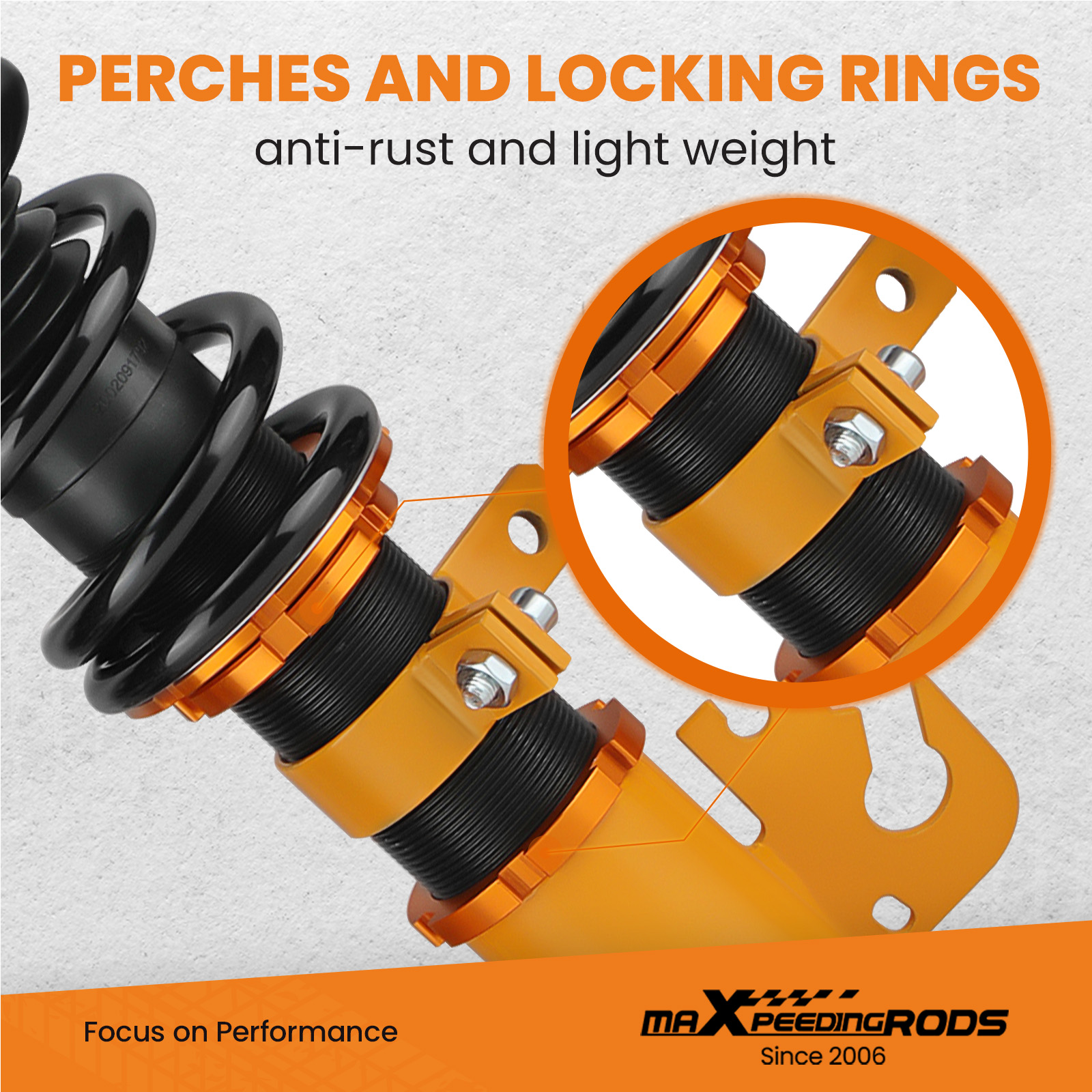

  3. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

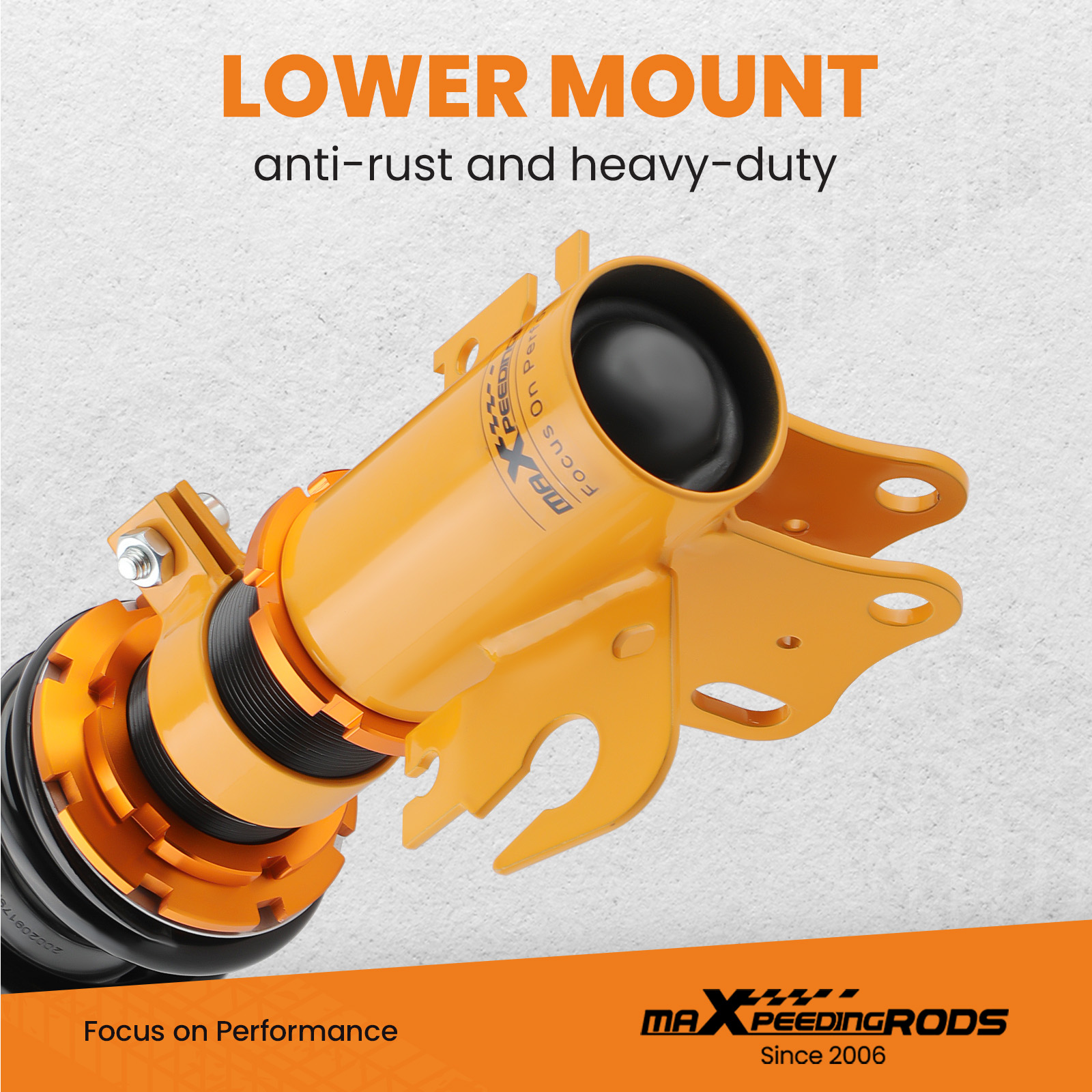

  4. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

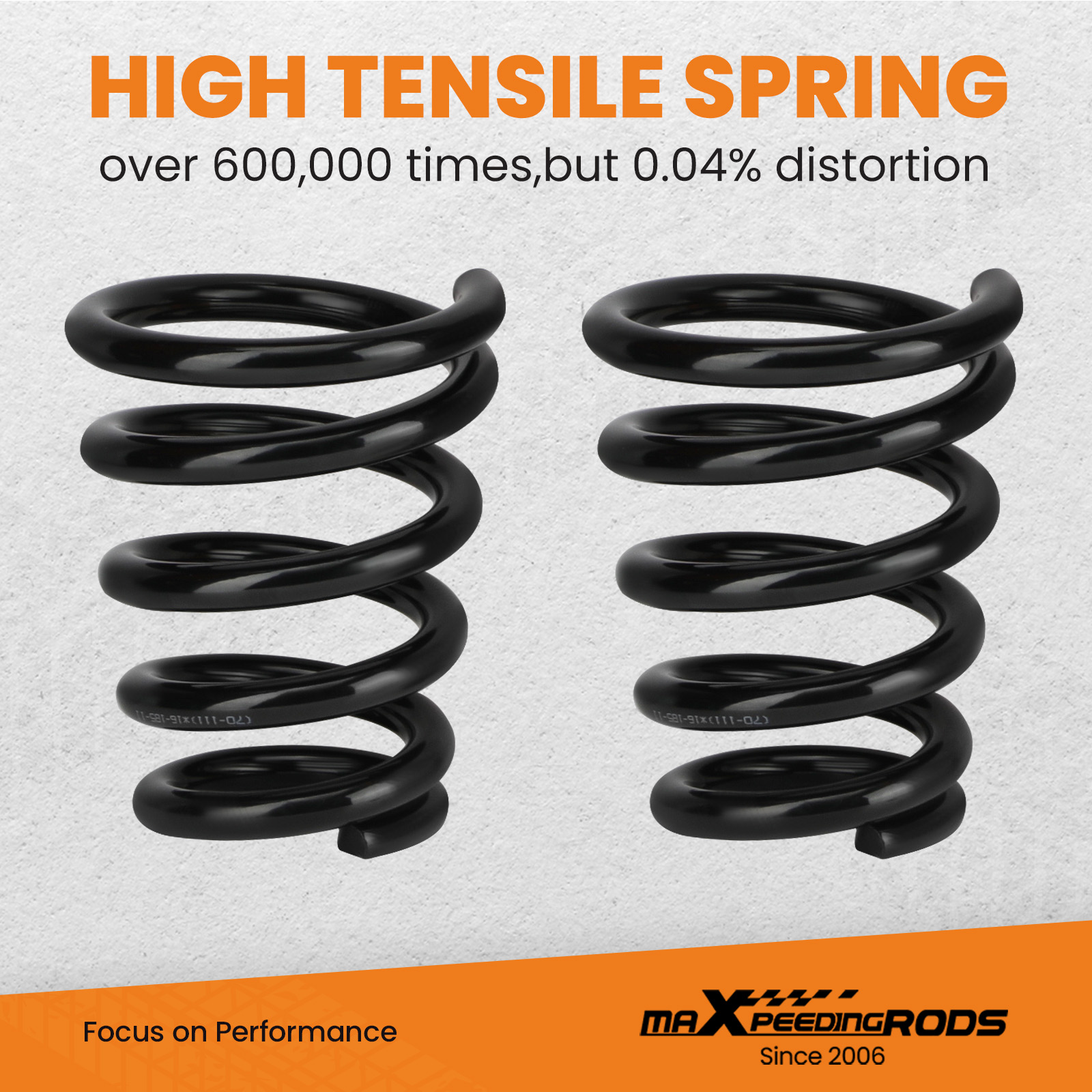

  5. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

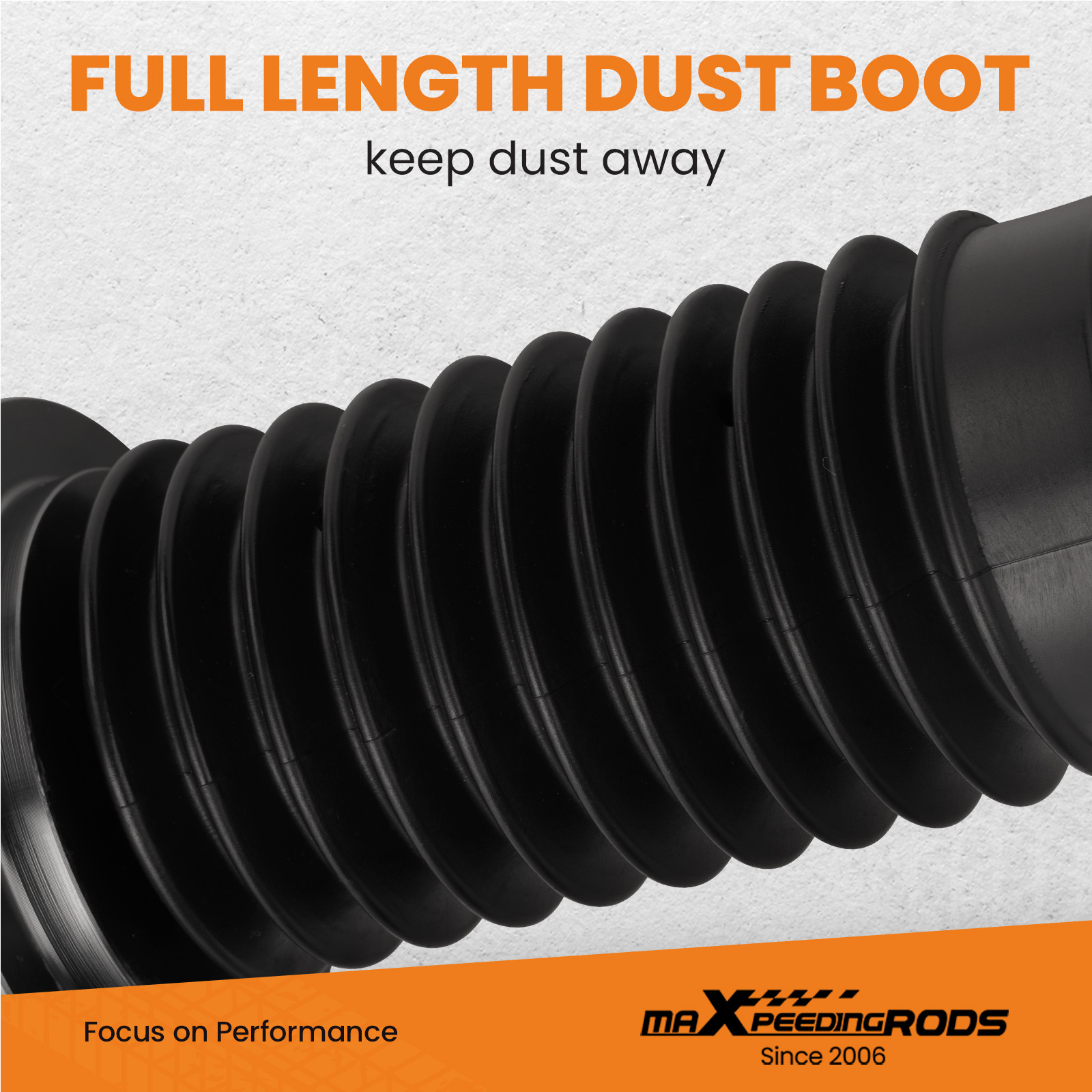

  6. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
  7. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
  8. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

B2

B3

T6

T7

Application Scene
Street Basis Street Basis Street Performance Occasional Racing Use & Street Hight Performance
Damper Adjustable
No 24 levels rebound damping adjustable 24 levels rebound damping adjustable 24 levels rebound damping adjustable
Height Lowering Range
25-75mm 25-75mm 25-75mm 25-75mm
Damping oil
Standard damping oil Standard damping oil Standard damping oil Racing damping oil which maintains a stable viscosity
Spring Rate
F:7kg/mm ; R:8kg/mm F:7kg/mm ; R:8kg/mm F:7kg/mm ; R:8kg/mm F:7kg/mm ; R:8kg/mm
