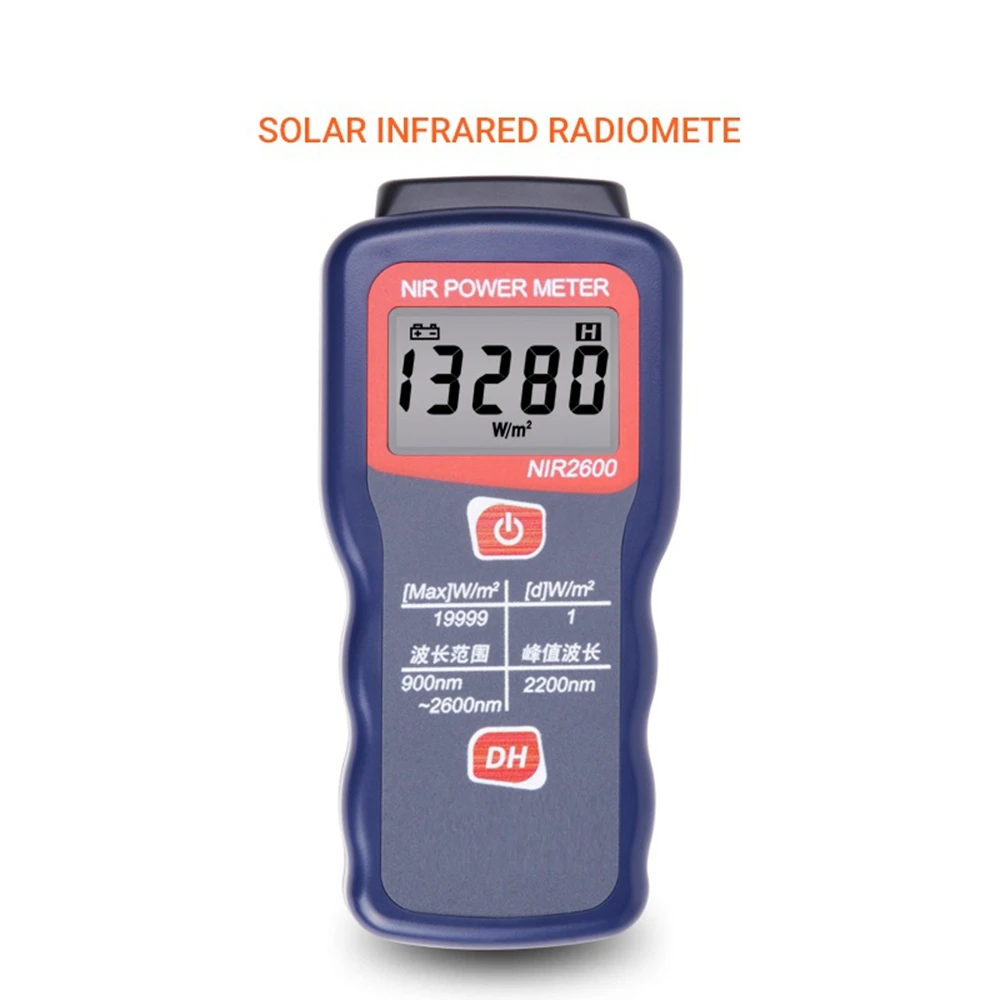

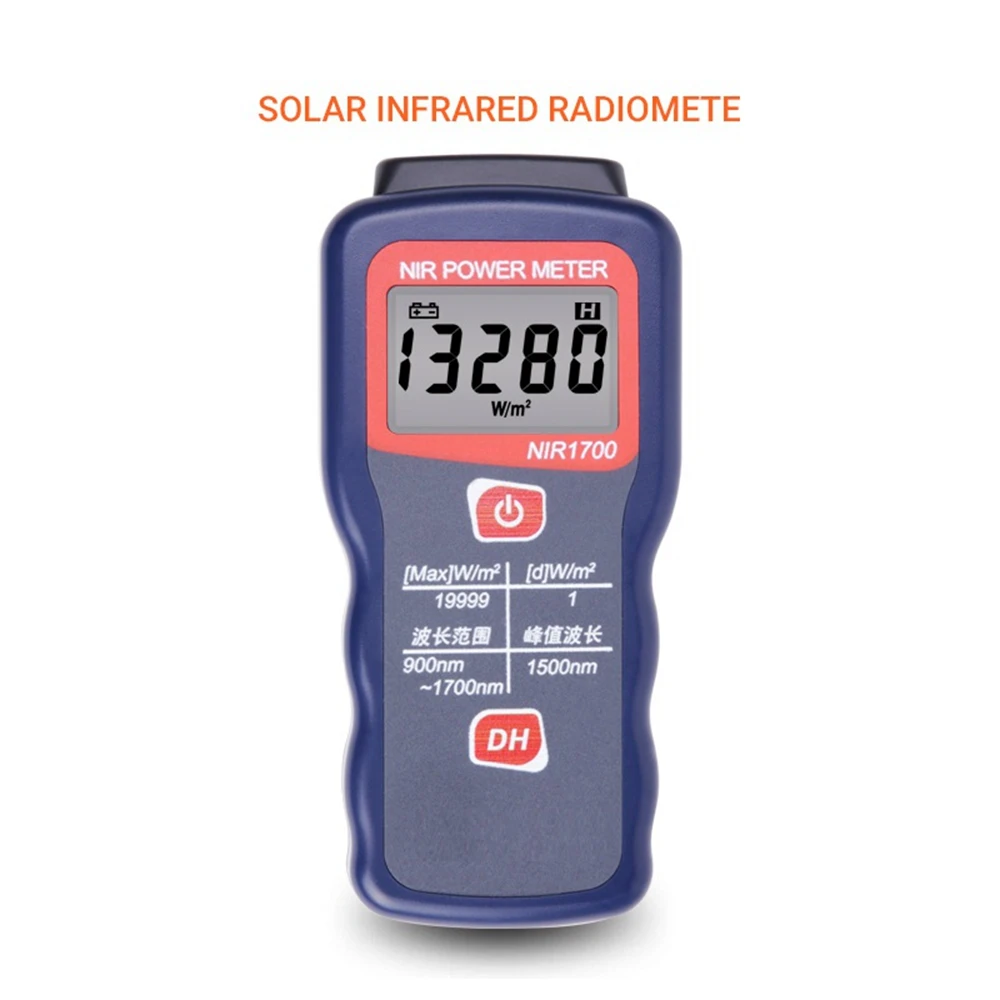

Description:

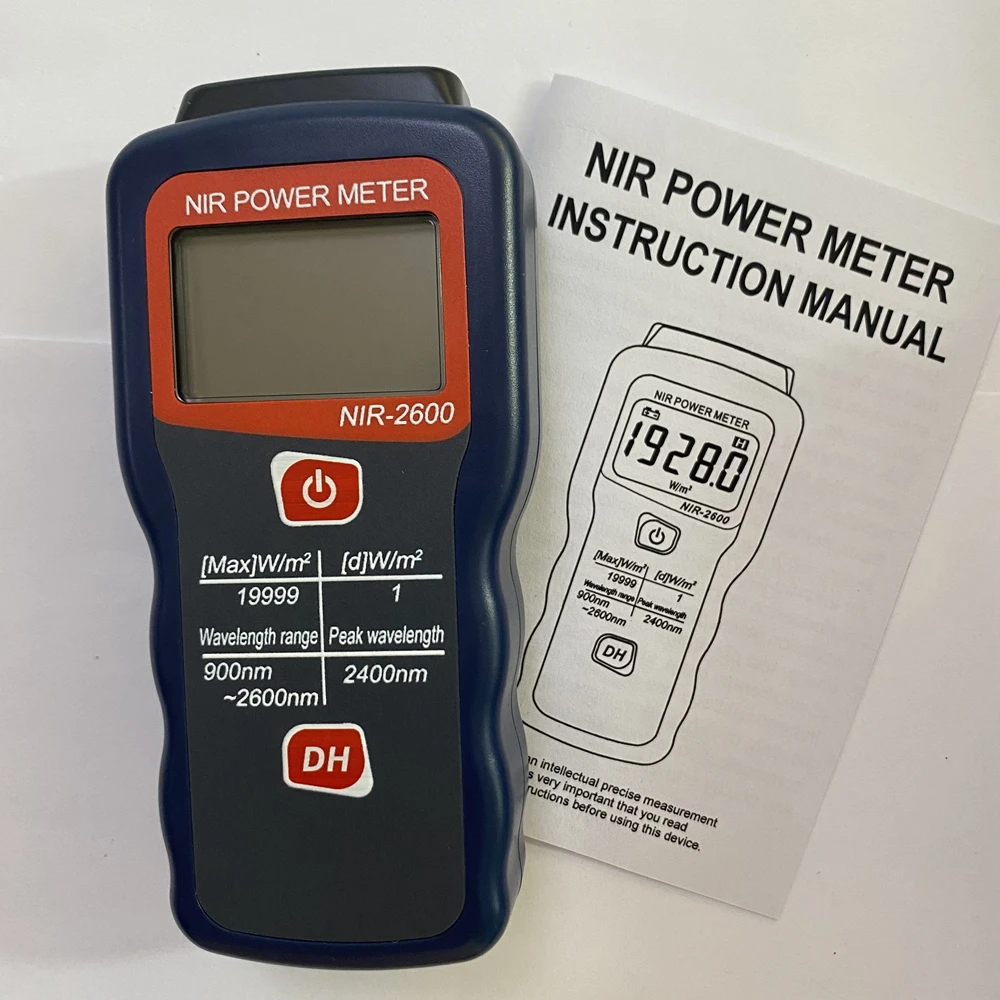

This instrument is a precision instrument for measuring the intensity of solar infrared radiation. It is applied to the radiation intensity measurement of infrared sources (sun, infrared lamps, etc.), the resistance performance test for infrared light (thermal insulation performance test) of building and automotive insulation glass, thermal insulation film etc, the energy test of infrared bath, infrared physiotherapy lamp, infrared electric heater. Infrared light sources are often used for heating, physiotherapy, night vision, communication, navigation, plant cultivation and poultry breeding, etc.

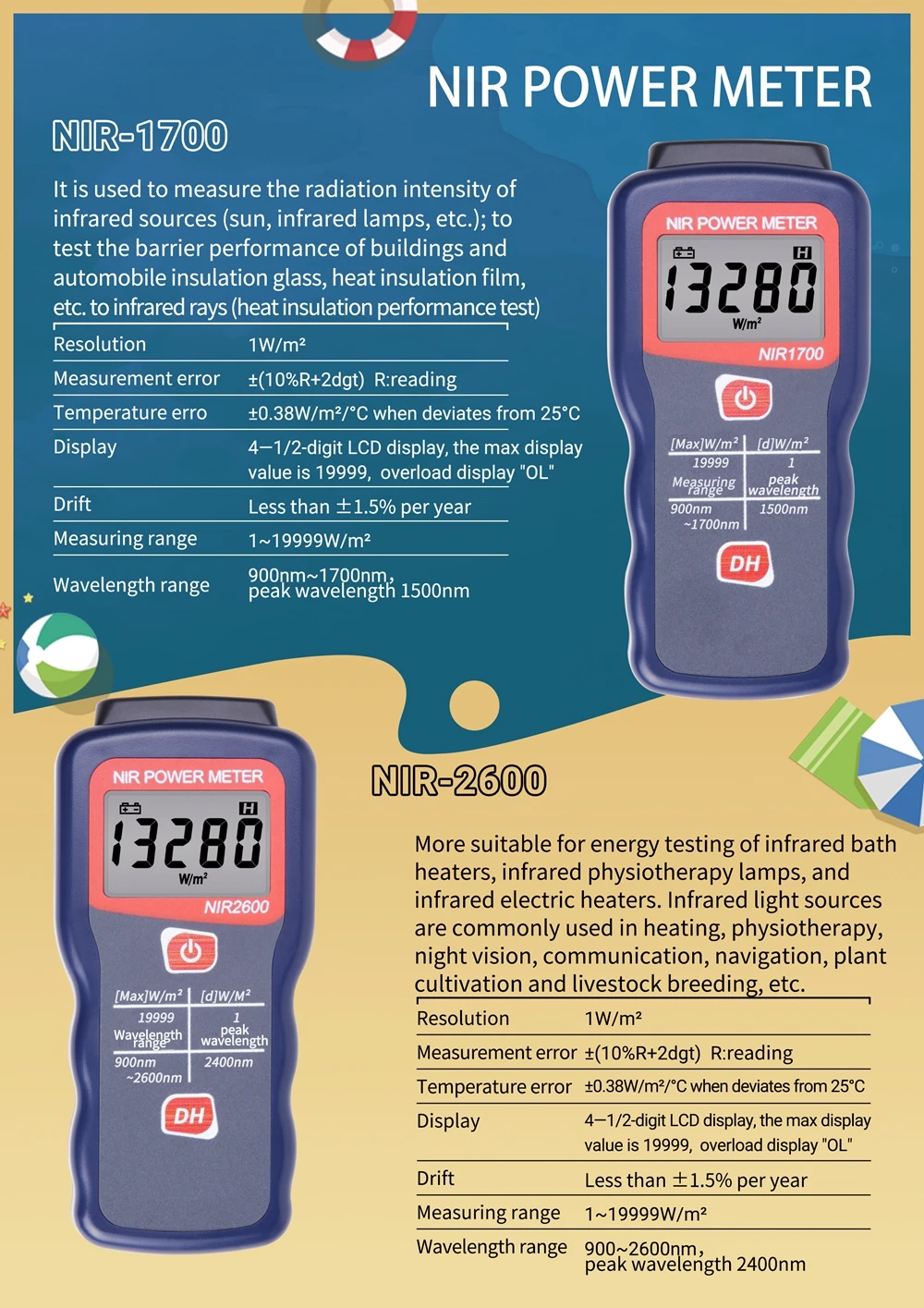

Specifications:

Resolution: 1W/m²
Error range: ± (10%R+2dgts) R:readings
Temperature error: ±0.38W/m² / ℃ deviation at 25℃

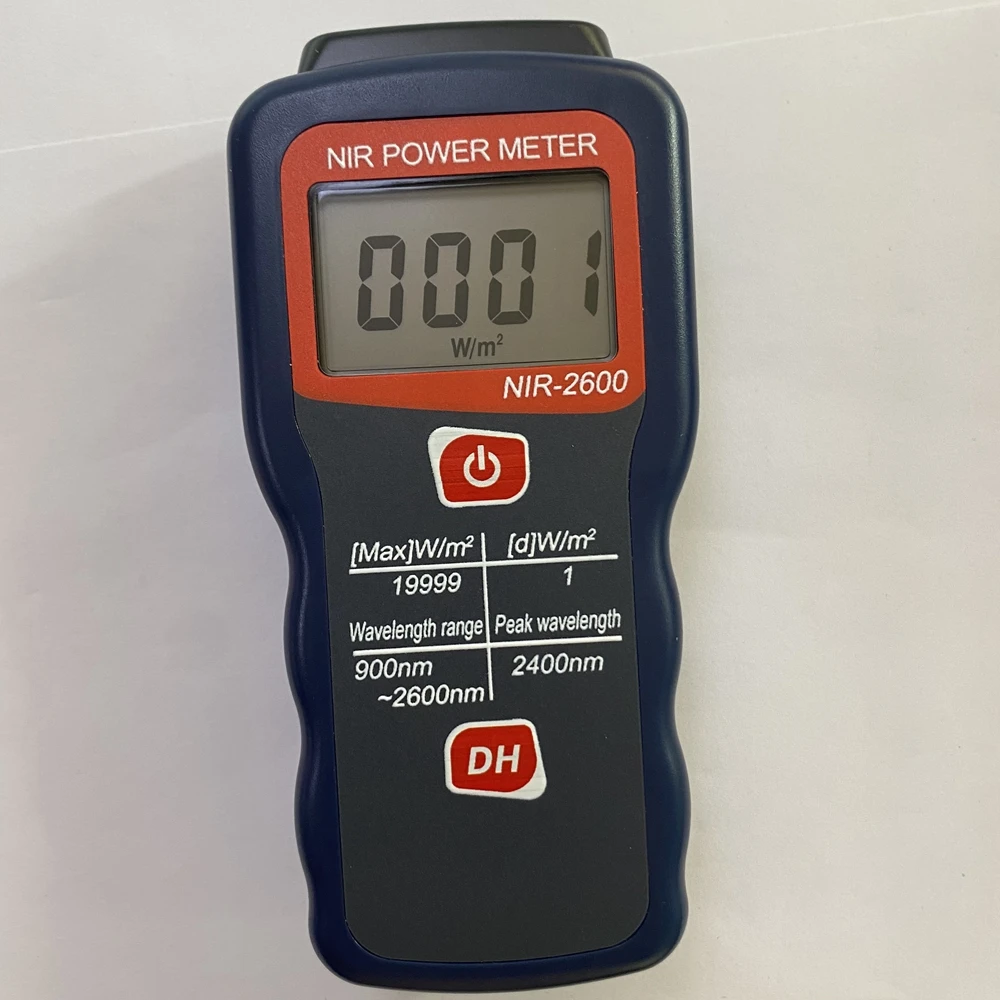

Display: 4 1/2 LCD display, maximum displayed numerical value 19999, over load “OL”
Drift: <±1.5% /year
Measuring range: 1-19999 W/m²
Wave length range: 900nm--1700nm/2600nm
Peak wave length :1500nm/2400nm
Sampling time: 2.5 times/s
Operation temperature and humidity: 0°C to 40°C <80%RH
Storage temperature and humidity: -10°C to 50°C <70%RH
Dimensions and weight: 132（L） x 60（W） x 38 （H）mm
Weight: approx. 150g

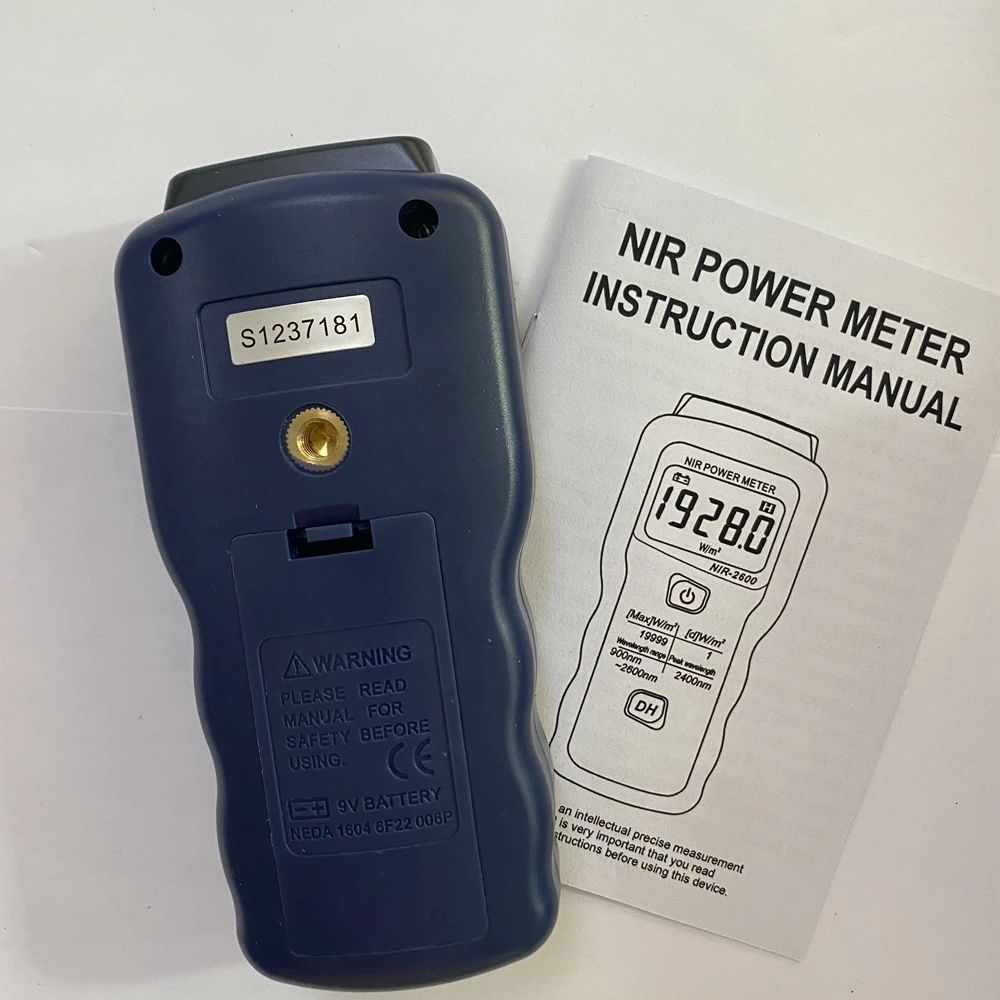

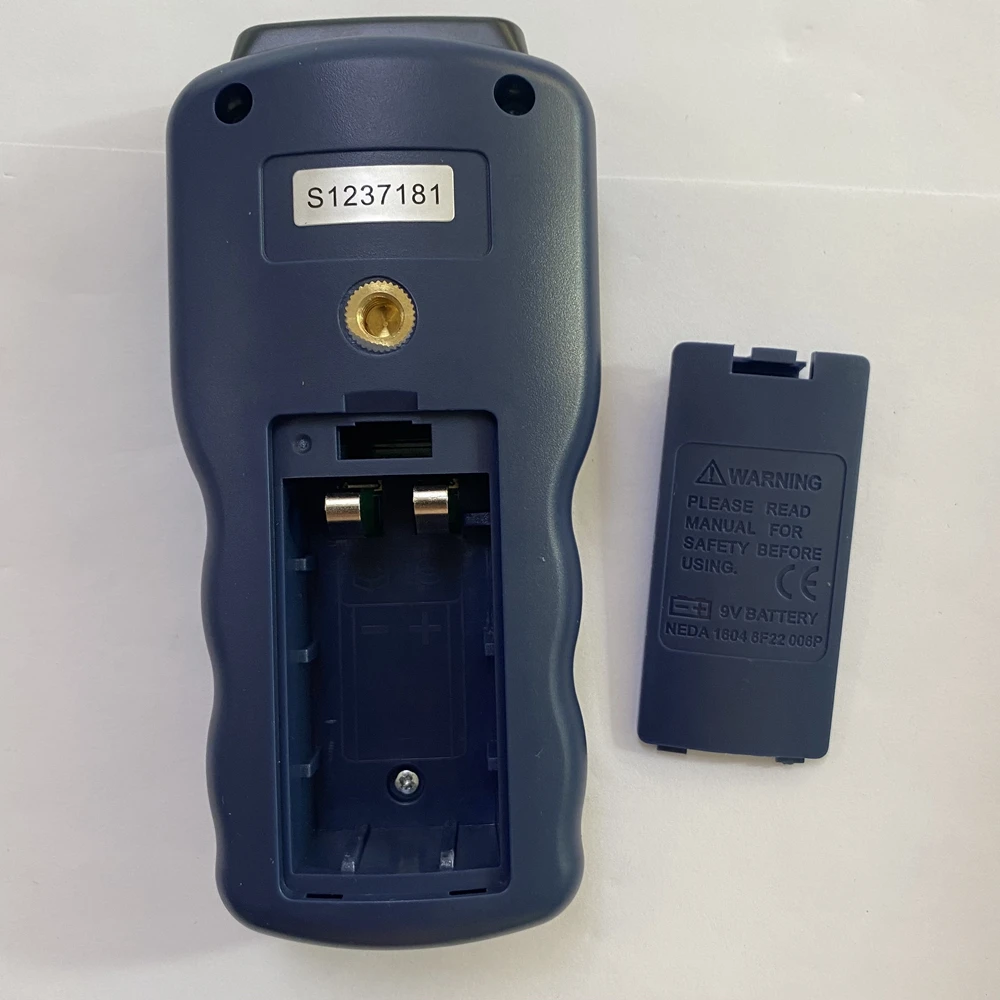

Battery: 6F22 alkaline 9V battery(Not Included)
Battery operation life: Approx. 100 hours
