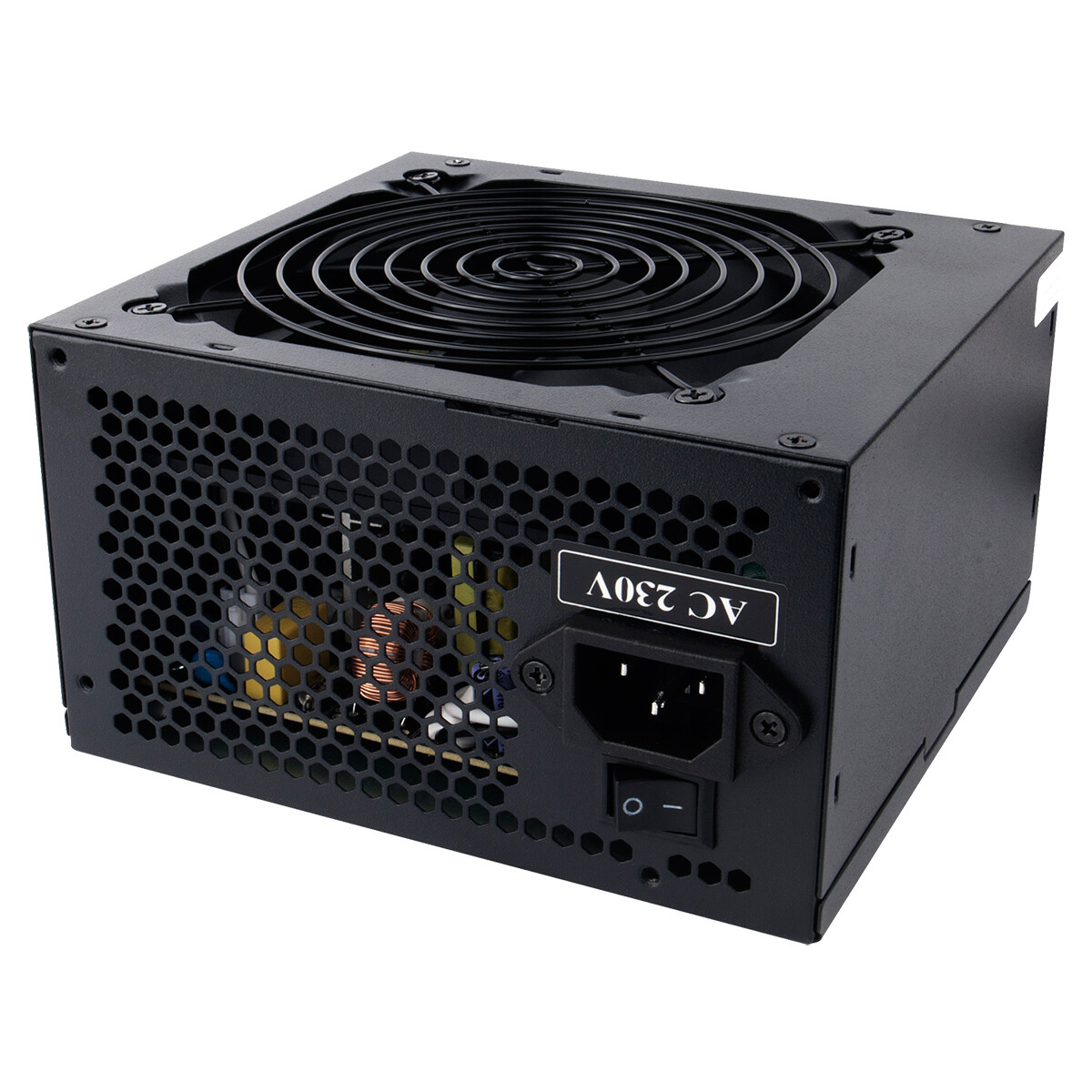

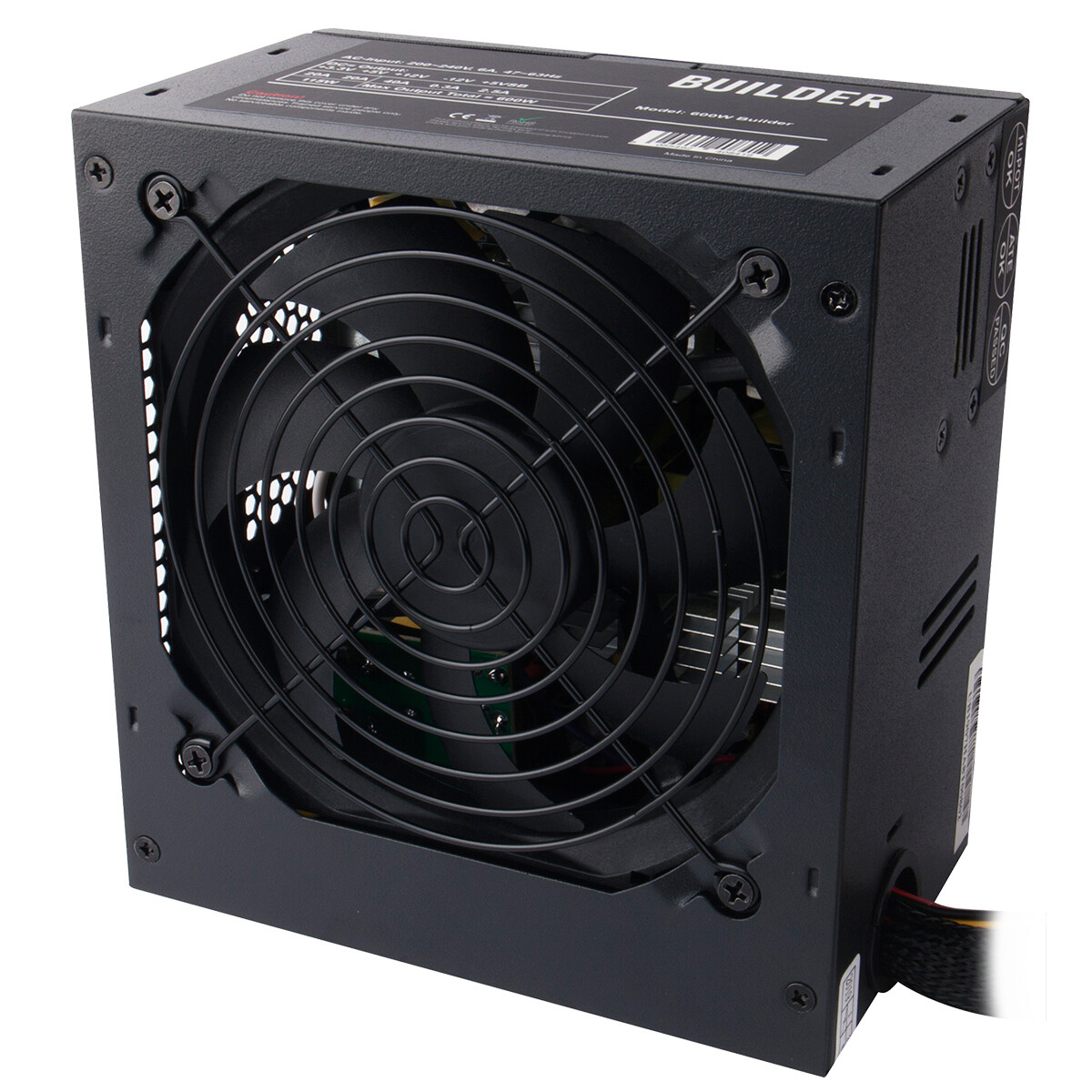

NEW Black 700W ATX PC Power Supply Unit PSU PCI-E 6x SATA 3x Molex 8-Pin 12V

DESCRIPTION
The new Builder range, are non-modular ATX power supplies which are an excellent entry level power supply for system builders who are looking to build basic systems or first time builders looking for a power supply that brings quality and value. This new range comes in two power configurations, a 600W and 700W version.

Key Features

  • Builder Series - The new Builder range is available in two configurations, a 600W or a 700W with an efficiency of 70%.
    •
  • Type - The Builder is an ATX 12V 700W power supply making it compatibility for all types of Mainboards and CPUs.
    •
  • Cooling Fan - A 12cm cooling fan enables excellent airflow and a power supply with a lower noise.
    •
  • Connectors - The Builder 700W comes with a 20 + 4 pin (535mm), 4 + 4 pin (545mm), 1 x 6 + 2 Pin (445mm), 4 x SATA (970mm), 1 x SATA / 1 x Molex / 1 x FDD (685mm) & 2 x Molex & 1 x SATA (640mm).
    •
  • Protection - Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP), Over Power Protection (OPP) and Short Circuit Protection (SCP).

PSU Specifications                                                                                                                                         AC INPUT: 200-240VAC 6A 47-63HZDC
Output
Max+3.3V+5V+12V1-12V+5VSB18A20A48A0.3A2.5A700W Rails & Connectors:    1 x 24-Pin (20 + 4 pin, 55cm),   1 x 8-Pin 12V (4 + 4 pin, 55cm),   1 x 8-Pin PCI-Express (6 + 2 Pin, 45cm),   4 x SATA (97cm),   1 x SATA / 1 x Molex / 1 x FDD (68cm),   2 x Molex & 1 x SATA (64cm).
Detailed Specifications


  • Dimensions:    150mm x 85mm x 140mm (W x H x D)
    •
  • Input Voltage:    200-240VAC
    •
  • Input Current:    6A
    •
  • Input Frequency Range:    47-63HZ
    •
  • PFC:    PPFC
    •
  • Power Good Signal:    306ms
    •
  • Hold Up Time:    8ms
    •
  • Efficiency:    70%
    •
  • MTBF:    50,000 Hours
    •
  • Protection:    OVP / UVP / OLP / OPP / SCP
    •
  • Power:  up  to  700W
    •
  • Operation Temperature:    0-40
    •
  • Safety:    CE / CCC
    •
  • Cooling:    120mm Cooling Fan
    •
  • Noise:    40dBA

Package Contents

  • Builder 700W ATX Power Supply
  • Screw x 4
