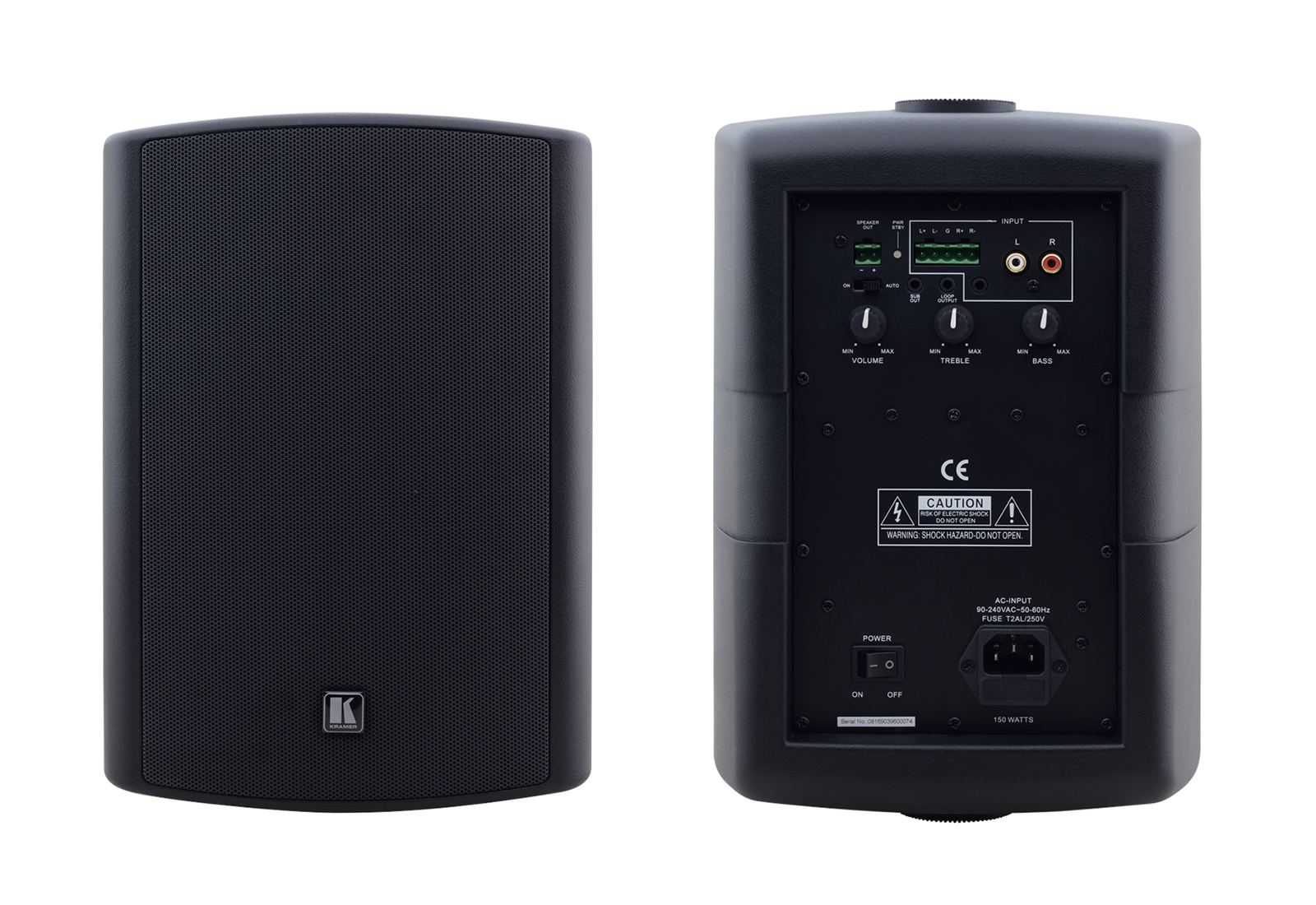

The Tavor 6-O is a pair of 6.5in on-wall powered two-way speakers designed for indoor installations where compact footprint and integrated amplification are required. The active unit contains a built-in amplifier that delivers 2 x 50W RMS and drives the passive speaker directly. The speakers are magnetically shielded and designed to provide clear full-range audio in background music and speech-focused environments. Key features include a 6.5in polypropylene woofer and a 1in silk dome tweeter, an enhanced bass reflex enclosure and front-panel controls for volume, treble and bass. The active speaker accepts multiple line-level inputs including RCA, 3.5mm mini jack and a balanced terminal block. A 3.5mm line output is provided for an optional subwoofer and a loop output for chaining additional equipment. Performance specifications include a frequency response down to 45Hz at -10dB and a rated sensitivity of 85dB SPL at 1W/1m. The system achieves a continuous SPL of 100dB and a peak of 108dB, with THD below 0.15% and a signal-to-noise ratio in the 80-90dB range. Directional characteristics are specified with a Q of 7.5 and a directivity index of 8.7dB averaged from 1kHz to 10kHz. Connectivity and power options support flexible integration into AV systems - the active speaker accepts unbalanced and balanced line inputs and supplies a speaker output to the passive cabinet. The amplifier auto-selects input voltage from 90 to 240V AC and includes an Auto Power standby function that wakes on signal presence. Installation hardware and interconnect cables are supplied to simplify setup and reduce integration time. Typical use cases include small conferencing rooms, classrooms, presentation spaces and home theater zones where wall-mounted speakers reduce floor clutter and provide stable coverage. The enhanced bass reflex design and controlled dispersion make the pair suitable for speech intelligibility and light music playback. The magnetically shielded design prevents interference with nearby displays and equipment. Installation is straightforward with the supplied U-shaped rotating mounting brackets and adjustable knobs, offering front-panel clearance and a slim wall profile. The cabinets use an aluminum grill and steel brackets with an ABS enclosure for durable everyday use. The Tavor 6-O pair balances compact dimensions, onboard amplification and simple controls to deliver a practical on-wall speaker solution. Specifications: | DESCRIPTION | 2-way powered speaker | | BUILT-IN POWER AMPLIFIER | 2 x 50W RMS, 2 x 140W continuous program | | FREQUENCY RESPONSE | 45Hz to 20kHz at -10dB, 50Hz to 20kHz at +/-3dB | | WOOFER | 6.5in polypropylene cone, rubber edge | | TWEETER | 1in silk dome | | SENSITIVITY | 85dB SPL, 1W at 1m | | MAX SPL | Continuous 100dB, Peak 108dB | | POWER SOURCE | 90-240V AC 50/60Hz | | IMPEDANCE | 4 ohm | | CROSSOVER FREQUENCY | 8kHz | | DIRECTIVITY FACTOR (Q) | 7.5 averaged 1kHz to 10kHz | | DIRECTIVITY INDEX (DI) | 8.7dB averaged 1kHz to 10kHz | | INPUT CONNECTORS | 3.5mm mini jack unbalanced, terminal block balanced, RCA unbalanced | | OUTPUT CONNECTORS | Speaker output to passive speaker, 3.5mm subwoofer line out, 3.5mm loop out | | DISPERSION COVERAGE | Vertical 54deg at 2000Hz, Horizontal 65deg at 2000Hz | | DAMPING FACTOR | 19 at 4ohm/1000Hz | | S/N RATIO | 80-90dB | | THD | <=0.15% | | CONTROLS | Volume, Bass, Treble | | INPUT POWER | ON or AUTO | | STANDBY MODE POWER CONSUMPTION | 0.5W | | INPUT LEVEL FOR SYSTEM "WAKE-UP" FROM STANDBY MODE | 12mV | | MATERIALS | Aluminum grill, Steel brackets, ABS cabinet | | WEIGHT PER SINGLE SPEAKER | Active 3.6kg (7.93lbs) approx | | Passive Speaker | 2.7kg (5.93lbs) approx | | 3.2kg (7.05lbs) approx | | WEIGHT WITH MOUNTING KIT | Active 4.2kg (9.25lbs) approx | | SHIPPING WEIGHT (FOR PAIR) | 9.25kg (20.39lbs) approx | | DIMENSIONS with mounting brackets | 21cm x 25cm x 32cm (8.3in x 9.8in x 12.6in) W D H | | INSTALLATION CLEARANCE | 25cm (9.8in) front panel to wall (with mounting bracket) | | INSTALLATION CLEARANCE | 6.3cm (2.5in) back panel to wall (with mounting bracket) | | OPERATING TEMPERATURE | -15deg C to +70deg C (5deg F to 158deg F) | | STORAGE TEMPERAURE | -30deg C to +55deg C (-22deg F to 131deg F) | | HUMIDITY | 25% to 90% RHL non-condensing | | ACCESSORIES | U-shaped rotating mounting brackets with 4 knobs, 4m power cord, 4m loudspeaker cable, 2m 3.5mm to 2 RCA cable | | COLORS | Black, White |
|
