760S Display:

Electric Bike LCD Display,Waterproof Electric Bicycle LCD Instrument 760S 8 Fun DisplayEbike Screen Intelligent LCD Display Panel for BAFANG BBS01 BBS02 BBSHD Mid Drive Motor

  About this item:

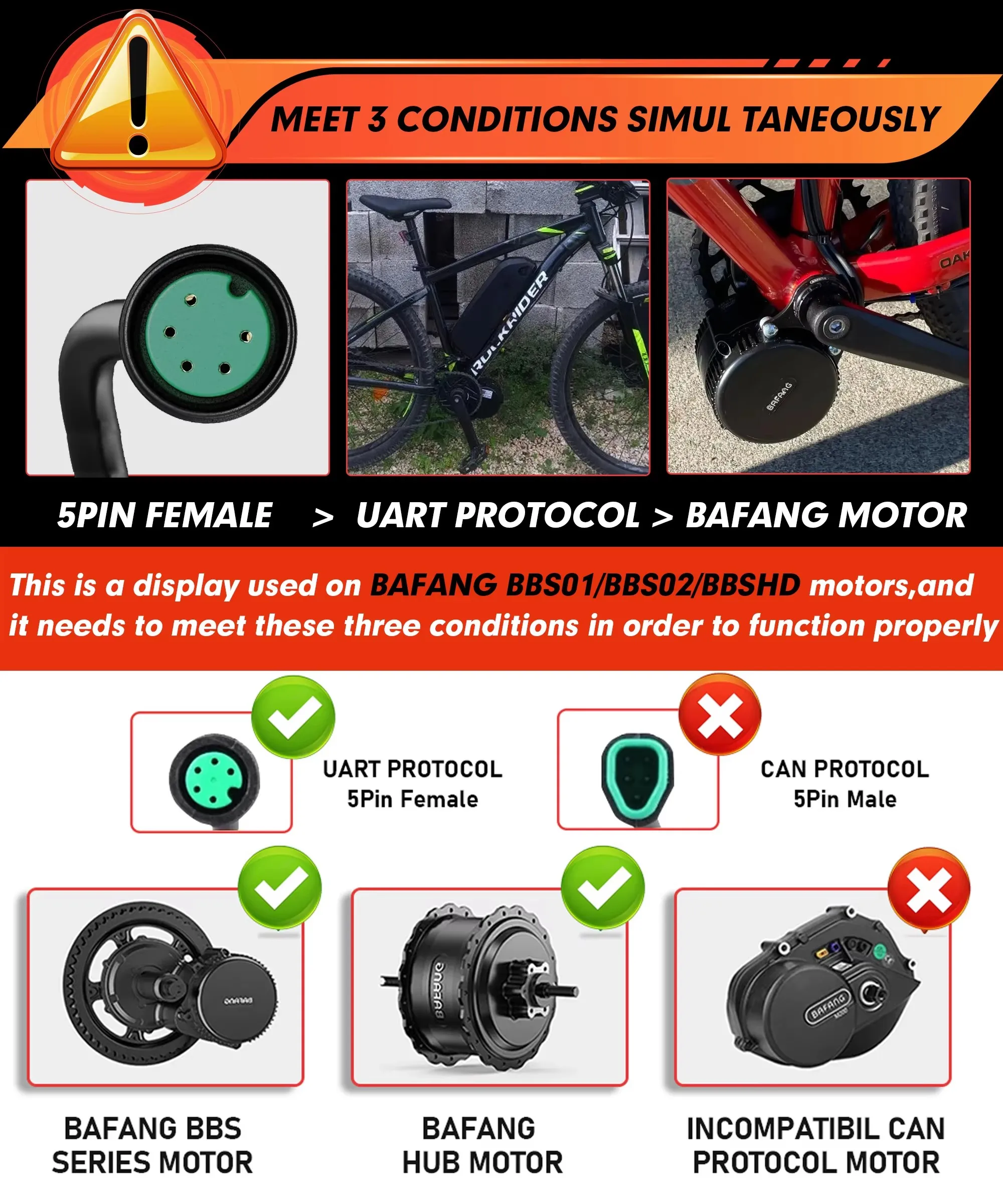

●[ COMPATIBILITY ] This small-sized ebike display 760S is only compatible with BAFANG elctric bike motor with UART 5.0~5.8 protocol . If you are not sure , please message us before purchasing

●[ INTELLIGENT 760S ABS & PC DISPLAY ] Thescreen offers exceptional visibility , even in bright sunlight , allowing you to easily monitor your ride

●[ EASY INSTALLATION ] The 760S can be installed on the left side of the horizontal tube with a handlebar size of φ22.2mm , making installation a breeze

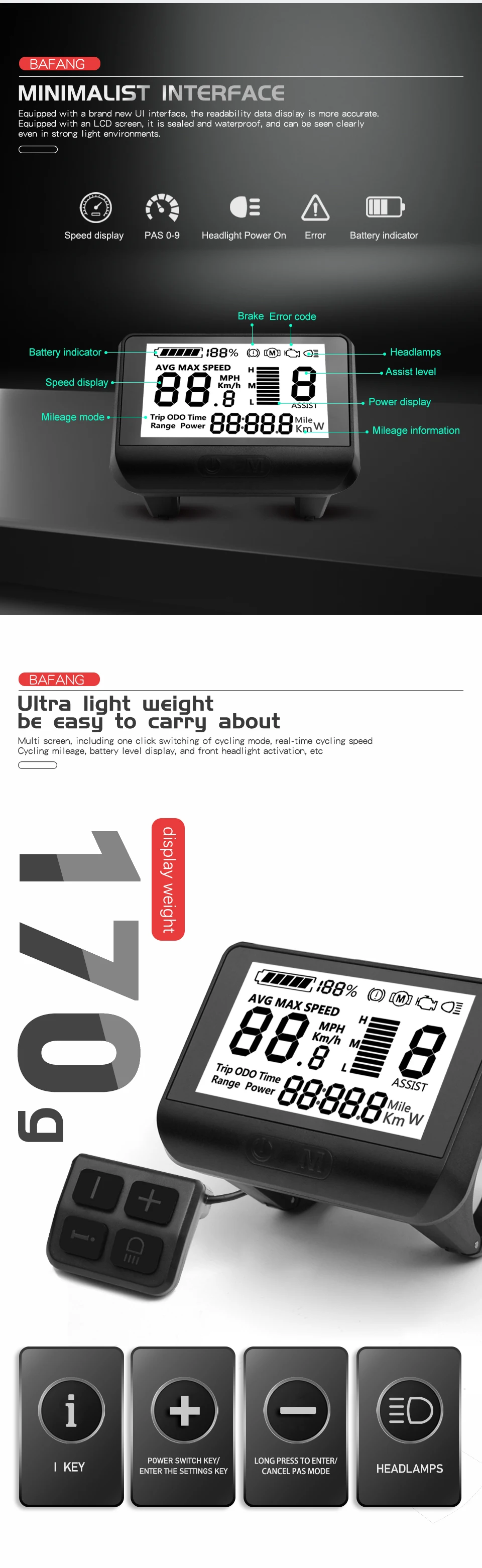

●[ Comprehensive Data Display ] The 760S displays a variety of important data , including speed , headlight , battery indication , helping you stay informed and safe during your ride .

  Features:

ØSuitable for low temperature，Max -30℃.

ØErgonomic external button design, easy to operate.

ØSpeed display: AVG SPEED, MAX SPEED, SPEED (Real-time).

ØKilometer / Mile: Can be set according to customers’ habits.

ØSmart battery indicator: Provide a reliable battery indicator.

ØThe brightness of the backlight adjustable : 5-sections.

Ø5-level Assist : 3-level/5-level/9-level optional.

ØMileage indicator: Odometer/Trip distance/ Clock/ Riding time.

ØError code indicator.

ØWalking mode（6km).

ØSoftware upgraded: Software can be upgraded through UART.

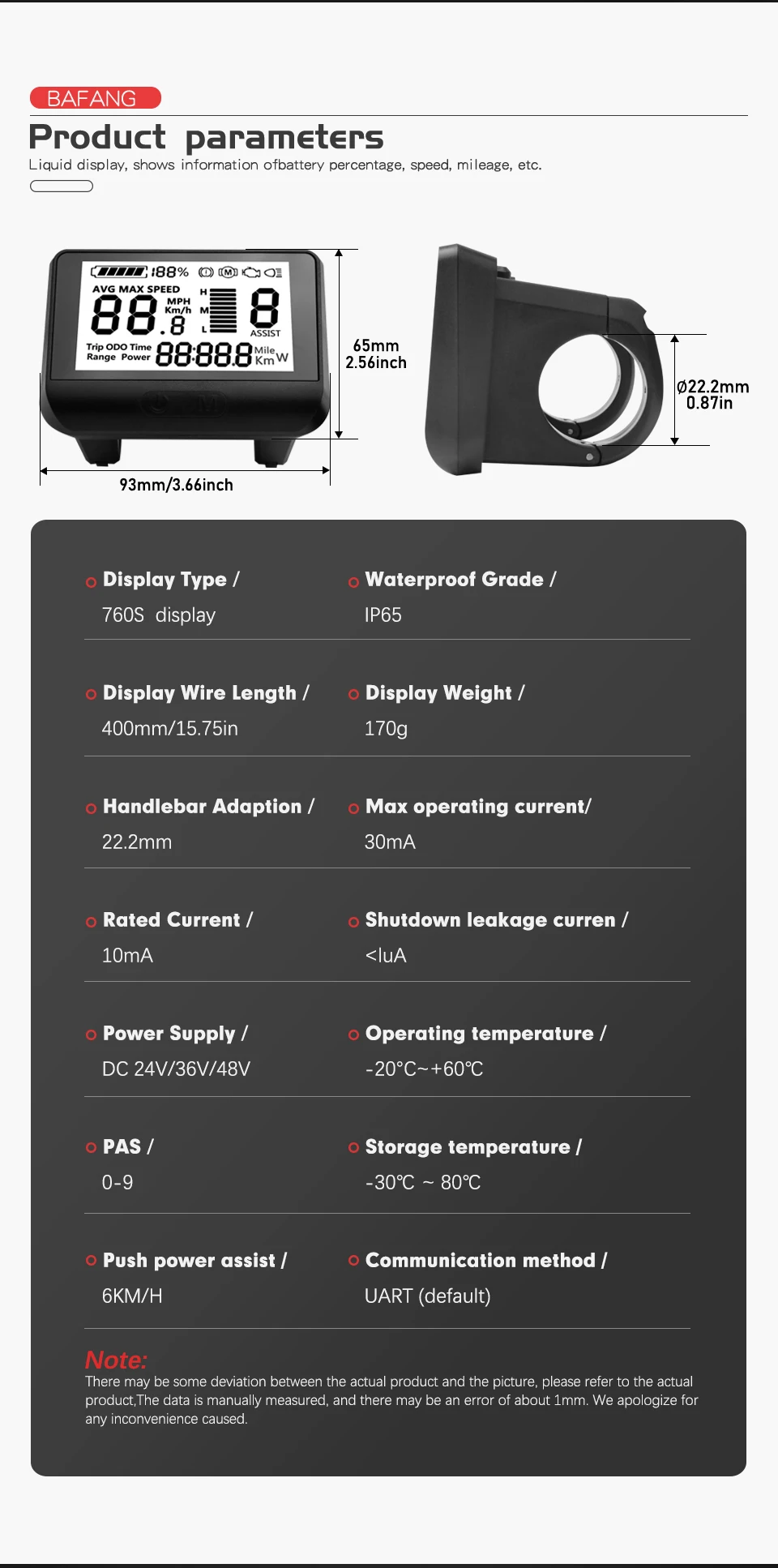

  Specification:

• Power supply: 24V/36V/48V

• Rated current:18mA/36V

• Weight:170g

• Support levels mode: 0-5

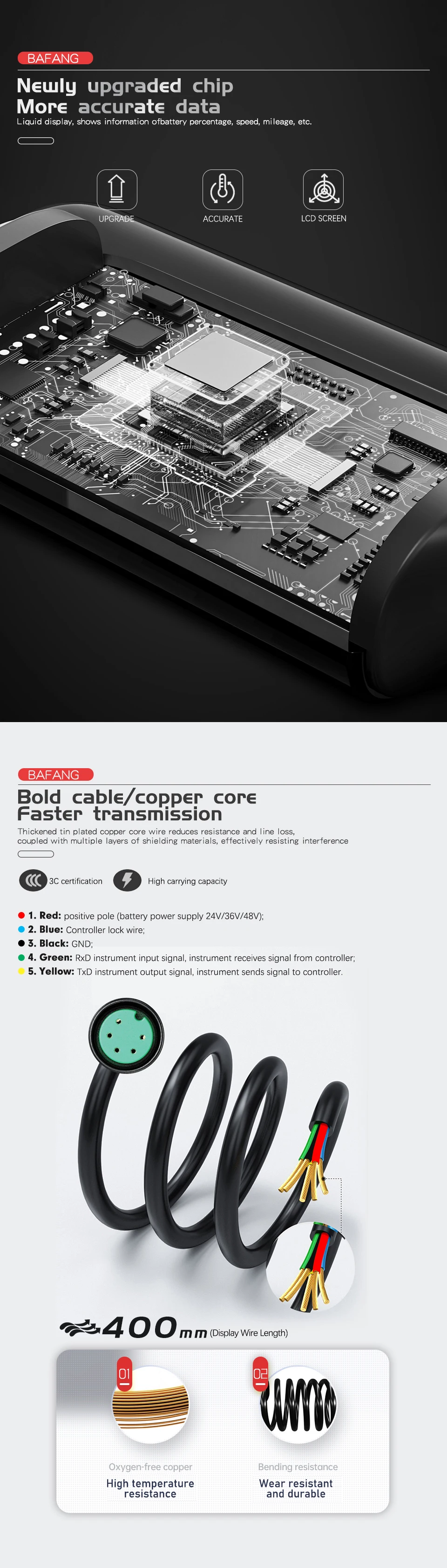

• Communication mode: UART

• Rated operating current : 10mA

• Max operating current : 30mA

• Off leakage current < 1uA

• Max output current to controller : 50mA

• Operating temperature : -30～70℃

• Storage temperature : -40～70℃

• Waterproof grade: IP65

• Storage humidity: 30%-70%

• Only suitable for Bafang engine
