Rear Coilover Suspension Kit for Holden Commodore VE Sedan Wagon Ute 06-13

Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable, which offer you a lowered stance, and improved performance for your daily use vehicle.

Package included

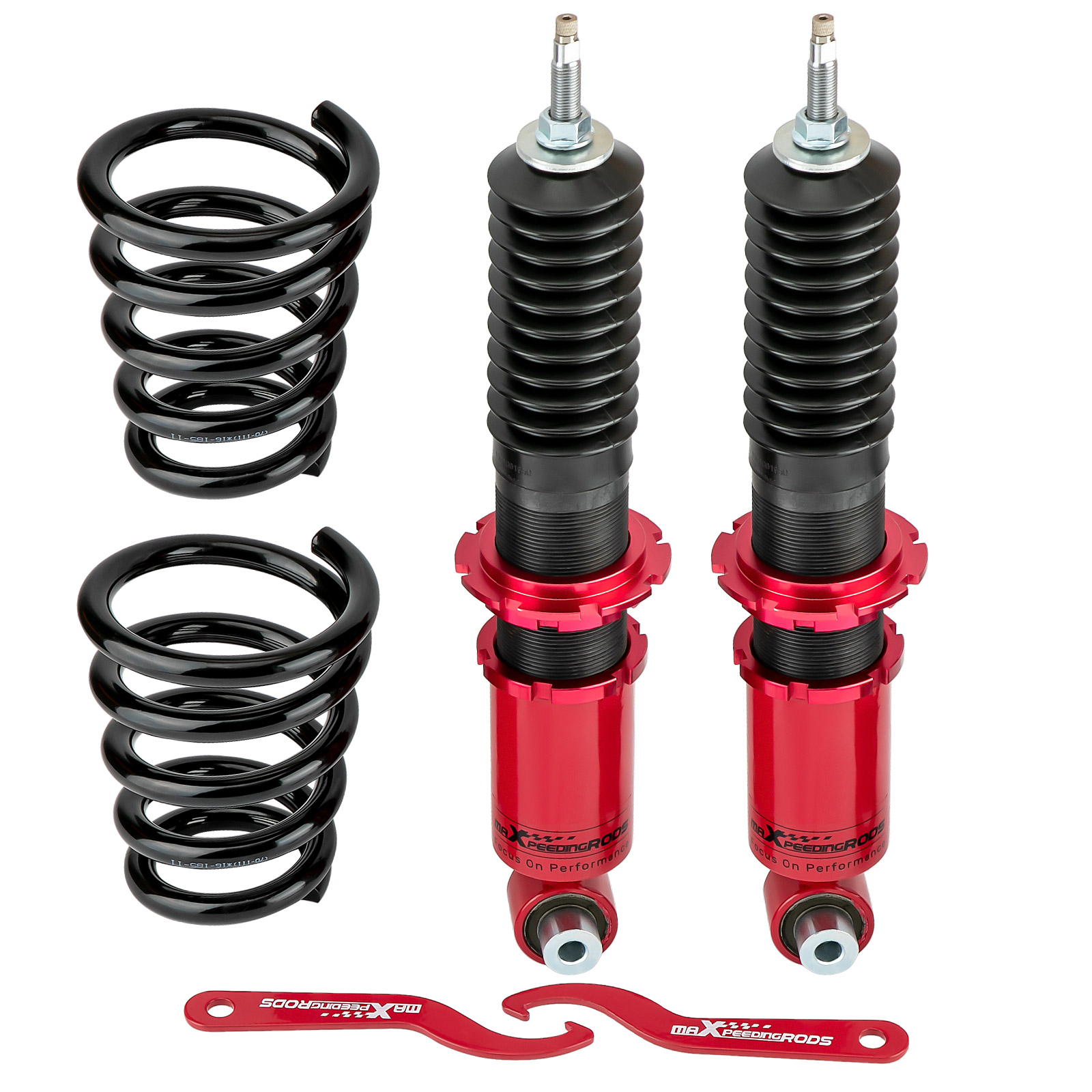

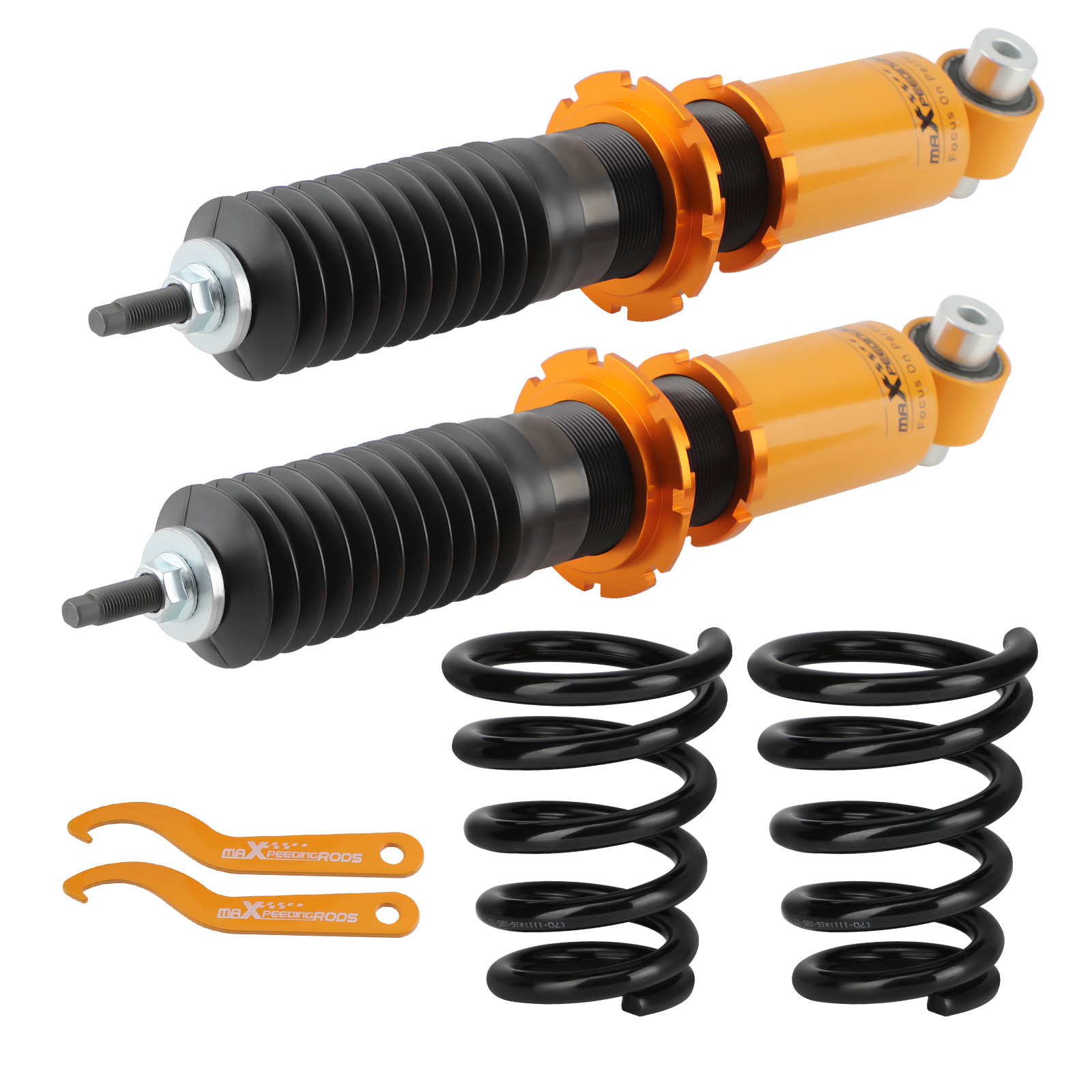

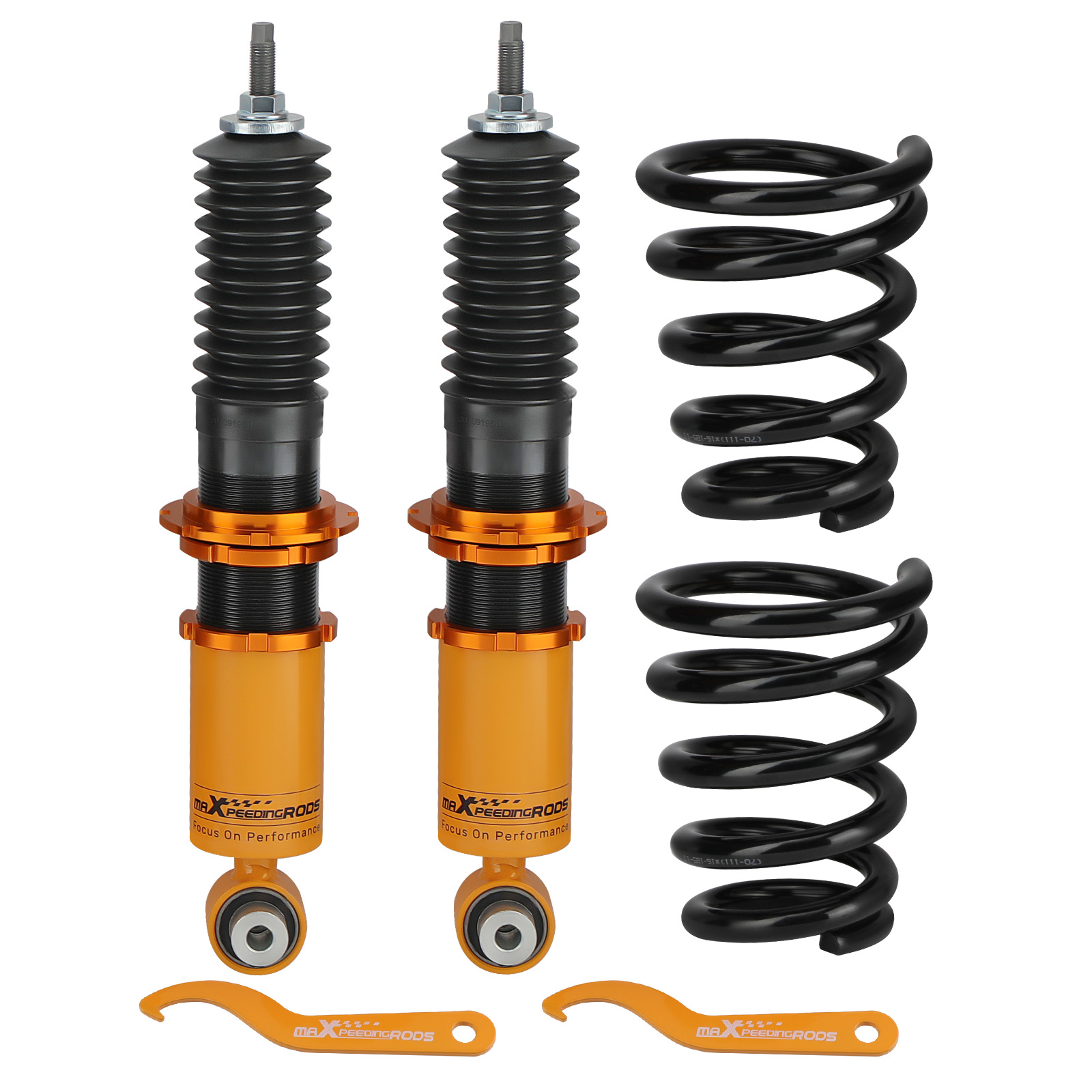

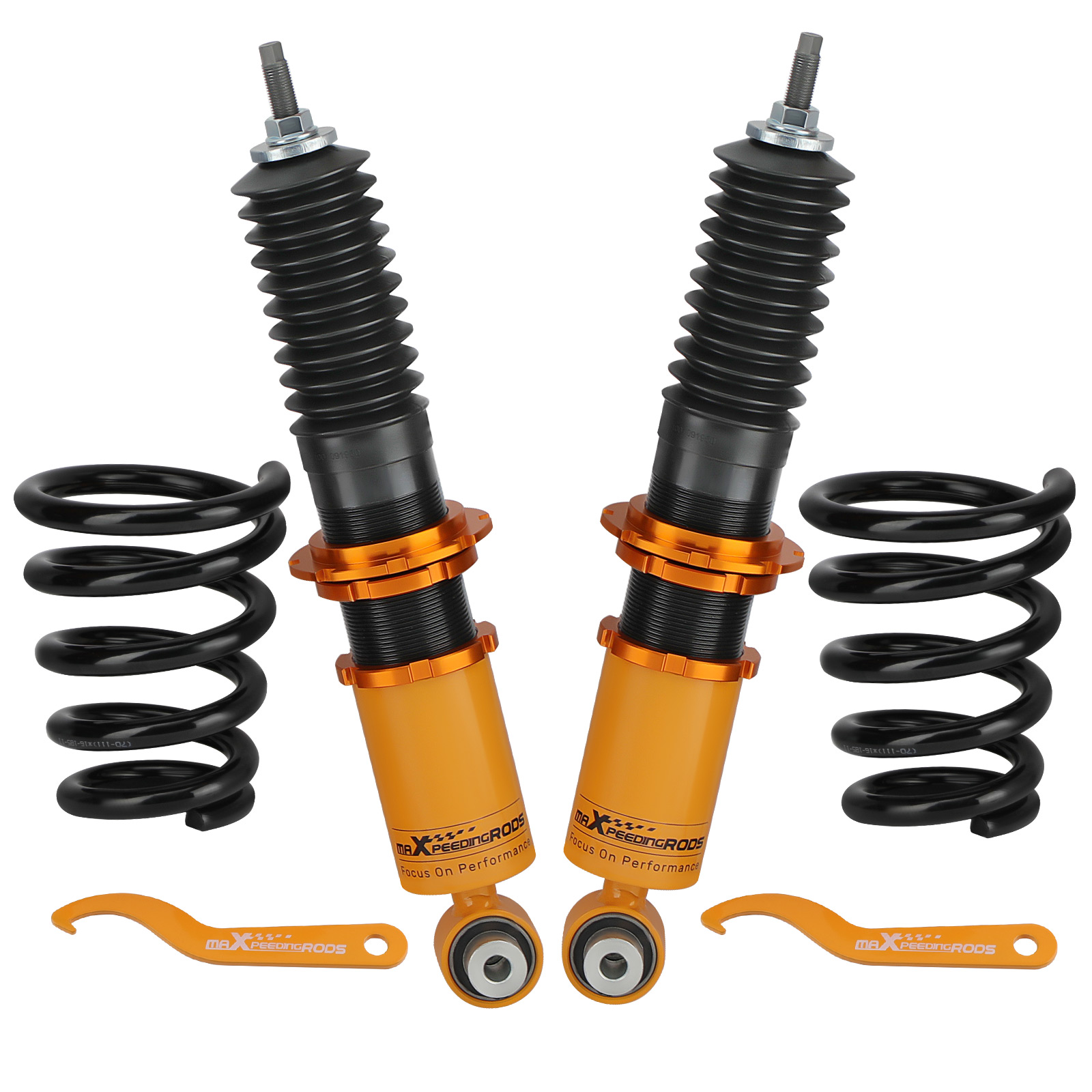

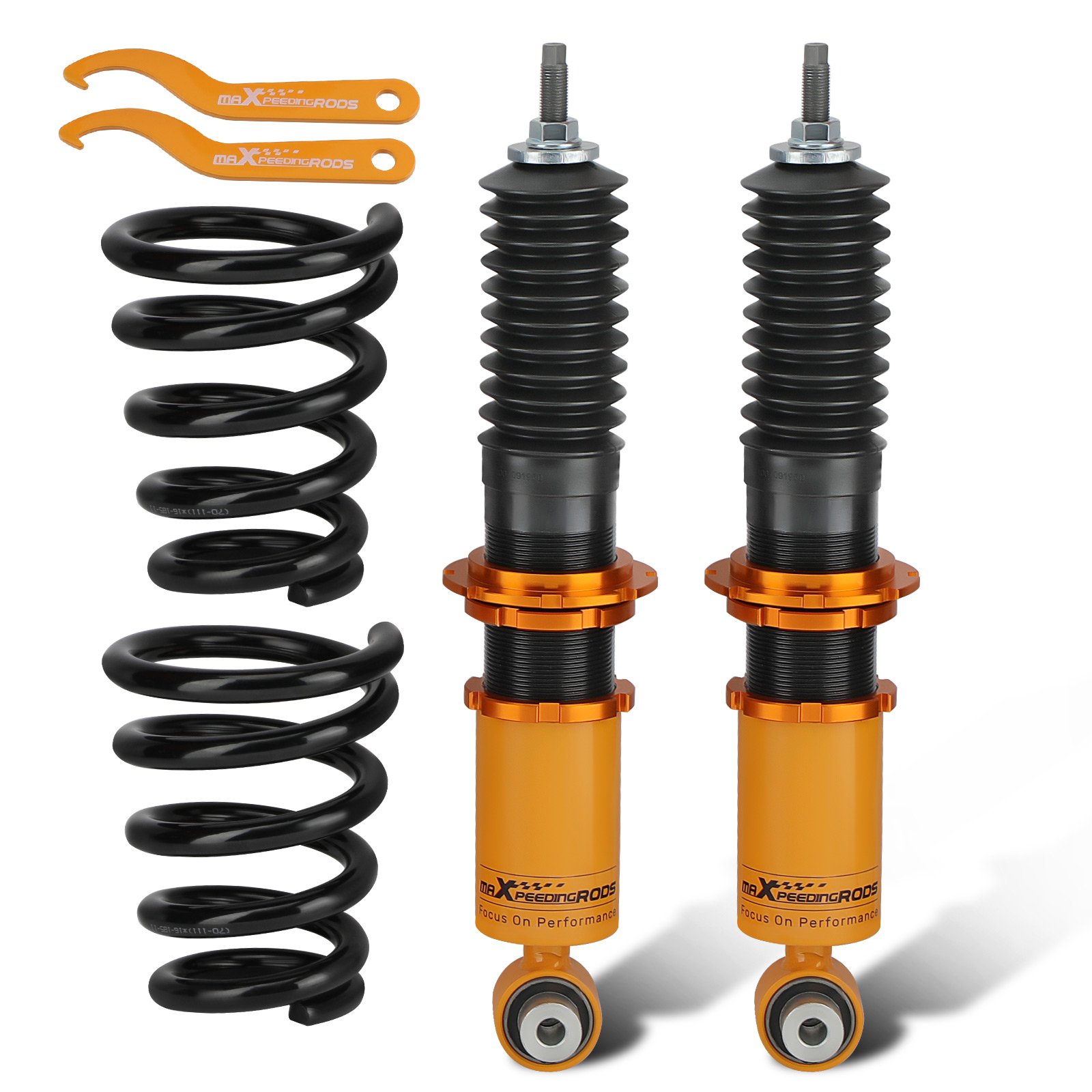

1 x Set of Rear Coilover Spring Kit
1 x Pair of wrenches for height adjustment
(Note: no top mounts included.)

Application

For Holden Commodore VE Sedan 2006-2013
For Holden Commodore VE Wagon 2008-2013
For Holden Commodore VE Ute 2007-2013

Standard Technical Specifications

Rear Top mount	OE top mounts required
Damping adjustable	Not available
Camber adjustable	Not available
Rear Lowering	25-75mm

Spring Rate Rear	8 kg/mm (448 lbs/in)
Spring length Rear	185mm
Coilover overall length Rear	405mm-445mm

Feature

Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

	B2 See Details	B3 See Details
Application Scene	Street Basis	Street Basis
Damping	Non adjustable	24 levels rebound damping adjustable
Height Lowering Range	25-75mm	25-75mm
Spring Rate Rear	8 kg/mm (448 lbs/in)	8 kg/mm (448 lbs/in)
Damping oil	Standard damping	Standard damping
