Product Details
Features
1. Designed for DIY projects like wireless remote-controlled cars, boats, robots, and mechanical devices

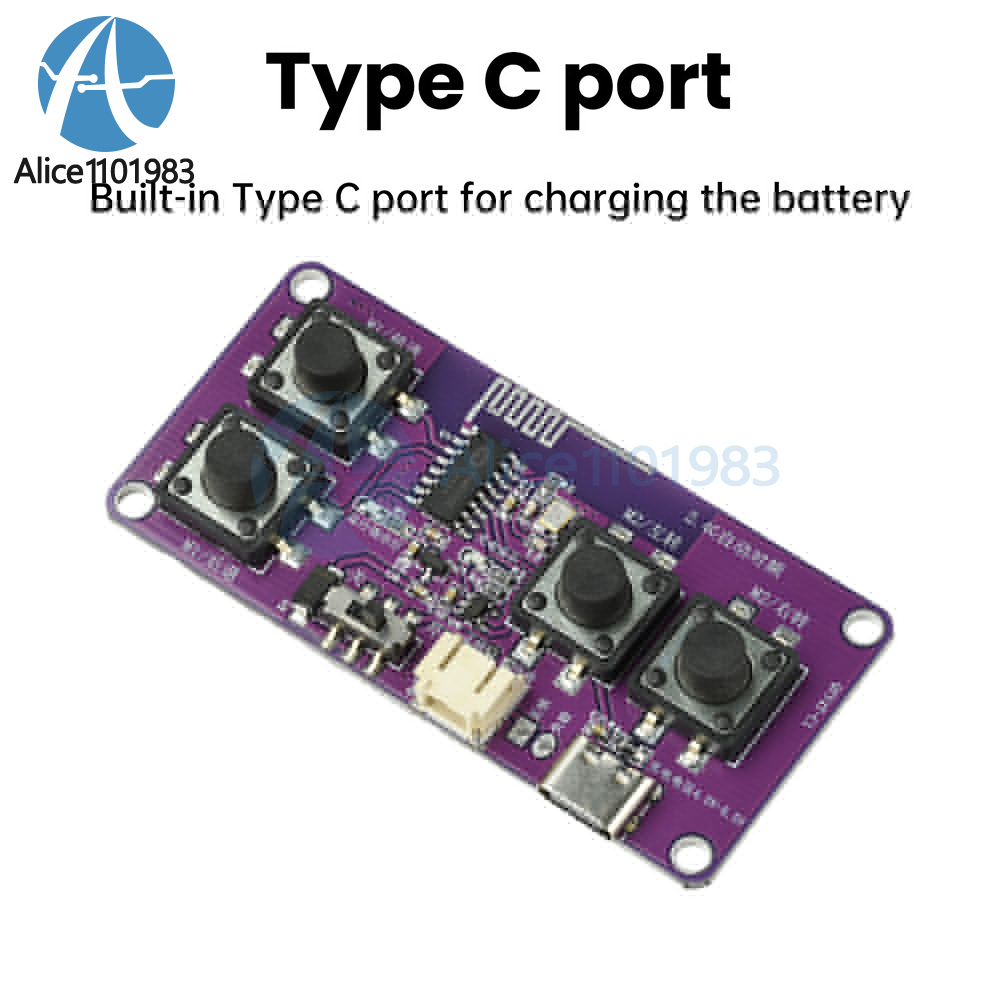

2. Built-in Type-C port for battery charging

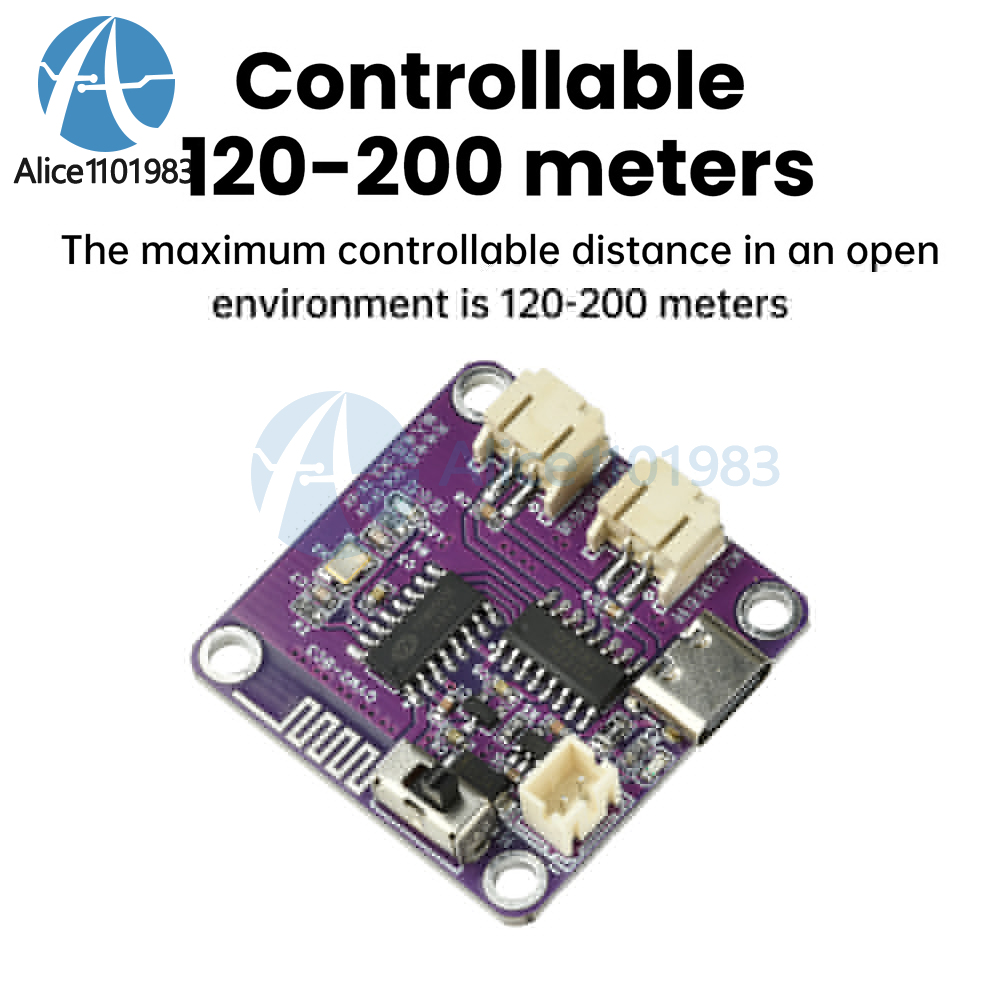

3. Tested remote control range: 120-200 meters in open environments
4. Intelligent auto-frequency pairing with indicator lights for intuitive operation
5. XH2.0 and PH2.0 standard connectors ensure stable, reliable connections
6. Independent channels prevent interference; multiple kits operate simultaneously with automatic pairing based on power-on sequence
Parameter

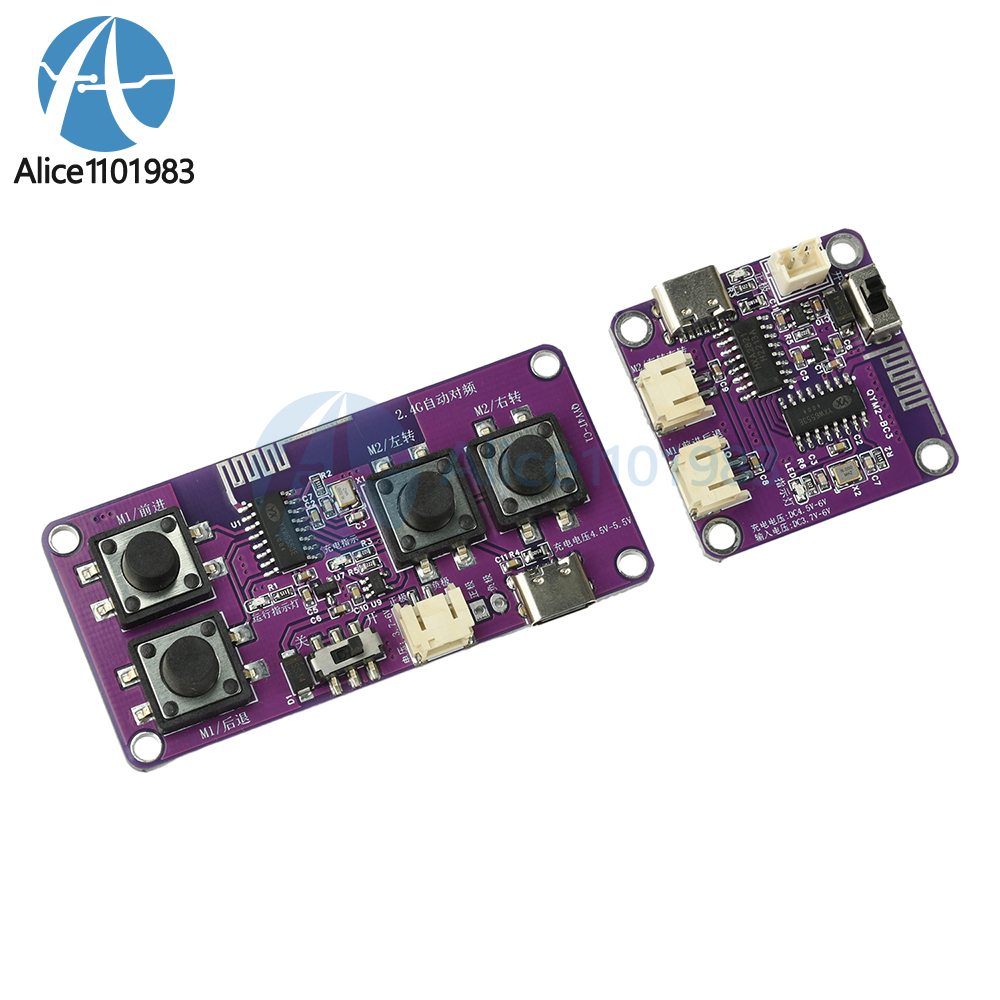

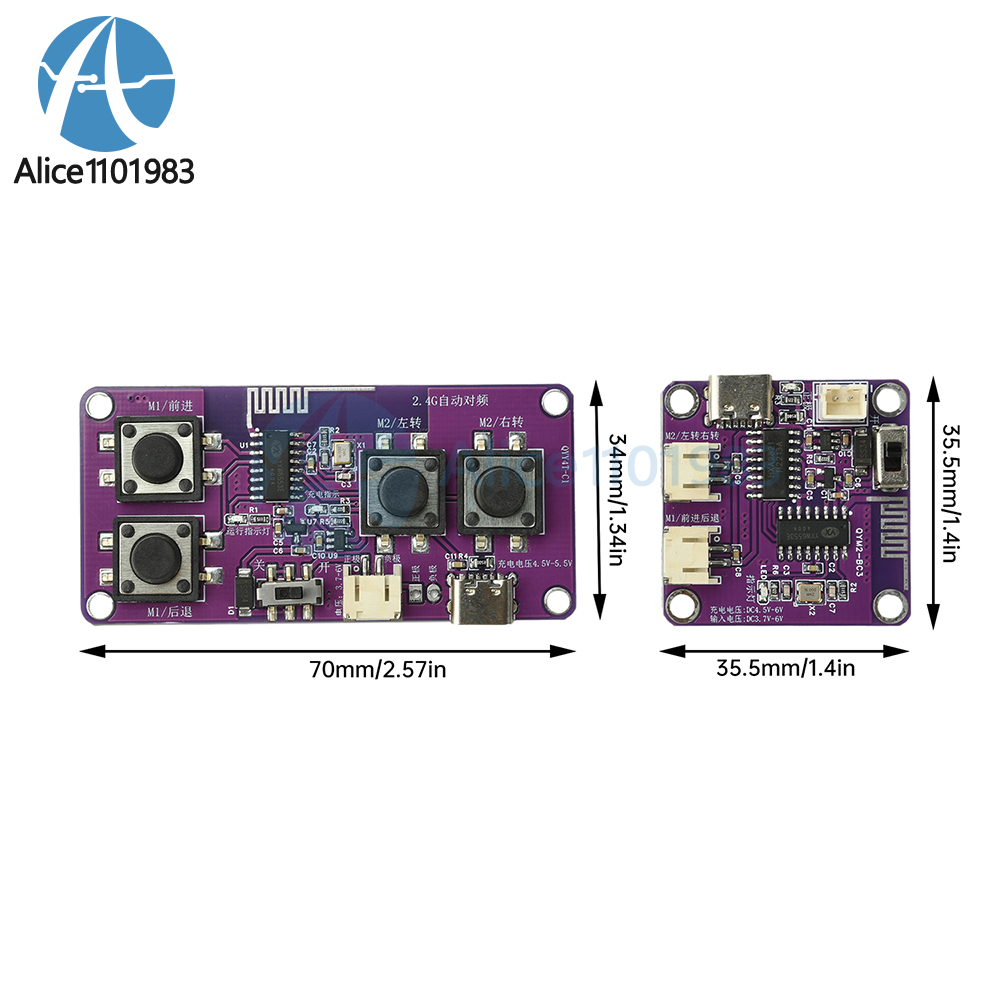

Product Name: 4-Channel Remote Control Kit Receiver
Operating Voltage: DC 3-6V (Receiver)
Operating Voltage: DC 3.7-6V
Power Supply: Supports three or four 1.5V AA or AAA batteries in series, or a single 18650 lithium battery. Does not support dual 18650 lithium batteries or power sources exceeding 6V (risk of circuit chip burnout).
Channel Mode: Independent channels, no interference
Remote Control Range: 100-200 meters

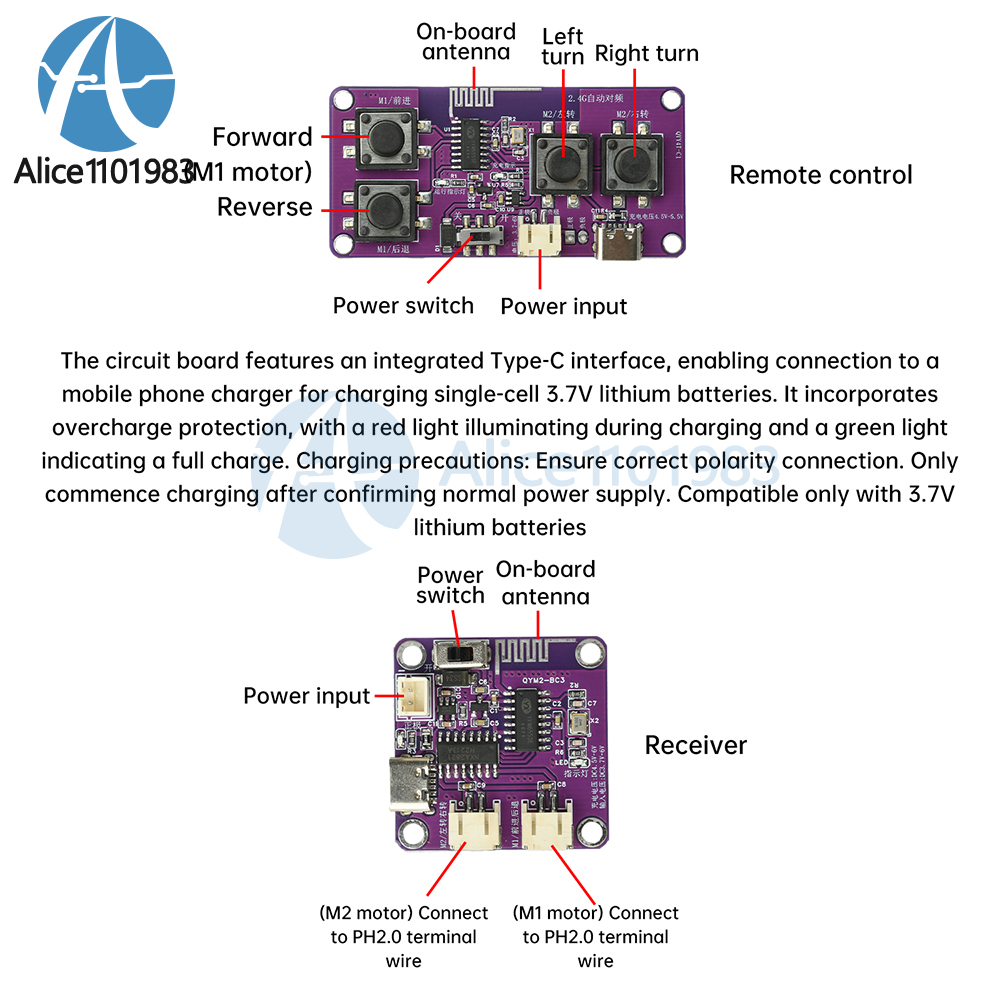

Interface Types:
Power Interface: XH2.0 Female
Motor Interface: PH2.0 Female
Product Usage:
1. When using, first connect the power supply correctly (if using 1.5V AA batteries, use 3 or 4 batteries; 2 batteries provide insufficient voltage).

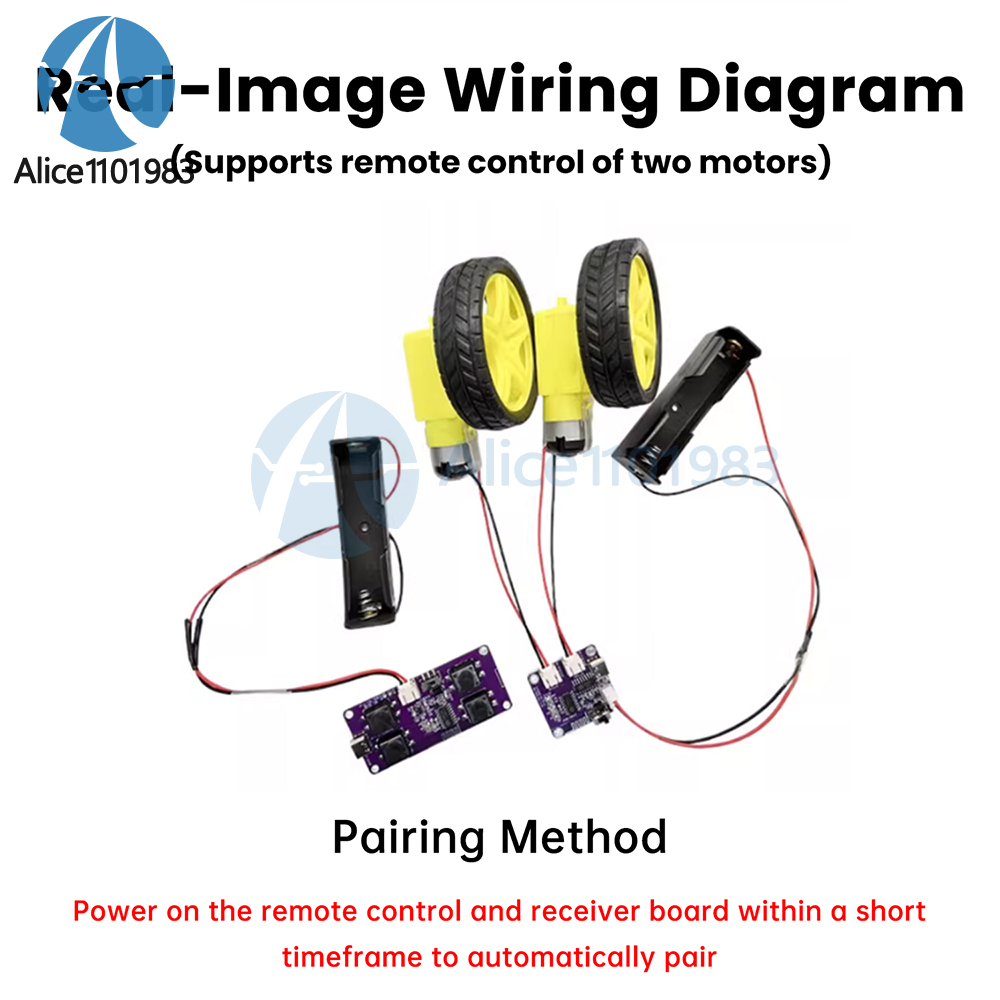

2. Turn on the receiver board switch first, then turn on the remote control board switch within 20 seconds (if both boards are left on for too long, they will enter sleep mode and require restarting).
3. The remote operation indicator will illuminate and flash. Once the modules successfully pair and connect, the operation indicator will automatically turn off.
4. If initial pairing fails, repeat the power cycle operation for both boards.
Package include

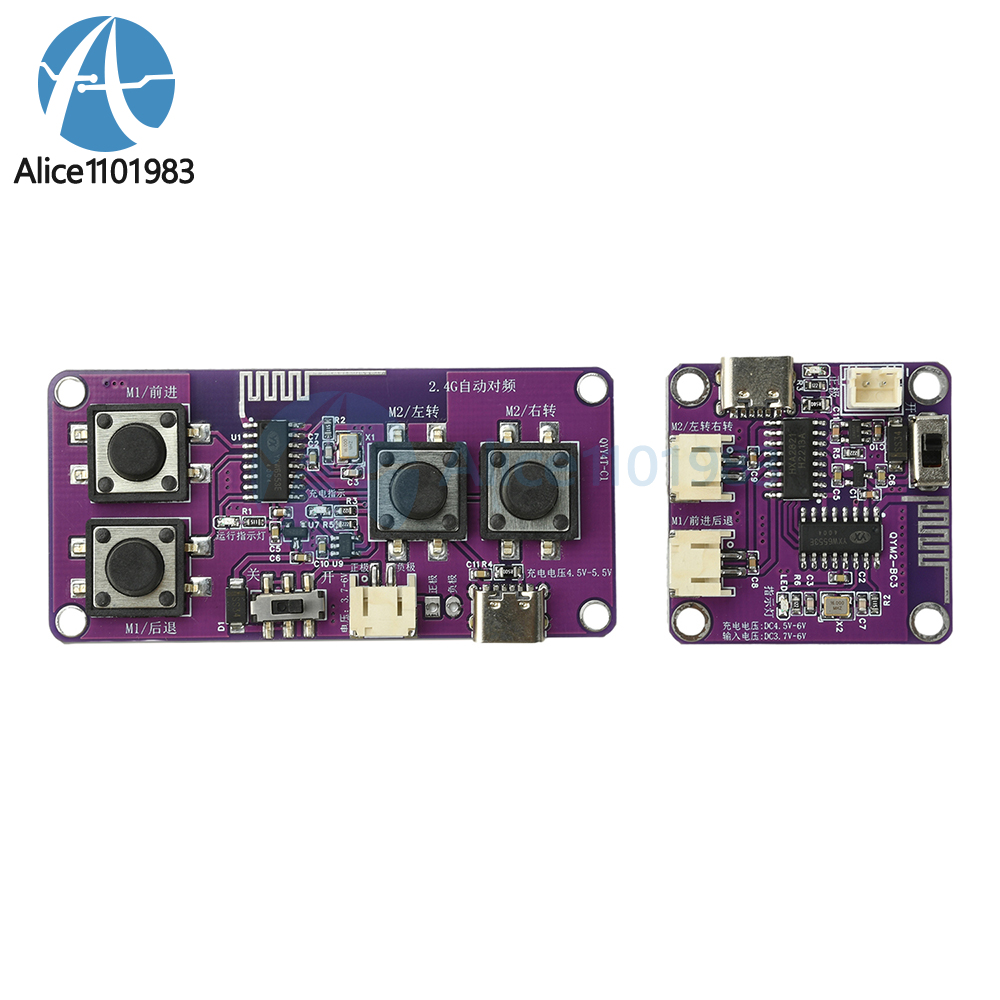

Receiver Board*1
Remote Control Board*1
