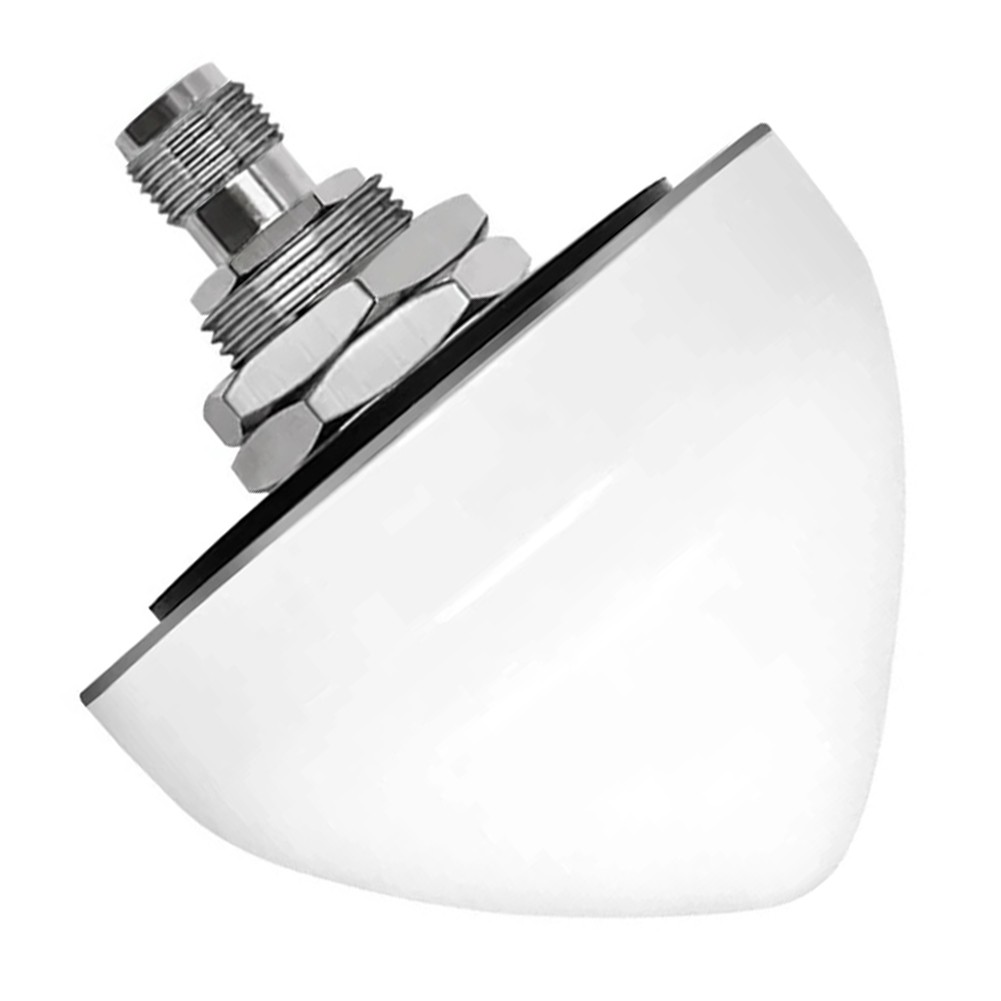

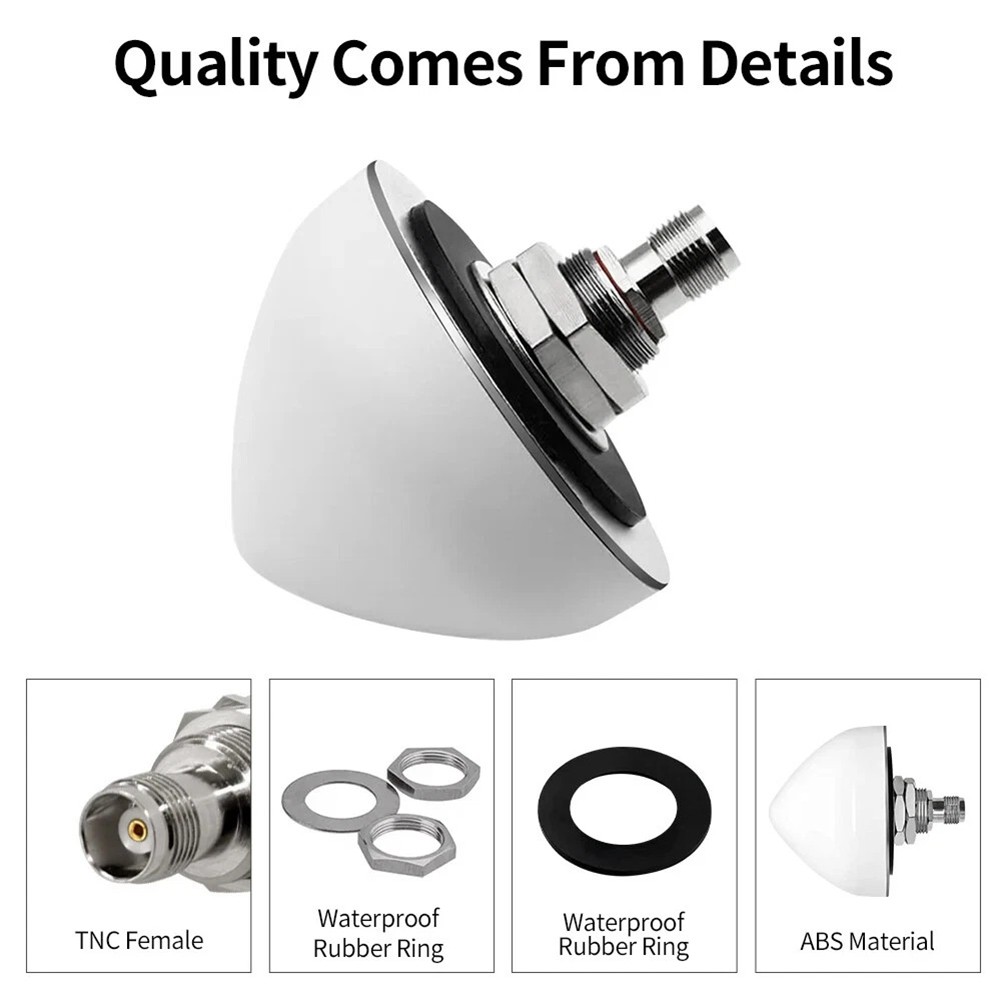

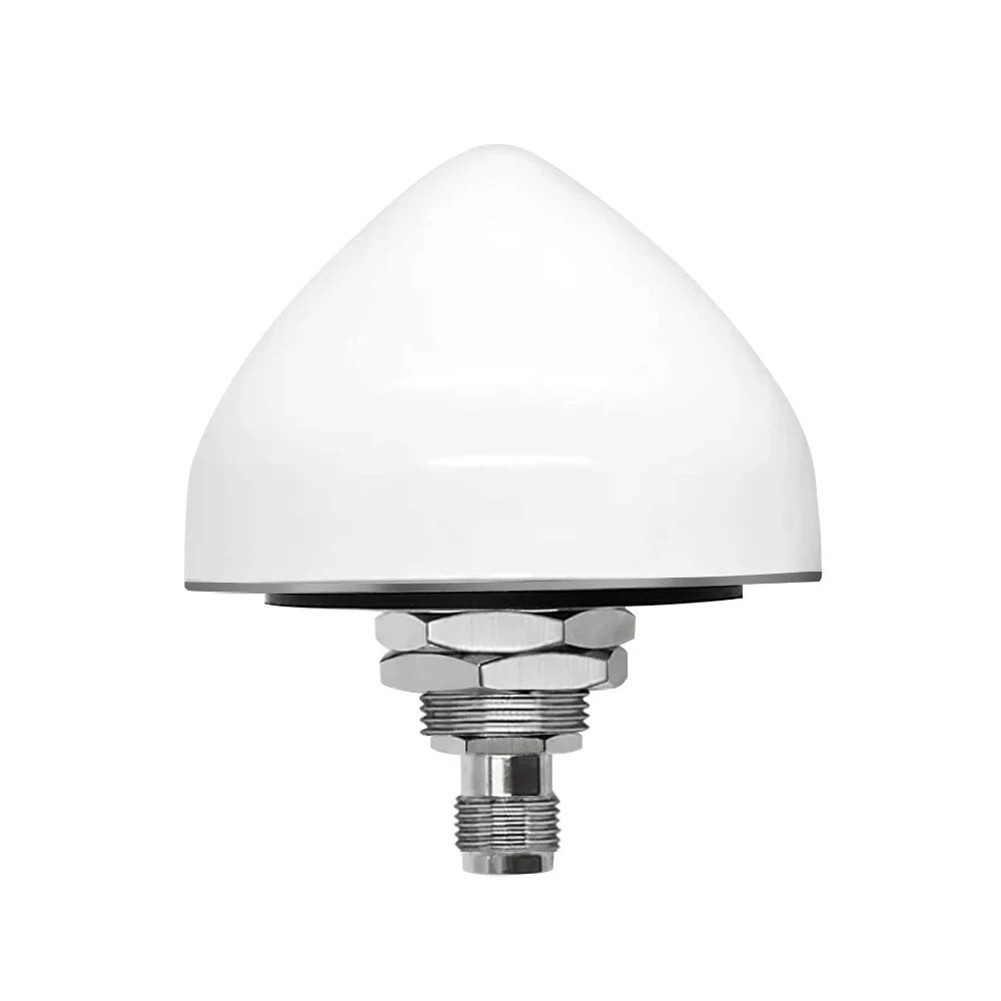

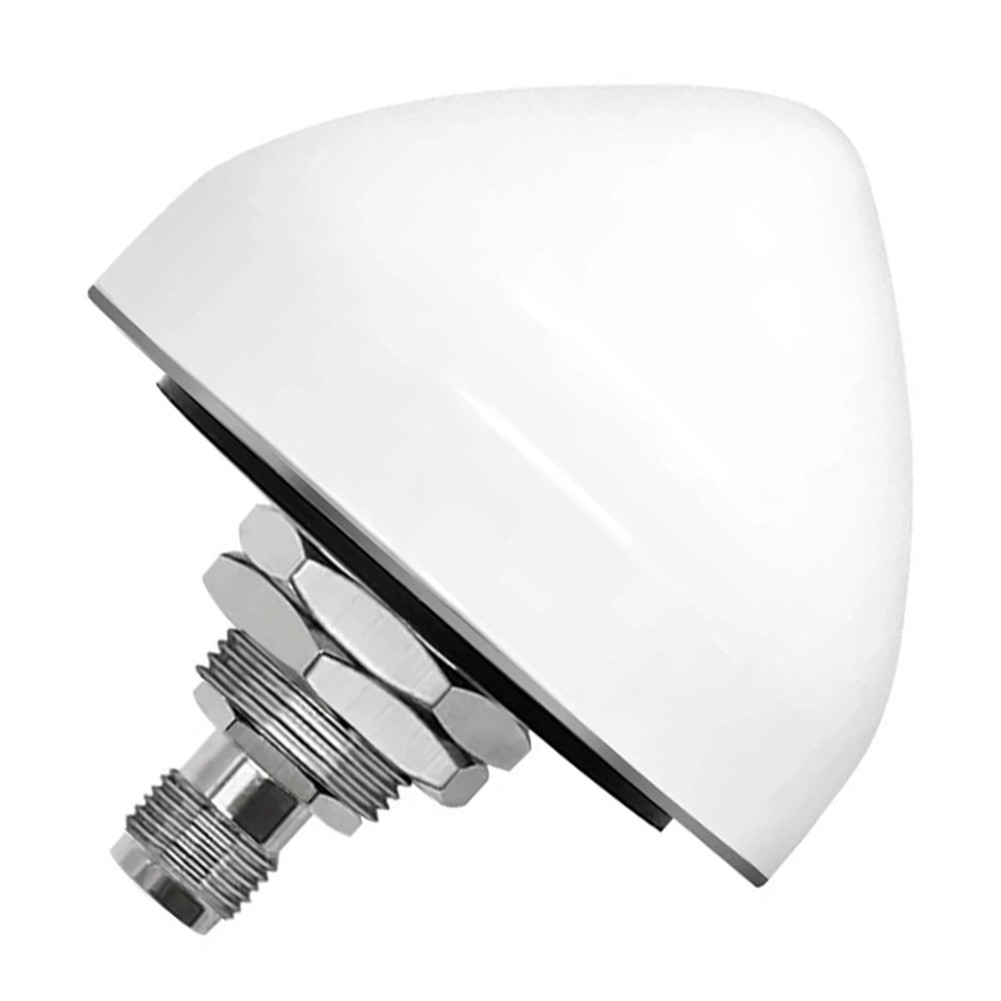

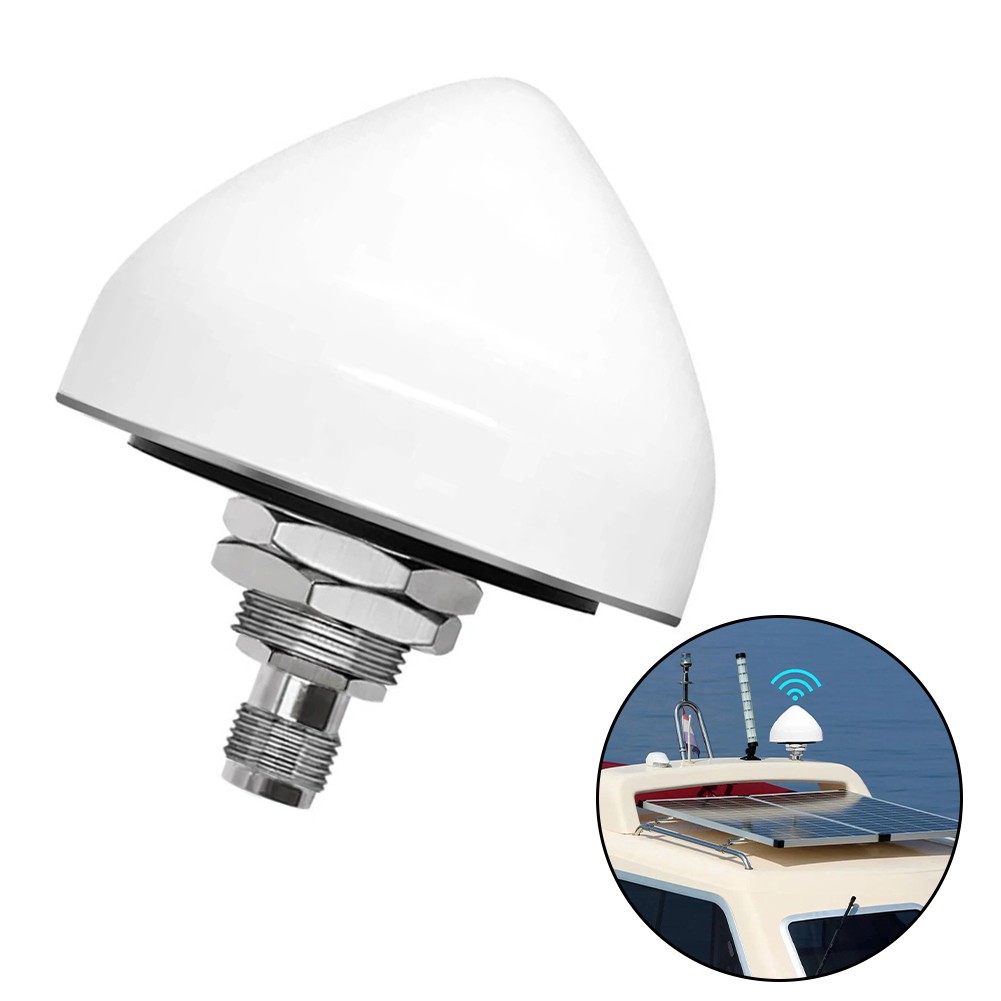

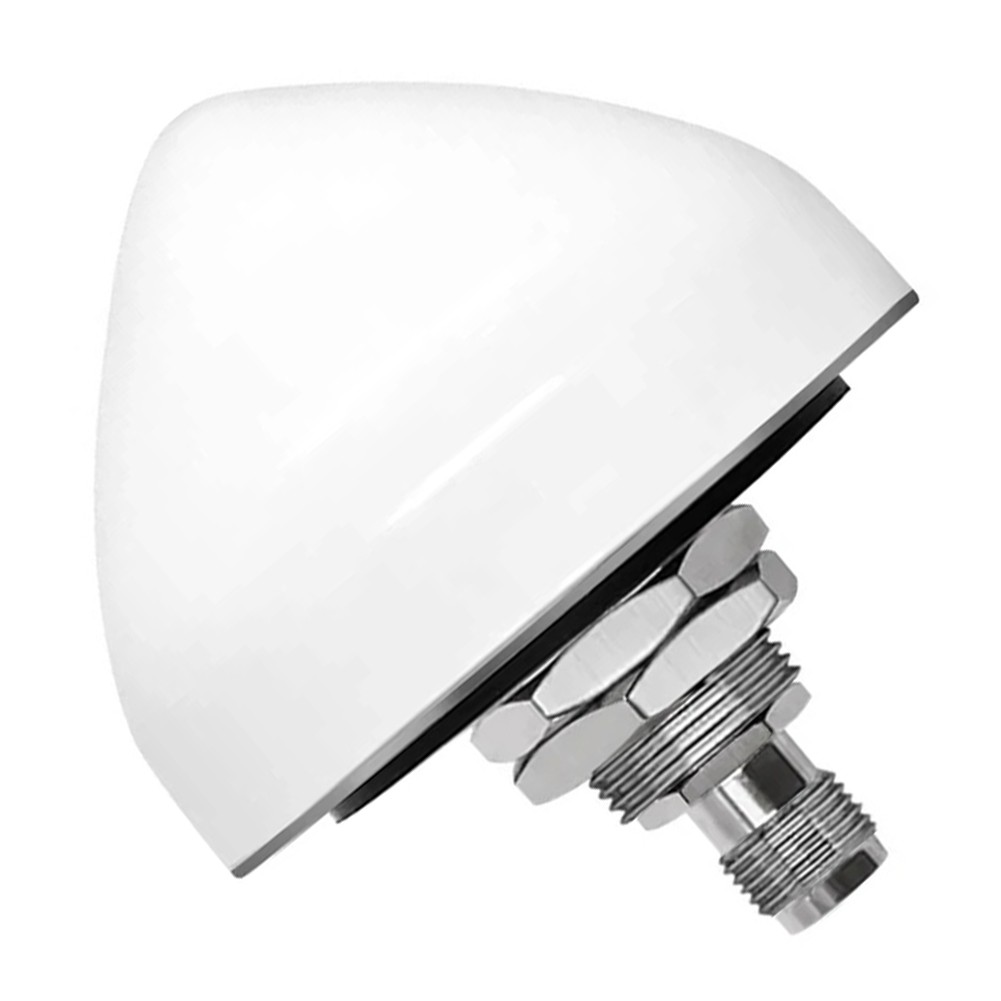

Marine Active GNSS GPS Antenna Waterproof Auto TNC Radio Naviga Car
DESCRIPTION


Features:

* Supports GPS/GLONASS/Beidou systems, captures L1+L5 dual-frequency signals, and maintains ±1-meter positioning accuracy even in complex urban canyons or offshore environments.

* Built-in SAW filters suppress electromagnetic interference, making it suitable for strong electromagnetic environments such as fishing boats, trucks, and construction vehicles, with for zero signal latency.

* Standard TNC interface, compatible with mainstream navigation systems, in-vehicle OBD (on-board navigation device), and devices, with quick 5-second installation.

* Aviation aluminum housing with protection circuitry, capable of continuous operation in extreme temperatures from -40°C to 85°C.

* Compact GPS, Beidou, and GLONASS timing antenna with a small mushroom head, T/TNC, and marine conical satellite positioning.


Specifications:

Part Name: GNSS GPS Antenna

Material: Metal

Color: White

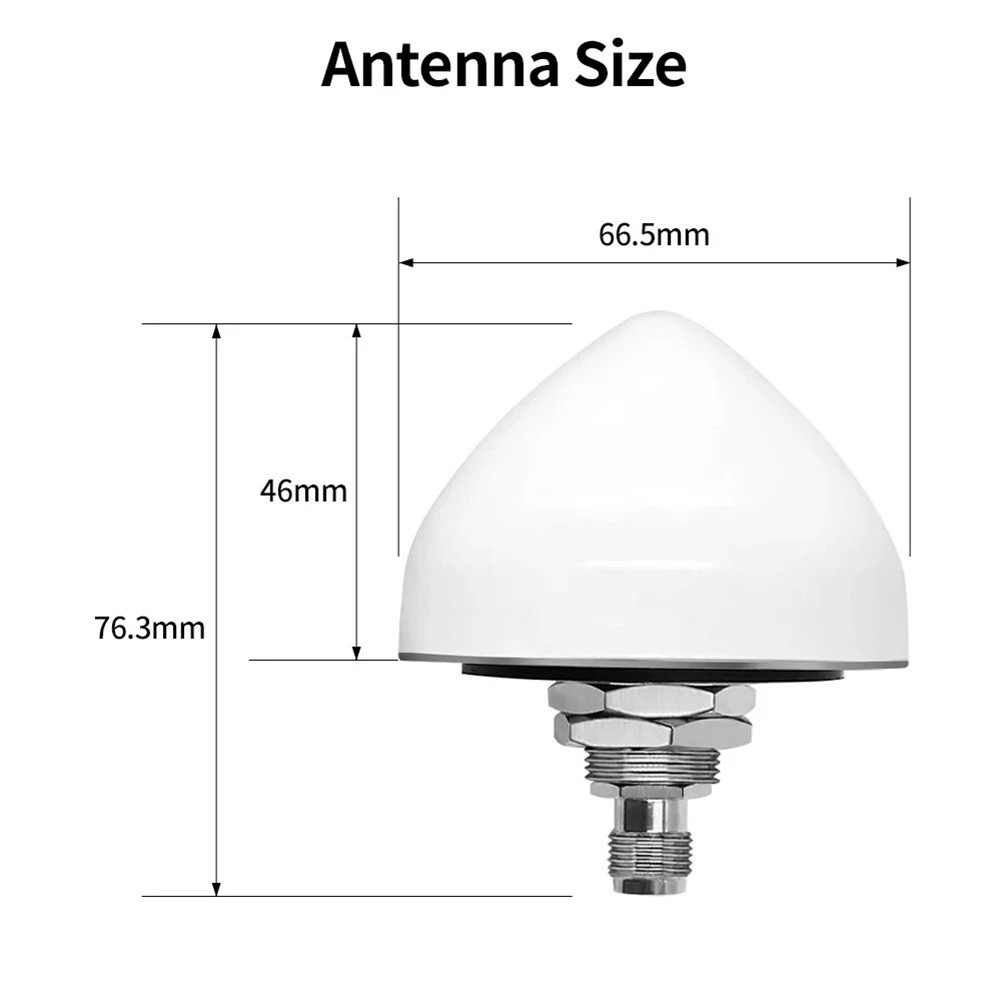

Size: As shown

Operating Frequency: L1/B1/G1

For Vertex Gain: ≥3.5dBi

Polarization: RHCP

Output Impedance: 50ohms

Output VSWR: ≤1.5

Axis Ratio: ≤3dB

Gain: 28±2dBi

Pitch: ≤2

Output VSWR: ≤2

Operating Voltage: 3.3-12VDC

Operating Current: ≤50mA

Connector Type: N/TNC

Waterproof Rating: IP67


Package Contents:

1 x GNSS GPS Antenna


Note：

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
