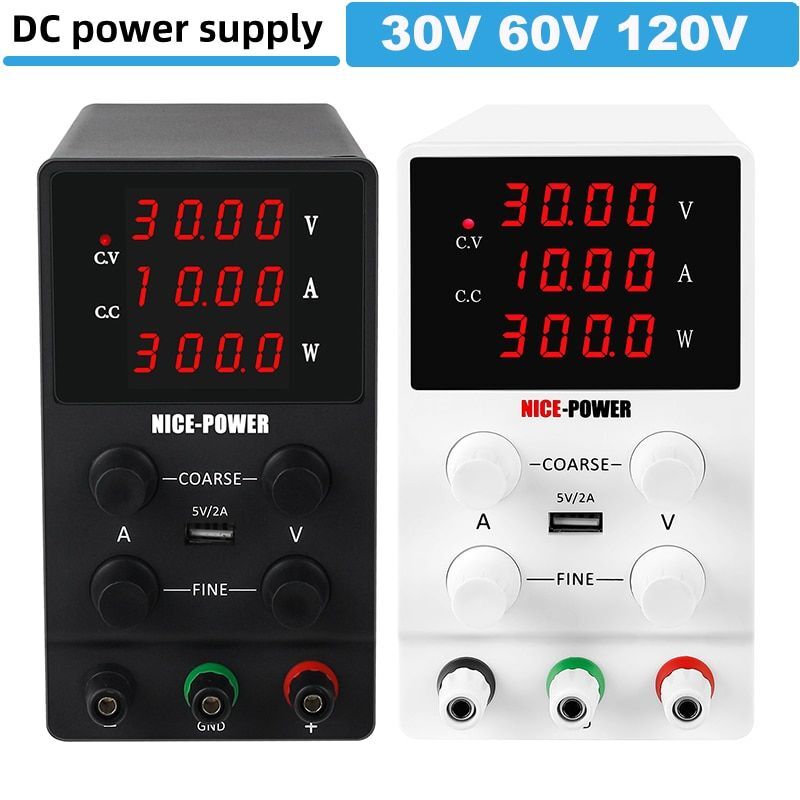

USB DC Regulated Laboratory Power Supply Adjustable 30V 10A 60V 5A Switching 3A

Description:
  • Power Supply Advantage
  • 1.Have complete operating protection function
  • 2.Highly efficient, low ripple, small volume, light weight
  • 3.Double display voltage, current, and high precision
  • 4.Voltage stabilization, current limiting, simple operation
  • 5.Dual voltage input and convenient choice
  • 6.Temperature control fan heat dissipation, low noise
  • 7.Double potentiometer more precise adjustment
  • 8.4Digits Display
  • 9.Adjust voltage and current more accurately
  • More Parameters
  • Input voltage: AC 110V 50HZ or 110V 60HZ
  • Output voltage:0 ~ 30V /60V/120V
  • Output current:0 ~ 10A /5A/3A
  • Voltage resolution:10mV
  • Current resolution:1mA
  • Output Voltage ranges from 0 to rating voltage with continuous adjustment .
  • Voltage regulation : Line regulation<5mV. Load regulation<5mV.
  • Recovery time<500us(50% Load change, minimum load 0.5A)
  • Ripple & Noise<5m Vrms, 100m Vp-p
  • Temperature coefficient<100p pm/C.
  • Output current ranges from 0 to rating current with continuous adjustment
  • Current regulation line regulation<3mA. load regulation<3mA.
  • Indicator Meter
  • Voltage display precision: +-(0.5% of rdg + 2 digits).
  • Current display precision: +-(0.5% of rdg + 2 digits).
  • Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
  • Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
  • Model A : Black / White
  • 30V5A
  • 30V10A
  • 60V5A
  • 120V3A
  • Model B: Black / White
  • 30V10A
  • Model C ： LCD Series Black / White
  • 30V10A
  • Model D: Updated 30V10A, Color screen, multi turn potentiometer
