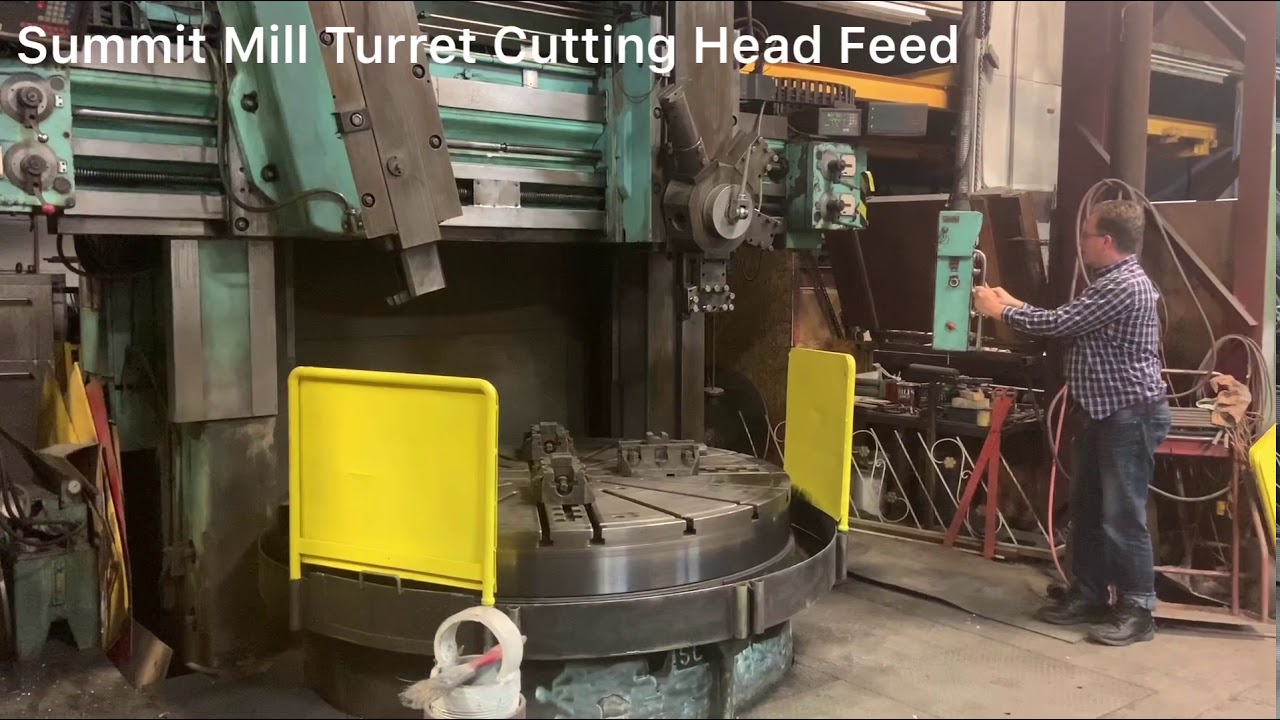

Summit SC2000 78" Vertical Boring Mill
Overview:

Type:

Boring Mills, Vertical, Manual

Brand:

SUMMIT

Model:

SC2000

Year:

1976

Stock #:

30665

specifications:

Table Dia

78.74"

Swing

82.67"

Work Ht-U/R

59.05"

Power

89 hp

RPM

140 RPM

Spec Sheet:

CAPACITY: Table Diameter: 78.74" Maximum Turning Diameter: 82.67" Maximum Height Under Rail: 59.05" Turret Stroke: 30" Ram Stroke: 36" Head Swivel: 35 Degrees Table Speeds: 1.55-140 RPM Feeds: .002-.199 IPR Rapid Feed: 98 IPM Equipped With: Newall Topaz 2-Axis Digital Readout Full Pendant Controls Hydraulic Tracer Left Hand Ram 5-Position Right Hand Turret 89 HP Main Drive Motor NOTE: Inspect in Plant Under Power Features: Newall Topaz 2-Axis Digital Readout Pendant Control Left Hand Ram 5-Position Right Hand Turret

**WE ACCEPT PAYMENT BY WIRE TRANSFER ONLY**

**PLEASE CONTACT US FOR LOCATION & LOADING REQUIREMENTS AS ADDITIONAL LOADING FEES MAY APPLY**

**ALL SHIPPING COSTS ARE BUYERS RESPONSIBILITY**
