Features:

▲ Small punch grinders can operate up to a minimum of 0.5 Φ Grinding of X10L extremely small punching needle, suitable for up to 6 Φ Grinding of diameter, please use PGA for workpieces with diameters above

▲When the outer diameter of the punching needle is small, appropriate pressure adjustments must be made to the pressure adjustment screw on the pressure arm to prevent deformation of the punching needle.

▲ The accuracy of this tool is within 0.003mm

Product parameter

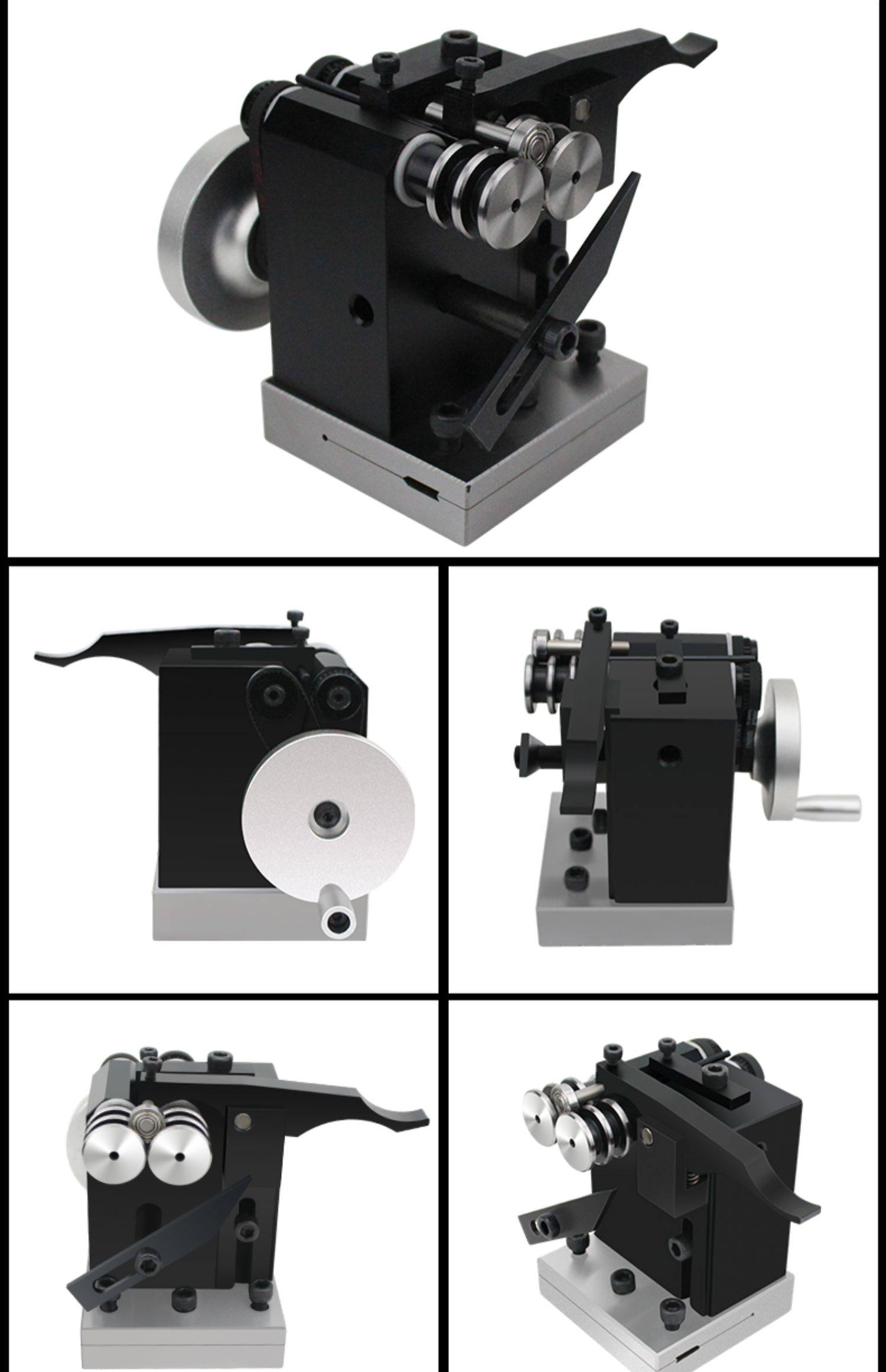

Product Name: Mini Punch Grinder

Roller material: SKS3

Minimum length of roller clamping: 10mm

Roller clamping range diameter: 0.5-10mm

Hardness: HRC60 ° -62 °

Roller clamping accuracy: within 5um

Roller deflection accuracy: within 3um
