Shingled PERC Solar Panel screams modern. Designed using the advanced shingled PERC solar cells, it features cells that are cut into 5 or 6 strips that are overlaid on the roof to form electrical connections. These cells are then joined together using an electrically conductive adhesive (ECA) instead of the usual bus-bars. This way, there is nothing but pure cell in your entire roof area to increase the power you can draw from the sun. At the same time, this type of setup allows for more conductivity and flexibility as well.

Solar panel is also built to reduce the hot spot effect as well as power loss from shadow coverage. You get added efficiency and increased reliability all in a sleek black panel that will look great on any roof.

Improved 15~20% power of output than the traditional panel

By using electrically conductive adhesive (ECA) instead of soldering ribbon, you will get more power from your shingled solar panel


100W Solar panel Specification:

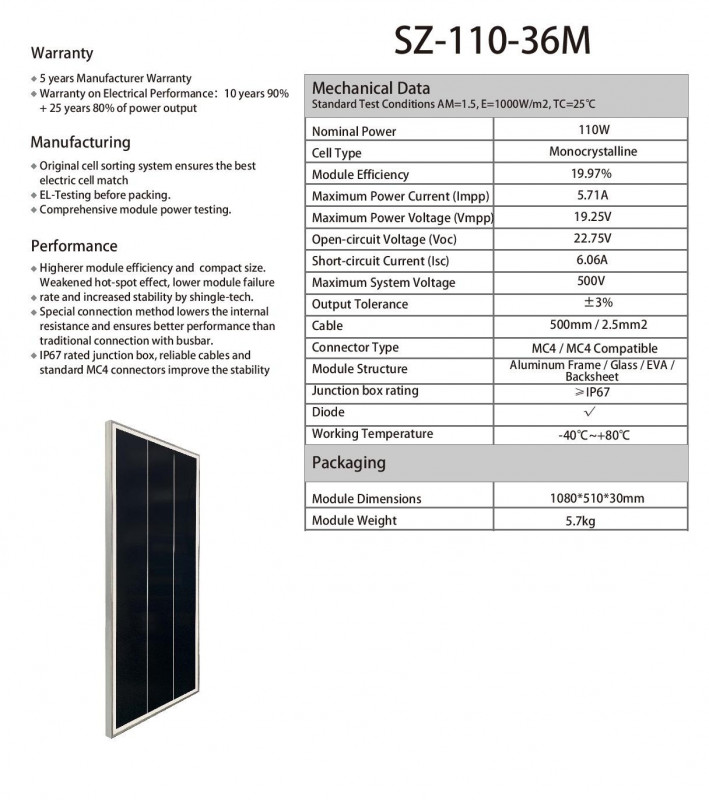

110W solar panel Specification:

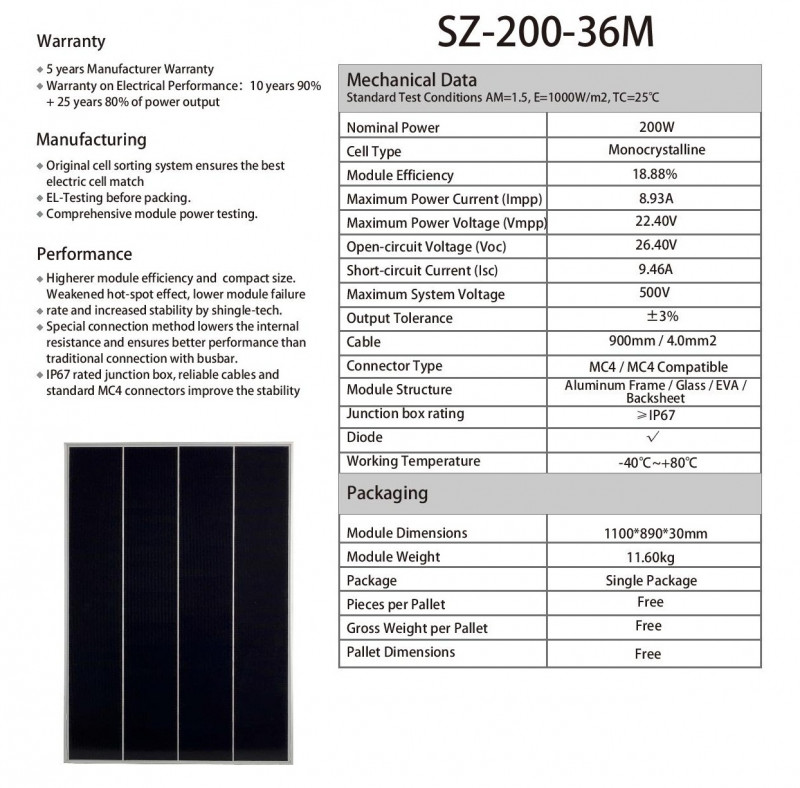

200W solar panel Specification:

xxx

THIS LISTING IS FOR PANELS ONLY. WILL NOT INCLUDE ANY ACCESSORIES.
