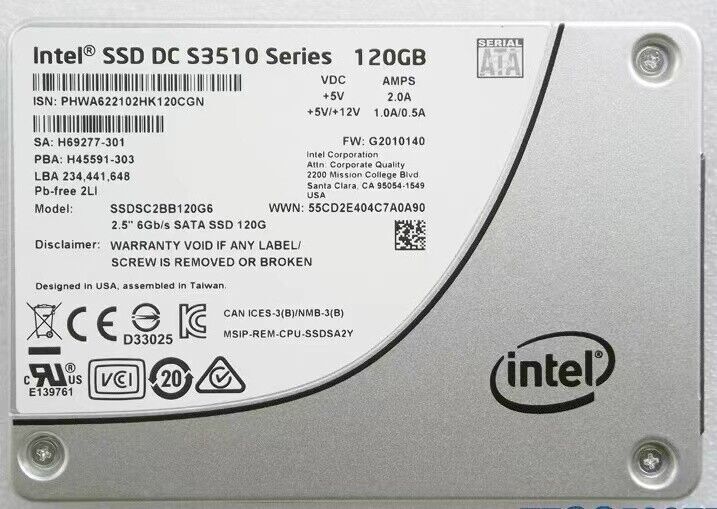

The Intel DC S3510 was a solid-state drive in the 2.5" form factor, launched in May 2015, that is no longer in production. It was available in capacities ranging from 80 GB to 1.6 TB. This page reports specifications for the 120 GB variant. With the rest of the system, the Intel DC S3510 interfaces using a SATA 6 Gbps connection. The SSD controller is the PC29AS21CB0 from Intel. Intel has installed MLC NAND flash on the DC S3510, the flash chips are made by Micron. The DC S3510 is rated for sequential read speeds of up to 475 MB/s and 135 MB/s write; random IO reaches 68K IOPS for read and 5K for writes.
Physical
| Form Factor: | 2.5" |
|---|---|
| Interface: | SATA 6 Gbps |
| Protocol: | AHCI |
| Power Draw: | 0.60 W (Idle) 2.4 W (Avg) 3.5 W (Max) |
Performance
| Sequential Read: | 475 MB/s |
|---|---|
| Sequential Write: | 135 MB/s |
| Random Read: | 68,000 IOPS |
| Random Write: | 5,300 IOPS |
| Endurance: | 70 TBW |
| Warranty: | 1 Year |
| MTBF: | 2.0 Million Hours |
| Drive Writes Per Day (DWPD): | 0.3 |
Package includes:

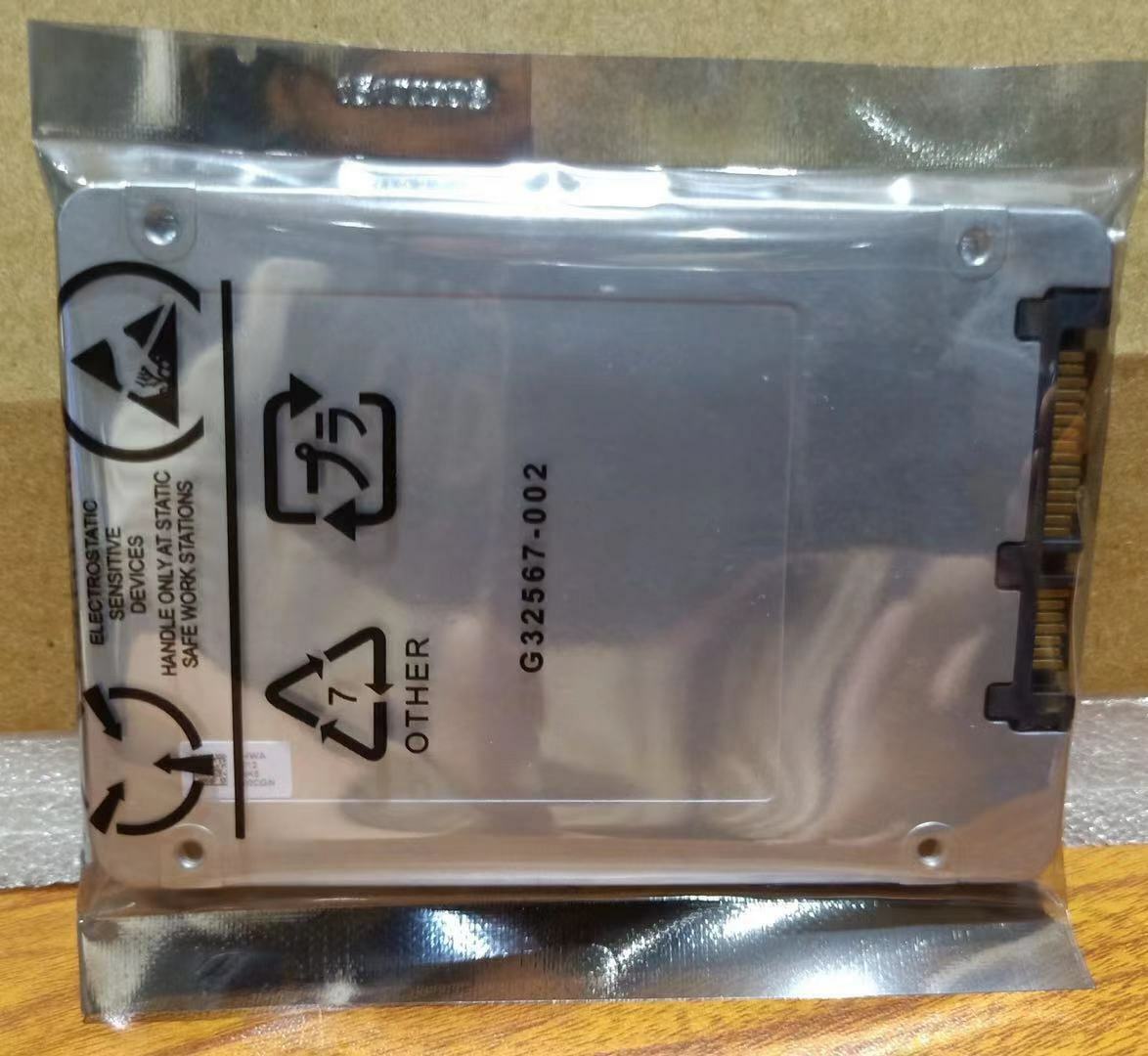

1x Intel S3510 120GB 2.5" SATA SSD
