12V Infrared Safety Beam Detector with Relay Output for Garage Door Use
DESCRIPTION


Features:

* Anti-glare up to 50,000 LUX, with a built-in automatic glare filter system to prevent the effects of headlights and car lighting.

* Weather-sealed, rainproof, fogproof, integrated design allows for operation in harsh environments.

* Detector automatically increases sensitivity in foggy or inclement weather (AGC circuit)

* Highlevel RFI/EMI immunity

* Unique digital filter circuit design

* High-power transmitter, 90% sensitivity range; high-power infrared receiver inside the tube, low-power processing technology; radiation-proof circuit design

* Rainproof cover design

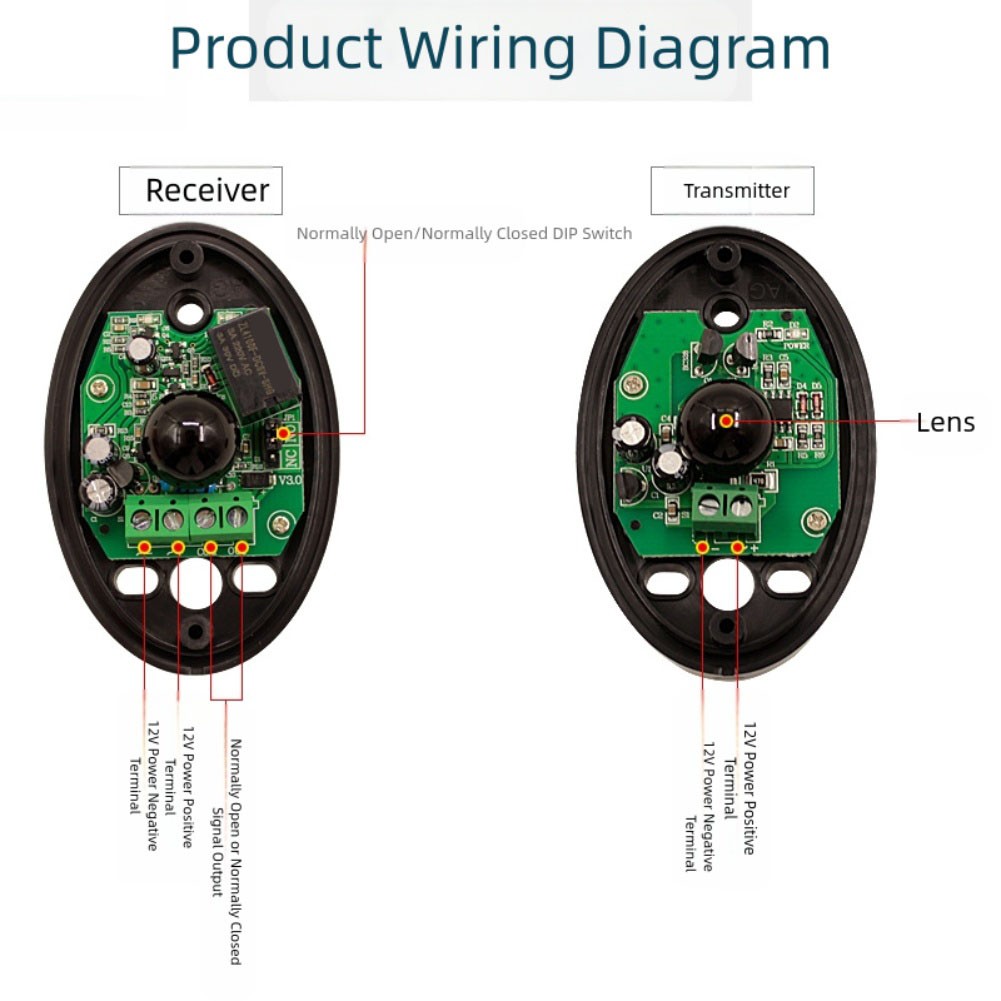

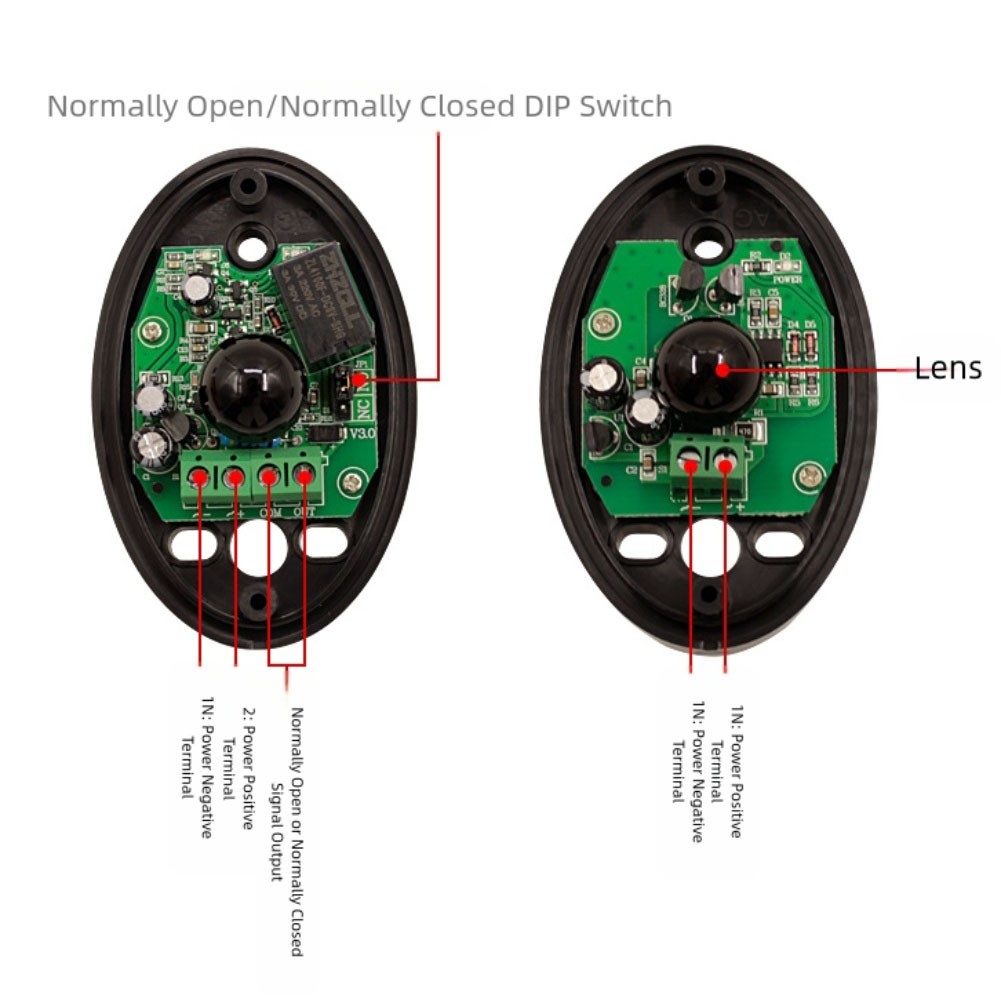

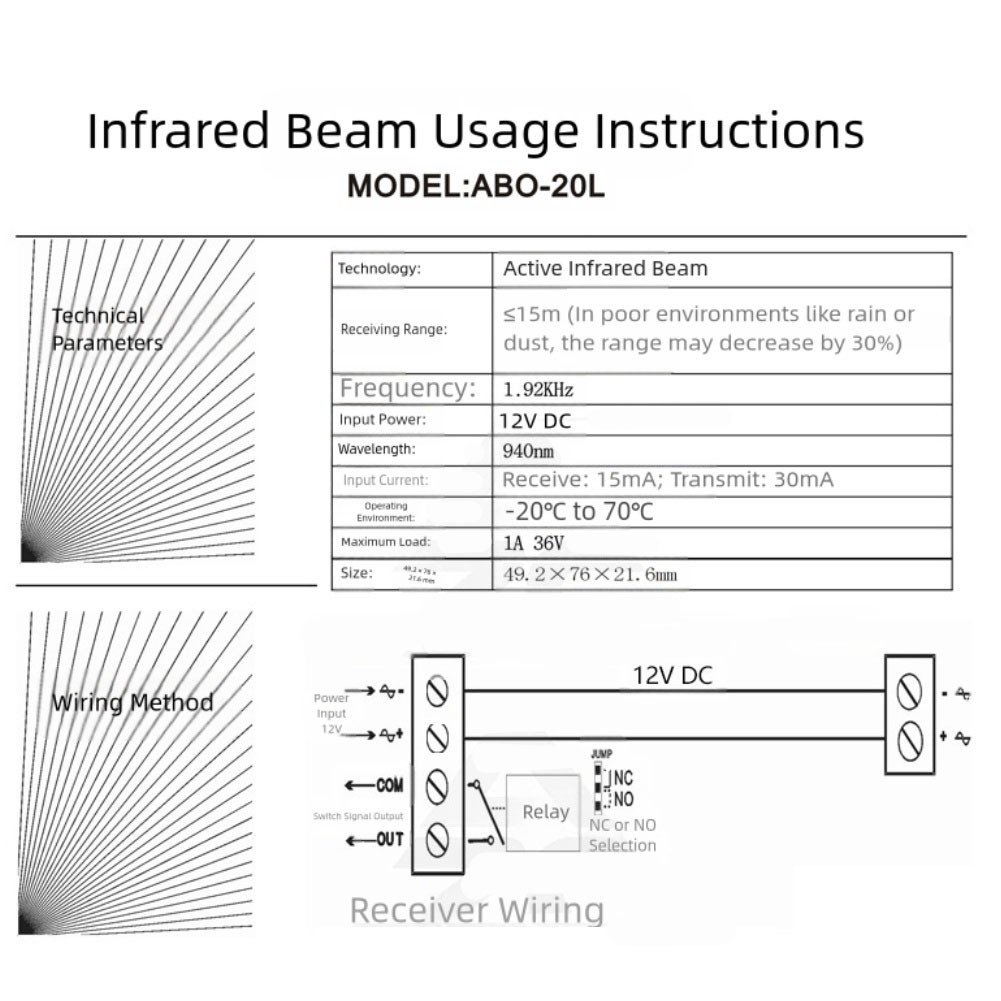

* Relay output type C

* Adjustable beam interruption time for greater flexibility and adaptability

* Professional anti-interference optical cover


Specifications:

Part Name: Infrared Safety Beam Photoelectric Detector

Material: PC

Color: Black

size: 76*48mm

* Product Model: ABO-20L

* External guard distance: 20 meters

* Indoor alarm distance: 30 meters

* Detection speed: 30 milliseconds

* Alarm output - Normal: N-Cand NO ratings: AV / DC 30 V / 0.5 mA

* Alarm linkage: Yes

*Operating voltage: DC12-24V


Package contents:

1* Infrared safety beam photoelectric detector


Note:

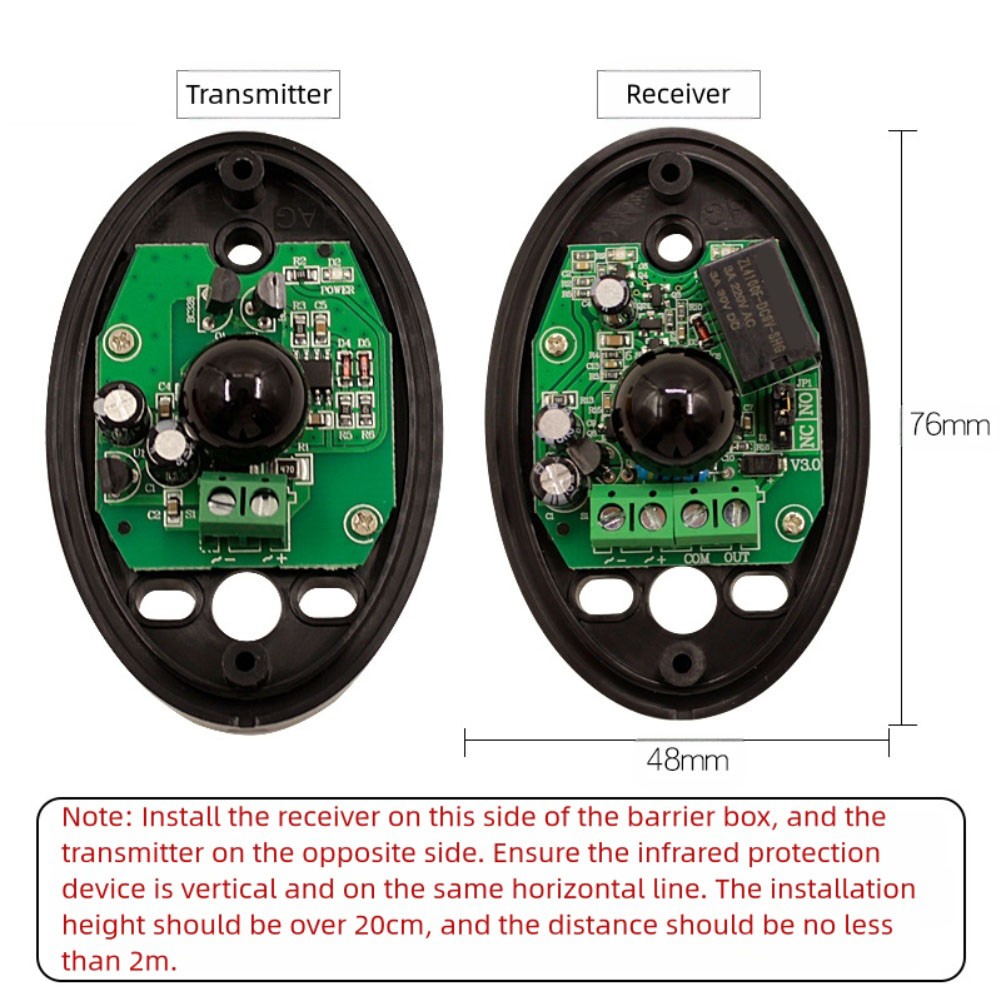

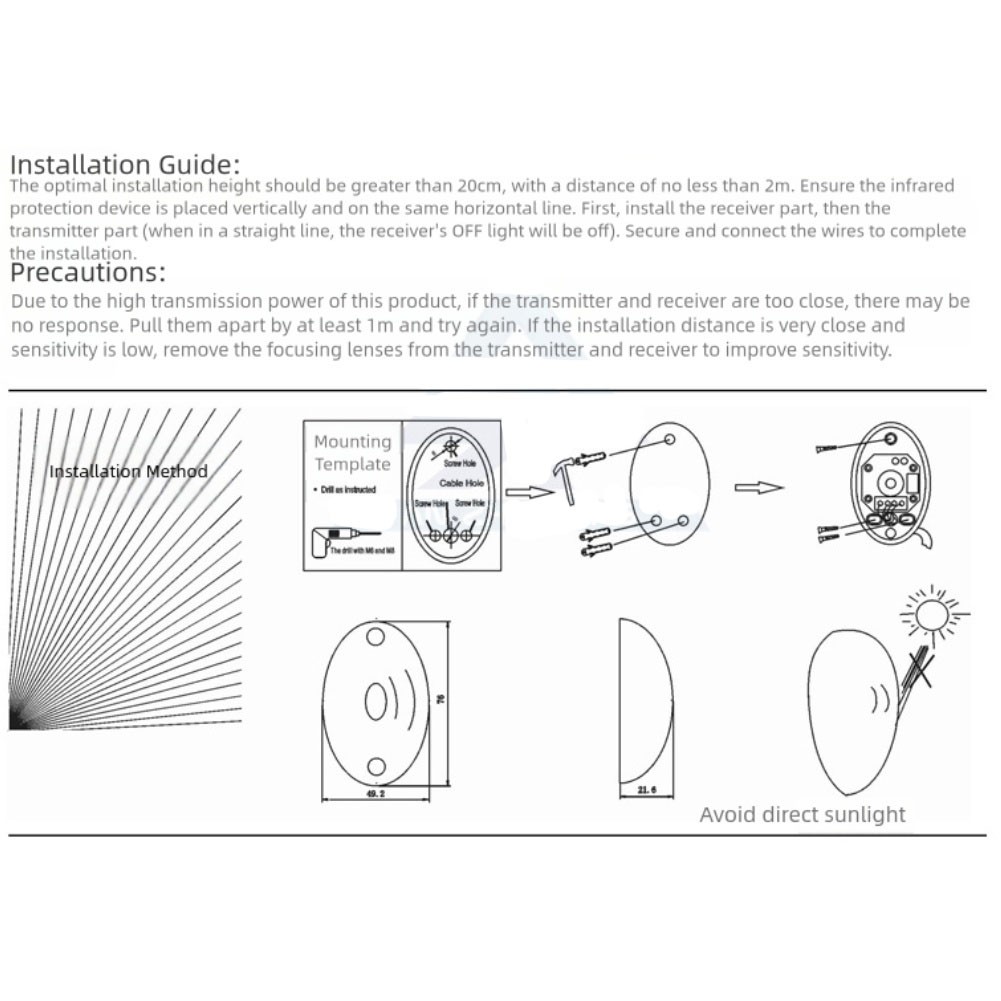

The receiver is installed on 1 end of the barrier enclosure, and the transmitter on the opposite side. When installing, for ensure the infrared for protection device is vertical and on the same horizontal line.
