Adjustable Height Coilovers for Mitsubishi Lancer CS6A 2002-2006 FWD Models








Introduction



MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),  which offer you a lowered stance, and improved performance for your daily use vehicle.

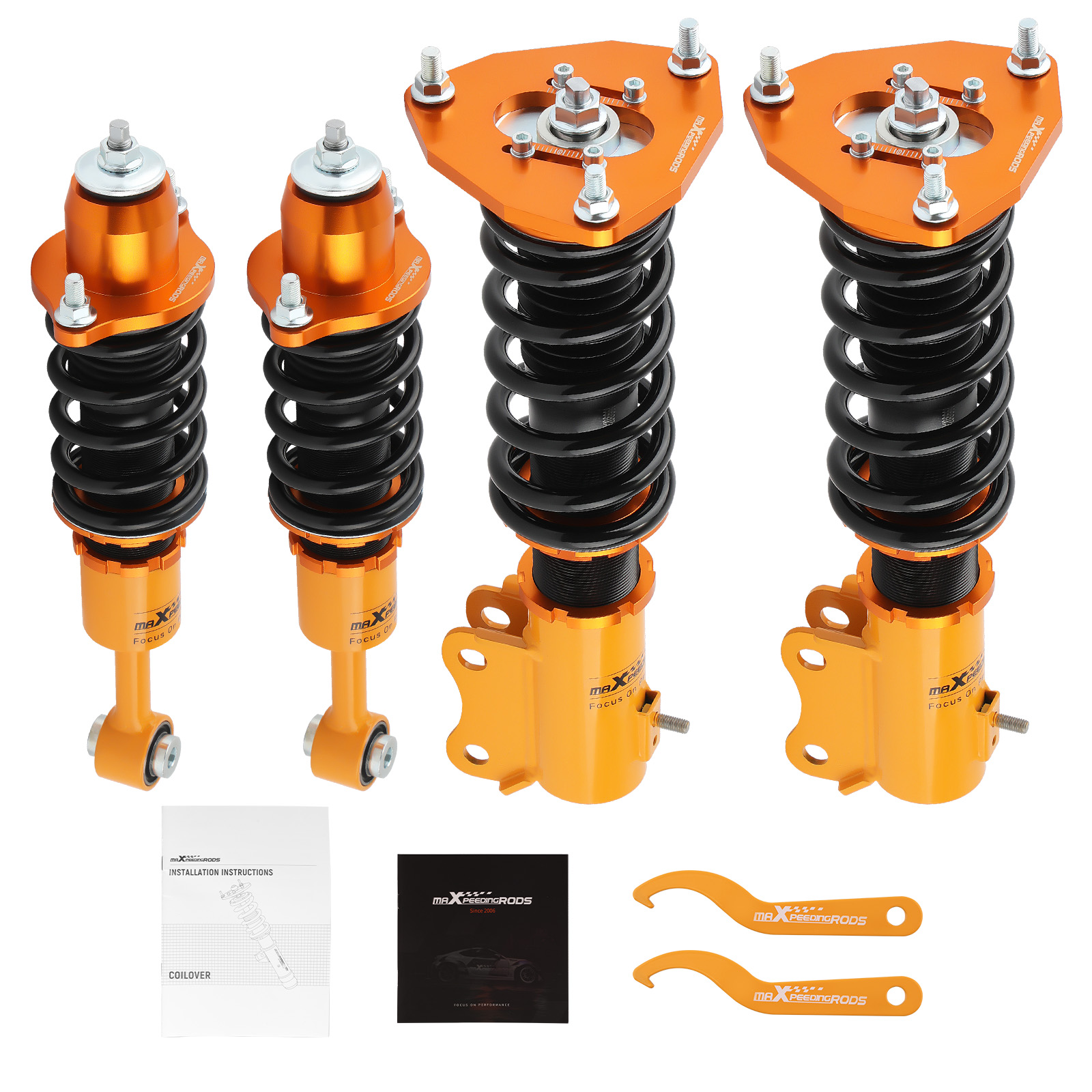

Package included

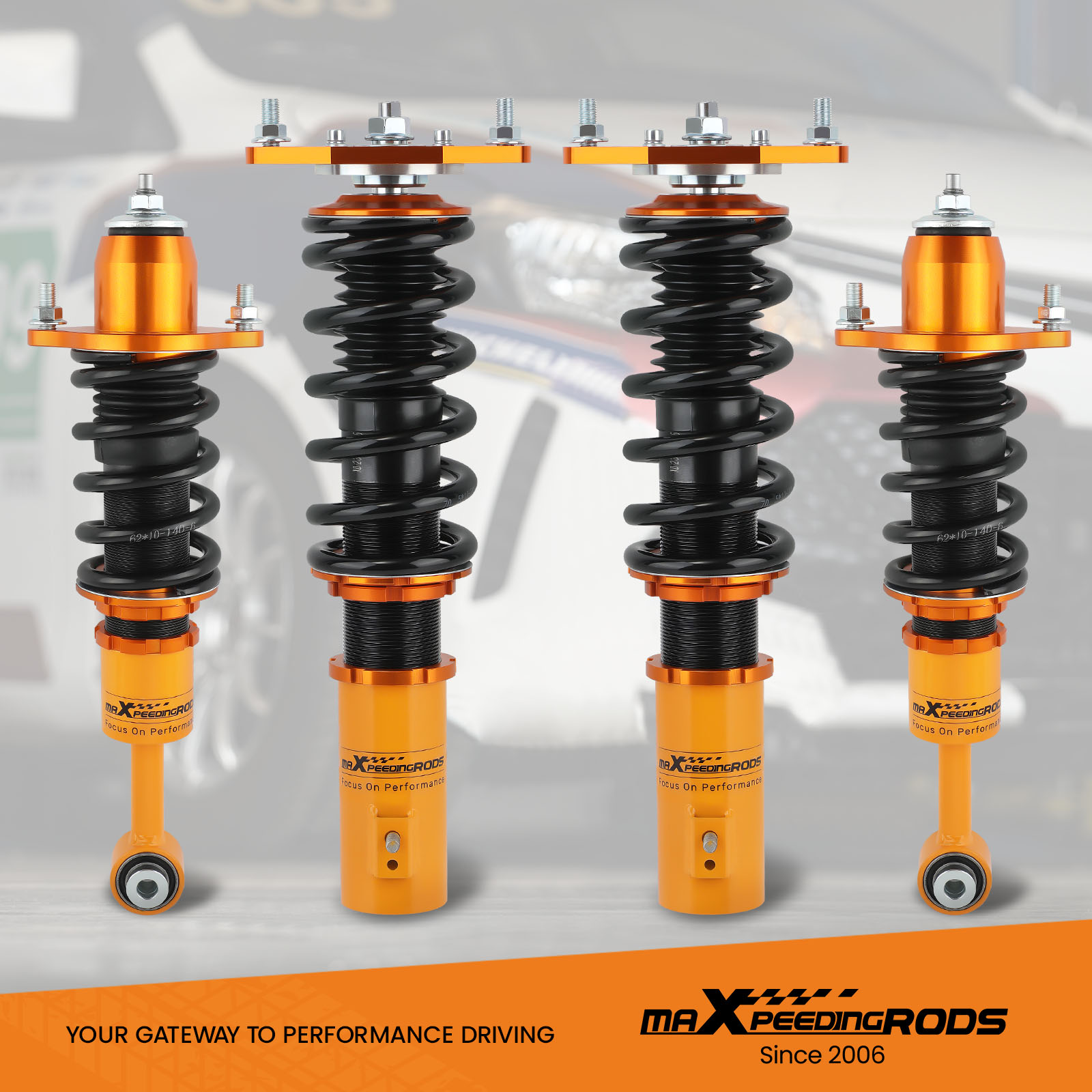

  • 2x Front coil-overs
  • 2x Rear coil-overs
  • 1x Allen wrench
  • 2x C spanners



Application

For MITSUBISHI LANCER ES CS6A FWD 2002-2006

For MITSUBISHI LANCER OZ CS6A FWD 2002-2006

For MITSUBISHI LANCER RALLIART CS7A FWD 2004-2006

Standard Technical Specifications


Top mount Front and rear rubber
Damping adjustable Not available
Camber adjustable Not available
Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Shock structure type twin -tube
Spring length Front 200 mm
Spring length Rear 140 mm
Spring rate Front 7 kg/mm (392 lbs/in)
Spring rate Rear 6 kg/mm (336 lbs/in)
Spring Preload advised 7-10 mm





















































Feature

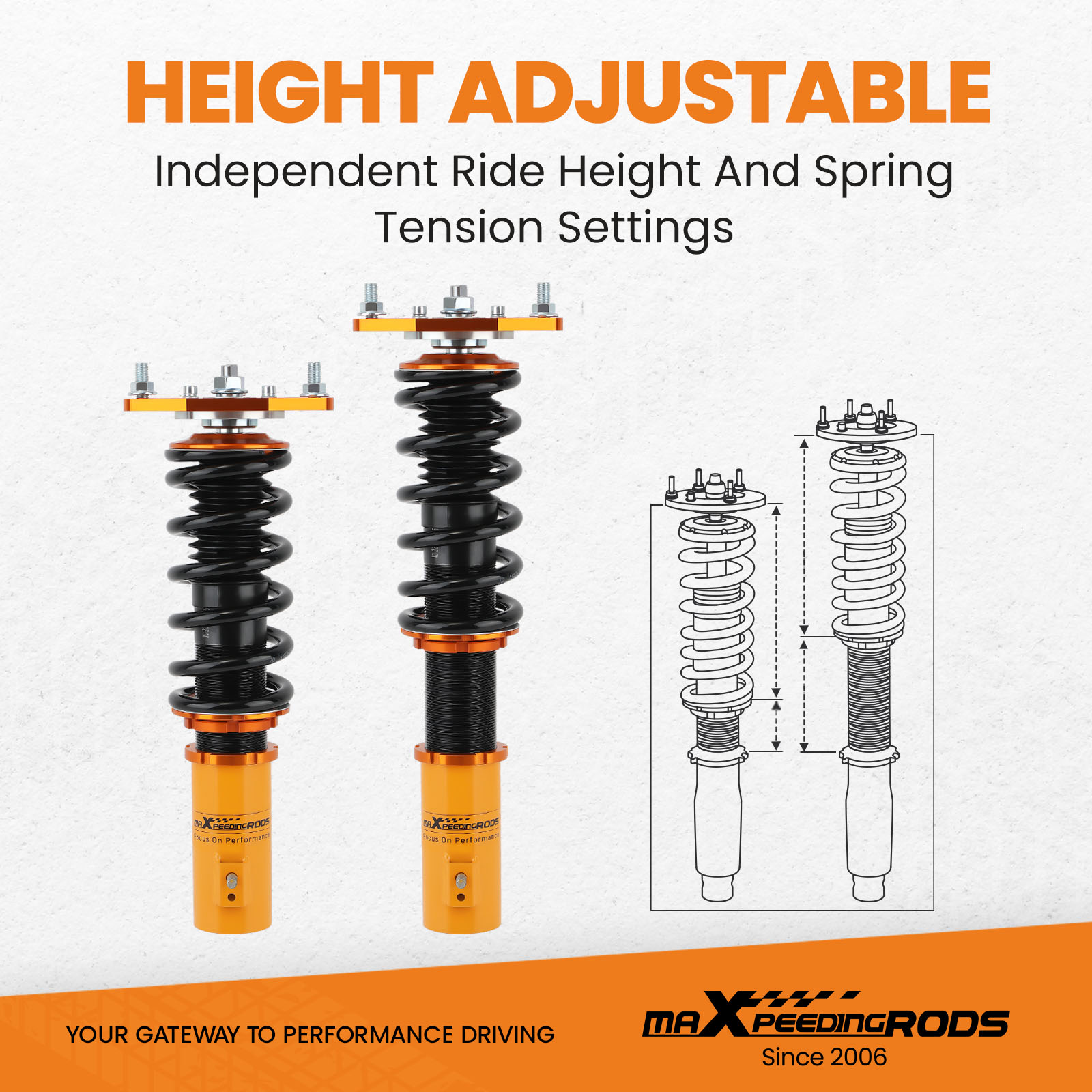

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

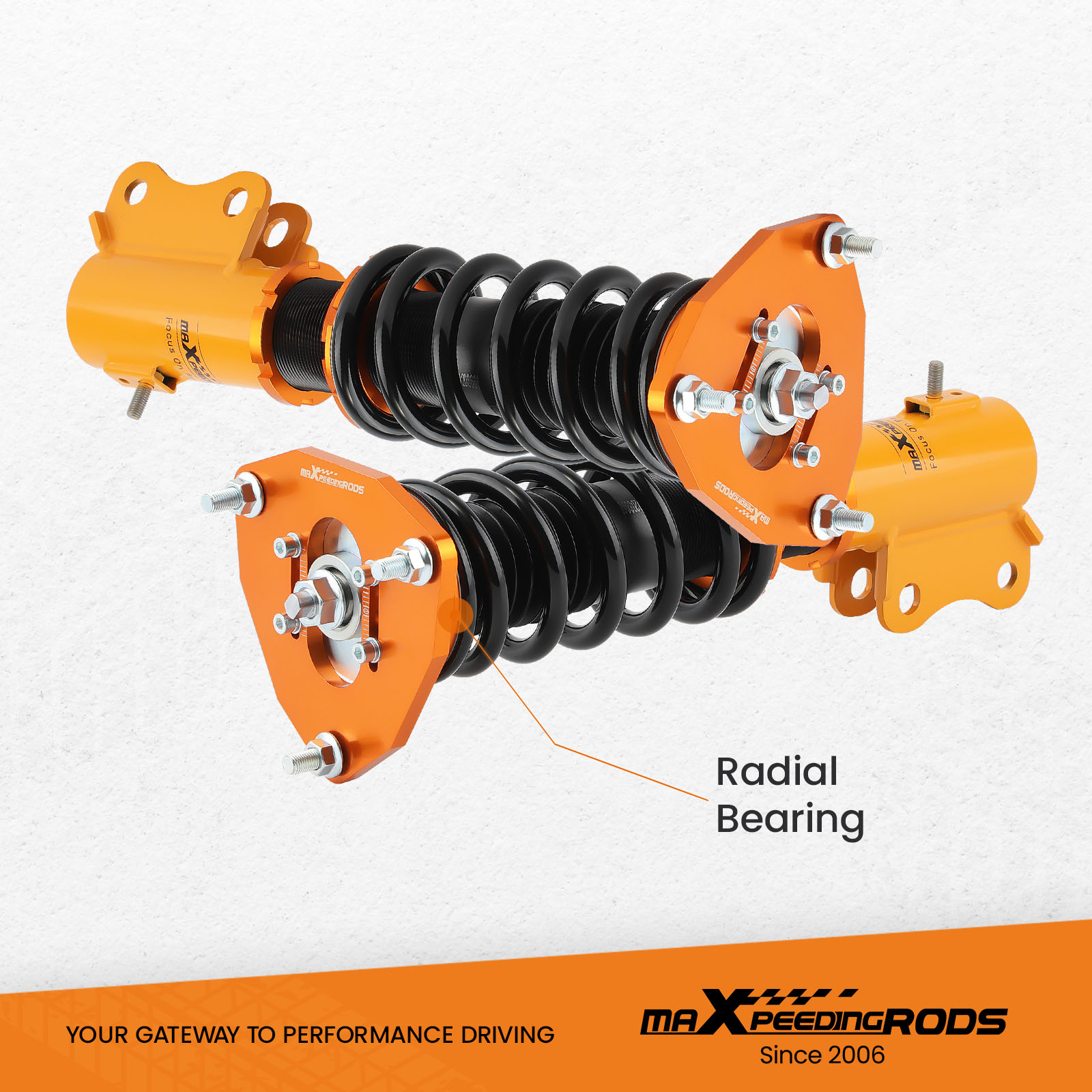

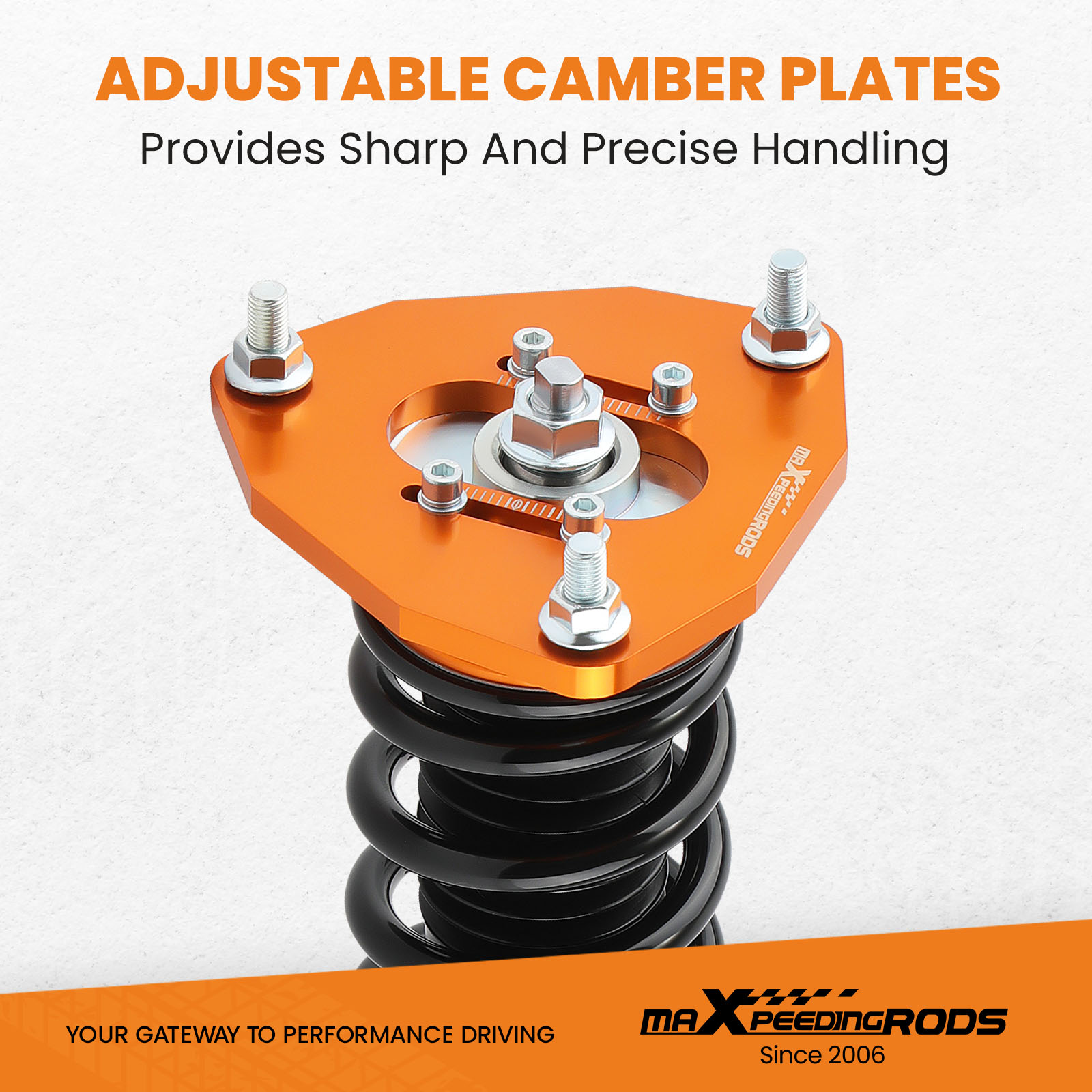

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

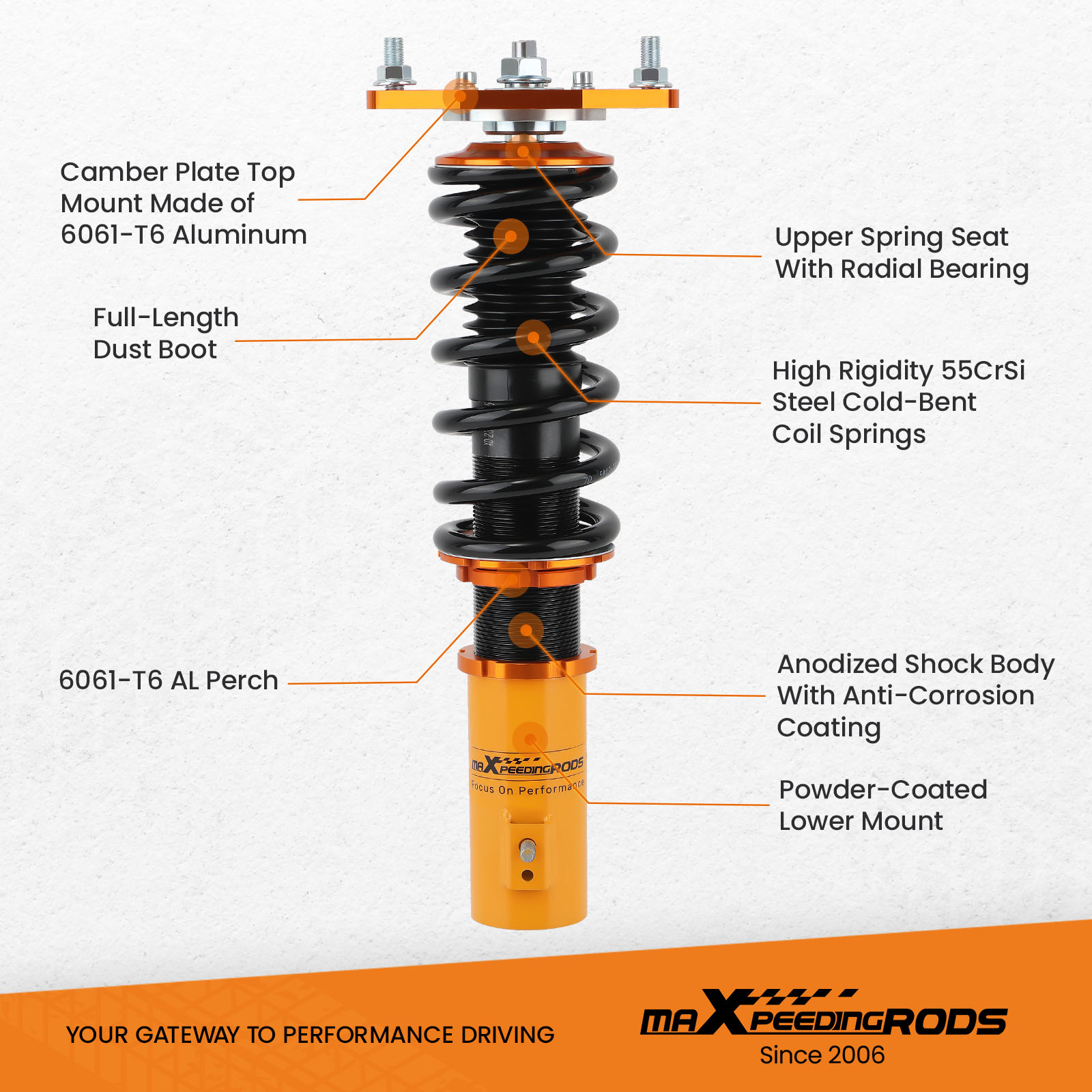

4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

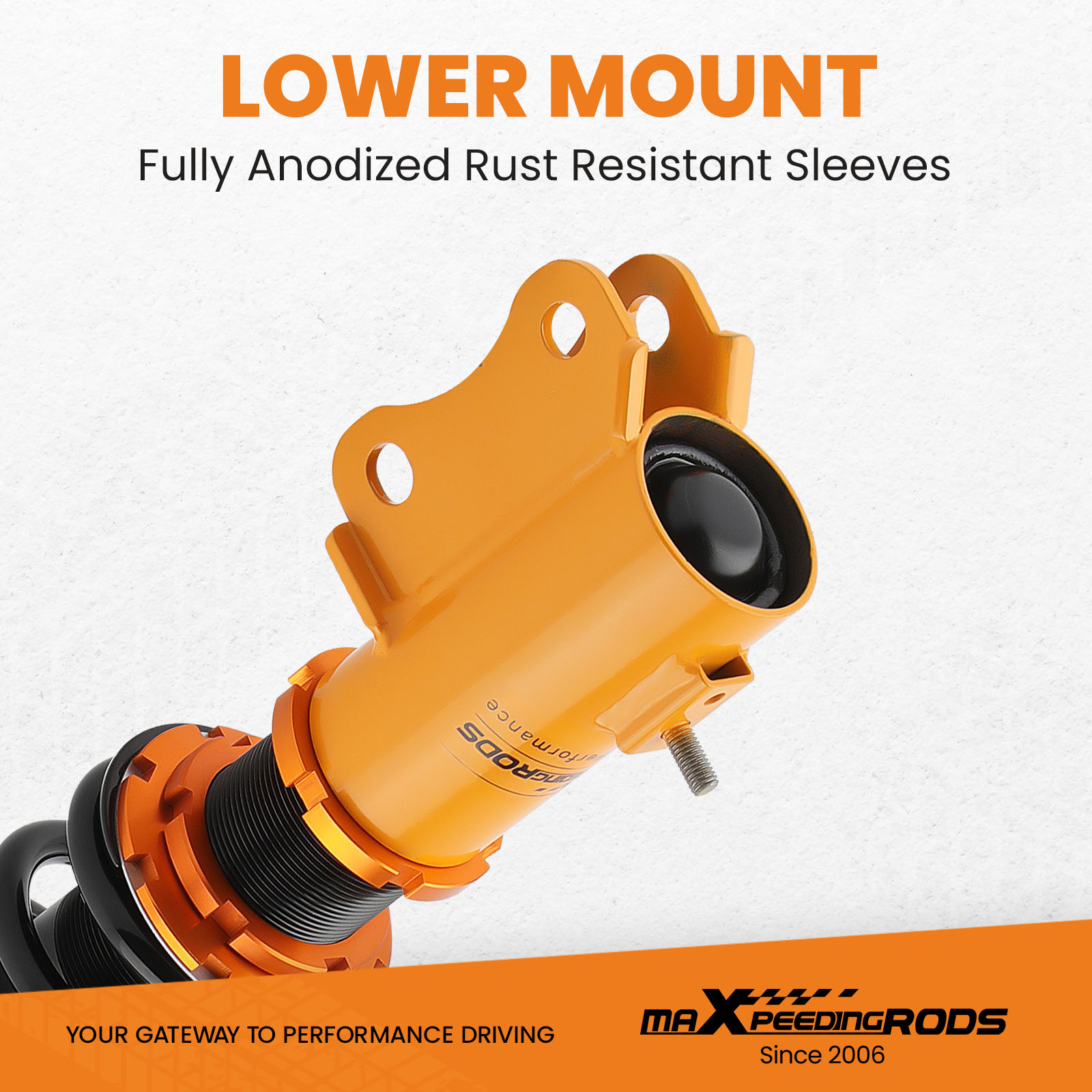

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
